Product Description

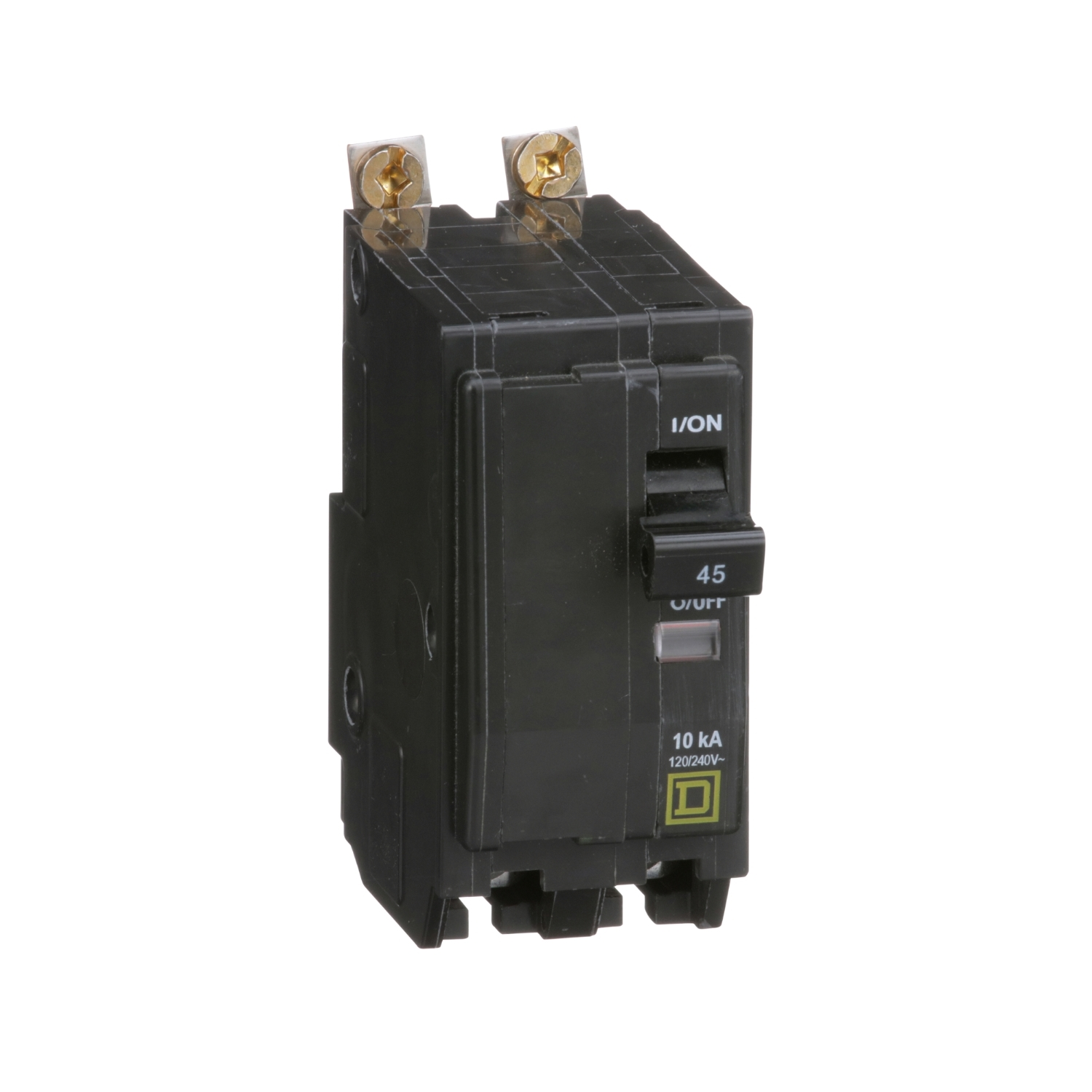

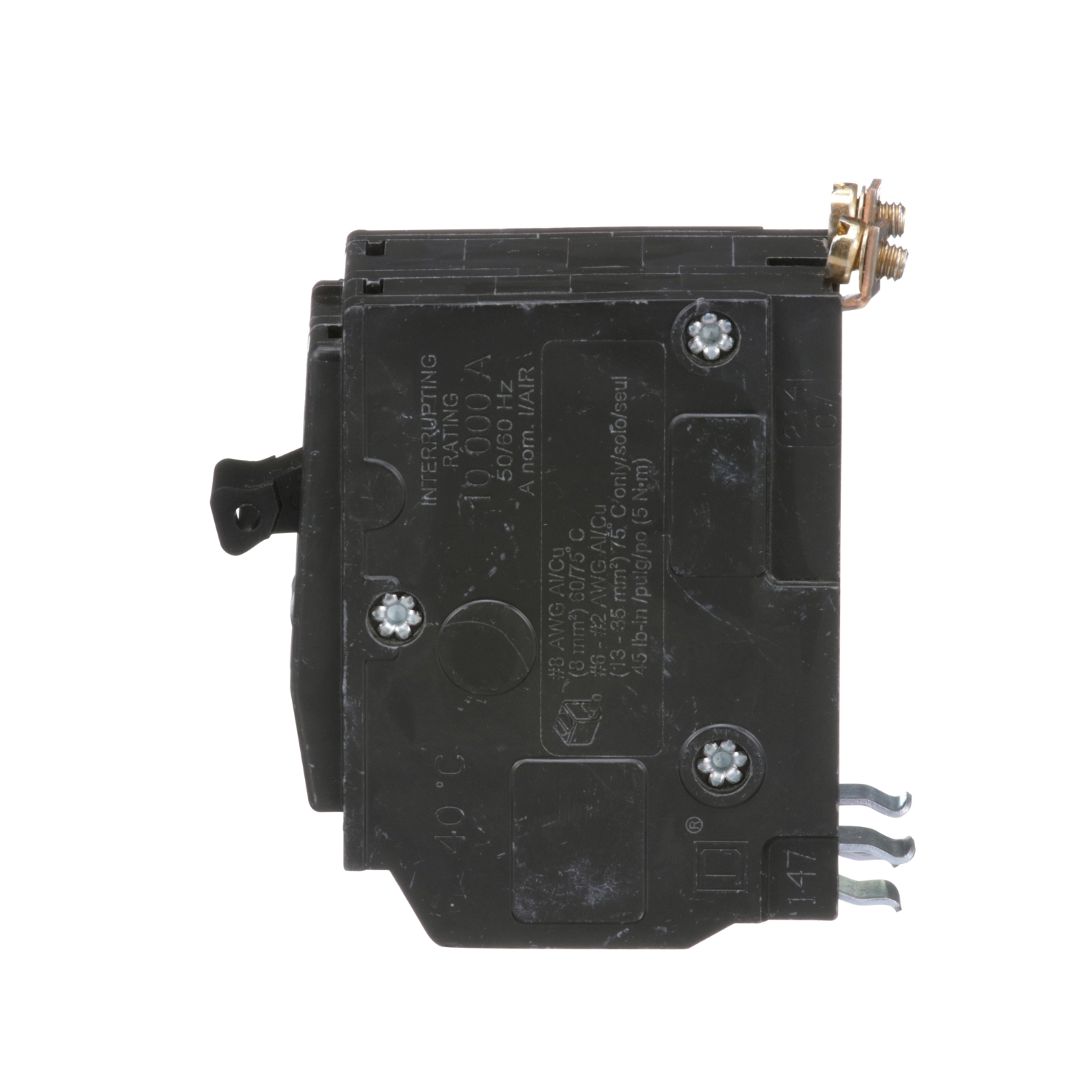

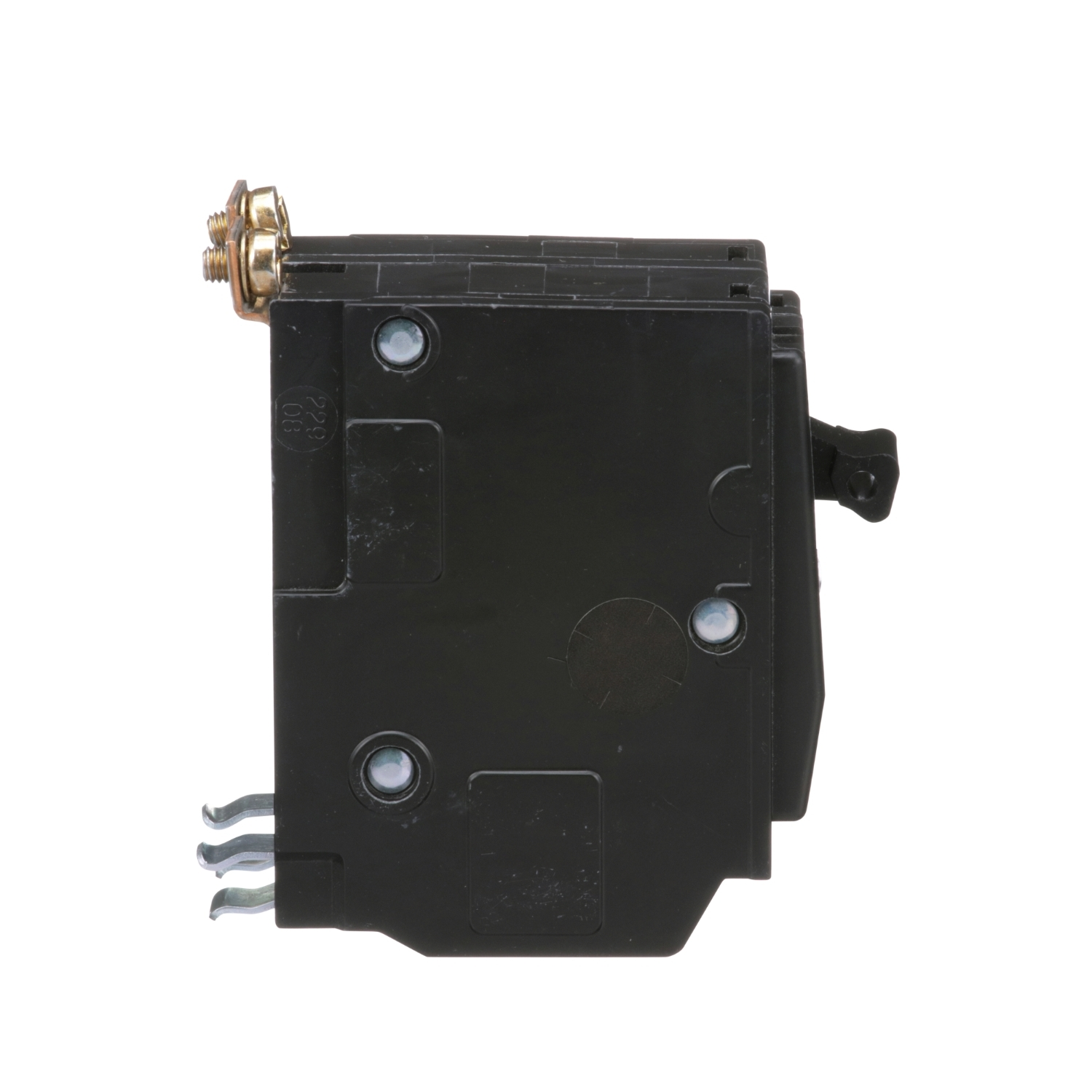

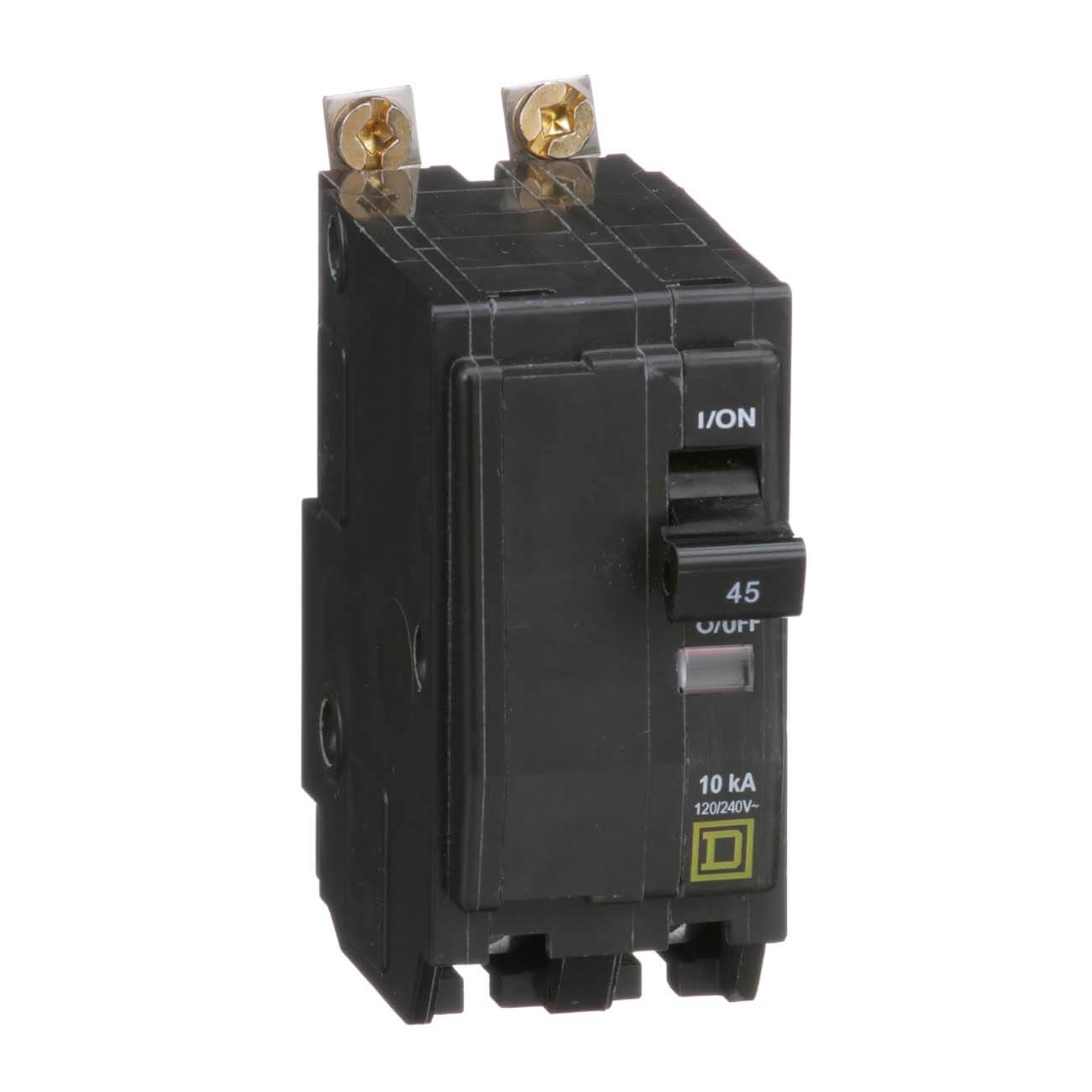

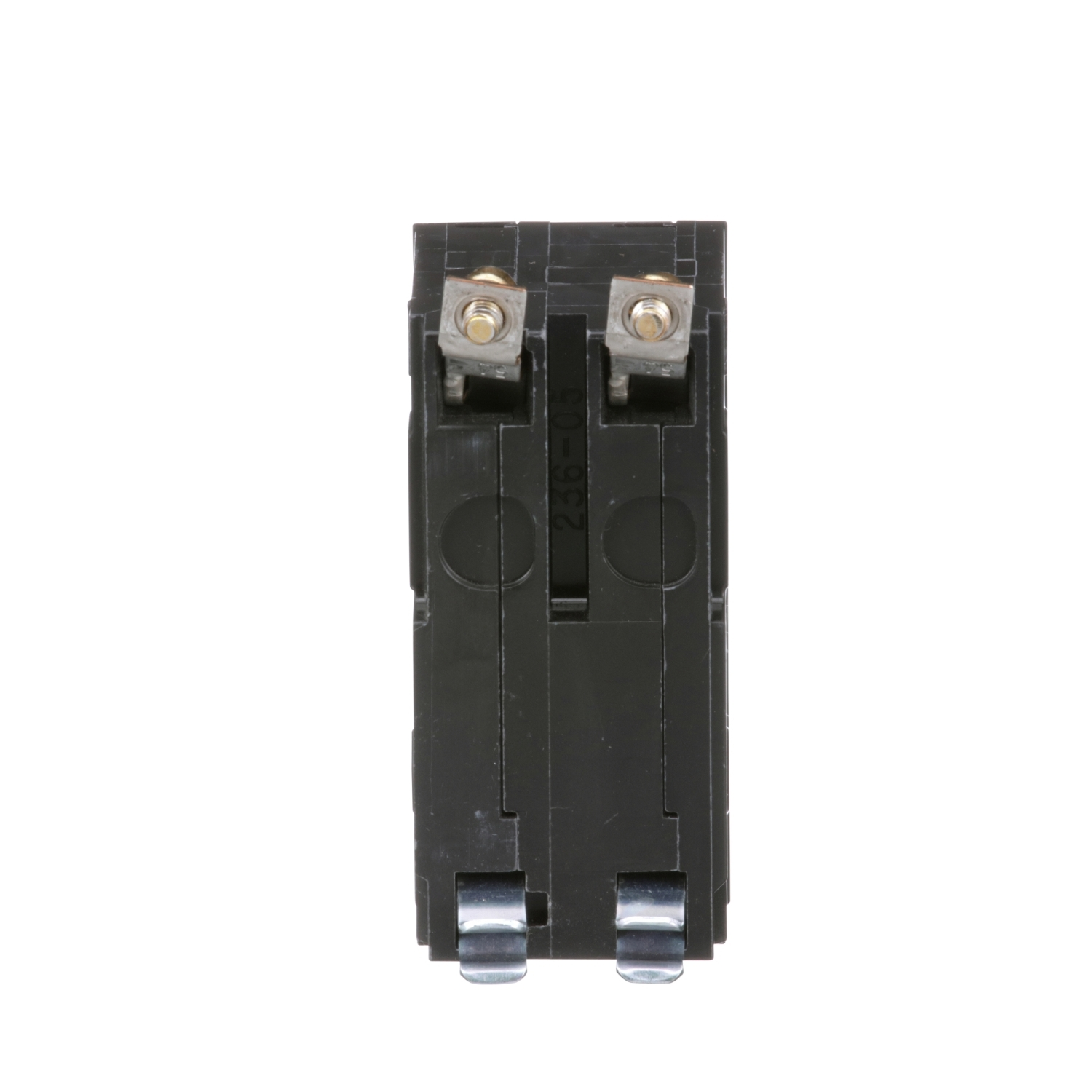

The Square D QOB245 is a type QO bolt-on miniature circuit breaker designed for overcurrent protection and switching on AC and DC systems. This 2-pole breaker is rated at 45A and 120/240 VAC. It features a trip-free toggle mechanism with quick make, quick break action and positive handle indication, as well as VisiTrip trip indication.
- Overcurrent protection and switching on AC and DC systems
- Trip-free toggle mechanism with quick make/break action
- VisiTrip trip indication for visual indication of tripped circuit
Product Highlights
The Square D QOB245 provides reliable circuit protection with a bolt-on design and clear trip indication.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QOB245
-
Country of Origin: Mexico
Technical Specifications
-
Type: Bolt On - Standard Trip
-
Depth: 2.91 Inches
-
Width: 1.5 Inches
-
Height: 3.11 Inches
-
Material: Thermoplastic
-
Standard: UL, CSA
-
Connection: Screw terminal
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 45 Amperes
-
Number Of Poles: 2-Pole
-
Interrupt Rating: 10 kAIC
-
Operating Temperature: 104°F
-
Product: QO Miniature Circuit Breaker, Bolt On
-
Range: QO
-
Current Rating: 45 A
-
Mounting Type: Bolt-on
-
Number of Poles: 2
-
Circuit Breaker Type: Standard
-
Ratings: HACR rated
-
Electrical Connection: Box lugs
-
Wire Size: 30 AWG
-
Length: 2.91 Inch
-
Current: 45 Amp
-
Voltage: 120 Volt
-
Amperage: 45 Amp
-
Sub Brand: QO
-
Applications: HACR rated
-
TC Connection: Box lugs
-
Certifications: CSA,UL Listed
-
Conductor Size: 8-2 AWG
-
Short Circuit Current: 10 kA
-
Line Rated Current: 45 A
-
Poles Description: 2P
-
[Ue] Rated Operational Voltage: 120/240 V AC || 120 V AC
-
Breaking Capacity: 10 kA 120/240 V AC || 10 kA 120 V AC
-
Awg Gauge: AWG 8...AWG 2 copper or aluminium
-
Tightening Torque: 5-5 N.m
-
Number Of Spaces Required: 2
-
Product Certifications: UL Listed || CSA
-
Ambient Air Temperature For Operation: 40 °C
-
System Voltage: 120 V AC, 120/240 V AC, 48 V DC
-
Number of Panel Spaces: 2
-
Ambient Rating: 104 Degree F (40 Degree C)
-
AIR Rating: 10 kA
-
Amp Rating: 45
-
Manufacture: Square D
-
Mounting Mode: bolt-on
-
Frame Type: Q
-
Installation: Bolt-On
-
Used On: NQ Series Panelboard
-
Approval: CSA, UL
-
Tripping Method: Thermal Magnetic, Common Trip
-
Includes: Visi-Trip Indicator
-
Ac Voltage Rating: 240Vac
-
Dc Voltage Rating: 48Vdc
-
For Use With: NQ Panelboards, NQOD Panelboards
-
Series: Qob
-
Terminal Connection: Lug
-
Max. Air Rating: 10Ka
-
Frame Size: 100A/Qo
-
Min. Wire Size: 8 Awg
-
Max. Wire Size: 2 Awg
-
Standards: CSA C22.2 No. 5, HACR, UL 489
-
Phase: 1
-
AIC Rating: 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC
-
Mounting Style: Bolt-On
-
Terminal Type: Box Lugs
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 8-2 AWG (Al/Cu)
-
Max Wire: 2 AWG
-
Min Wire: 8 AWG
-
Available Options: Padlock Attachment
-
Accessories: None included
-
Temp Rating: 40C
-
Construction Features: HACR Rated, Visual Trip Indicator
