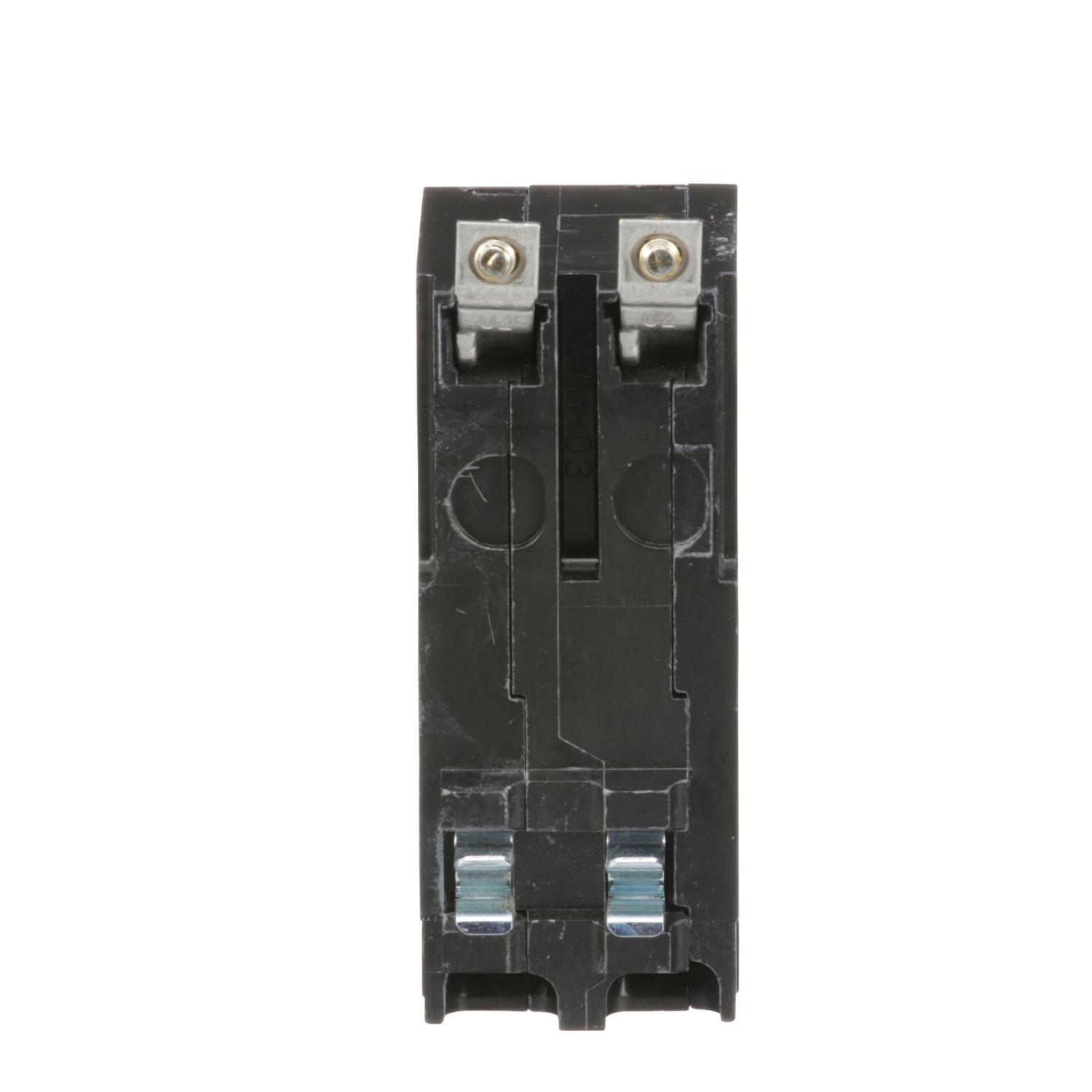

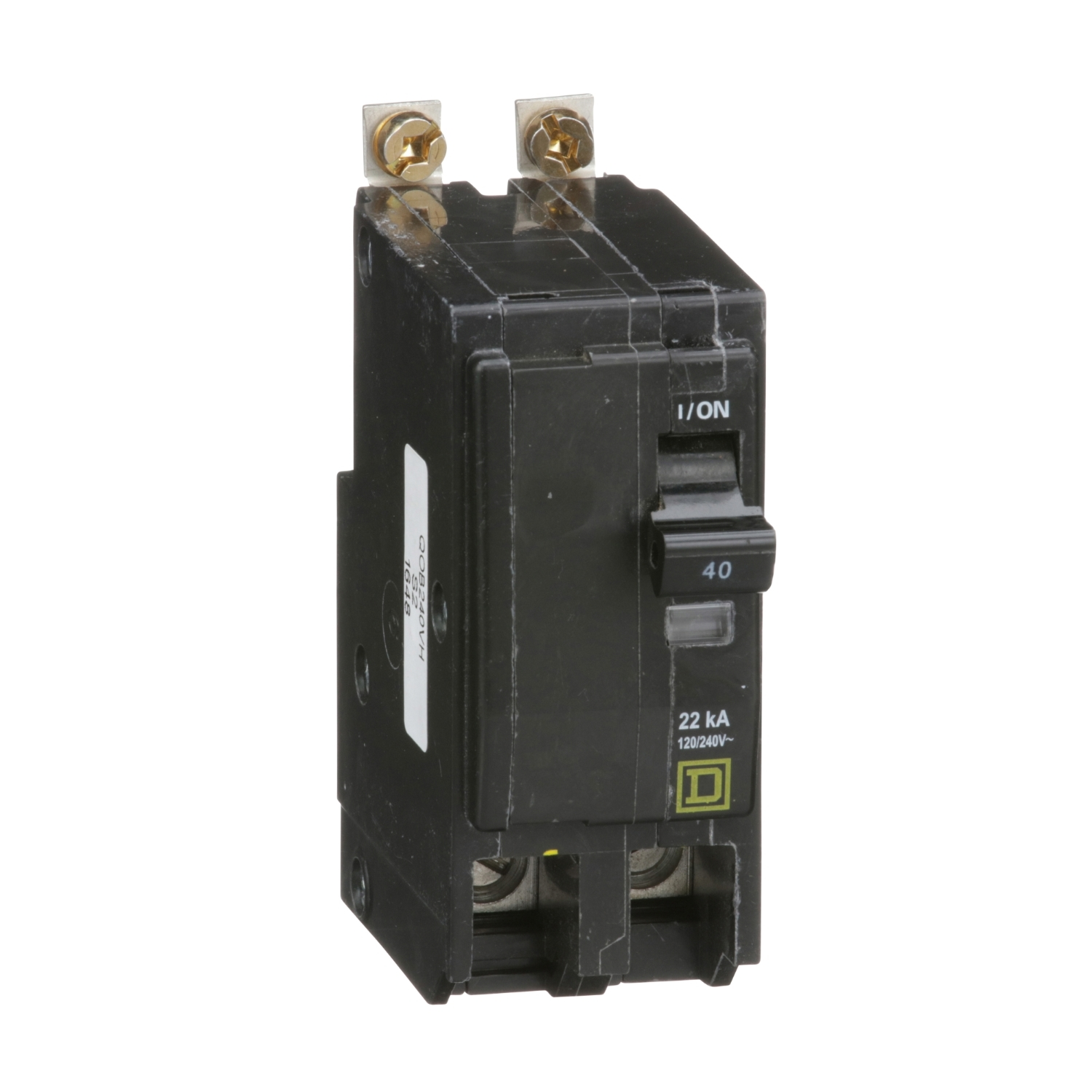

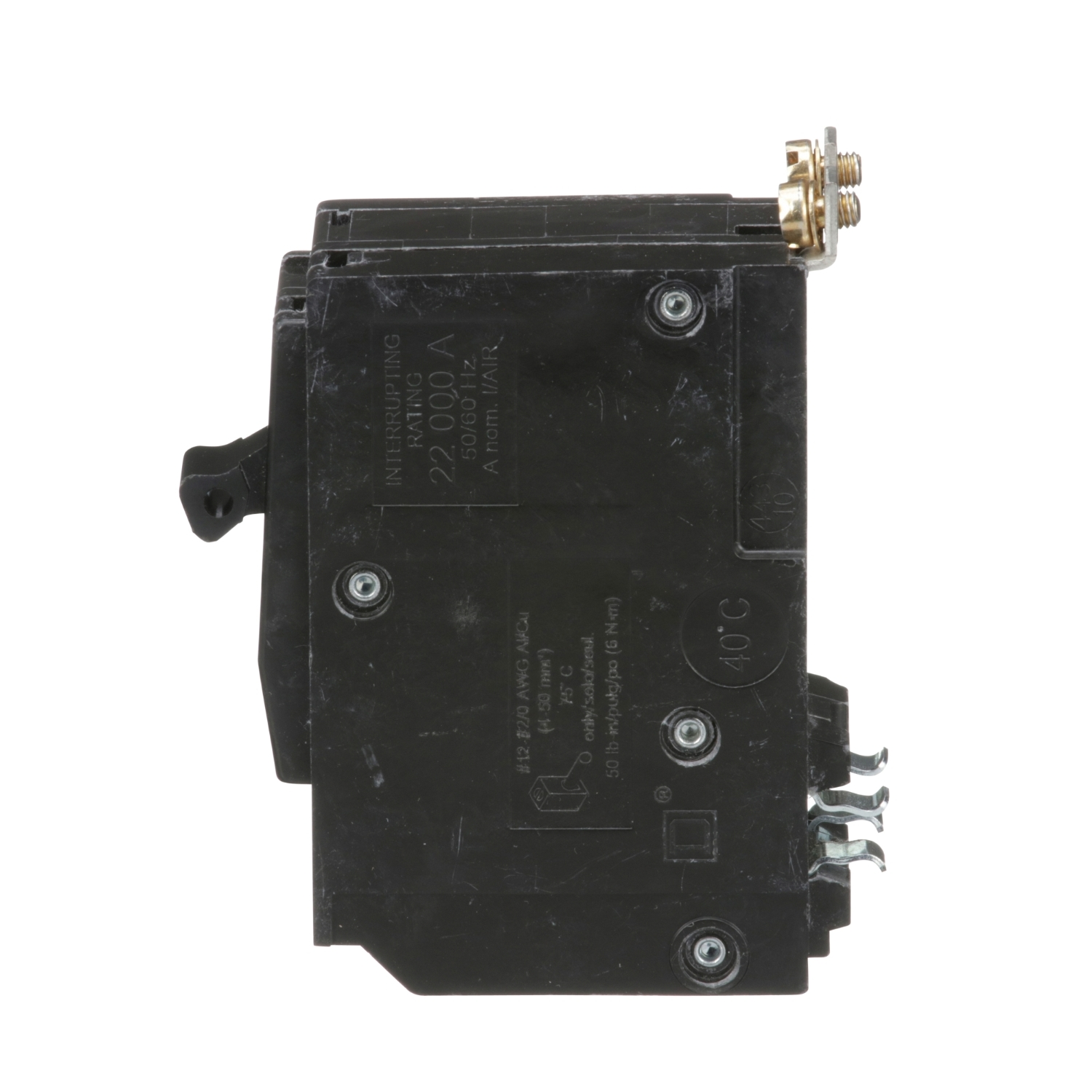

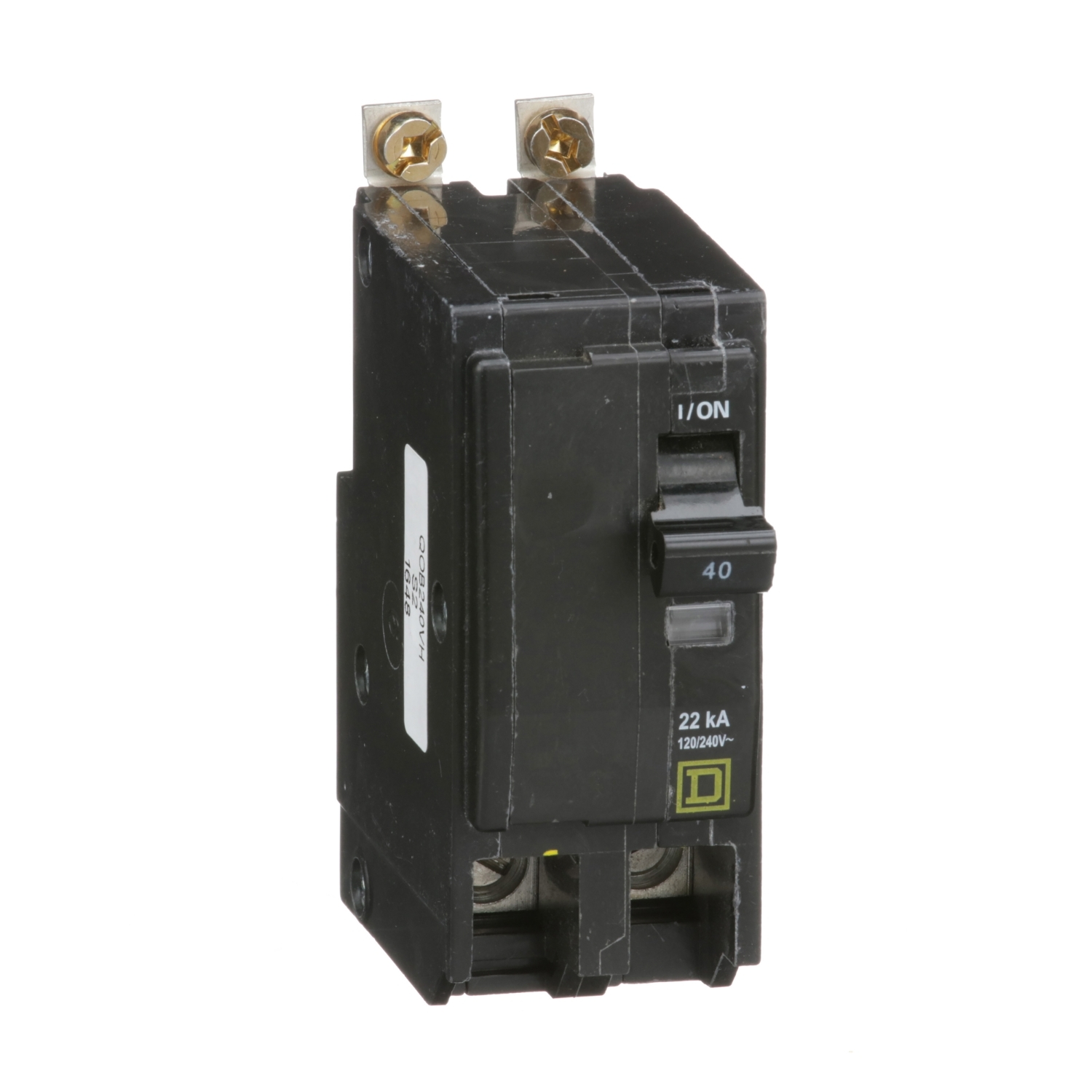

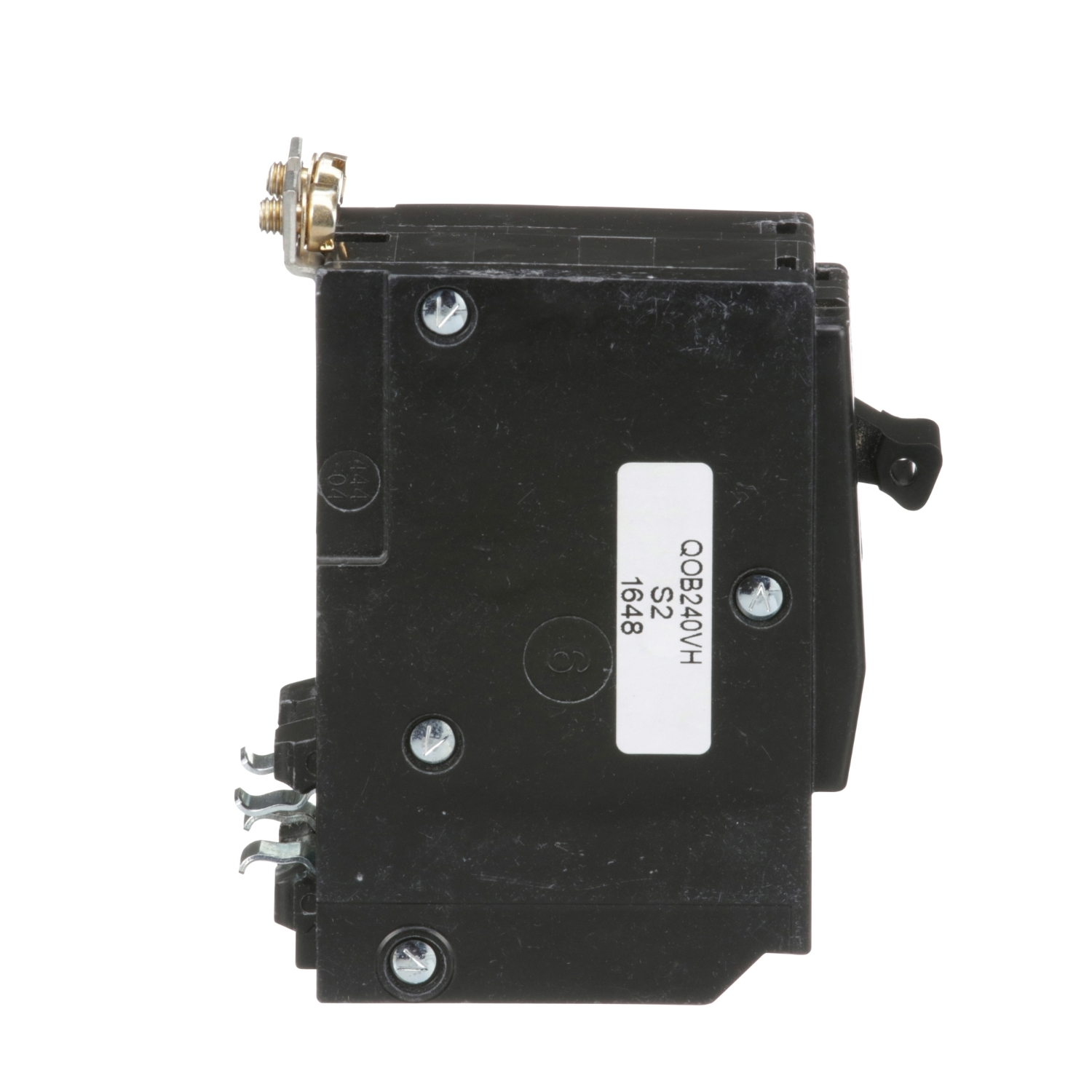

Square D QOB240VH 2-Pole 40 Amp 240 Volt Bolt-On Thermal Magnetic Miniature Circuit Breaker

Product Description

The Square D QOB240VH is a 2-pole, 40 amp circuit breaker designed for thermal magnetic protection and switching in AC and DC systems. This circuit breaker features an over center, trip free toggle mechanism ensuring reliable operation with quick make and break action. The VisiTrip indicator provides a visual signal indicating when the circuit has tripped. This model is rated at 40 amps at one hundred twenty to two hundred forty volts and offers a breaking capacity of twenty-two kA. The bolt-on mounting design allows for easy installation.

• Overcurrent protection for AC and DC systems
• UL Listed and CSA Certified for safety
• VisiTrip indication for circuit status

Product Highlights

This circuit breaker is suitable for residential and commercial applications, including HACR rated installations. The Square D QOB240VH unit offers reliable protection and a full line of factory-installed accessories available.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QOB240VH
• Rated Current: 40 A
• Voltage: 120/240 V AC
• Number of Poles: 2
• Breaking Capacity: 22 kA
• Mounting Type: Bolt-On
• Width: 38 mm
• Height: 79 mm
• Depth: 74 mm
• Weight: 0.336 kg
• Certification: UL Listed, CSA Certified
• Country of Origin: United States
• Warranty: 18 months
