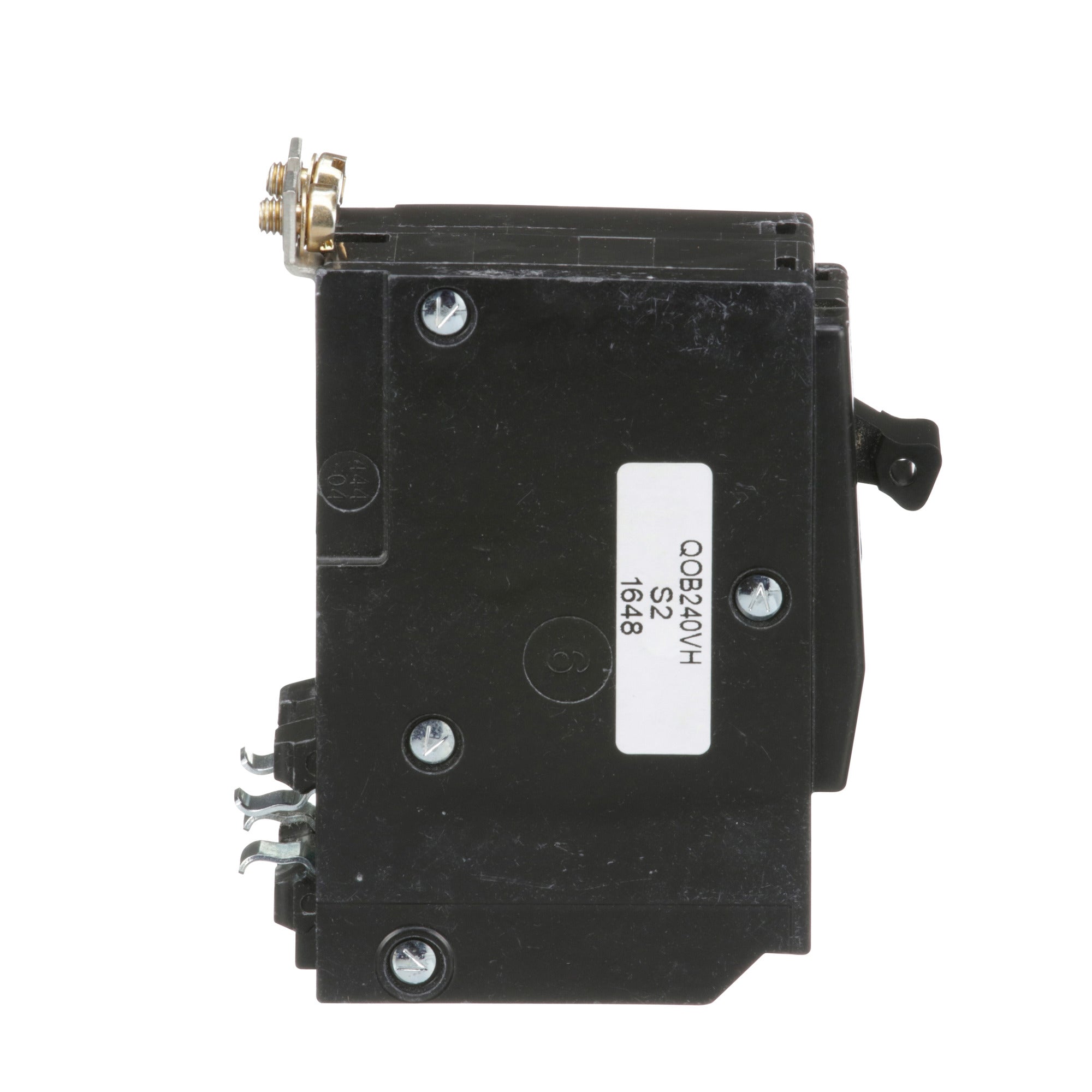

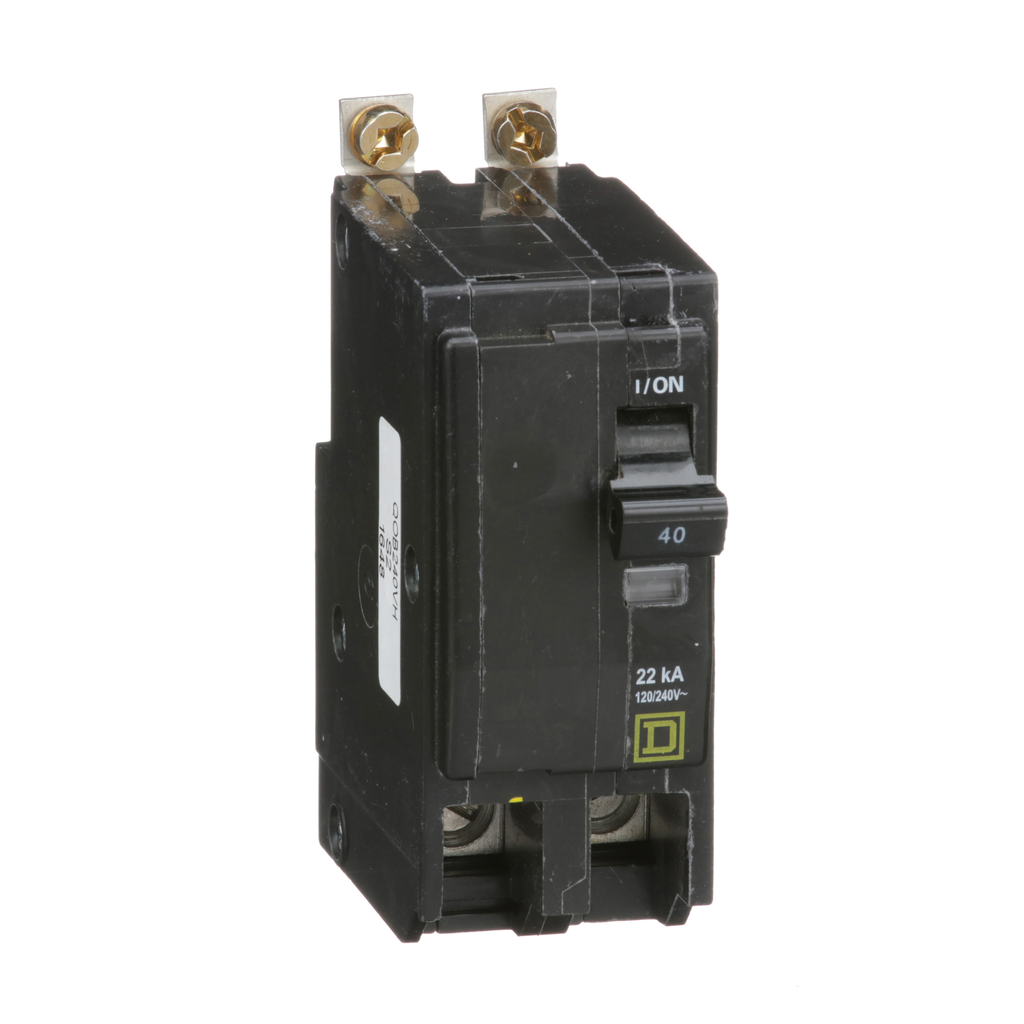

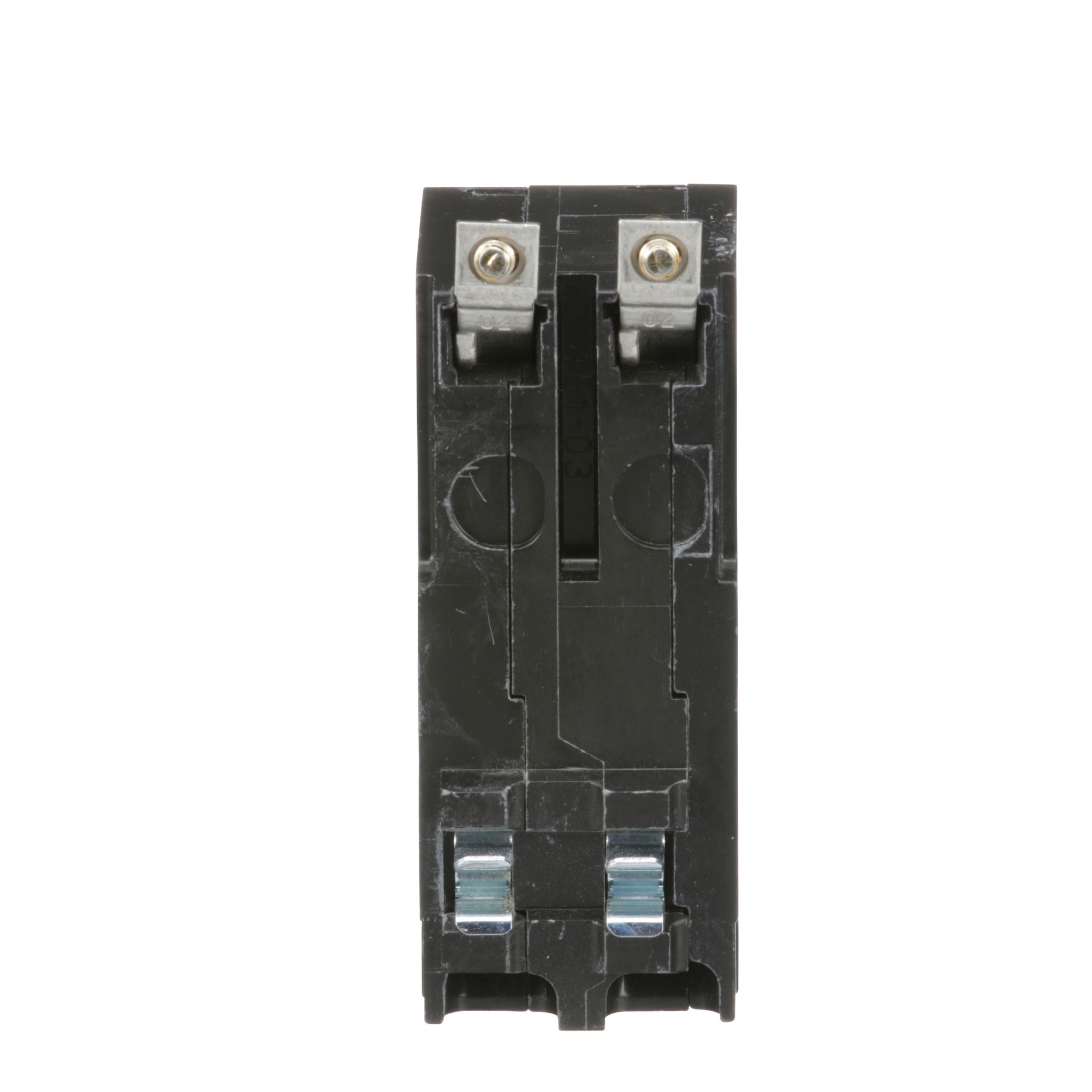

Square D QOB240VH 2-Pole 40 Amp 240 Volt Bolt-On Circuit Breaker

Product Description

The Square D QOB240VH is a two-pole miniature circuit breaker with a rating of 40 amps at 240 volts. It provides overcurrent protection in AC and DC systems, making it suitable for various applications. The circuit breaker features a trip-free toggle mechanism for reliable operation and visual trip indication through the VisiTrip system. This model is UL Listed and CSA Certified, ensuring compliance with safety standards.

• 40 Amp rating at 120/240VAC
• 22kA breaking capacity
• Bolt-on mounting type

Product Highlights

This circuit breaker is ideal for use in residential and commercial electrical systems. It allows easy installation and offers reliable protection against overloads and short circuits.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QOB240VH
• Current Rating: 40 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 2 Pole
• Breaking Capacity: 22 kAIC
• Mounting Type: Bolt-on
• Operating Temperature: -40 to 40 Degrees Celsius
• Certifications: UL Listed, CSA Certified
