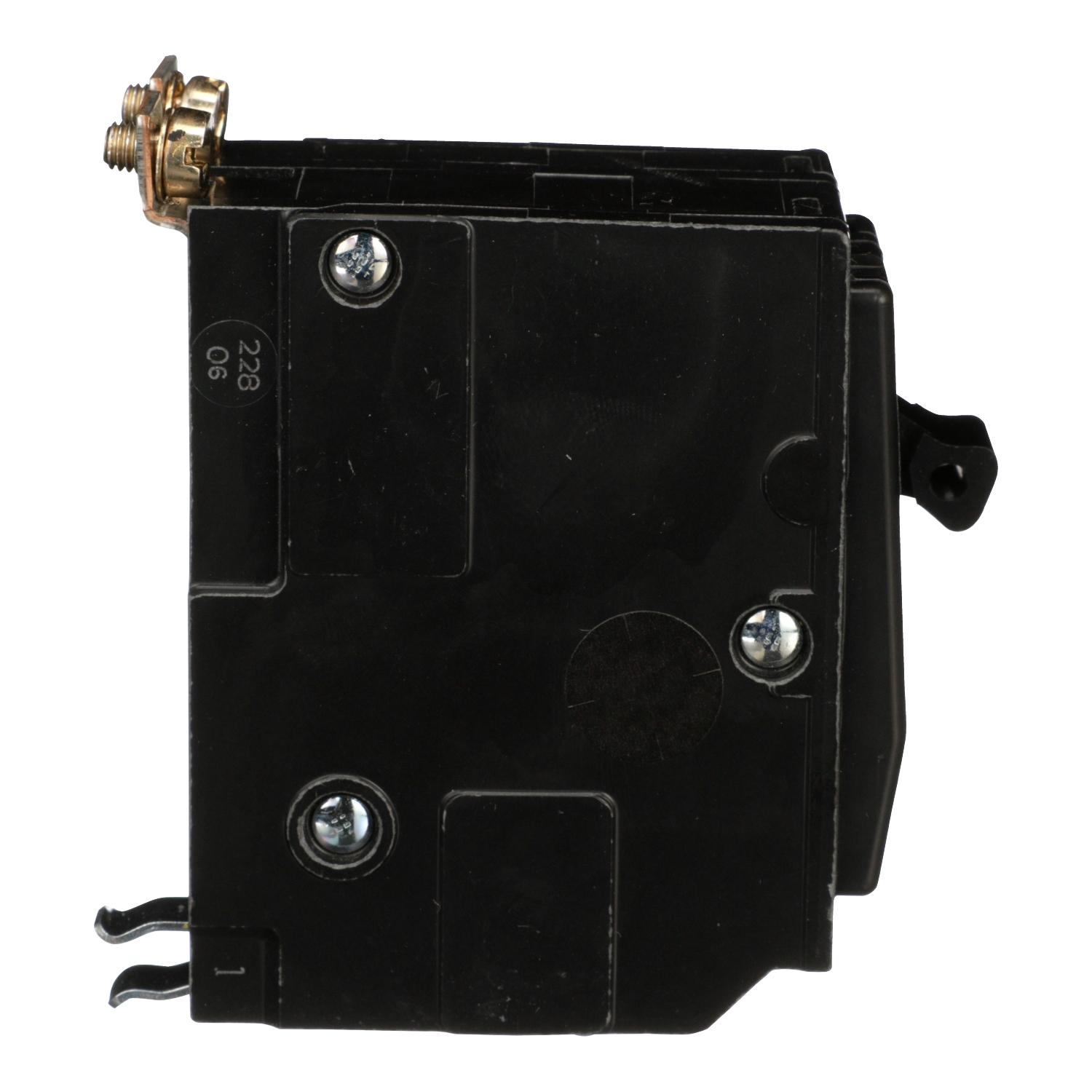

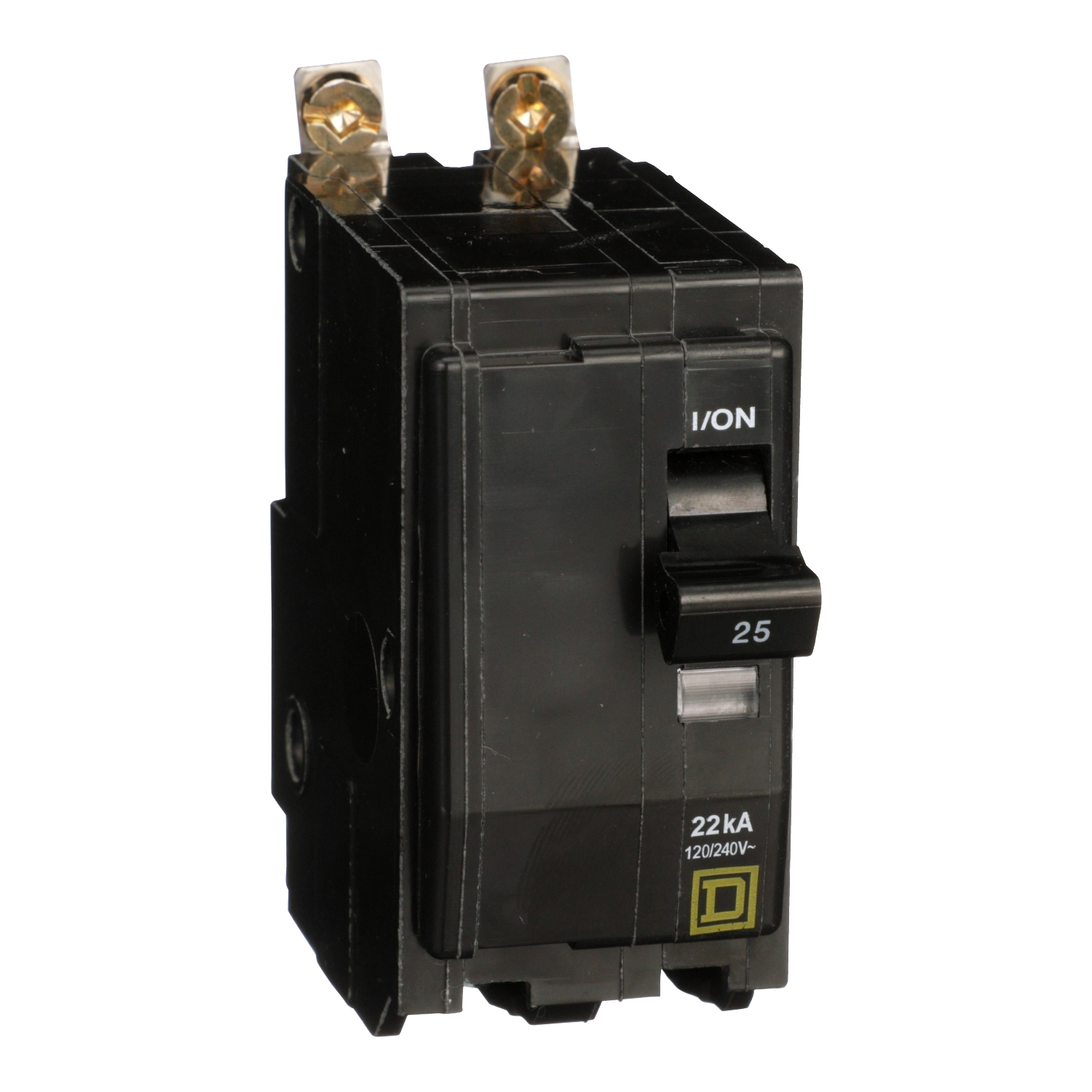

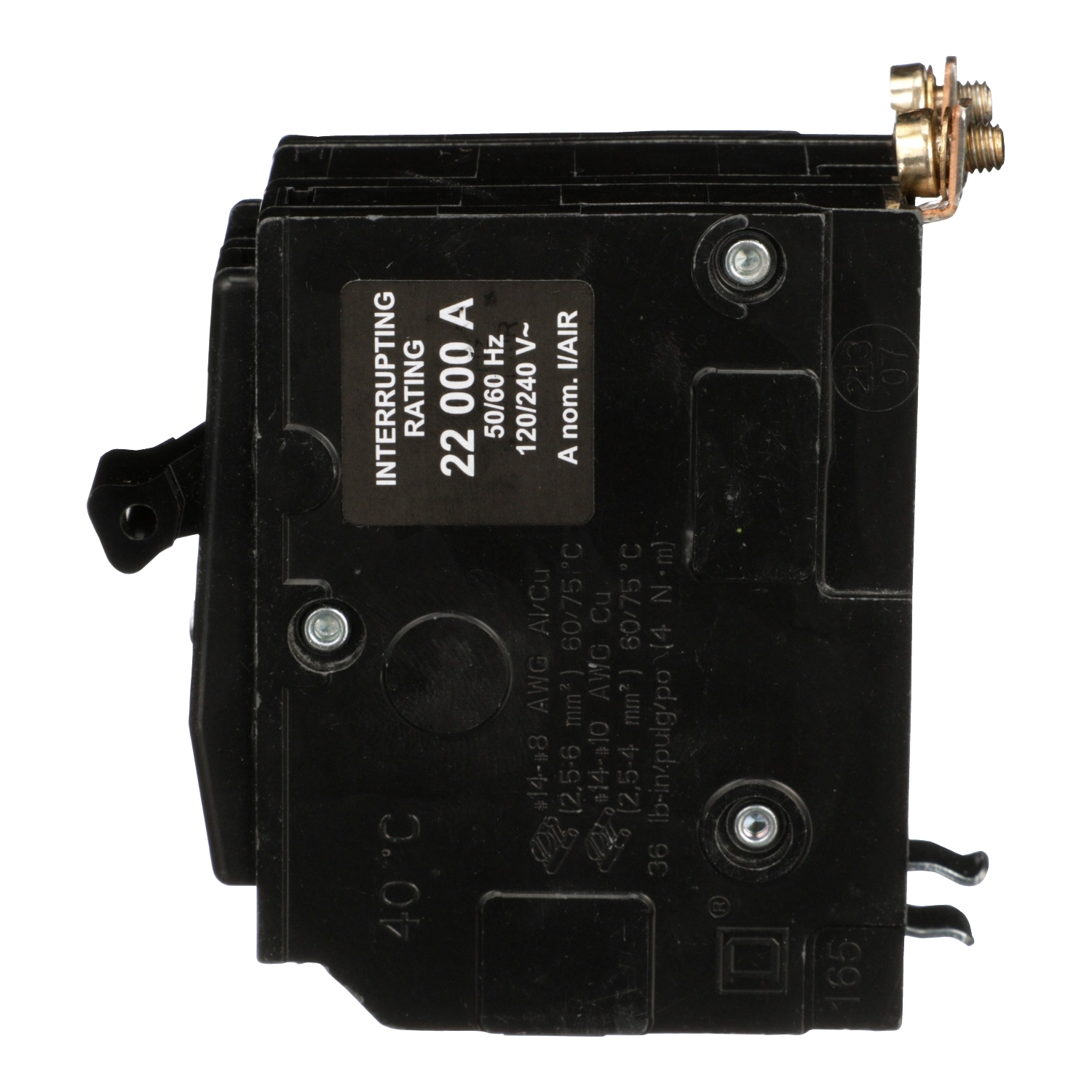

Square D QOB225VH 2-Pole 25 Amp Miniature Circuit Breaker

Product Description

The Square D QOB225VH is a two-pole thermal magnetic circuit breaker that provides overcurrent protection and switching on AC and DC systems. It features a trip-free toggle mechanism with quick make, quick break action and positive handle indication. The VisiTrip trip indication provides a visual indication that the circuit breaker has tripped. Rated at 25A at 120/240VAC with 22kA breaking capacity and bolt-on mounting.

• Overcurrent protection
• Switching on AC and DC systems
• Trip-free toggle mechanism

Product Highlights

The Square D QOB225VH circuit breaker is UL Listed and CSA Certified. It is suitable for HACR rated applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QOB225VH
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Current: 25 Amp
• Voltage: 120 Volt
• Amperage: 25 Amp
• Sub Brand: QO
• Wire Size: AWG 14...AWG 8 copper or aluminium
• Applications: HACR rated
• Mounting Type: Bolt-on
• TC Connection: Pressure plate
• Certifications: CSA,UL Listed
• Conductor Size: 14-8 AWG
• Number of Poles: 2 Pole
• Interrupt Rating: 22 kAIC
• Line Rated Current: 25 A
• Circuit Breaker Type: Standard
• Short Circuit Current: 22 kA
• Poles: 2
• Voltage Rating: 120/240 VAC at 50/60 Hz (UL/CSA)
• Current Rating: 25 Ampere
• Interrupting Rating: 22 Kiloampere at 120/240 VAC (UL/CSA)
• Installation: Bolt-On
• Application: Appliance, Lighting
• Used On: NQ Series Panelboard
• Approval: UL, CSA
• Frame Type: Q
• Tripping Method: Thermal Magnetic
• Includes: Visi-Trip Indicator
• AC Voltage Rating: 240VAC
• Terminal Connection: Pressure Plate
• Series: QOB
• Phase: 1
• AIC Rating: 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC
• Mounting Style: Bolt-On
• For Use With: NQ Panelboards, NQOD Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-8 AWG (Al/Cu)
• Max Wire: 8 AWG
• Min Wire: 14 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
• Accessories: Visi-Trip Indicator
• Standards: CSA C22.2 No. 5, UL 489, NEMA AB 1
• Temp Rating: 40C
• Construction Features: HACR Rated, Visual Trip Indicator, High Interrupting Capacity
