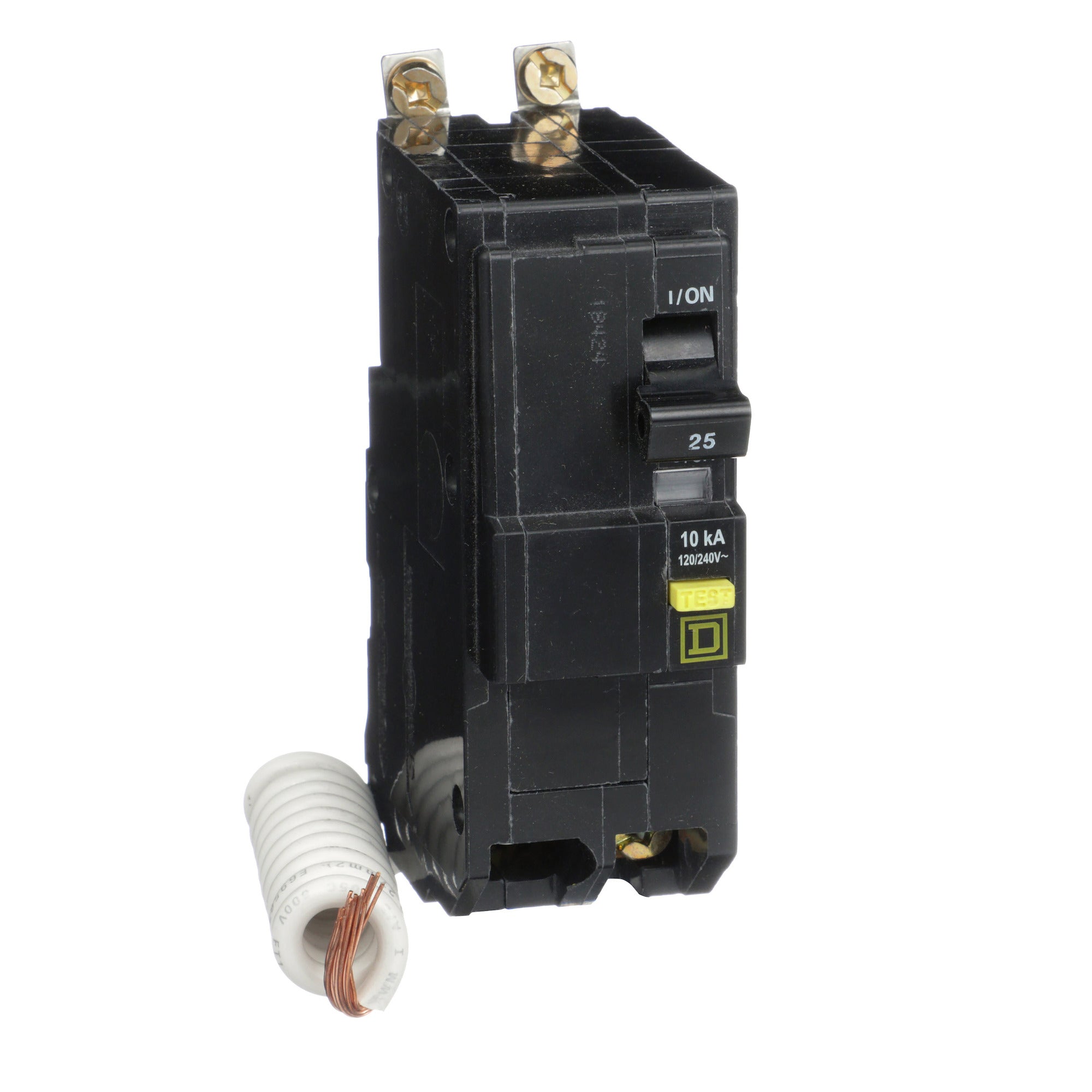

Square D QOB225GFI Mini Circuit Breaker 25A 2 Pole 120/240V

Product Description

The Square D QOB225GFI is a miniature circuit breaker with MPN QOB225GFI. It provides overcurrent protection for both AC and DC systems. This circuit breaker features a trip-free toggle mechanism that allows quick make and break actions. The VisiTrip indicator helps to visually identify when the breaker has tripped. It includes bolt-on mounting for secure installation. The two-pole breaker is rated at twenty-five amps at one hundred twenty to two hundred forty volts, ensuring high performance in various applications.

• Rated at 25 amps at 120/240 VAC
• 10 kA breaking capacity
• Includes a 6 mA ground fault with pigtail

Product Highlights

This model is ideal for providing overload and short circuit protection, making it suitable for residential and commercial electrical systems.

Product Information

Standard Information

• Catalog Number: QOB225GFI
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature Circuit Breaker
• Depth: 2.91 inches
• Width: 1.5 inches
• Height: 4.57 inches
• Current Rating: 25 Amp
• Voltage Rating: 120 Volt
• Mounting Type: Bolt-On
• Certification: CSA, UL Listed
• Country of Origin: Mexico
