Product Description

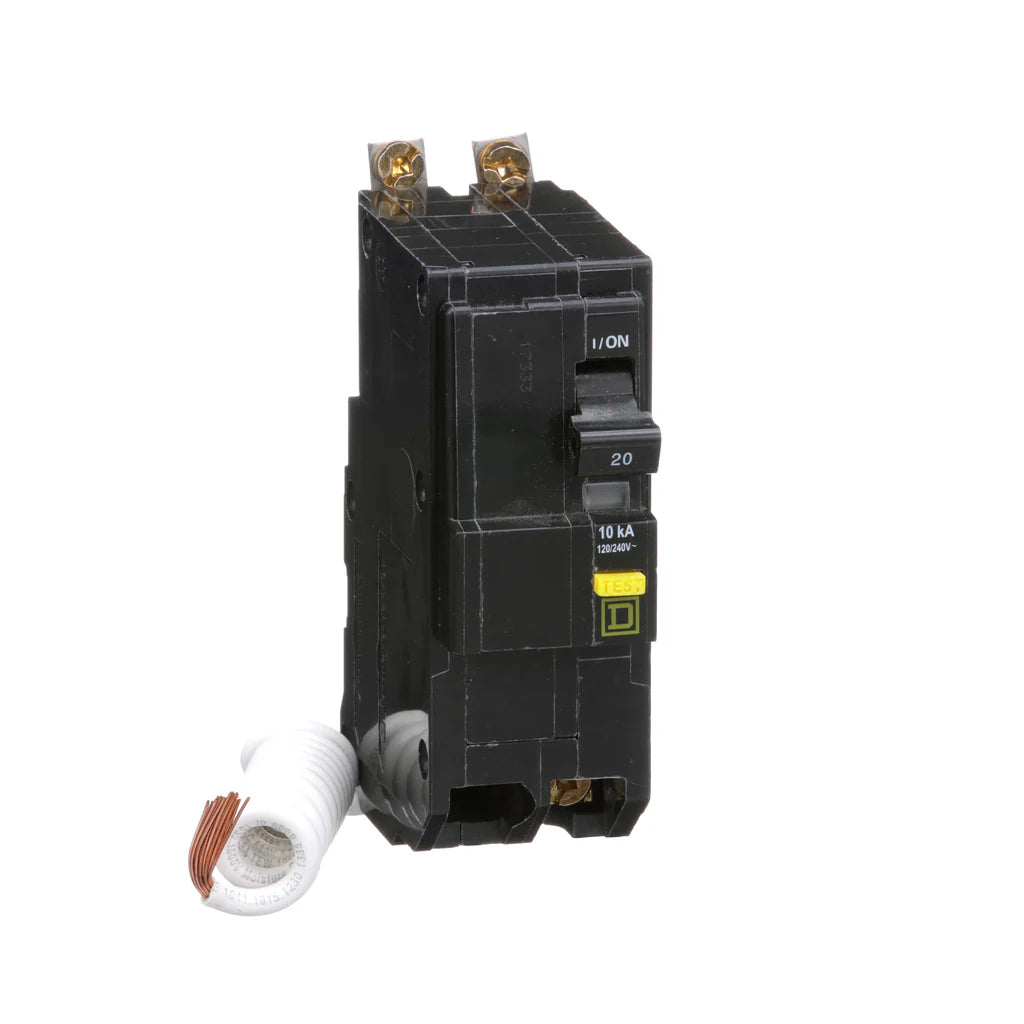

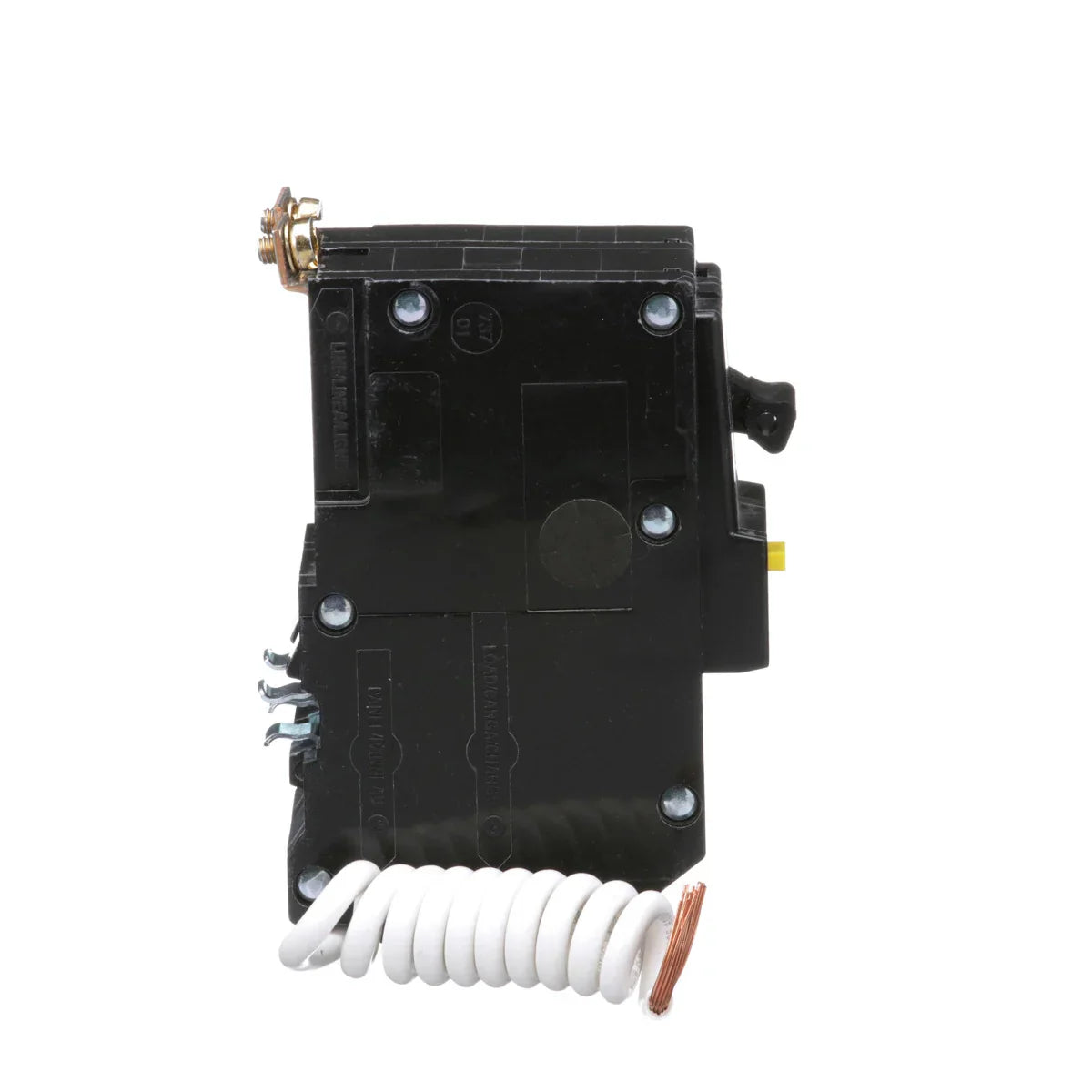

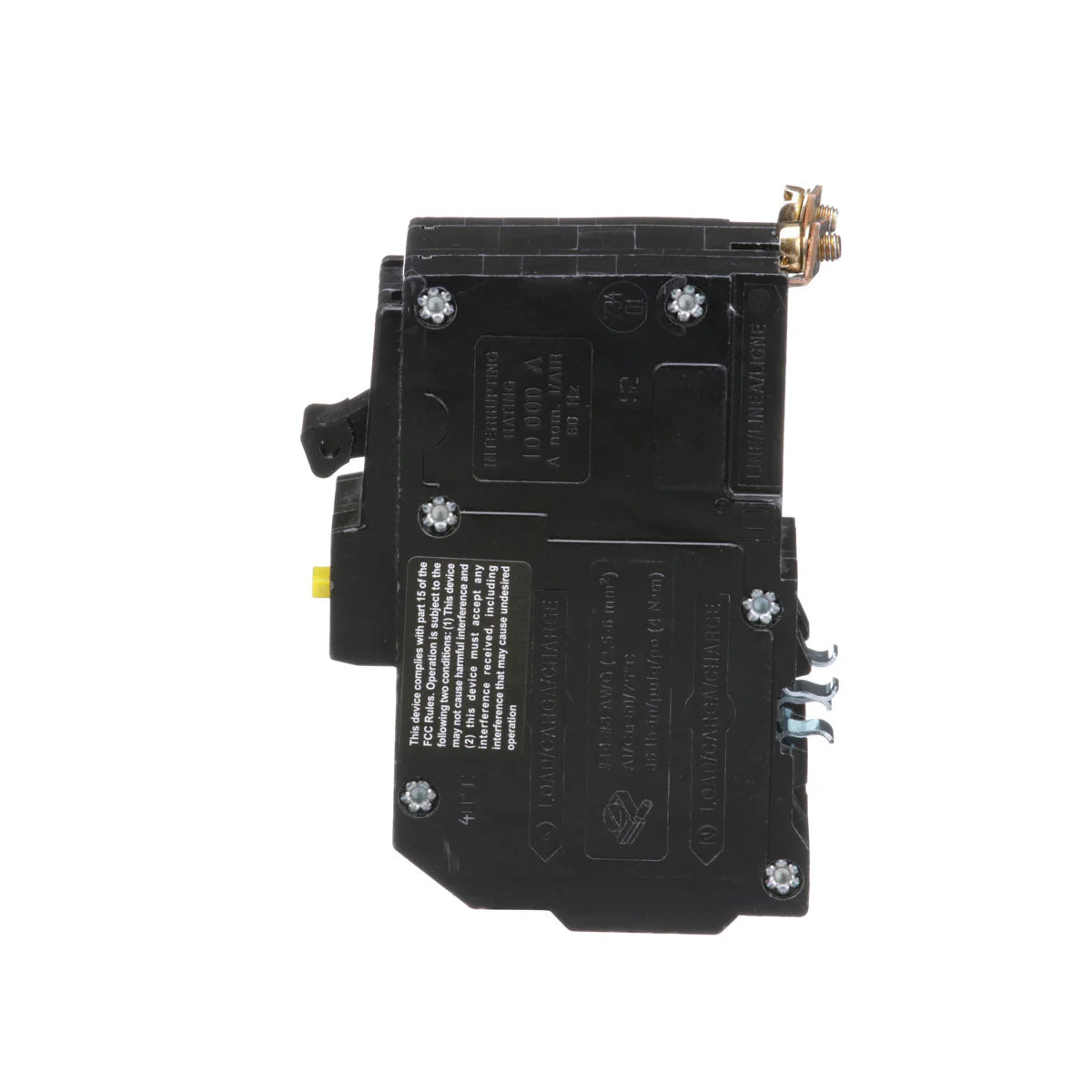

Square D QOB220GFI is a circuit breaker designed for overcurrent protection in both AC and DC systems. This model features thermal magnetic operation for reliability. It includes a two-pole configuration and has a rated capacity of twenty amps at one hundred twenty or two hundred forty volts. The breaker has a bolt-on design for easy installation. It is equipped with VisiTrip technology for visual trip indication, ensuring awareness when a fault occurs.
- Type: Miniature circuit breaker
- Current rating: 20 Amps
- Voltage: 120/240 Volts
Product Highlights
This product includes a six-milliamp ground fault protection and a rated interrupt capacity of ten kiloamperes, providing important safety features for sensitive electrical circuits.
Product Information
Standard Information
-
Brand: Square D
-
MPN: QOB220GFI
Technical Specifications
-
Catalog Number: QOB220GFI
-
Manufacturer: Schneider Electric
-
Width: 1.5 inches
-
Height: 4.1 inches
-
Depth: 2.9 inches
-
Net Weight: 0.435 kg
-
Wire Size: AWG 14 to AWG 8 copper; AWG 12 to AWG 8 aluminum
-
Number of Poles: 2 Pole
-
Operating Temperature: 40 degrees C
-
Country of Origin: Mexico
-
Certifications: UL Listed, CSA Certified
