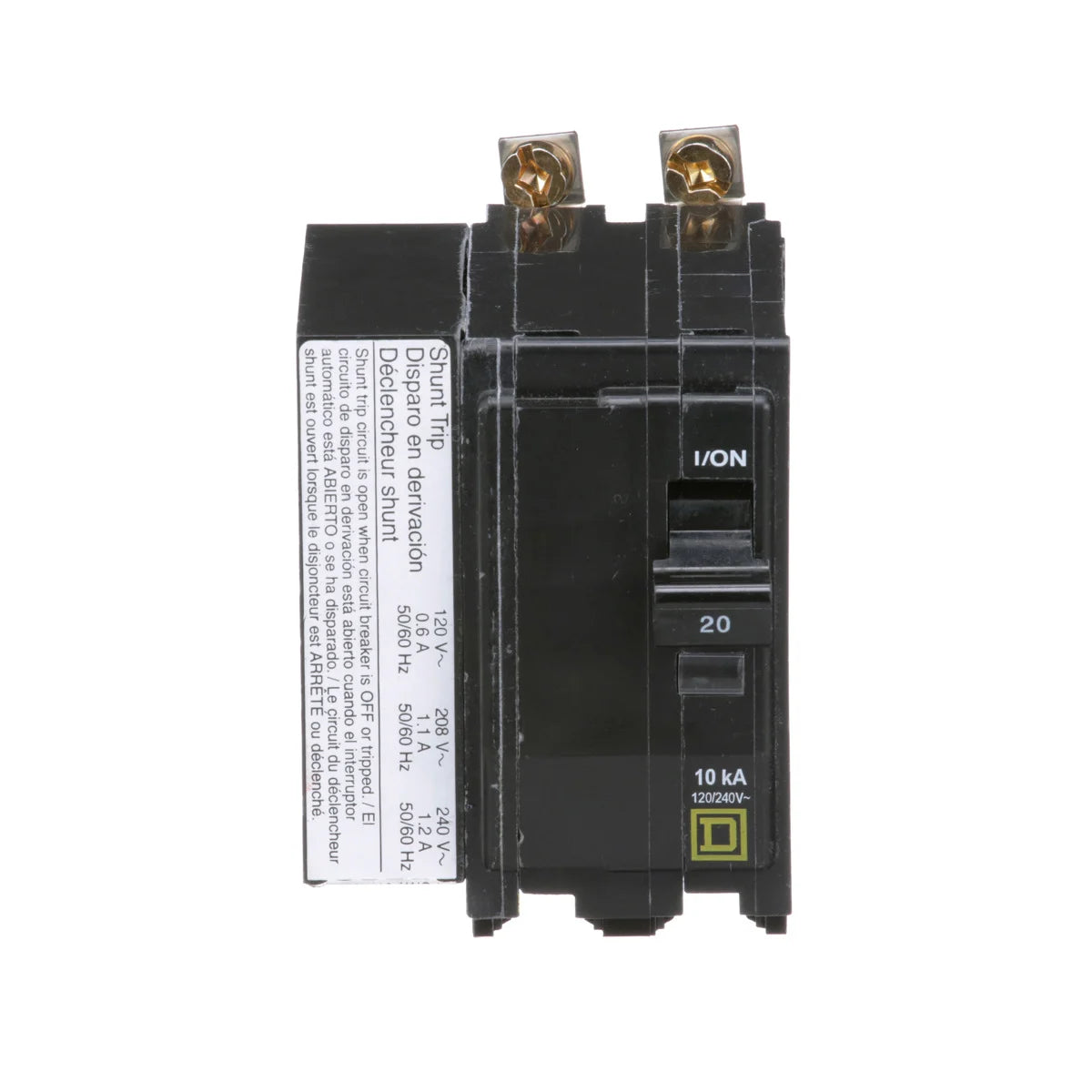

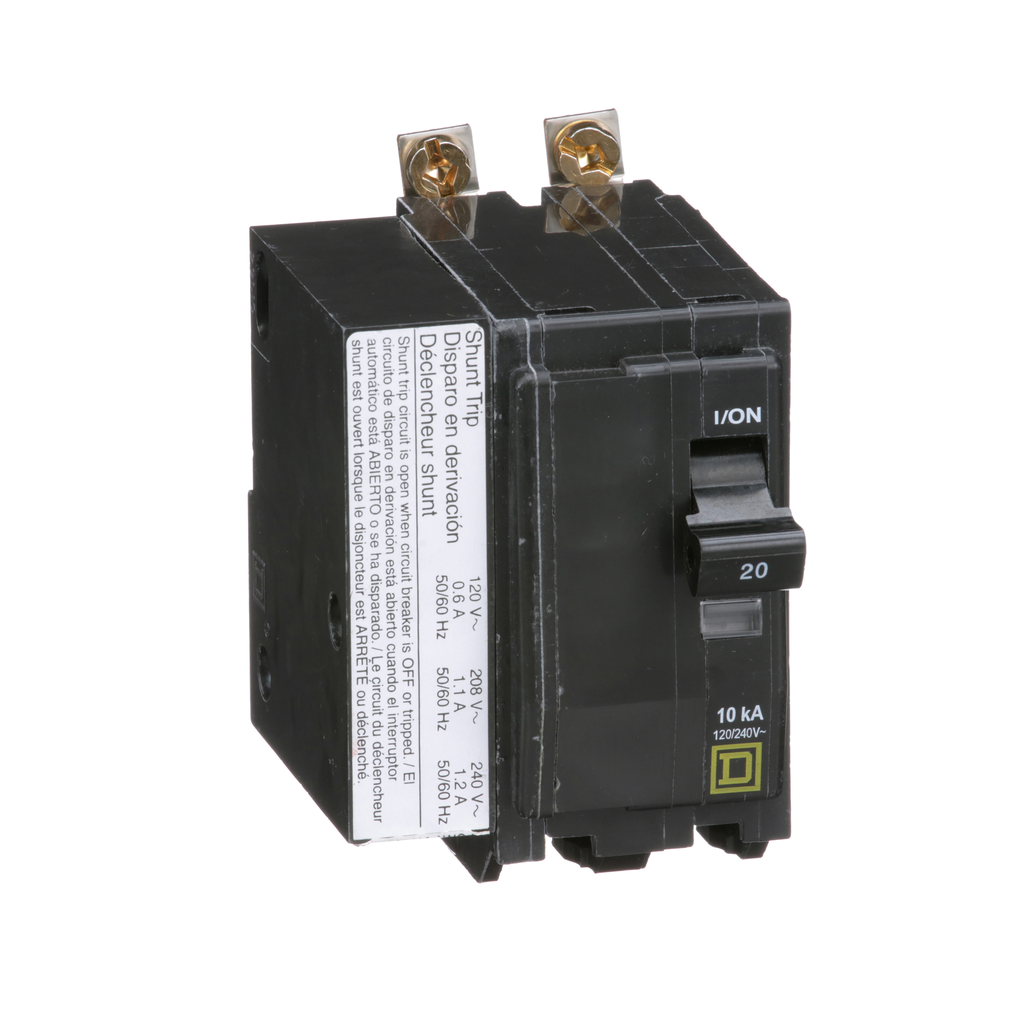

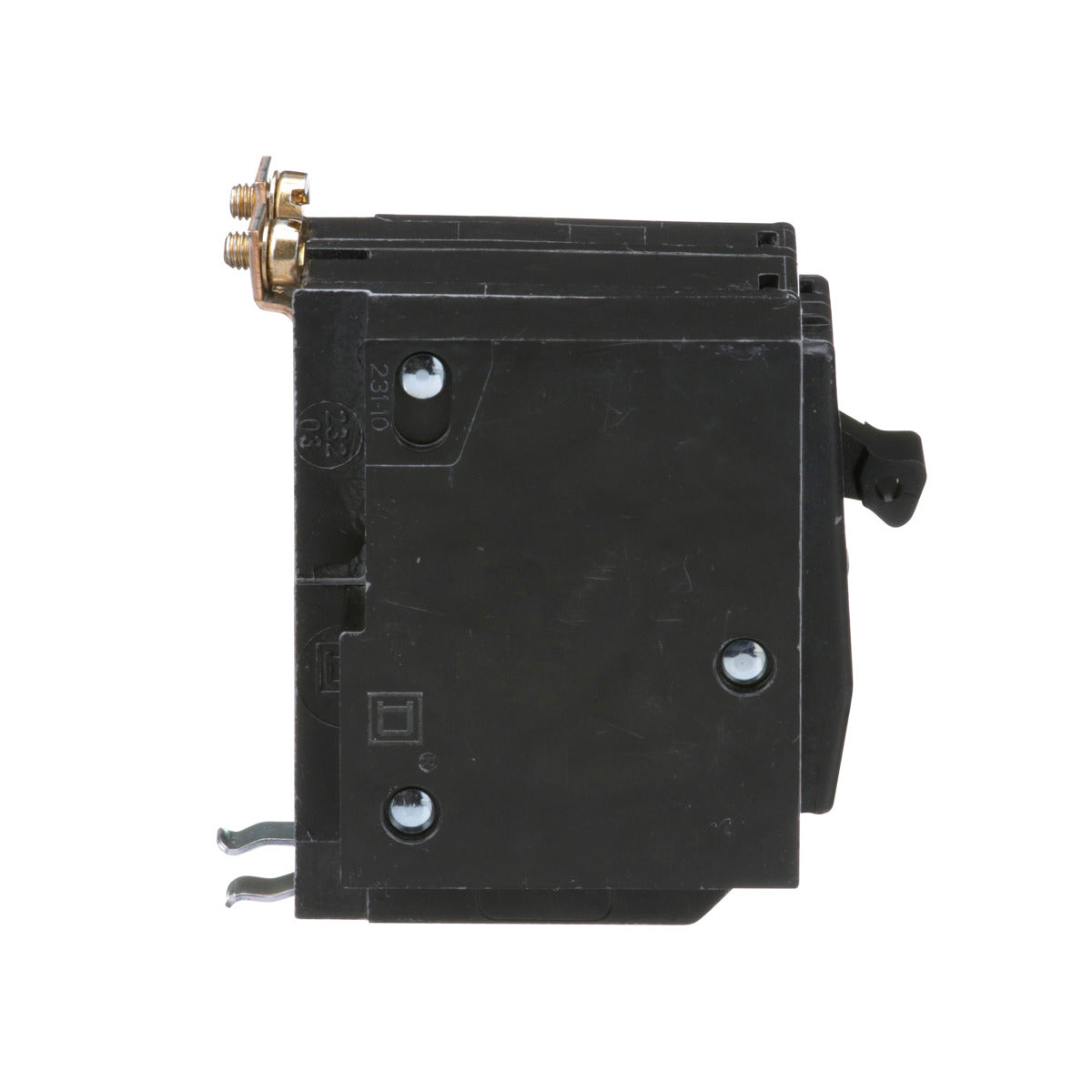

Square D QOB2201021 Miniature Circuit Breaker 120/240 Volt 20 Amp

Product Description

The Square D QOB2201021 is a miniature circuit breaker rated at twenty amps for one hundred twenty to two hundred forty volts. It provides overcurrent protection and allows switching for alternating and direct current systems. The unit features a trip-free toggle mechanism that ensures reliable operation. This circuit breaker includes VisiTrip indication for a clear visual signal that the circuit has tripped. This model is designed for bolt-on mounting and comes with an AC shunt trip. It is suitable for various applications, including HACR rated uses, making it ideal for HVAC systems. Additionally, the QOB2201021 complies with UL and CSA certifications, ensuring it meets industry standards.

• Rated for twenty amps at 120/240 VAC
• Includes a visual trip indication
• Designed for bolt-on mounting with an AC shunt trip

Product Highlights

This product ensures effective management of electrical circuits and protects against overloads and short circuits.

Product Information

Standard Information

• Brand: Square D
• MPN: QOB2201021

Technical Specifications

• Catalog Number: QOB2201021
• Manufacturer: Schneider Electric
• Voltage: 120/240 Volt
• Current: 20 Amp
• Number of Poles: 2 Pole
• Breaking Capacity: 10 kA
• Mounting Type: Bolt-on
• Country of Origin: Mexico
• Warranty Length: 18 months
