Product Description

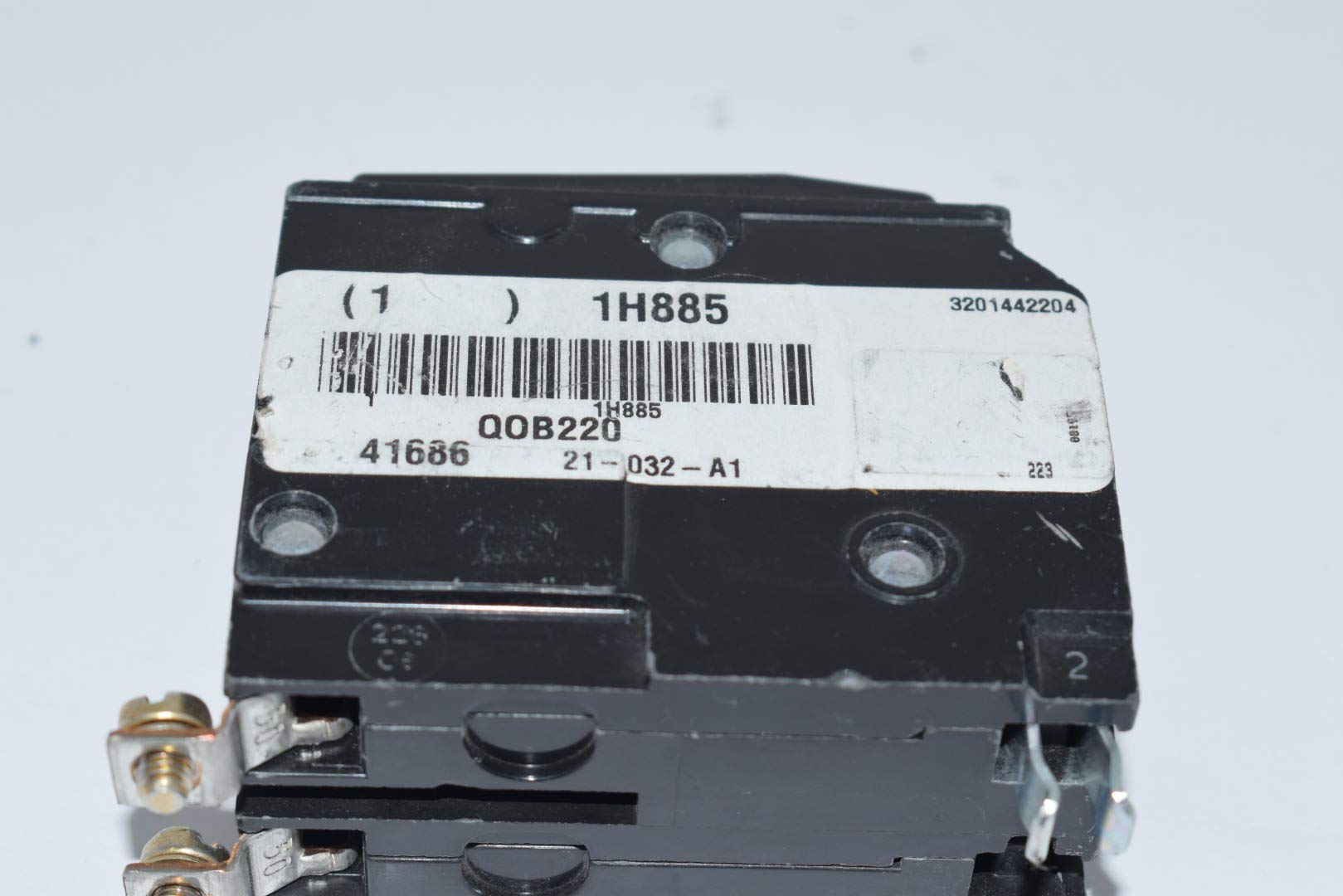

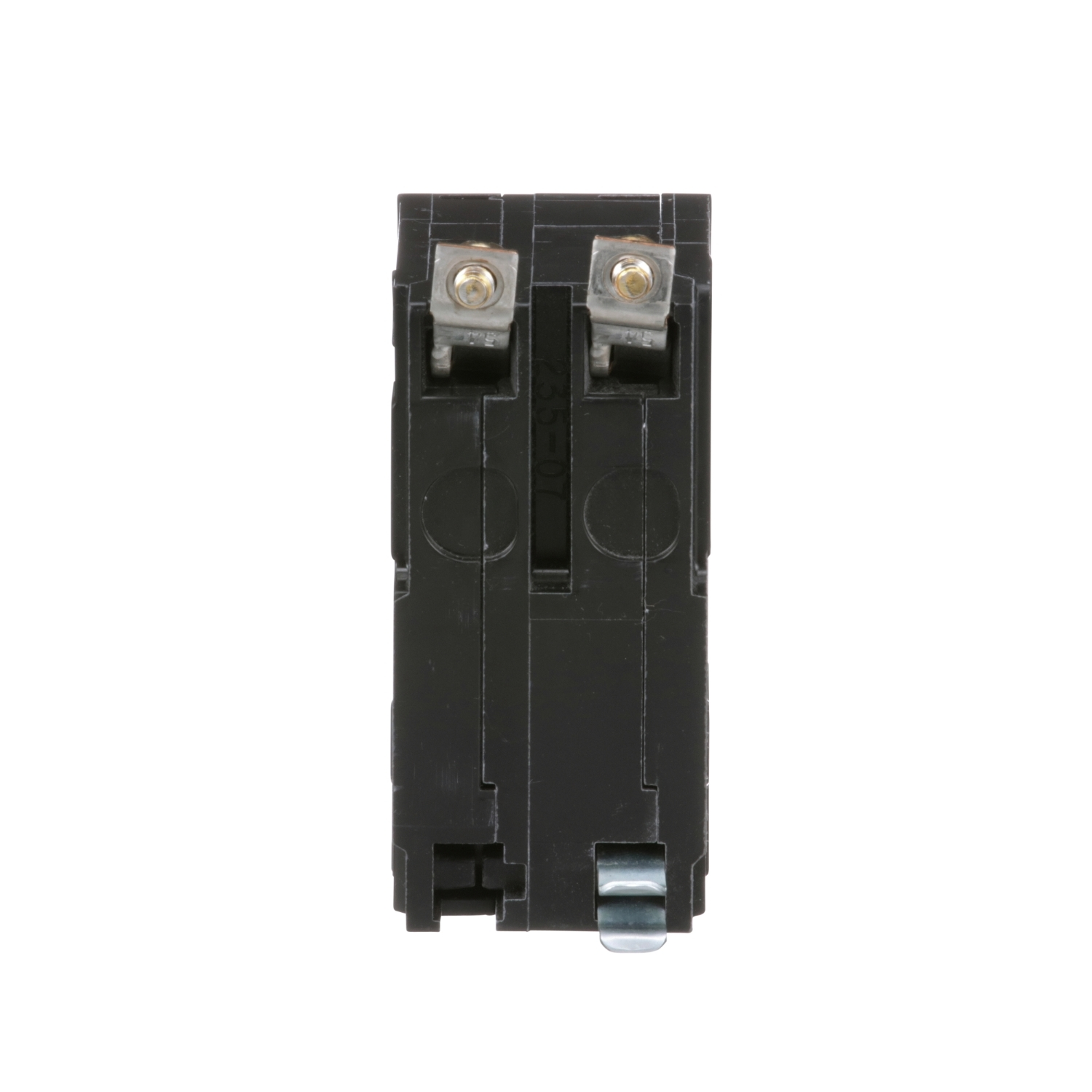

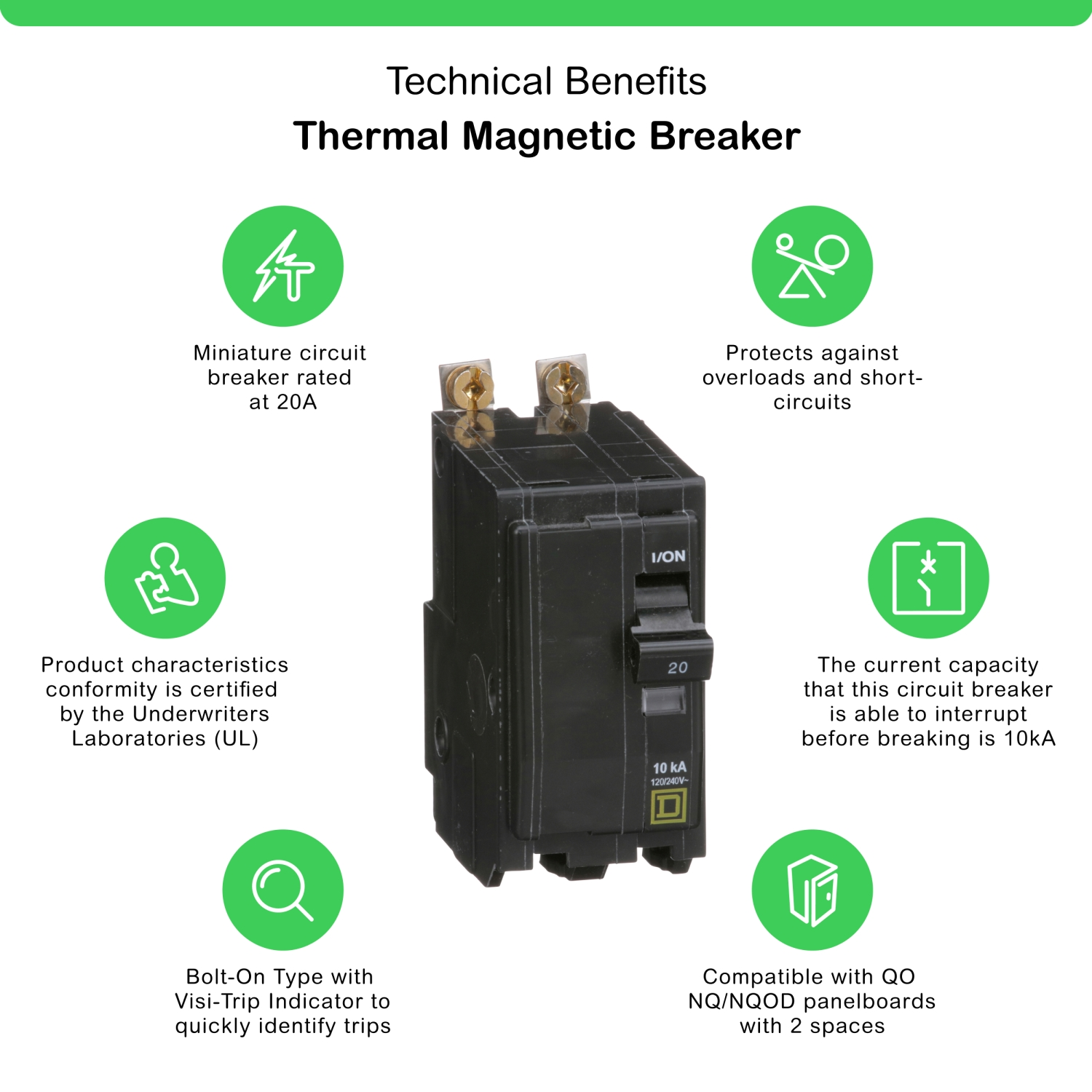

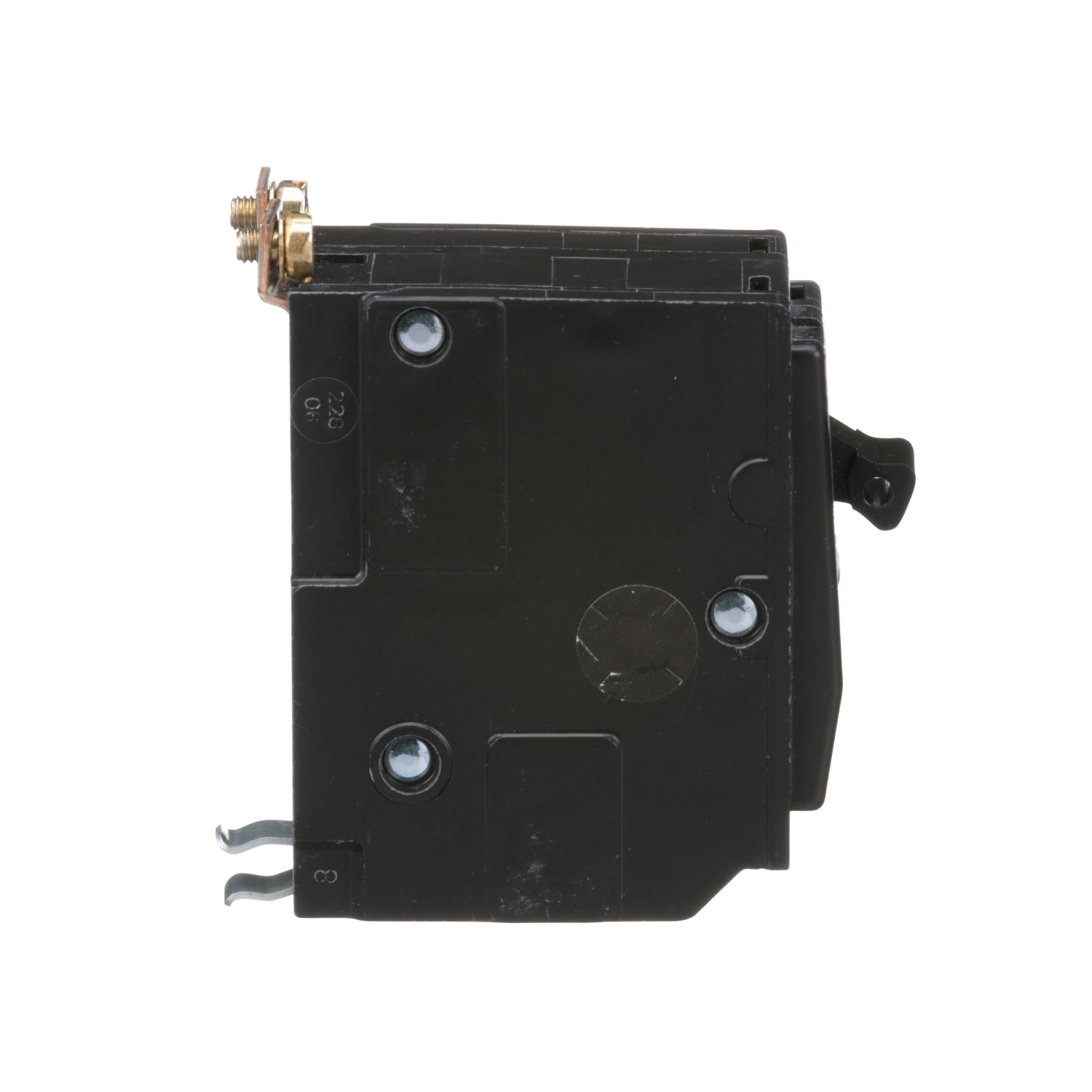

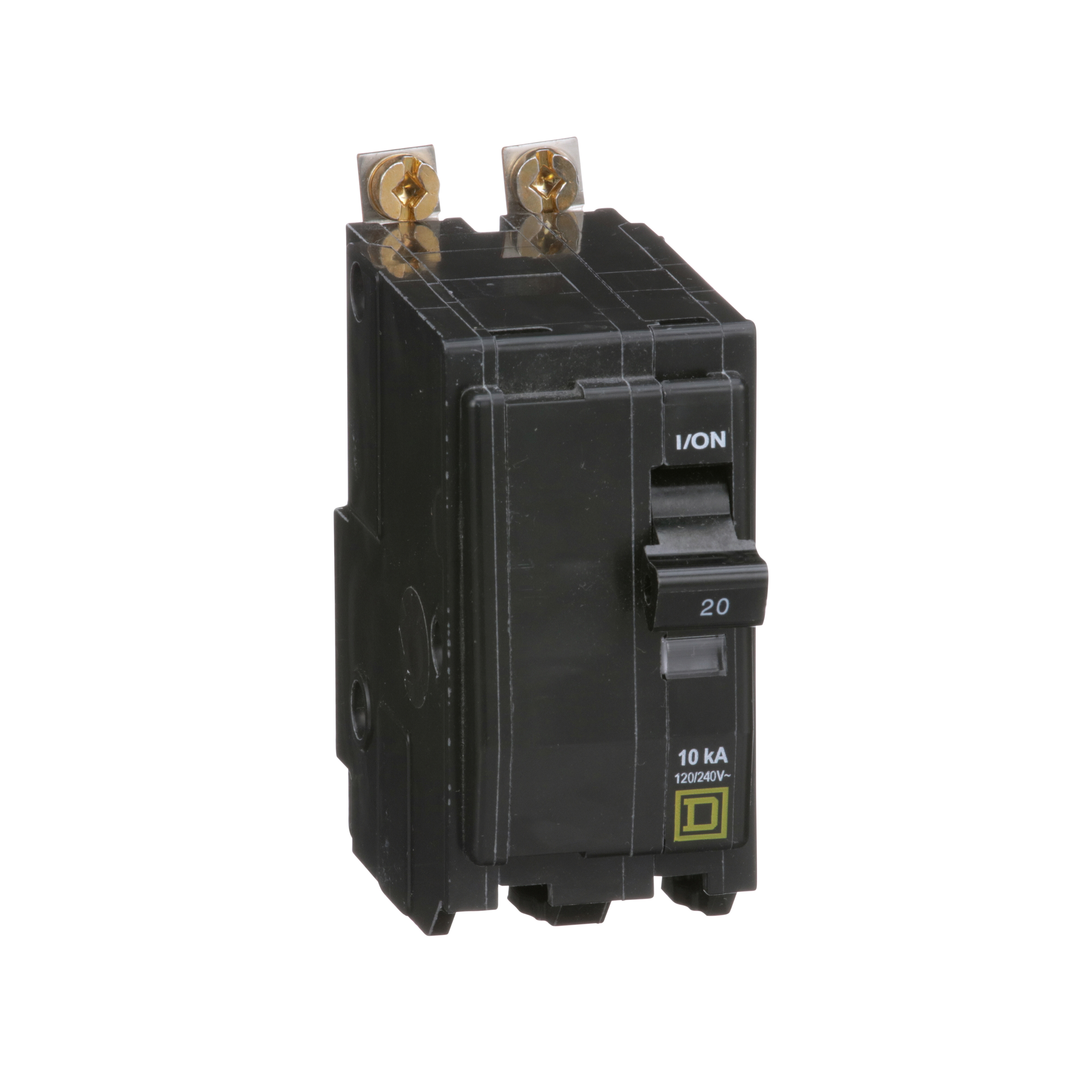

The Square D QOB220 is a bolt-on circuit breaker designed for overcurrent protection and switching on AC and DC systems. This 2-pole breaker is rated at 20A and 120/240VAC/48VDC. It features a trip-free toggle mechanism with quick make, quick break action and positive handle indication. It has VisiTrip trip indication and provides 10kA breaking capacity.
- Provides overcurrent protection and switching on AC and DC systems
- Features a trip-free toggle mechanism with quick make and break action
- Has VisiTrip trip indication
Product Highlights
The Square D QOB220 is ideal for electrical distribution and panel board applications. It is UL and CSA approved.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer Part Number: QOB220
-
Country of Origin: Mexico
Technical Specifications
-
Voltage: 240 Volts
-
Current Rating: 20 Ampere
-
Circuit Breaker Type: Standard
-
Brand: Square D
-
Model / MPN: QOB220
-
MPN: QOB220
-
Size: 20 AMP
-
Number of Items: 1.0
-
Product Type: CIRCUIT_BREAKER
-
Voltage Rating: 120/240 VAC at 50/60 Hz (UL/CSA), 48 VDC
-
Number Of Poles: 2
-
Mounting Type: Bolt-On
-
Interrupt Rating: 5, 10 kAIC
-
Frame: QOB
-
Trip Type: Thermal/Magnetic
-
Wire Size: 14 to 10 AWG, 14 to 8 AWG
-
Frequency Rating: 50/60 Hz
-
Connection Type: Pressure Plate
-
Country Of Origin: Mexico
-
Temperature Rating: 40 deg C
-
Type: Standard
-
Alternative Part Number: 8041551|13917735
-
Phase: 1
-
Dimensions: 3 in H x 1.5 in W x 2.91 in D
-
Breaking Capacity: 10 kA 120/240 V AC; 10 kA 120 V AC
-
Tightening Torque: 4-4 N.m
-
Number Of Spaces Required: 2
-
Line Rated Current - Metric: 20 A
-
Ratings: HACR rated
-
Electrical Connection: Pressure plate
-
Amperage: 20A
-
Poles: 2
-
AIC Rating: 10kA @ 120/240VAC, 5kA @ 48VDC
-
Mounting Style: Bolt-On
-
Terminal Type: Pressure Plate
-
For Use With: NQ Panelboards, NQOD Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 14-8 AWG (Al/Cu)
-
Max Wire: 8 AWG
-
Min Wire: 14 AWG
-
Available Options: Padlock Attachment, Handle Tie
-
Accessories: Load Side Lugs Included
-
Standards: CSA C22.2 No. 5, UL 489, HACR
-
Approval: CSA, UL
-
Temp Rating: 40C
-
Construction Features: HACR Rated, Visual Trip Indicator
-
Product: Miniature circuit-breaker
-
Range: QO
-
Line Rated Current: 20 A
-
System Voltage: 120 V AC, 120/240 V AC, 48 V DC
-
Number of Panel Spaces: 2
-
Height: 3 in
-
Depth: 2.91 in
-
Width: 1.5 in
-
Ambient Rating: 104 Degree F (40 Degree C)
-
Applications: HACR rated
-
Conductor Size: 14-8 AWG
-
Current: 20 Amp
-
Short Circuit Current: 10 kA
-
TC Connection: Pressure plate
-
Sub Brand: QO
-
12-Digit UPC: 785901416869
-
GTiN: 00785901416869
-
Product UPC: 78590141686
-
Interrupting Rating: 10 Kiloampere at 120/240 VAC (UL/CSA), 5 Kiloampere at 48 VDC
-
Installation: Bolt-On
-
Application: Appliance, Lighting
-
Used On: NQ Series Panelboard
-
Includes: Visi-Trip Indicator
-
Amps [Specifications]: 20 A
-
Item [Specifications]: Miniature Circuit Breaker
-
Depth [Specifications]: 2.91 in
-
Phase [Specifications]: Single
-
Width [Specifications]: 1.5 in
-
Height [Specifications]: 76 mm
-
Length [Specifications]: 3 in
-
Series [Specifications]: QOB
-
Voltage [Specifications]: 120/240 VAC
-
Features [Specifications]: Mercury Free
-
Mounting [Specifications]: Bolt on
-
Standards [Specifications]: CSA, UL Listed
-
Frame Size [Specifications]: 100A/QO
-
Application [Specifications]: HACR rated Applications
-
For Use With [Specifications]: Square D NQOD Panelboards
-
Product Type [Specifications]: Miniature Circuit Breaker
-
Max. Wire Size [Specifications]: 8 AWG
-
Min. Wire Size [Specifications]: 14 AWG
-
Max. AIR Rating [Specifications]: 10kA at 120/240V AC
-
Number of Poles [Specifications]: 2
-
Interrupt Rating [Specifications]: 10 kA at 120/240V AC
-
AC Voltage Rating [Specifications]: 120/240V AC
-
DC Voltage Rating [Specifications]: 48V DC
-
Terminal Connection [Specifications]: Pressure Plate
-
Max. Operating Temp. [Specifications]: 104 Degrees F
-
Min. Operating Temp. [Specifications]: 104 Degrees F
-
Circuit Breaker Actuator [Specifications]: Paddle
-
Length (Straight Wireway) [Specifications]: 3.0 in
-
Circuit Breaker Mounting Style [Specifications]: Bolt On
-
Country of Origin (subject to change) [Specifications]: Mexico
-
Compatible Panelboard/Load Center Series [Specifications]: QO
-
Catalog Number: QOB220
-
Brand Name: Square D
