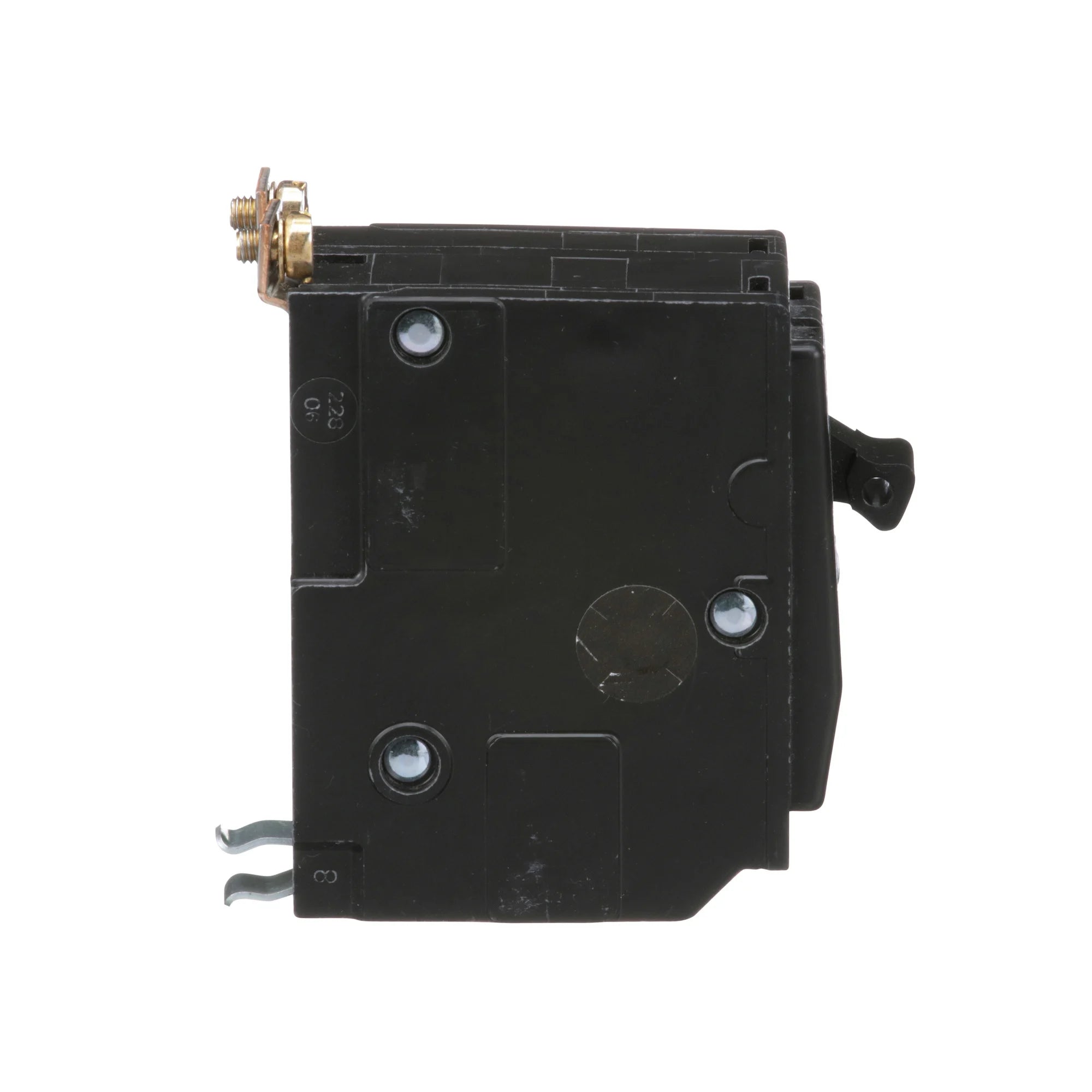

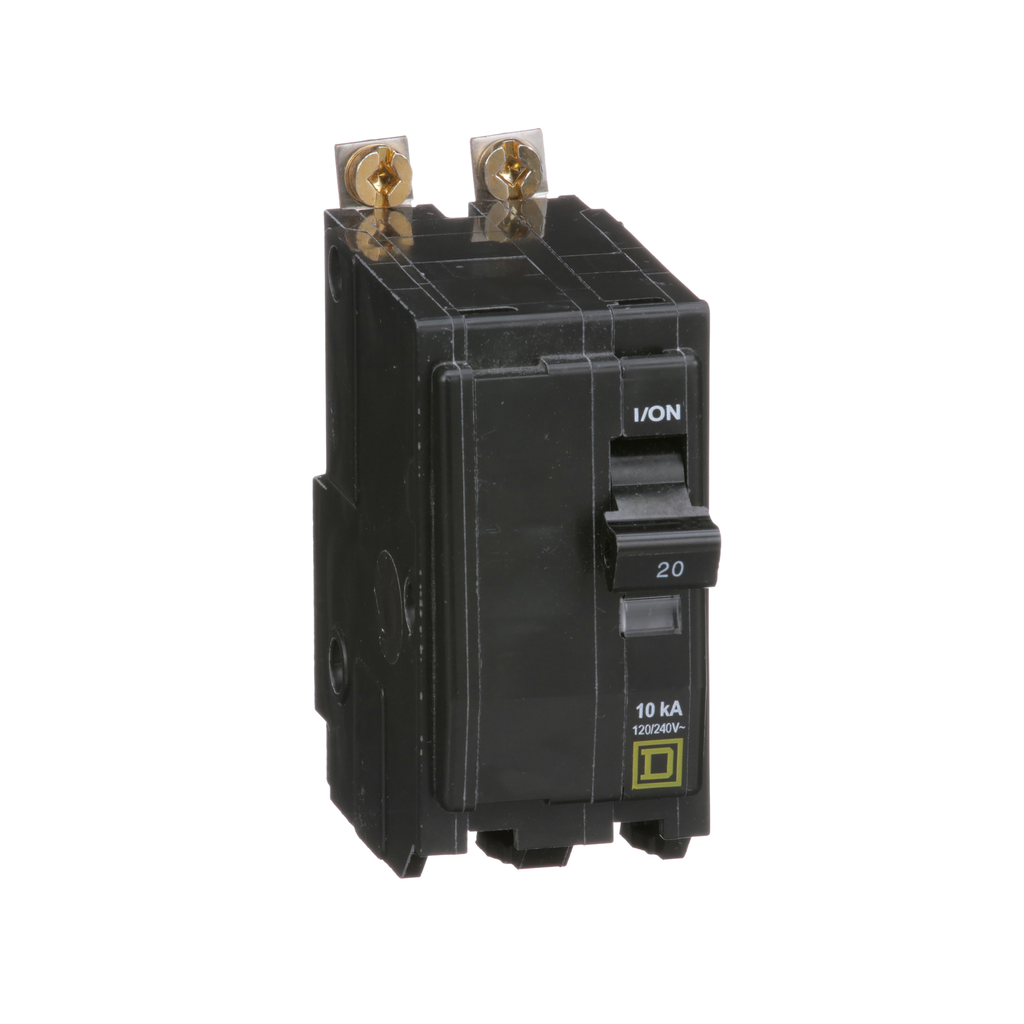

Square D QOB220 20A 120/240V 2 Pole Circuit Breaker Bolt-On

Product Description

Square D QOB220 is a 20 Amp, 120/240 Volt, 2 Pole Circuit Breaker designed for bolt-on mounting. This miniature circuit breaker offers thermal magnetic protection and operates on both AC and DC systems. The QOB220 circuit breaker features a trip-free toggle mechanism and VisiTrip indication for easy visibility of the circuit status. It is rated for a breaking capacity of 10 kA, ensuring reliable performance during overload conditions. The compact design allows for efficient use of space within electrical panels.

• Rated for 20 Amps at 120/240 Volts
• Quick-make, quick-break action mechanism
• UL Listed and CSA Certified for safety

Product Highlights

This circuit breaker is suitable for applications requiring overcurrent protection in residential or commercial settings. It provides a robust solution for circuit management while ensuring safety and compliance with electrical standards.

Product Information

Standard Information

• Catalog Number: QOB220
• Manufacturer: Schneider Electric

Technical Specifications

• Current Rating: 20 Amp
• Voltage Rating: 120/240 Volt AC
• Breaking Capacity: 10 kA
• Mounting Type: Bolt-on
• Number of Poles: 2 Pole
• Weight: 0.249 kg
• Wire Size: AWG 14-8 copper or aluminum
• Certifications: UL, CSA
