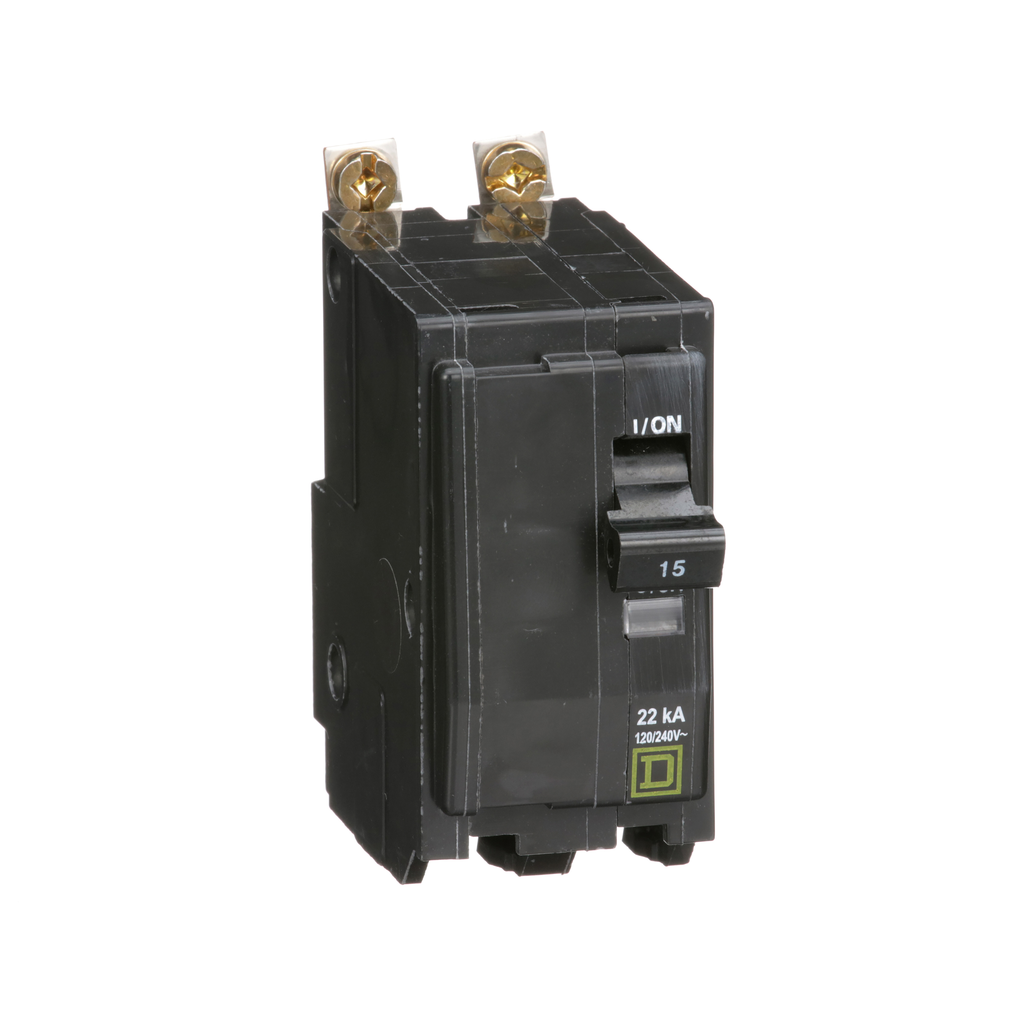

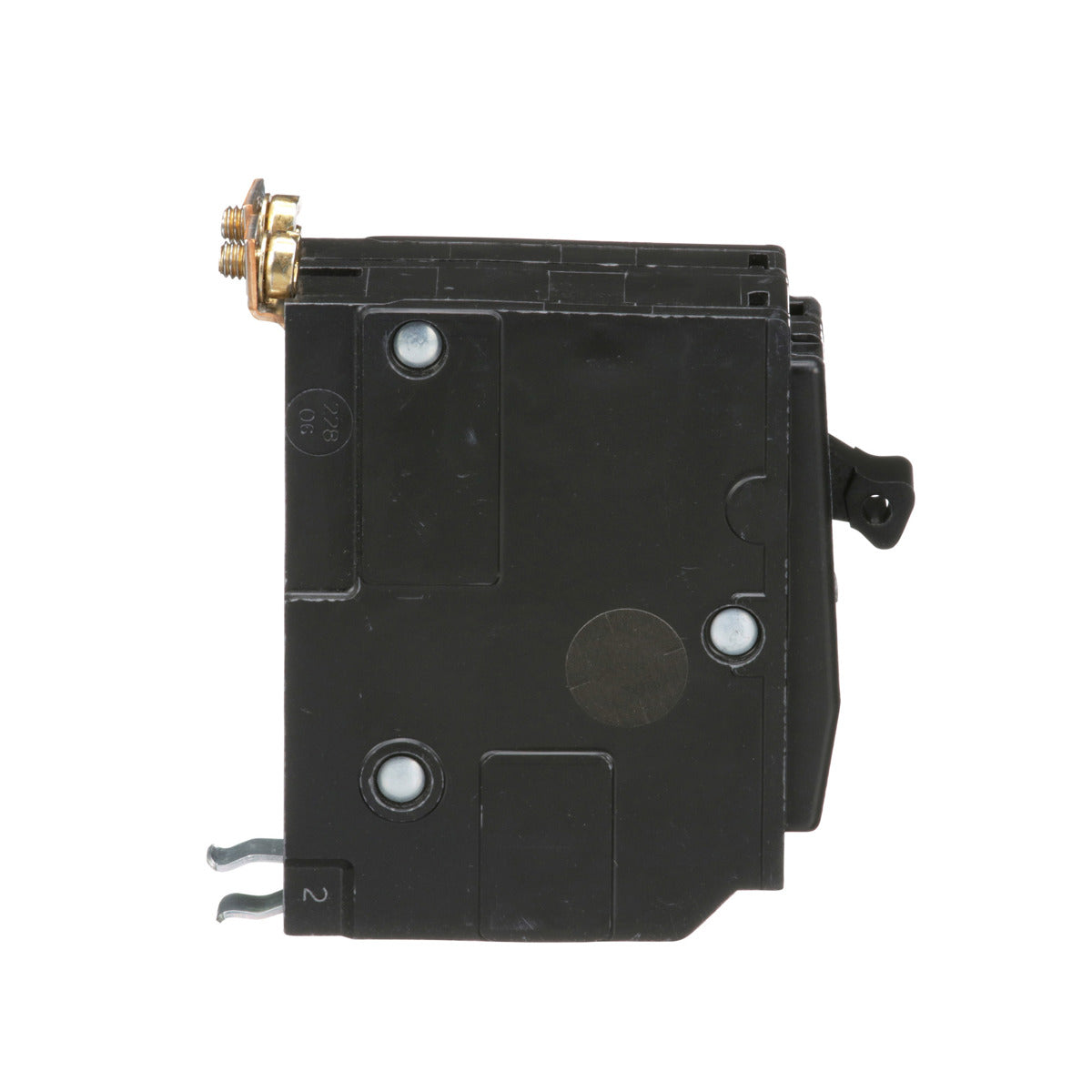

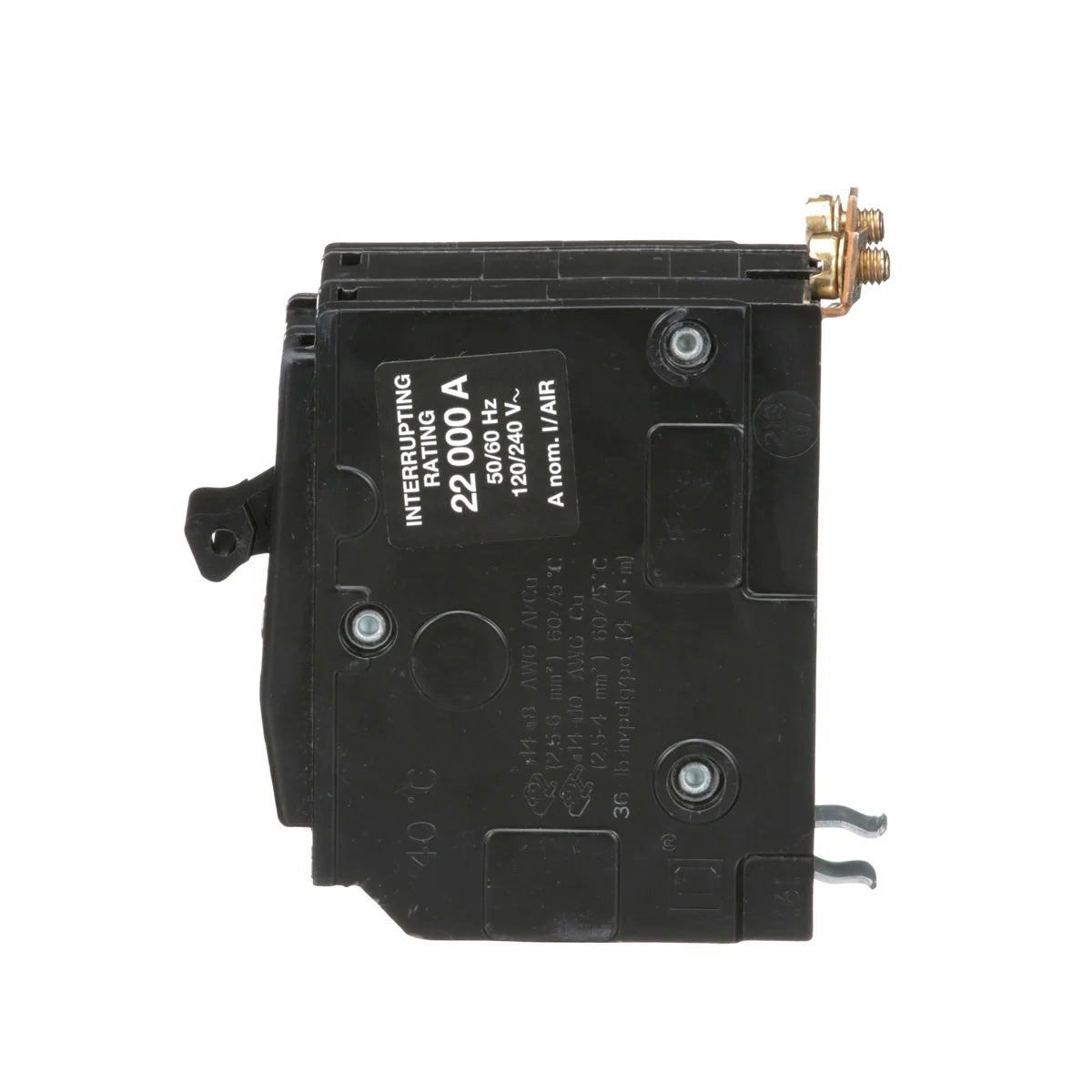

Square D QOB215VH Miniature Circuit Breaker 15 Amp 2 Pole 120/240V

Product Description

Square D QOB215VH is a 15 Amp, 240 Volt miniature circuit breaker designed for overcurrent protection in AC and DC systems. This two-pole unit features a trip-free toggle mechanism for quick action and positive indication of the circuit status. VisiTrip technology provides a visible trip indication when the breaker interrupts the circuit. A variety of accessories are available, including shunt trips and auxiliary switches. This unit is rated for 22kA breaking capacity and features bolt-on mounting for easy installation.

• Rated at 15A at 120/240VAC
• 22kA breaking capacity
• UL Listed and CSA certified

Product Highlights

This circuit breaker is suitable for HACR rated applications and offers a reliable solution for power distribution needs.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QOB215VH
• Voltage: 120 Volt
• Current Rating: 15 Amp
• Number of Poles: 2 Pole
• Height: 76 mm
• Width: 38 mm
• Depth: 74 mm
• Interrupt Rating: 22 kAIC
• Country of Origin: Mexico
• Operating Temperature: 40 Degrees C
• Wire Size: AWG 14 to AWG 8
• Certifications: CSA, UL Listed
• Warranty Length: 18 months
