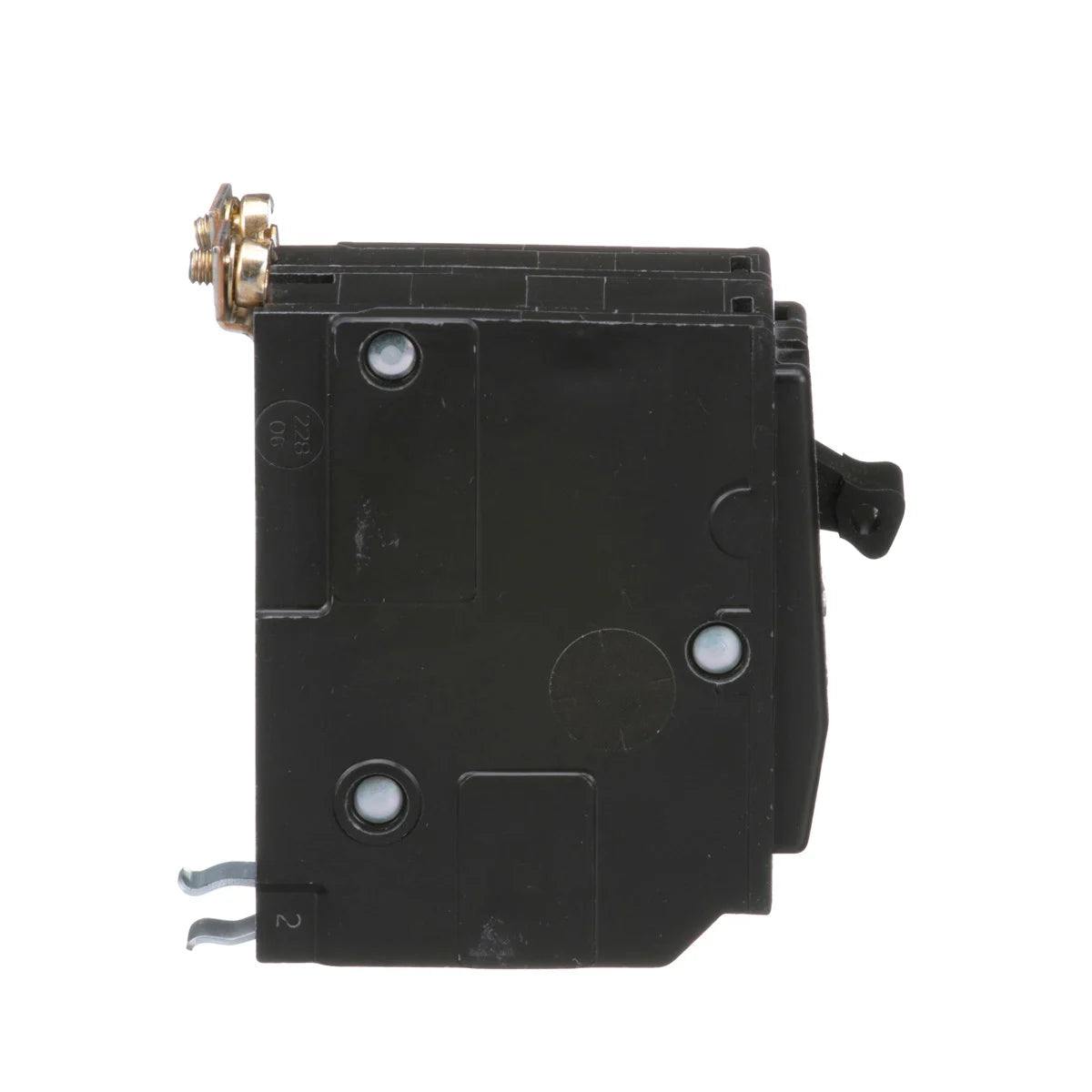

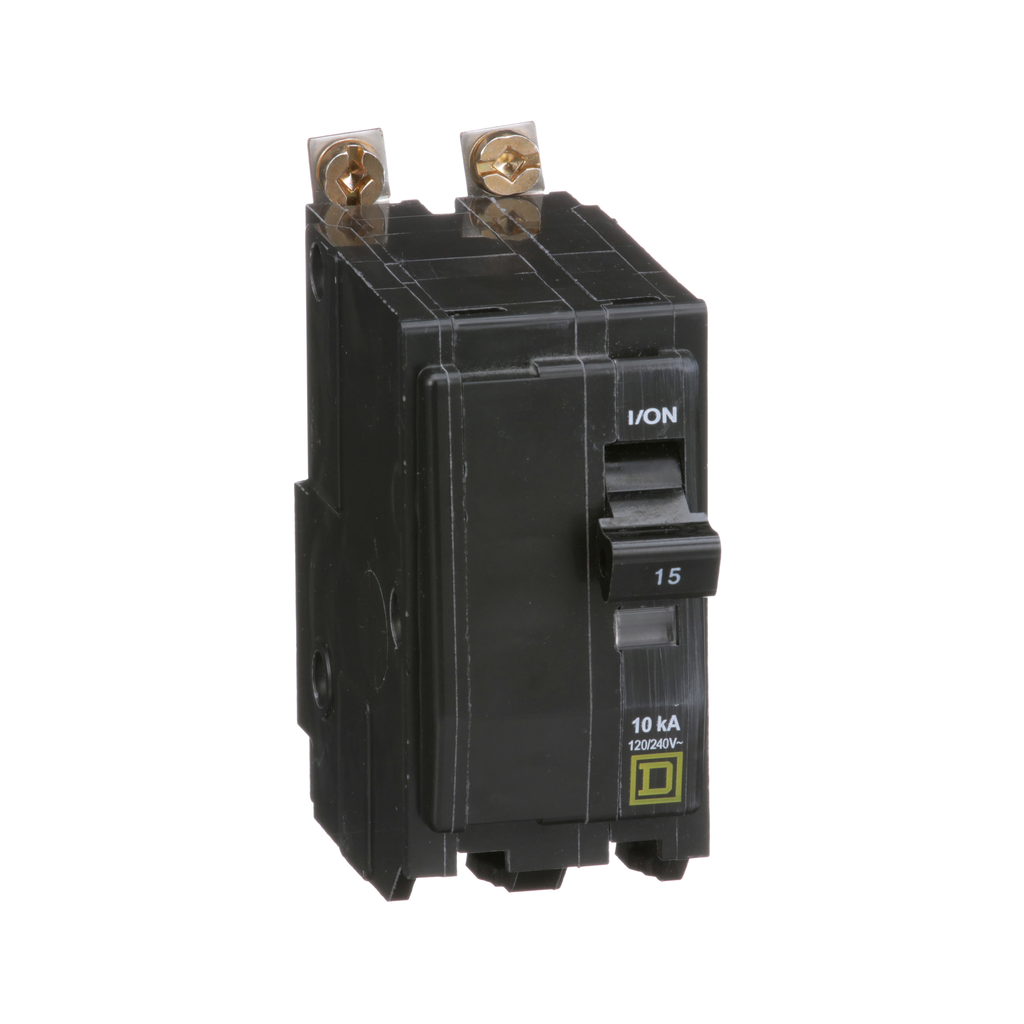

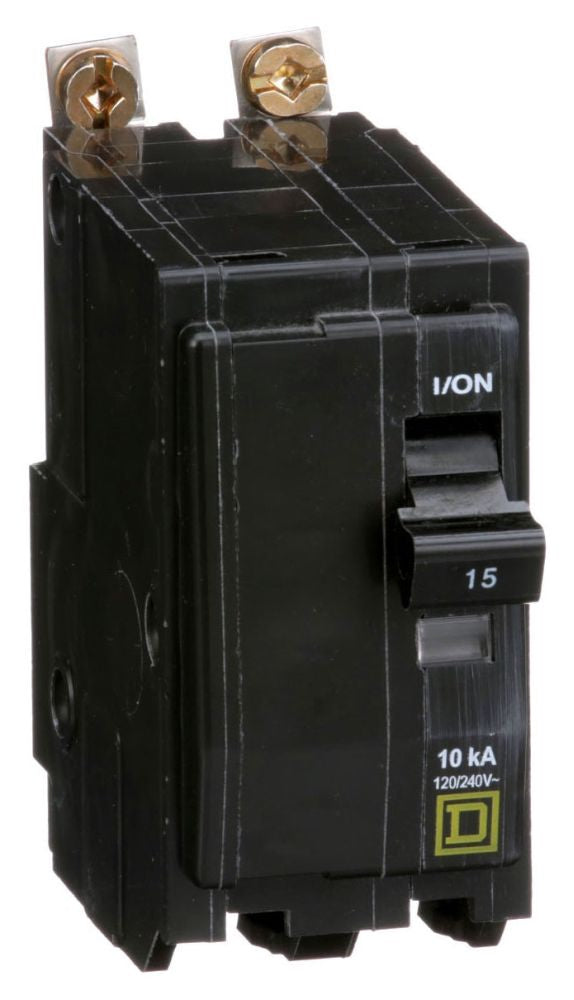

Square D QOB215 Miniature Circuit Breaker 15A 120/240V 2P

Product Description

The Square D QOB215 miniature circuit breaker is designed for reliable overcurrent protection in electrical systems. This model features dual poles and is rated for fifteen amps at 120/240 volts. It is built with thermal magnetic technology, allowing it to effectively handle AC and DC applications. This breaker includes a trip-free toggle mechanism for quick operation, enhancing safety and performance.

• Rated current: 15 Amps
• Voltage: 120/240 Volts
• Breaking capacity: 10 kA

Product Highlights

This circuit breaker features VisiTrip technology to indicate when it has tripped, providing a visual alert. Its compact design minimizes space in electrical panels, accommodating tight installations.

Product Information

Standard Information

• Catalog Number: QOB215
• Brand: Square D

Technical Specifications

• Type: Miniature circuit breaker
• Number of Poles: 2
• Current Rating: 15 Amps
• Voltage Rating: 120/240 Volts
• Interrupt Rating: 10 kA
• Mounting Type: Bolt-on
• Applications: Appliance and lighting circuits
• Country of Origin: Mexico
• UL Listed: Yes
• CSA Certified: Yes
