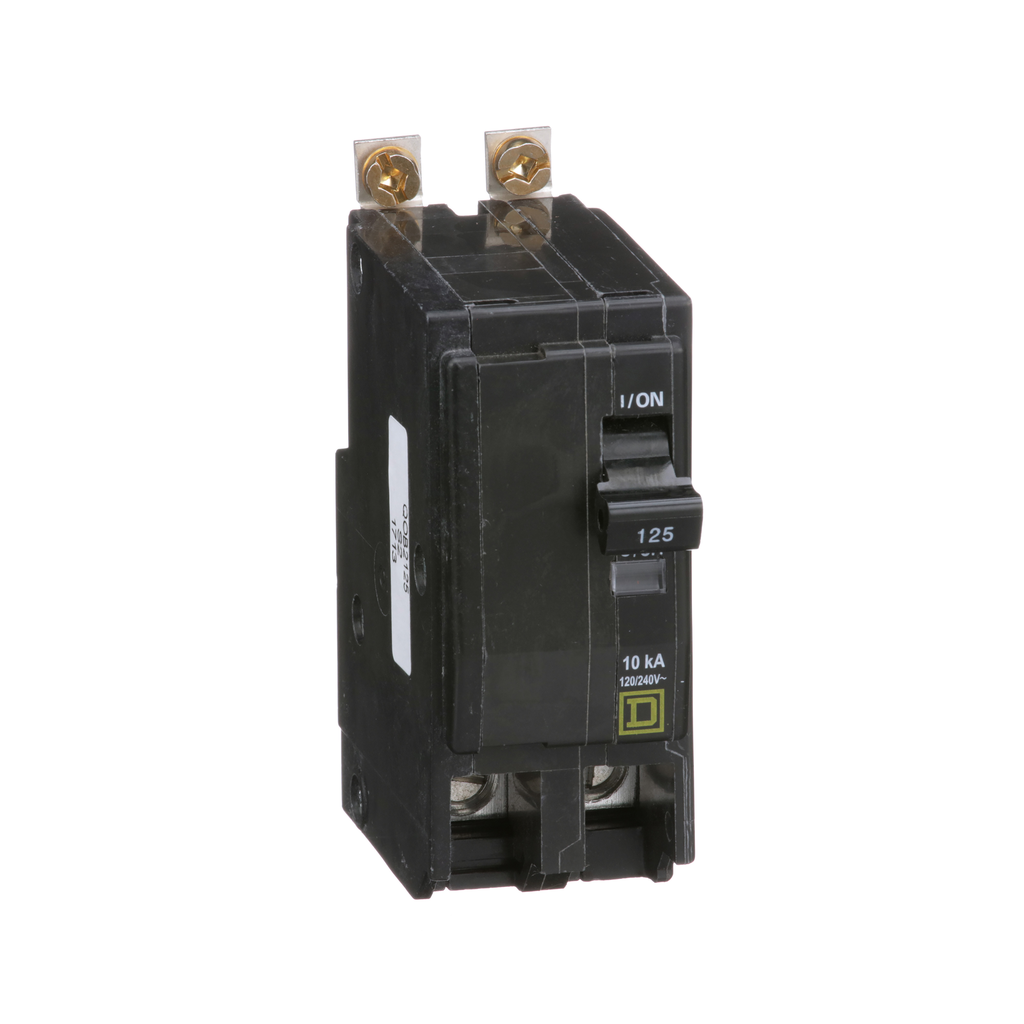

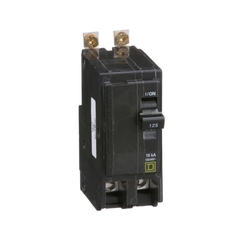

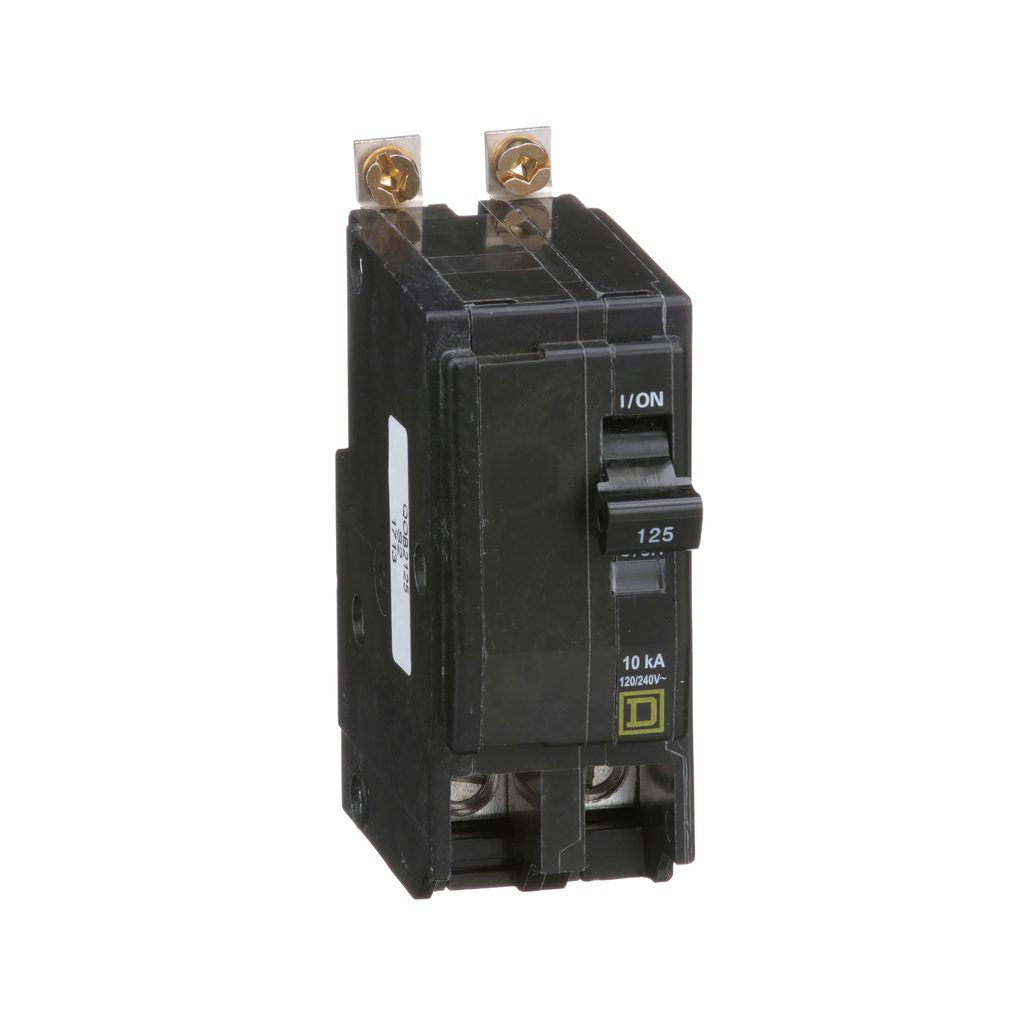

Square D QOB2125 Miniature Circuit Breaker 125 Amp 120/240 Volt

Product Description

The Square D QOB2125 is a miniature circuit breaker with the MPN QOB2125. It offers overcurrent protection in both AC and DC systems. This two-pole breaker is rated for 125 amps at 120/240 volts. Its design includes a trip free toggle mechanism with quick make and break action. The VisiTrip feature indicates when the breaker has tripped. This model also supports various accessories, including shunt trips and auxiliary switches.

• Rated at 125 Amps and 120/240 Volts
• 10 kA breaking capacity
• Bolt-on mounting for easy installation

Product Highlights

The QOB2125 is suitable for standard applications. Its UL and CSA certifications ensure reliability and compliance.

Product Information

Standard Information

• Brand: Square D
• MPN: QOB2125

Technical Specifications

• Type: Miniature circuit-breaker
• Depth: 2.91 inches
• Width: 1.5 inches
• Height: 3.5 inches
• Current Rating: 125 Amp
• Voltage: 120/240 Volt
• Breaking Capacity: 10 kA
• Mounting Type: Bolt-on
