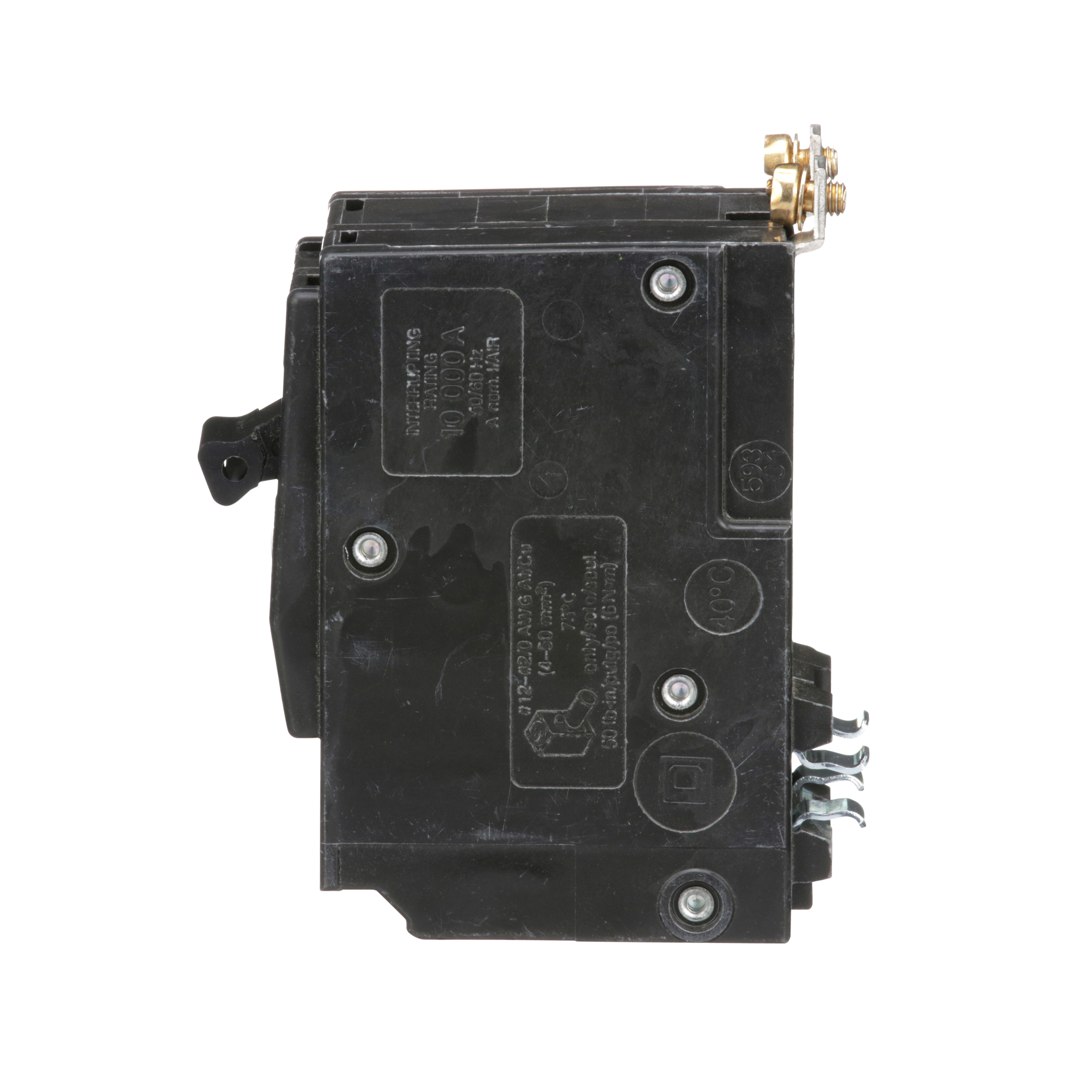

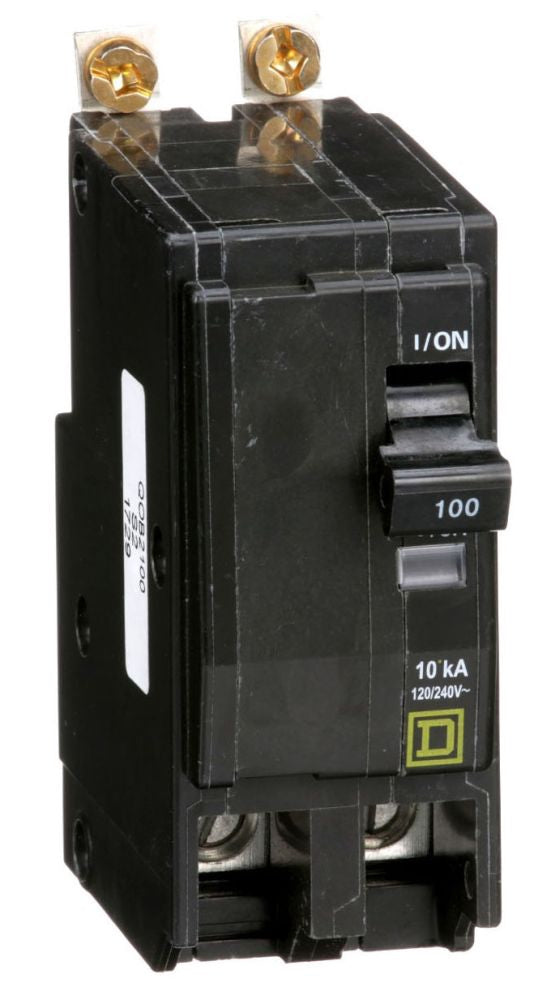

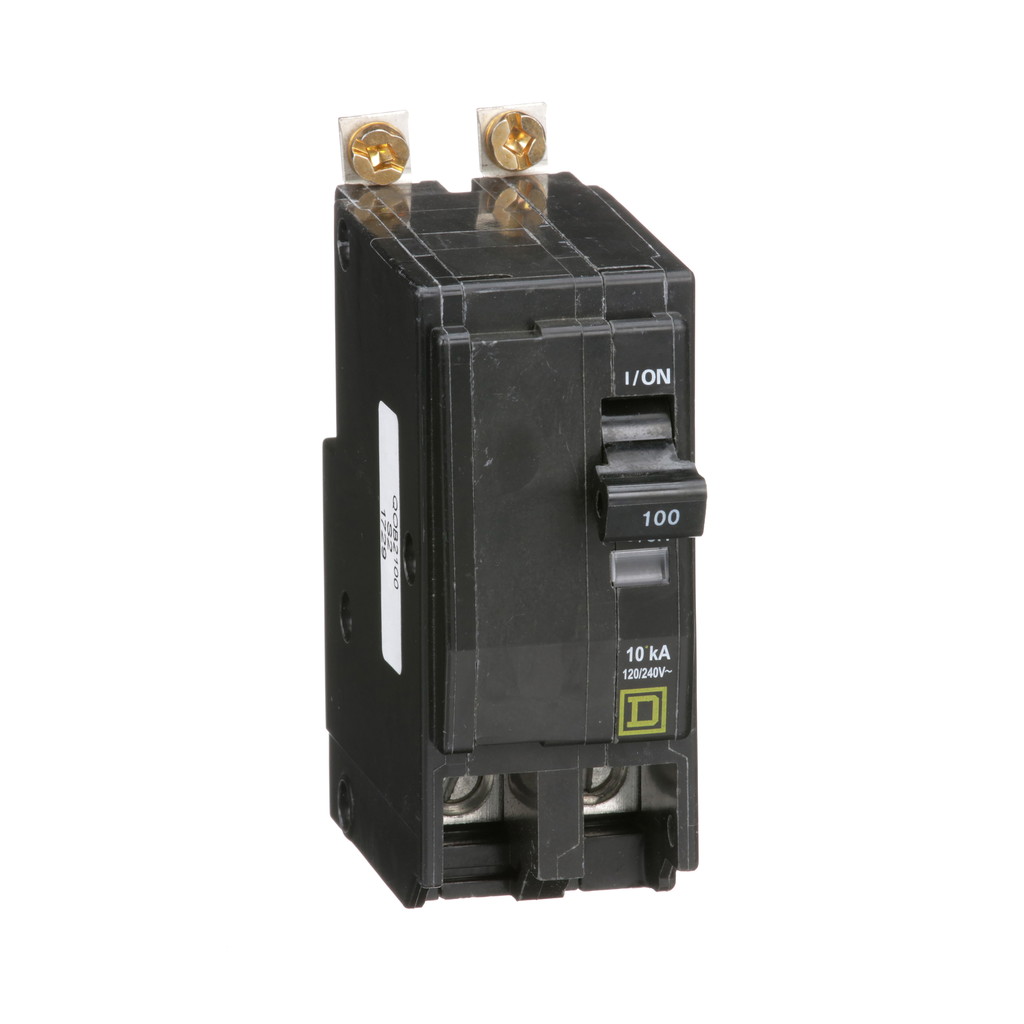

SCHNEIDER ELECTRIC Square D QOB2100 Miniature Circuit Breaker 100A 120/240V 1Ph 2P , Bolt-On
SCHNEIDER ELECTRIC Square D QOB2100 Miniature Circuit Breaker 100A 120/240V 1Ph 2P , Bolt-On
SCHNEIDER ELECTRIC Square D QOB2100 Miniature Circuit Breaker 100A 120/240V 1Ph 2P , Bolt-On
SCHNEIDER ELECTRIC Square D QOB2100 Miniature Circuit Breaker 100A 120/240V 1Ph 2P , Bolt-On
SCHNEIDER ELECTRIC Square D QOB2100 Miniature Circuit Breaker 100A 120/240V 1Ph 2P , Bolt-On
SCHNEIDER ELECTRIC Square D QOB2100 Miniature Circuit Breaker 100A 120/240V 1Ph 2P , Bolt-On

Square D QOB2100 Miniature Circuit Breaker 100A 120/240V 1Ph 2P , Bolt-On

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: QOB2100
Availability: In Stock

Ships same day if ordered by 12 pm
$175.59
$175.59
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Square D QOB2100 is a miniature circuit breaker designed for effective power management. This model can handle a current of one hundred amps and operates at a voltage of one hundred twenty to two hundred forty volts. The QOB2100 features a bolt-on mounting that makes installation straightforward.

  • Two pole design
  • Interrupt rating of ten kiloamperes
  • HACR rated for heating, air conditioning, and refrigeration

Product Highlights

The Square D QOB2100 is suitable for use in various electrical panelboards, making it a versatile choice for both new installations and replacements.

Product Information

Standard Information

  • Brand: Square D
  • MPN: QOB2100
Technical Specifications
Type
Miniature circuit breaker
Depth
Two point nine one inches
Width
One point five inches
Height
Three point five inches
Current
One hundred amps
Voltage
One hundred twenty to two hundred forty volts
Number of Poles
Two
Mounting Type
Bolt-on
Wire Size
AWG four to AWG two/zero
Interrupt Rating
Ten kAIC
Certifications
CSA, UL Listed
