Product Description

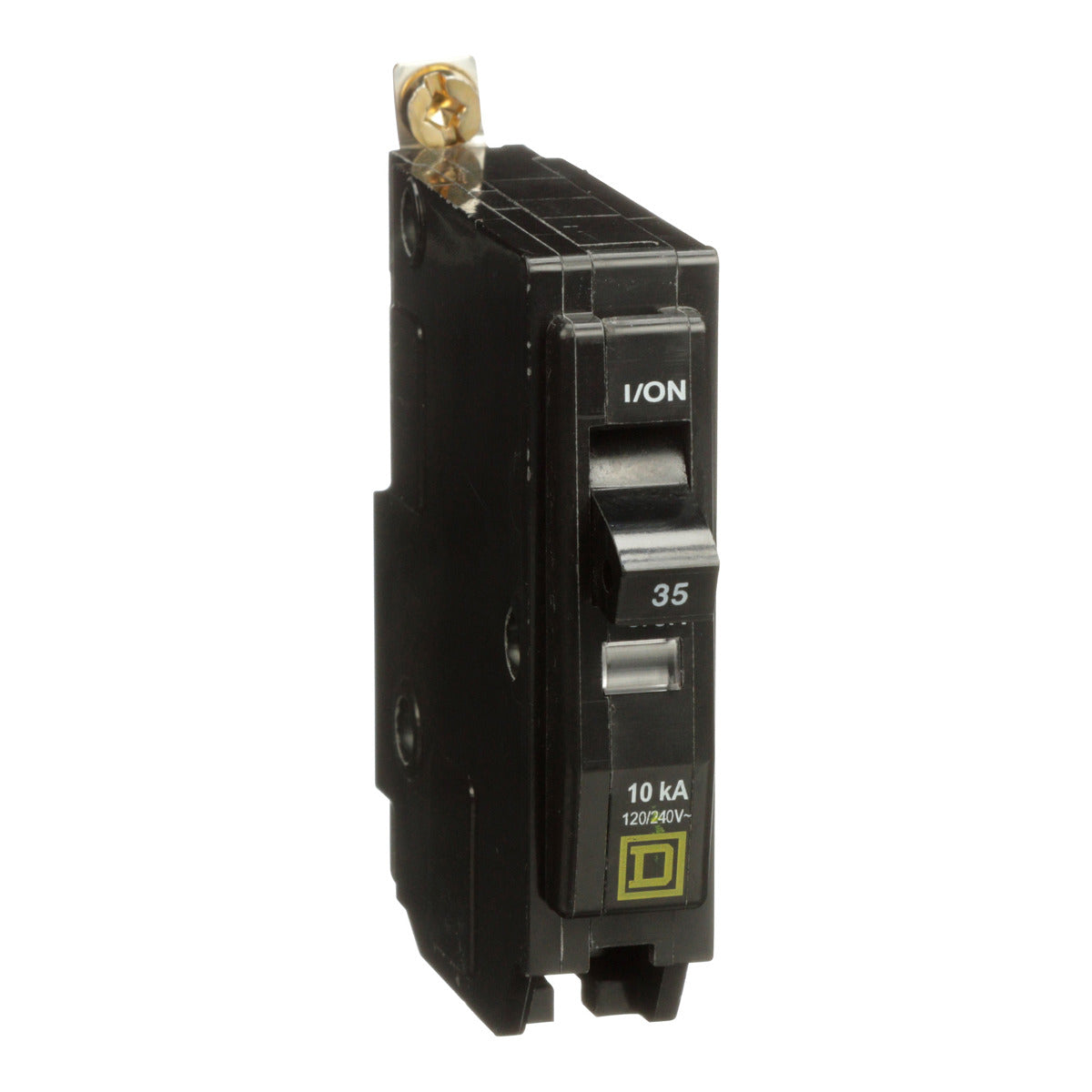

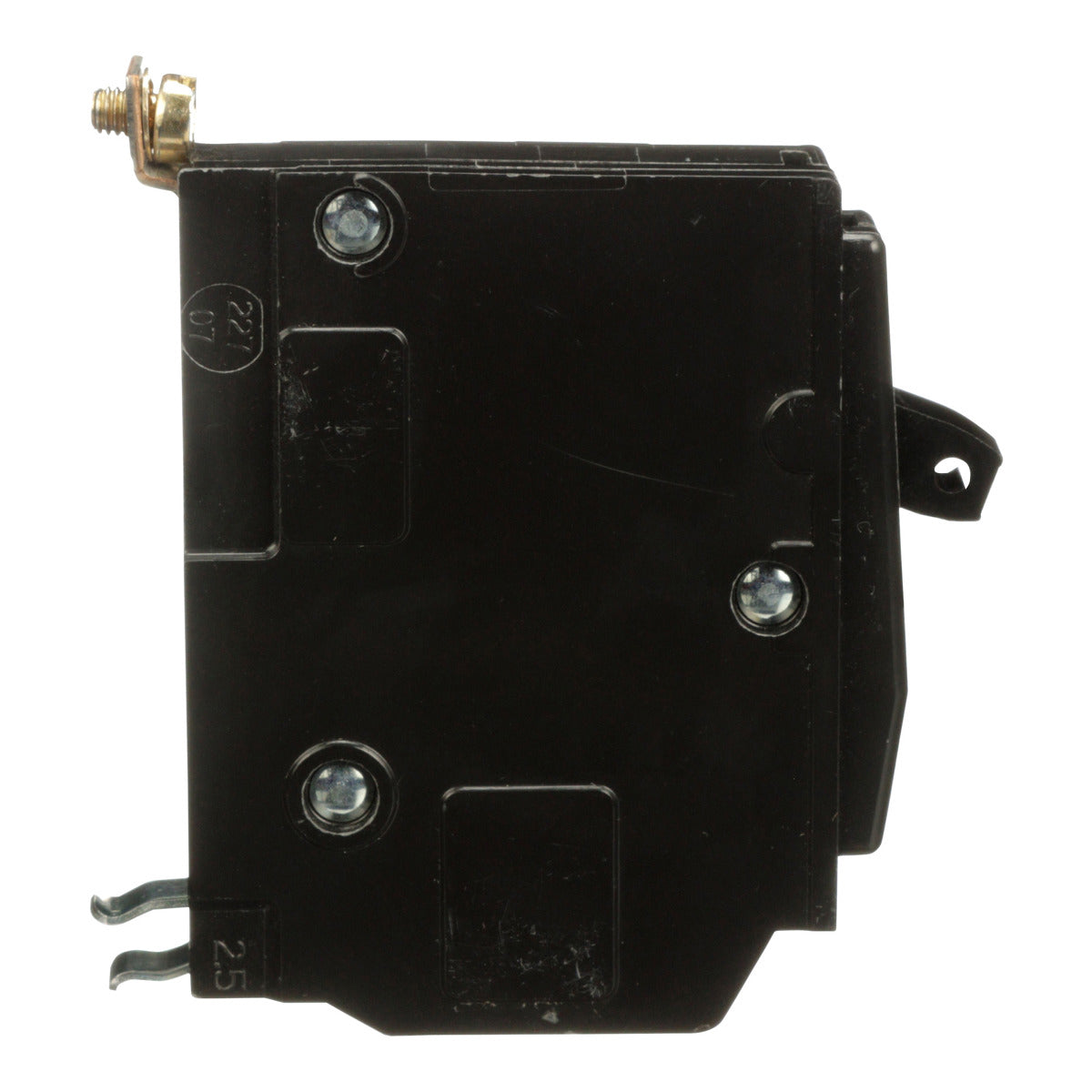

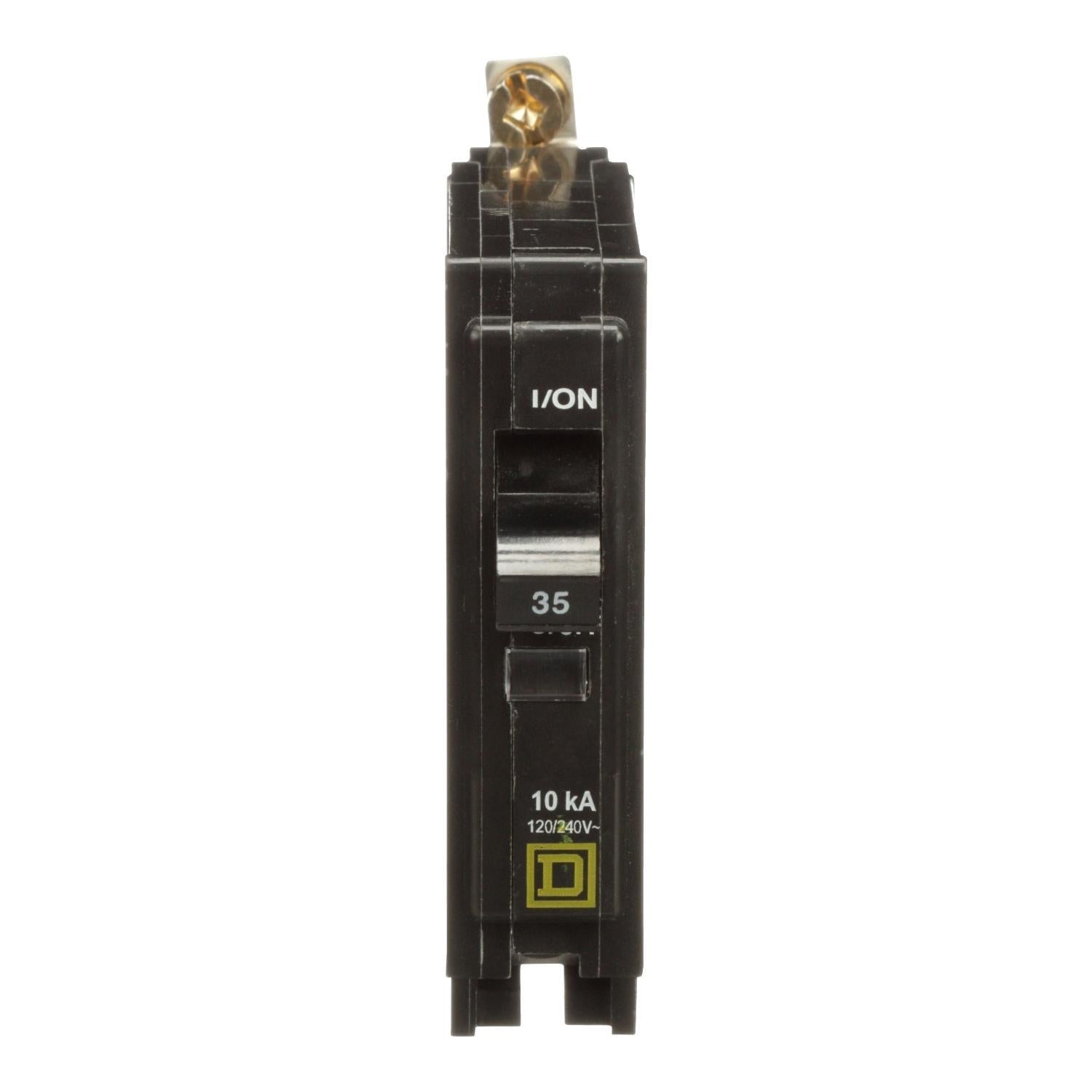

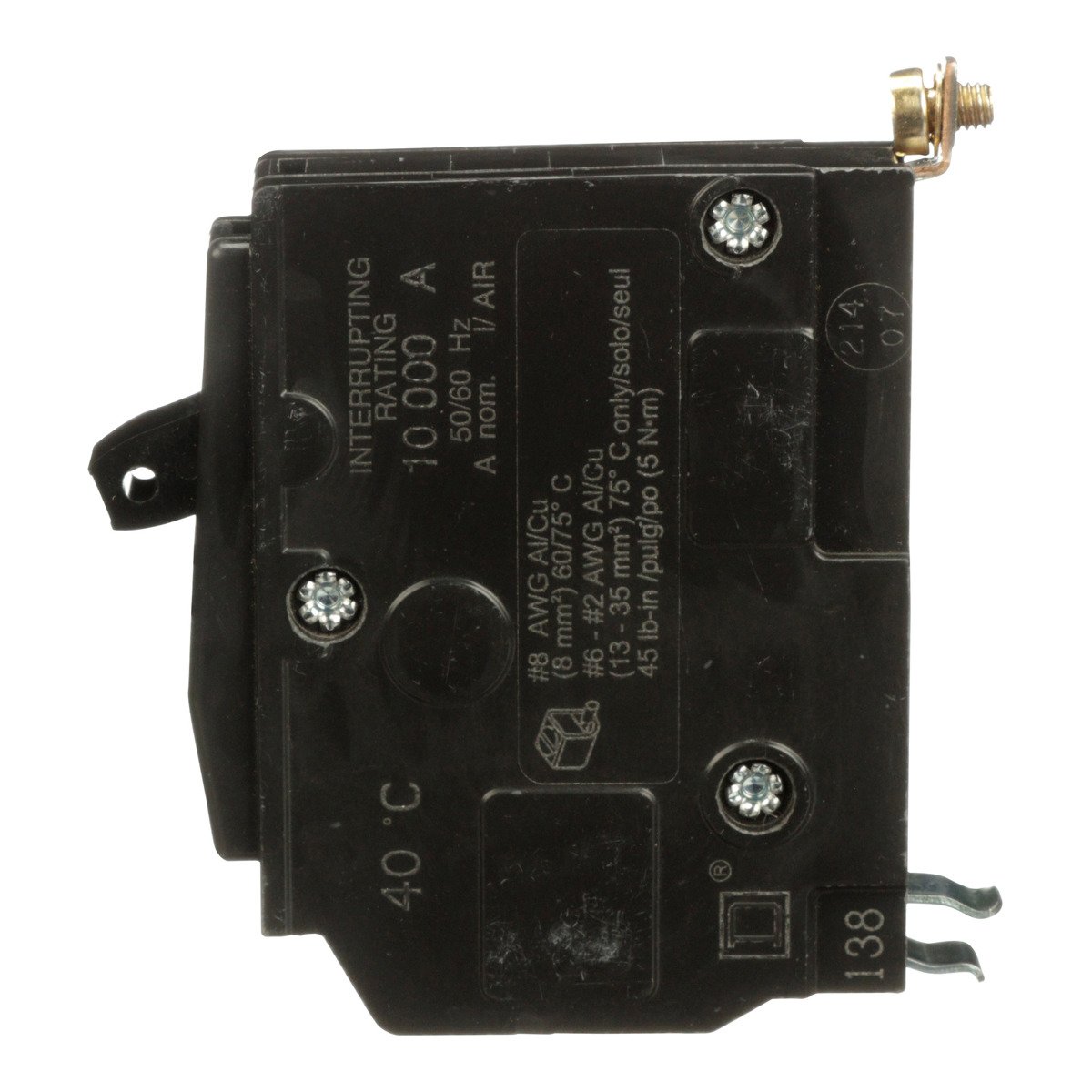

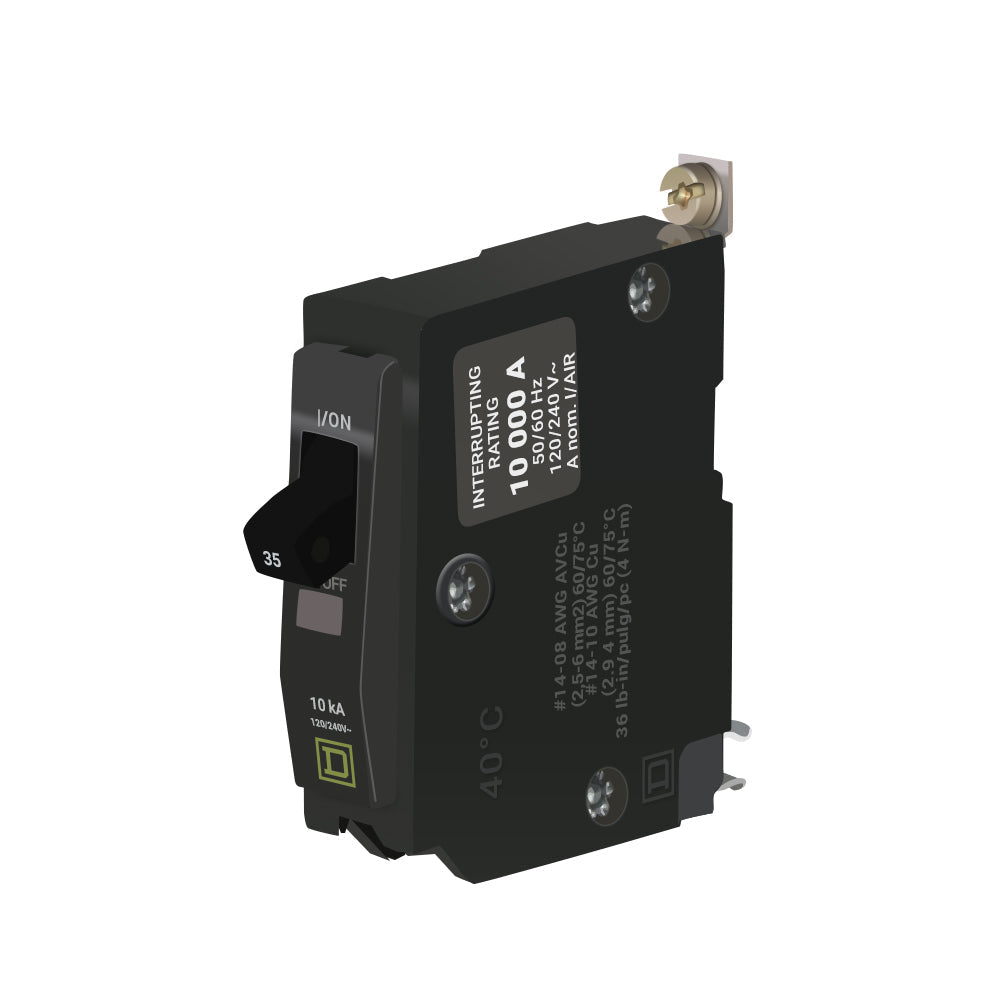

The Square D QOB135 is a 1-pole thermal magnetic circuit breaker designed for overcurrent protection and switching in AC and DC systems. This 35A circuit breaker features a trip-free toggle mechanism for quick make and break action, and a VisiTrip indicator for visual trip indication. It has a 10kA breaking capacity and bolt-on mounting.
- Provides overcurrent protection and switching on AC and DC systems
- Features a trip-free toggle mechanism for quick make and break action
- Includes VisiTrip trip indication for visual indication of tripped circuit
Product Highlights
The Square D QOB135 is ideal for use in NQO and NQOD panelboards and offers reliable circuit protection.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QOB135
-
Country of Origin: Mexico
Technical Specifications
-
Type: Miniature circuit-breaker
-
Brand: Square D
-
Current: 35 Amp
-
Voltage: 120 Volt
-
Amperage: 35 Amp
-
Sub Brand: QO
-
Wire Size: AWG 8...AWG 2 copper or aluminium
-
Applications: HACR rated
-
Mounting Type: Bolt-on
-
TC Connection: Box lugs
-
Certifications: CSA, UL Listed
-
Conductor Size: 8-2 AWG
-
Number of Poles: 1 Pole
-
Interrupt Rating: 5, 10 kAIC
-
Line Rated Current: 35 A
-
Circuit Breaker Type: Standard
-
Short Circuit Current: 10 kA
-
AC Voltage Rating: 120/240V AC
-
DC Voltage Rating: 48V DC
-
Terminal Connection: Lug
-
Frame Size: 100A/QO
-
Max. Wire Size: 2 AWG
-
Min. Wire Size: 8 AWG
-
Max. AIR Rating: 10kA at 120/240V AC
-
Installation: Bolt-On
-
Application: Appliance, Lighting
-
Used On: NQ Series Panelboard
-
Frame Type: Q
-
Tripping Method: Thermal Magnetic
-
Voltage Rating: 120/240 VAC at 50/60 Hz (UL/CSA), 48 VDC
-
Current Rating: 35 Ampere
-
Interrupting Rating: 10 Kiloampere at 120/240 VAC (UL/CSA), 5 Kiloampere at 48 VDC
-
Includes: Visi-Trip Indicator
-
Material: Fiberglass Filled Thermoset
-
UNSPSC: 39121603
-
Standards: UL Listed
CSA Certified
HACR rated (Heating, Air Conditioning, Refrigeration)
-
Amp Rating: 35
-
Poles: 1
-
Phase: Single
-
Series: QOB
-
Mounting: Bolt on
-
For Use With: Square D NQOD Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 8-2 AWG (Al/Cu)
-
Max Wire: 2 AWG
-
Min Wire: 8 AWG
-
Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
-
Accessories: Visi-Trip Indicator
-
Approval: CSA, UL
-
Temp Rating: 40C
-
Construction Features: Visual Trip Indicator, HACR Rated
