Product Description

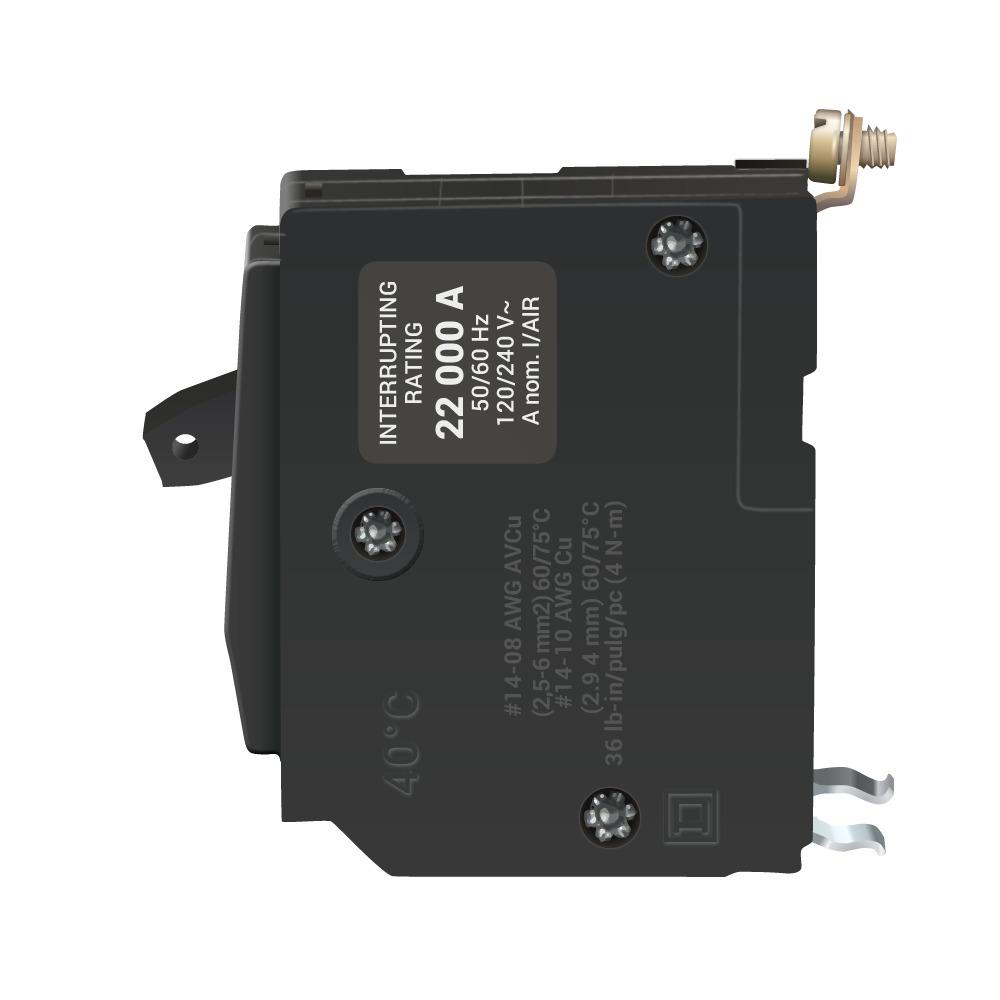

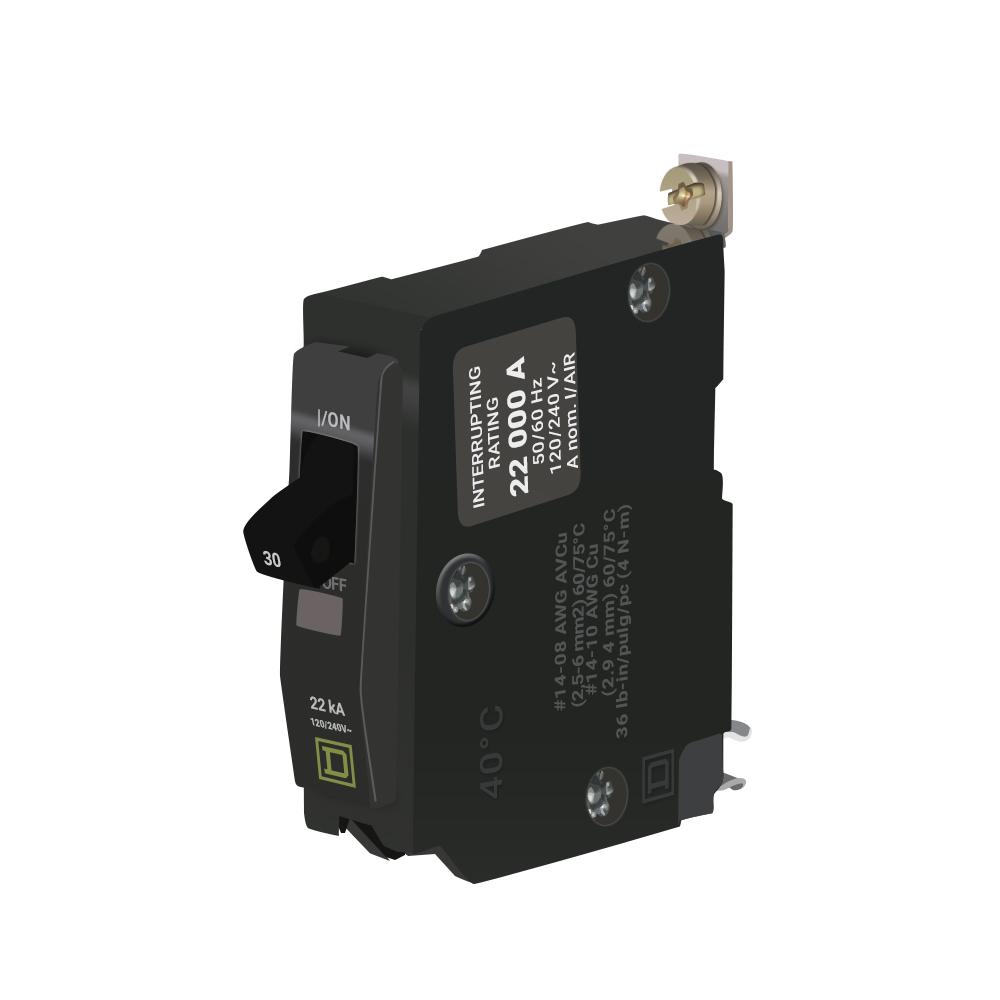

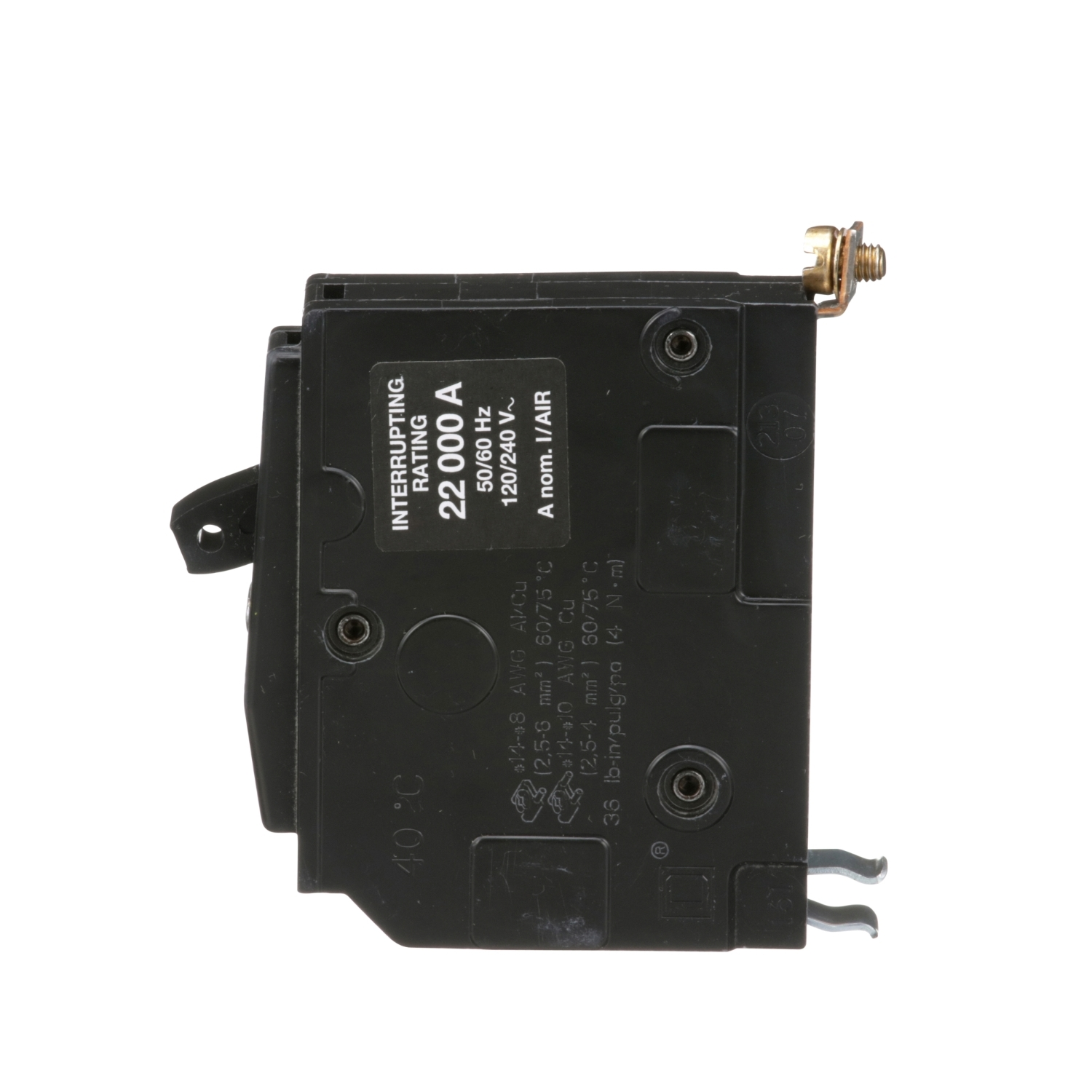

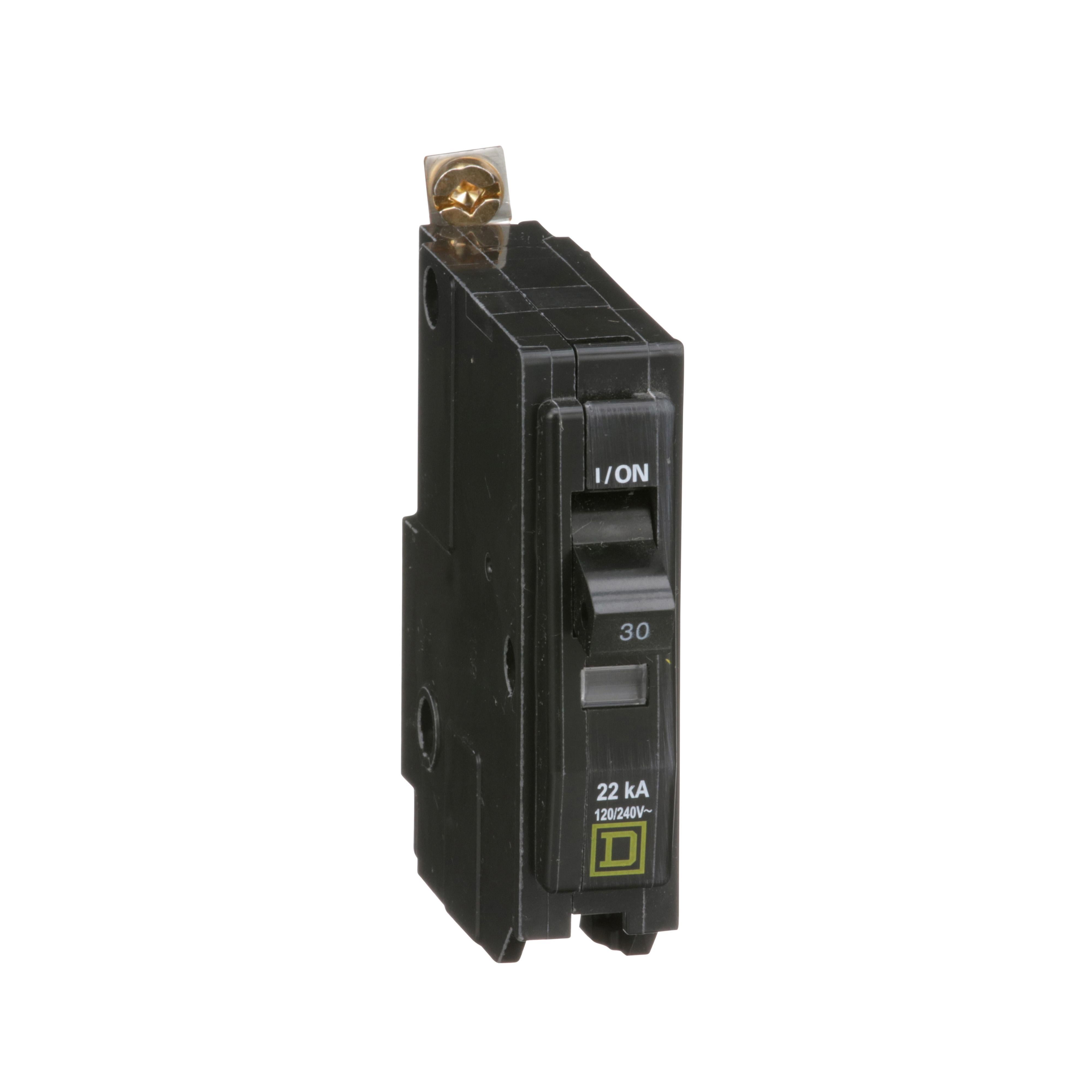

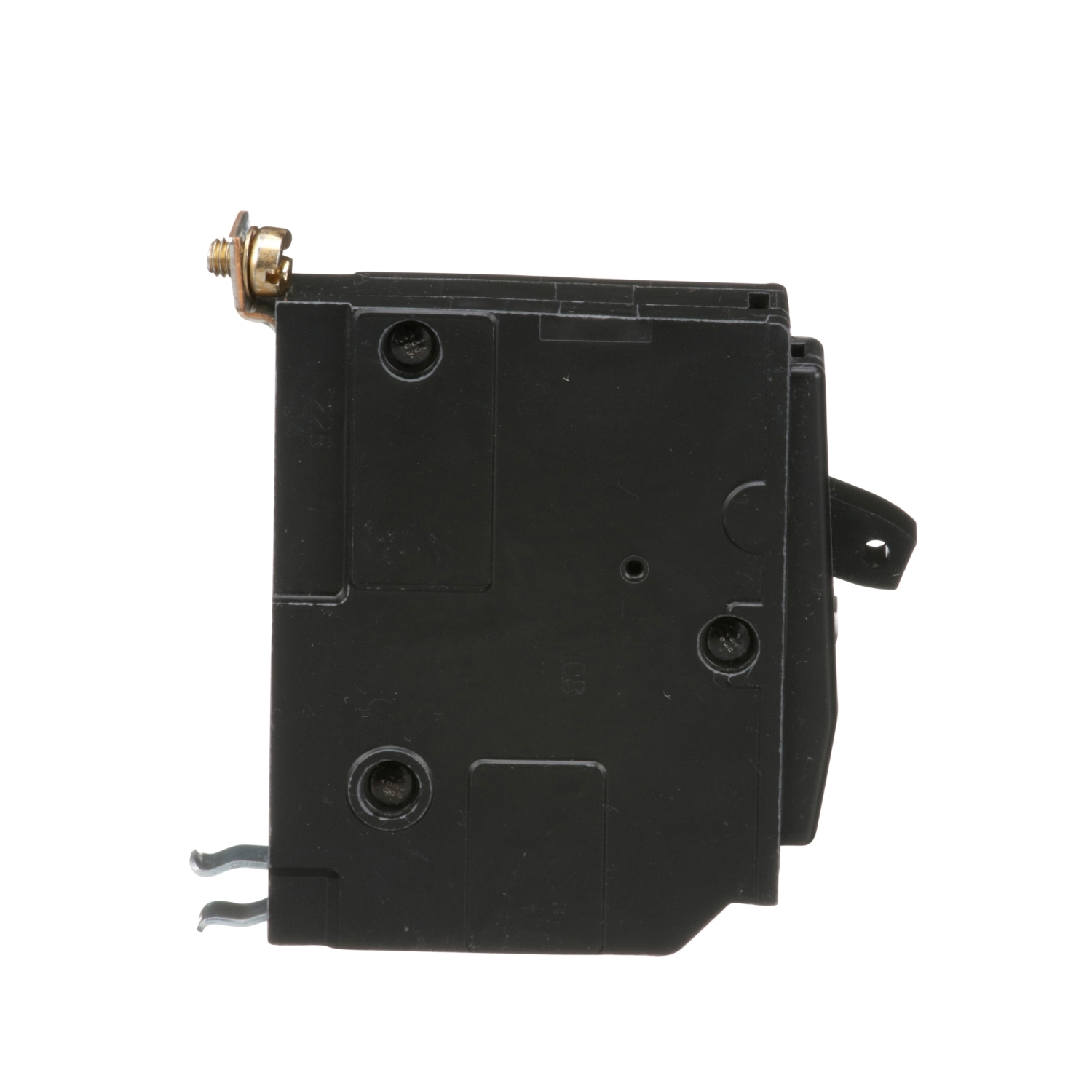

The Square D QOB130VH is a type QO bolt-on miniature circuit breaker. This single-pole circuit breaker is rated at 30A at 120/240VAC with a breaking capacity of 22kA. It provides overcurrent protection and switching on AC and DC systems. It is UL Listed and CSA certified.
- Bolt-on mounting
- 22kA interrupting rating
- Thermal magnetic trip
Product Highlights
The Square D QOB130VH circuit breaker provides reliable overcurrent protection and switching for AC and DC systems. It features a bolt-on design and a 22kA interrupting rating.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QOB130VH
-
Country of Origin: Mexico
Technical Specifications
-
Type: Bolt On - Standard Trip
-
Depth: 2.91 Inches
-
Width: 0.75 Inches
-
Height: 2.99 Inches
-
Material: Thermoplastic
-
Standard: UL Listed
-
Connection: Screw terminal
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 30 Amperes
-
Number Of Poles: Single-Pole
-
Interrupt Rating: 22 kAIC
-
Circuit Breaker Type: standard
-
Range Of Product: QO
-
Product Or Component Type: miniature circuit-breaker
-
Circuit Breaker Application: HACR rated
-
Mounting Mode: bolt-on
-
Poles Description: 1P
-
Electrical Connection: pressure plate
-
Line Rated Current: 30 A
-
[Ue] Rated Operational Voltage: 120/240 V AC || 120 V AC
-
Breaking Capacity: 22 kA 120/240 V AC || 22 kA 120 V AC
-
Awg Gauge: AWG 14...AWG 8 copper or aluminium
-
Product Certifications: UL Listed || CSA
-
Ambient Air Temperature For Operation: 40 °C
-
Brand: Square D
-
Length: 2.91 Inch
-
Current: 30 Amp
-
Voltage: 120 Volt
-
Sub Brand: QO
-
Wire Size: AWG 14...AWG 8 copper or aluminium
-
Net Weight: 0.136 kg
-
Applications: HACR RATED
-
Mounting Type: Bolt-on
-
TC Connection: PRESSURE PLATE #14 TO #8 AWG(AL/CU)
-
Certifications: CSA,UL Listed
-
Conductor Size: 14-8 AWG
-
Operating Temperature: 104 deg F
-
Short Circuit Current: 22 kA
-
Catalog Number: QOB130VH
-
Manufacturer: Schneider Electric
-
Application: Overcurrent protection and switching
-
Poles: 1
-
MPN: QOB130VH
-
AIC Rating: 22kA @ 120/240VAC
-
Terminal Type: Pressure Plate
-
For Use With: NQ Panelboards, NQOD Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 14-8 AWG (Cu/Al)
-
Max Wire: 8 AWG
-
Min Wire: 14 AWG
-
Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
-
Accessories: Load Side Lugs Included
-
Standards: CSA C22.2 No. 5, UL 489, HACR
-
Approval: CSA, HACR, UL
-
Temp Rating: 40C
-
Construction Features: HACR Rated, High Interrupting Capacity, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism
-
Part Number #: QOB130VH
-
SKU #: 2244719
-
Dimensions: 2.91 in L x 0.75 in W x 3 in H
-
Connection type: Pressure Plate
-
UNSPSC: 39121603
-
UPC: 00785901371908
-
Frequency: 50/60 Hz
-
Trip Type: Thermal Magnetic
-
Phase: 1 ph
-
Mounting: Bolted-On
-
System Voltage: 120 V AC, 120/240 V AC
-
Ratings: HACR rated
-
Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
-
Number of Panel Spaces: 1
-
Ambient Rating: 104 Degree F (40 Degree C)
