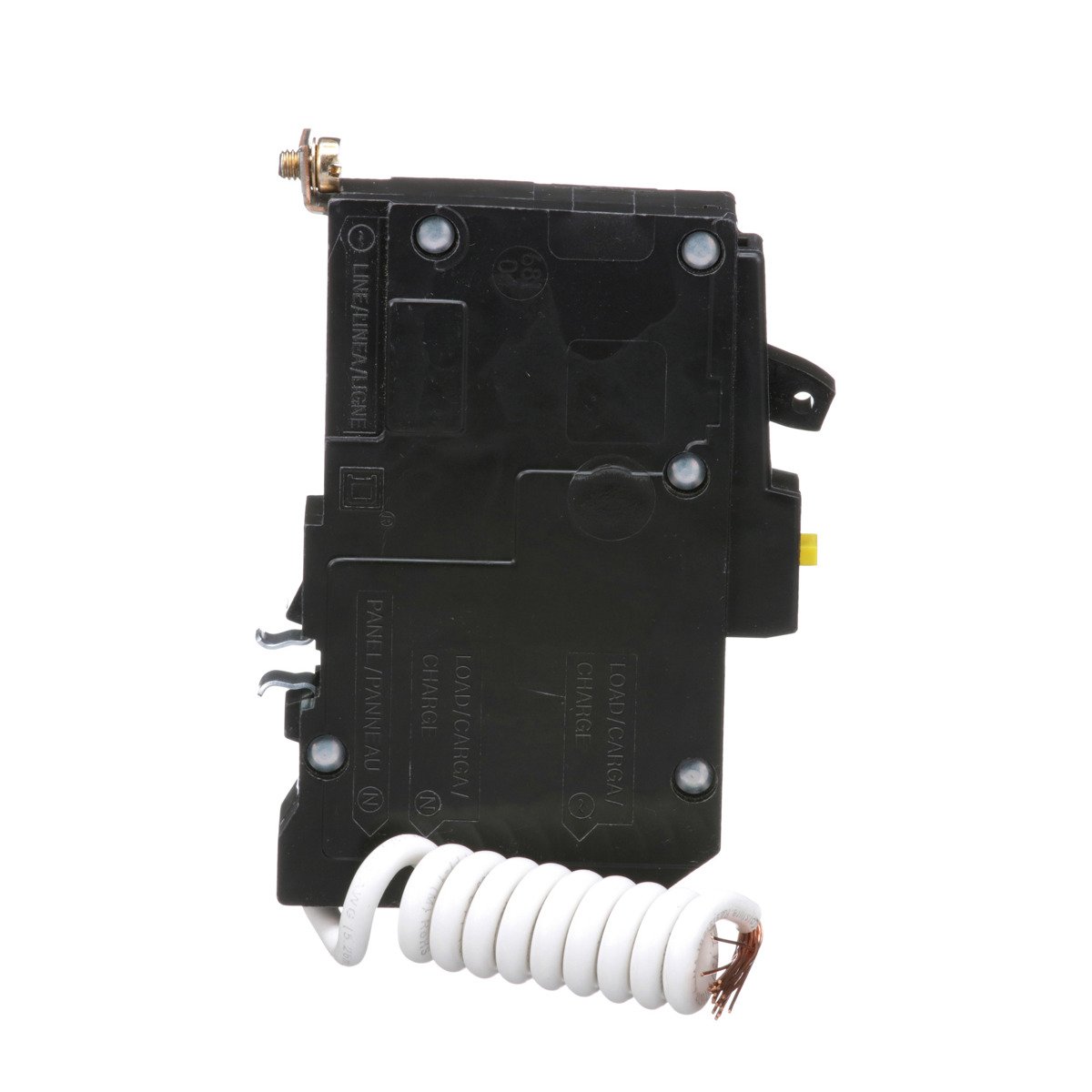

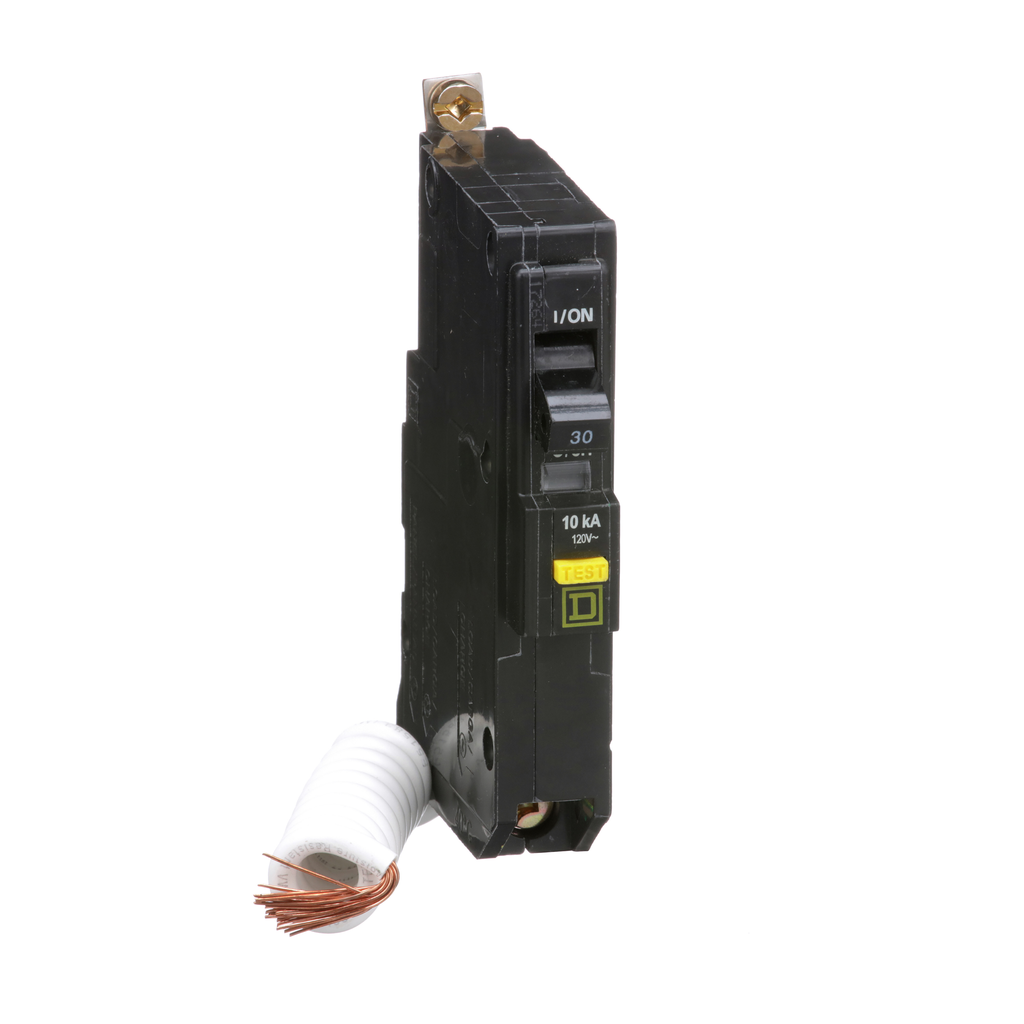

Square D QOB130GFI Miniature Circuit Breaker 30 Amp 120 Volt

Product Description

The Square D QOB130GFI is a miniature circuit breaker designed for overcurrent protection in AC and DC systems. This 120-volt, 30-amp unit features a unique trip-free toggle mechanism that ensures quick and reliable operation. The breaker also includes VisiTrip trip indication, providing visual feedback when the circuit has tripped.

• Single pole design rated for 30A at 120VAC.
• 10kA breaking capacity with bolt-on mounting for secure installation.
• Includes ground fault protection rated at 6mA.

Product Highlights

This circuit breaker is certified under UL and CSA standards, ensuring reliability and safety for various applications.

Product Information

Standard Information

• Catalog Number: QOB130GFI
• Brand: Square D

Technical Specifications

• MPN: QOB130GFI
• Current Rating: 30 Amp
• Voltage Rating: 120 Volt
• Number of Poles: 1 Pole
• Mounting Type: Bolt-on
• Interrupt Rating: 10 kAIC
• Operating Temperature: -40 to 40 Degrees C
• Warranty Length: 18 months
