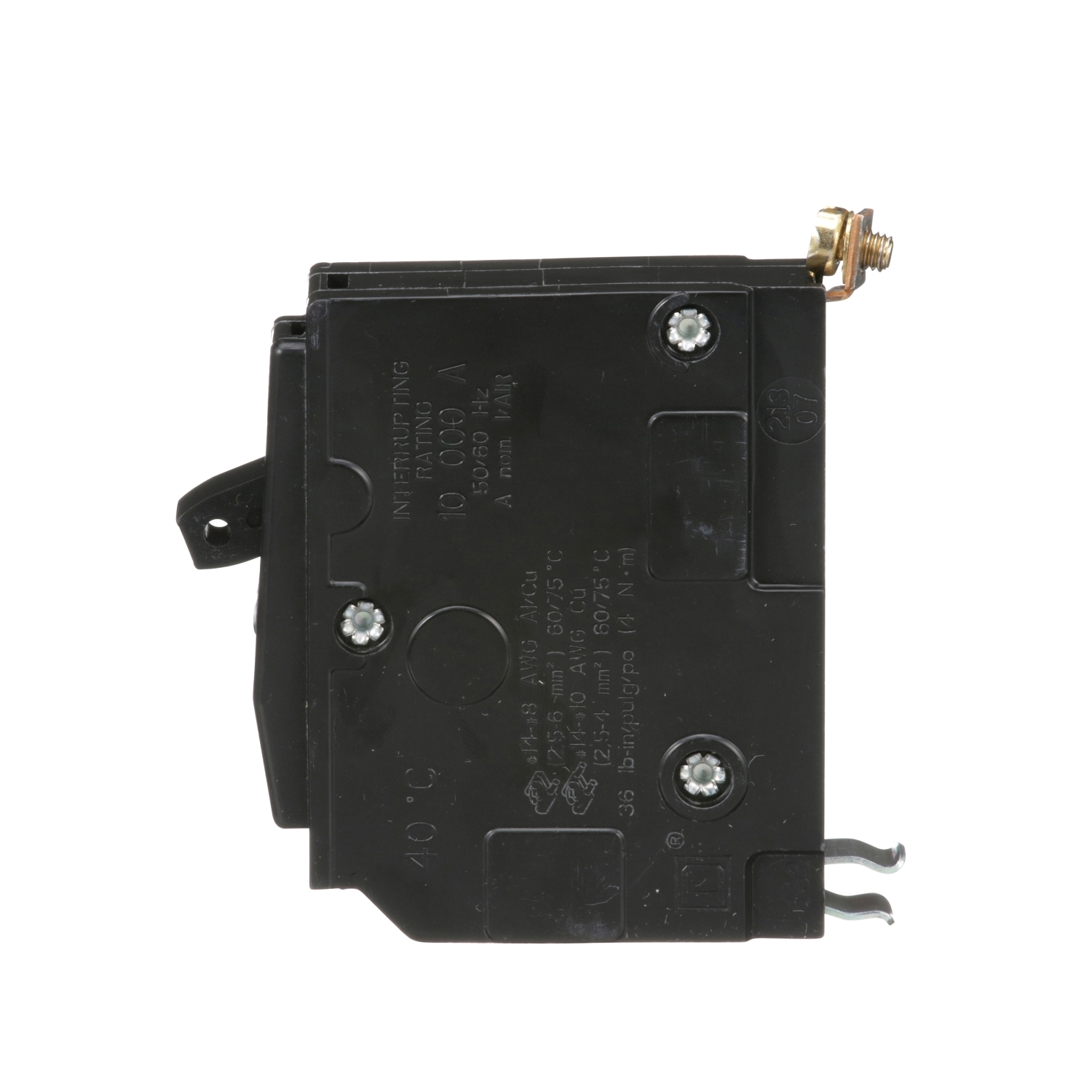

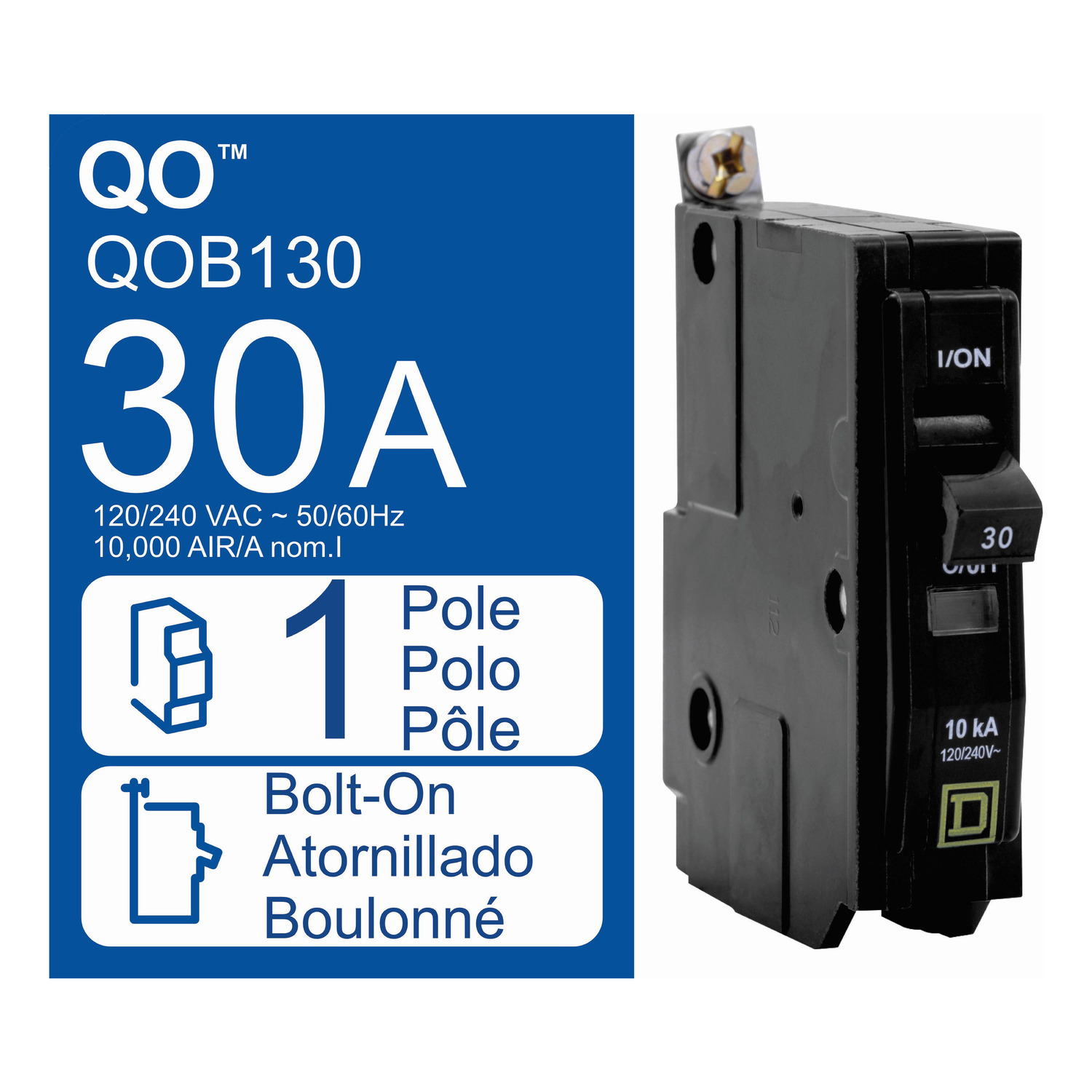

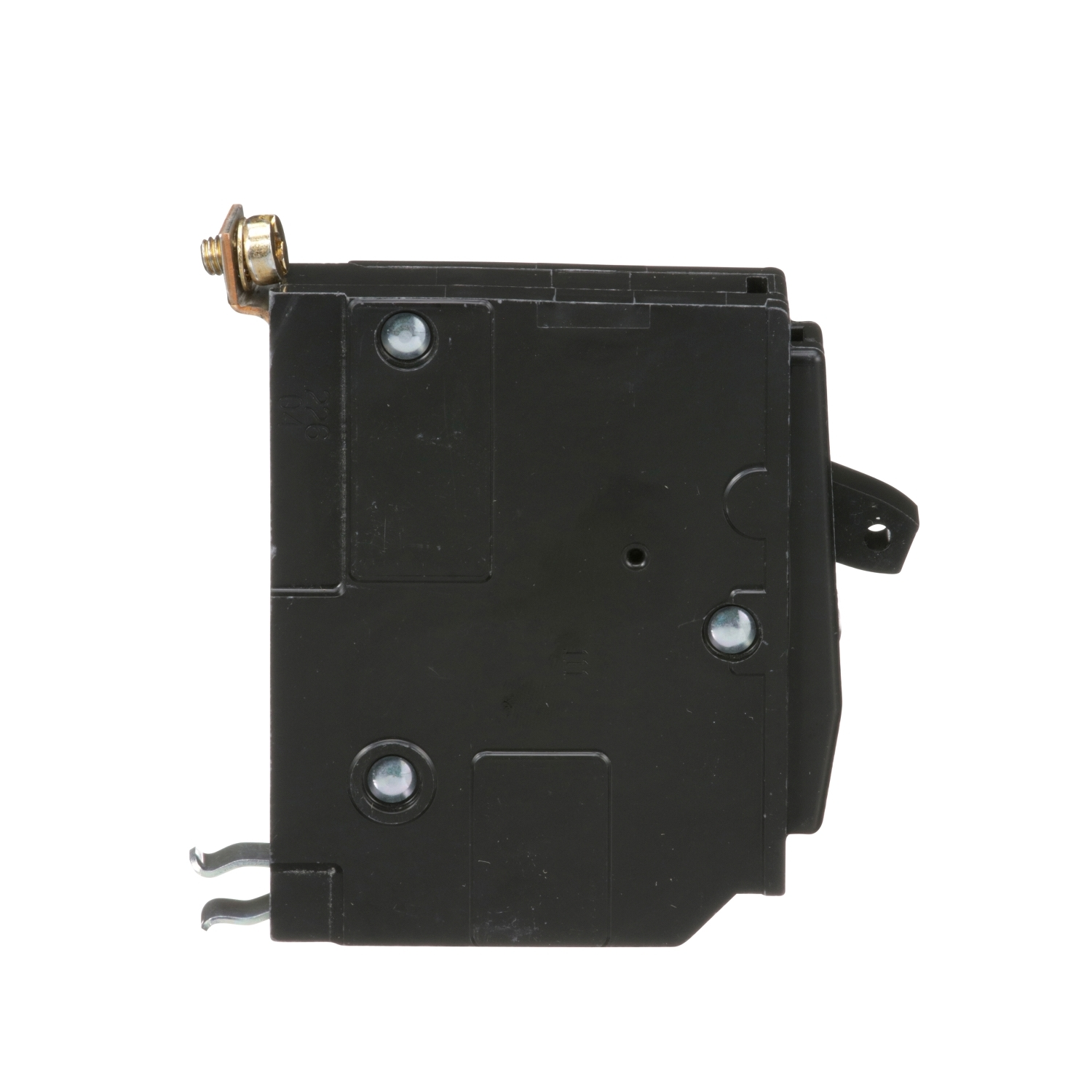

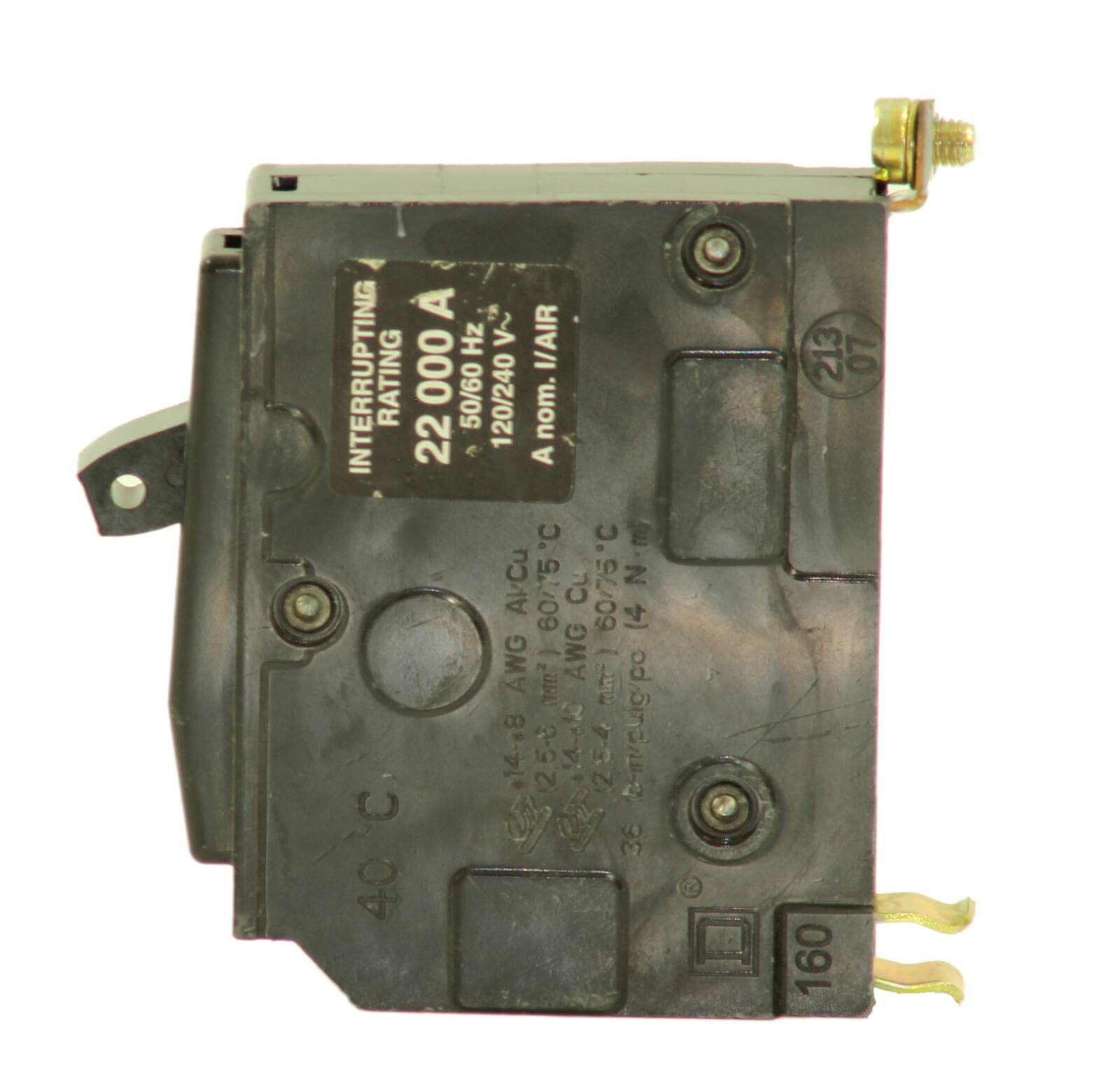

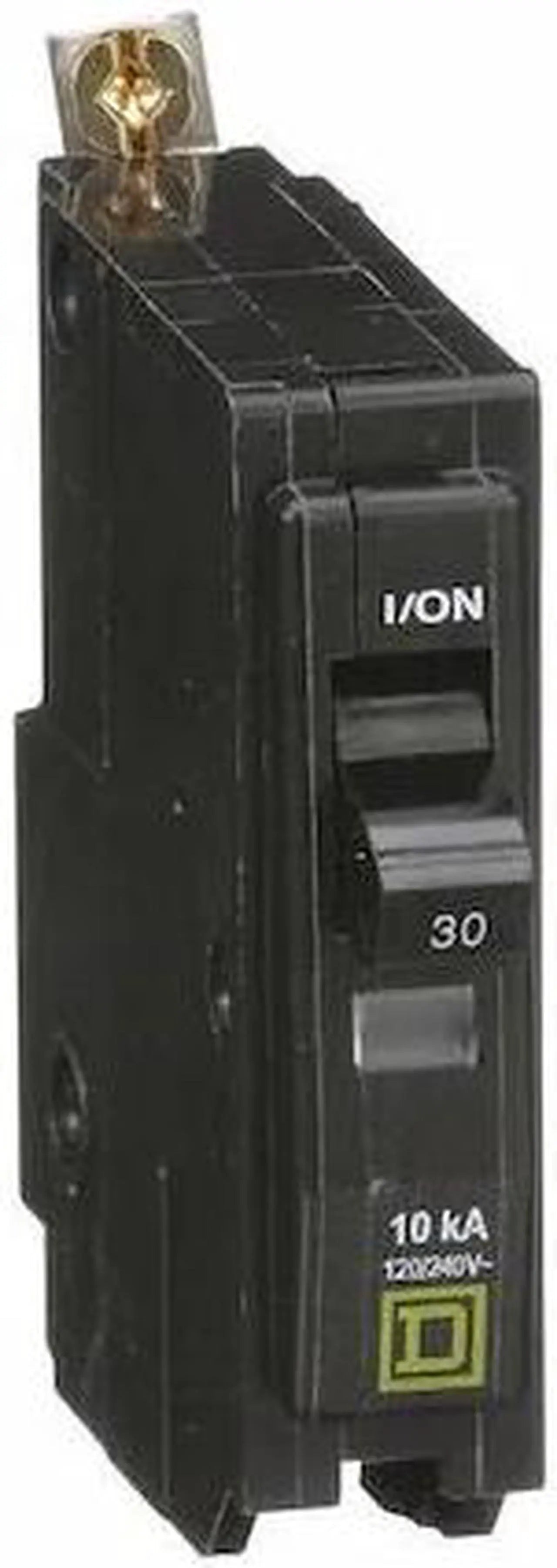

Square D QOB130 Type QO Bolt-On Mini Circuit Breaker, 30A, Single-Pole, 120/240 VAC

Product Description

The Square D QOB130 is a type QO bolt-on mini circuit breaker. These thermal magnetic circuit breakers provide overcurrent protection and switching on AC and DC systems. It has a trip-free toggle mechanism with quick make, quick break action and positive handle indication. VisiTrip trip indication provides a visual indication that the circuit breaker has tripped.

• Single-pole circuit breaker
• Rated at 30A at 120/240VAC
• Provides 10kA breaking capacity and bolt on mounting

Product Highlights

The Square D QOB130 is a reliable choice for overcurrent protection and switching in both AC and DC systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: QOB130
• Country of Origin: IE

Technical Specifications

• UPC: 785901416760
• Type: Bolt On - Standard Trip
• Depth: 2.91 Inches
• Width: 0.75 Inches
• Height: 3 Inches
• Material: Thermoplastic
• Standard: UL, CSA
• Connection: Screw terminal
• Voltage Rating: 120/240 VAC
• Amperage Rating: 30 Amperes
• Number Of Poles: Single-Pole
• Interrupt Rating: 10 kAIC
• Country of Origin: IE
• Minimum Wire Size: 14 AWG
• Maximum Wire Size: 8 AWG
• Poles: Single Pole
• Model / MPN: QOB130
• Product Type: CIRCUIT_BREAKER
• Manufacturer: Square D
• Number of Items: 1.0
• Circuit Breaker Type: Standard
• Range Of Product: QO
• Product Or Component Type: miniature circuit-breaker
• Circuit Breaker Application: HACR rated
• Mounting Mode: bolt-on
• Poles Description: 1P
• Electrical Connection: pressure plate
• Line Rated Current: 30 A
• Rated Operational Voltage: 120/240 V AC
• Tightening Torque: 4-4 N.m
• Number Of Spaces Required: 1
• Breaking Capacity: 10 kA 120/240 V AC
• Awg Gauge: AWG 14...AWG 8 copper or aluminium
• Temperature Rating: 40 deg C
• Frame: QOB
• Phase: 1
• Trip Type: Thermal/Magnetic
• Wire Size: 14 to 8 AWG
• Frequency Rating: 50/60 Hz
• Current Rating: 30 Amps
• Installation: Bolt-On
• Application: Appliance, Lighting
• Used On: NQ Series Panelboard
• Approval: UL, CSA
• Size: 0.75 Inch W x 2.91 Inch D x 3 Inch H
• Tripping Method: Thermal Magnetic
• Includes: Visi-Trip Indicator
• Mounting Style: Bolt-On
• Amperage: 30A
• Voltage: 120/240VAC
• Mounting: Bolt-On
• Dimensions: 2.91 in L x 0.75 in W x 3 in H
