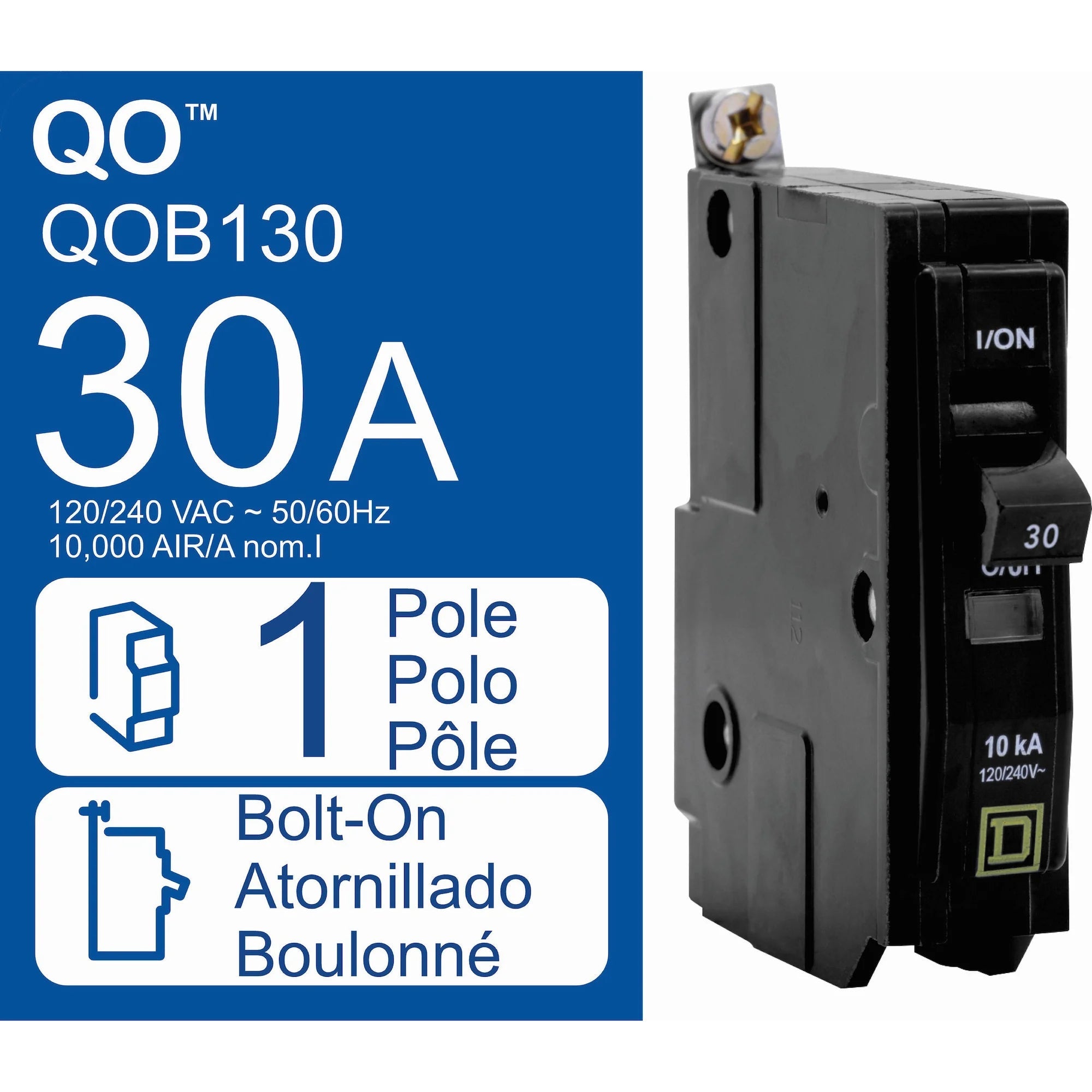

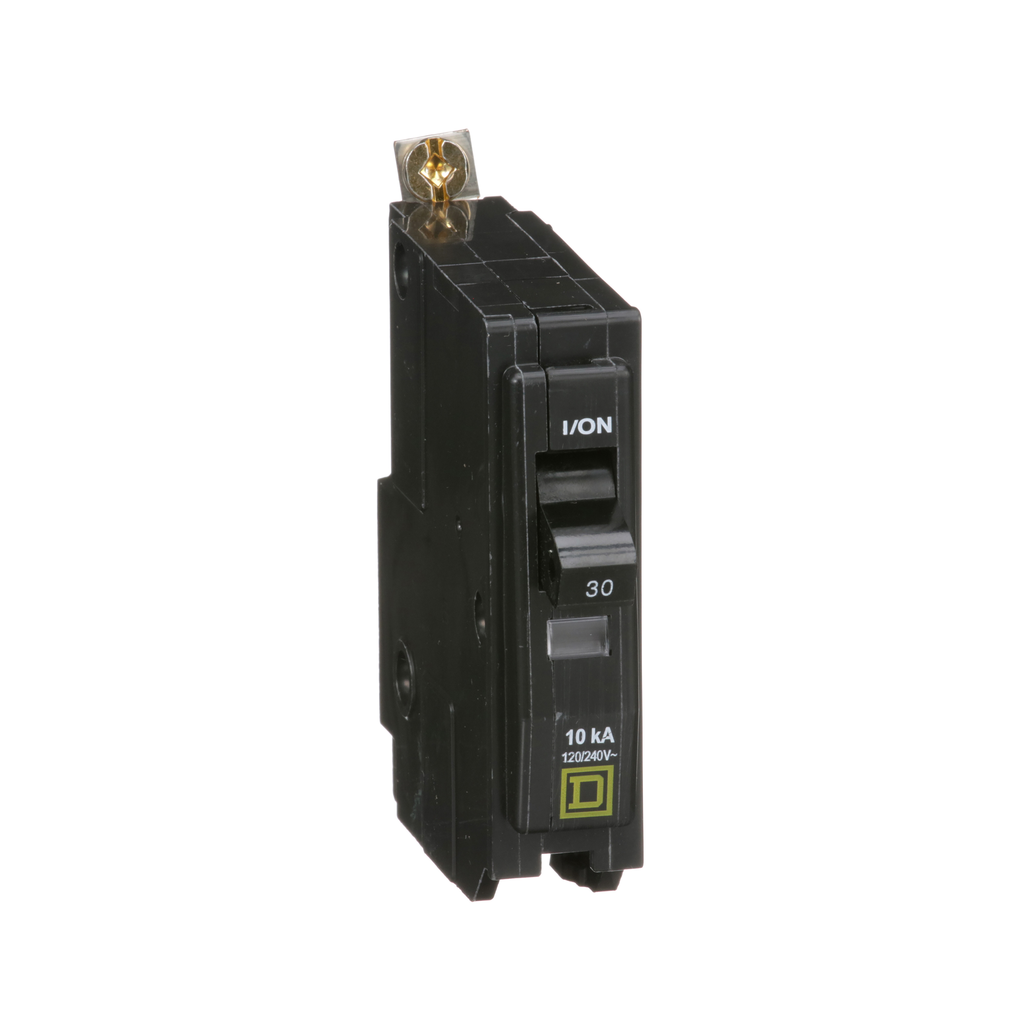

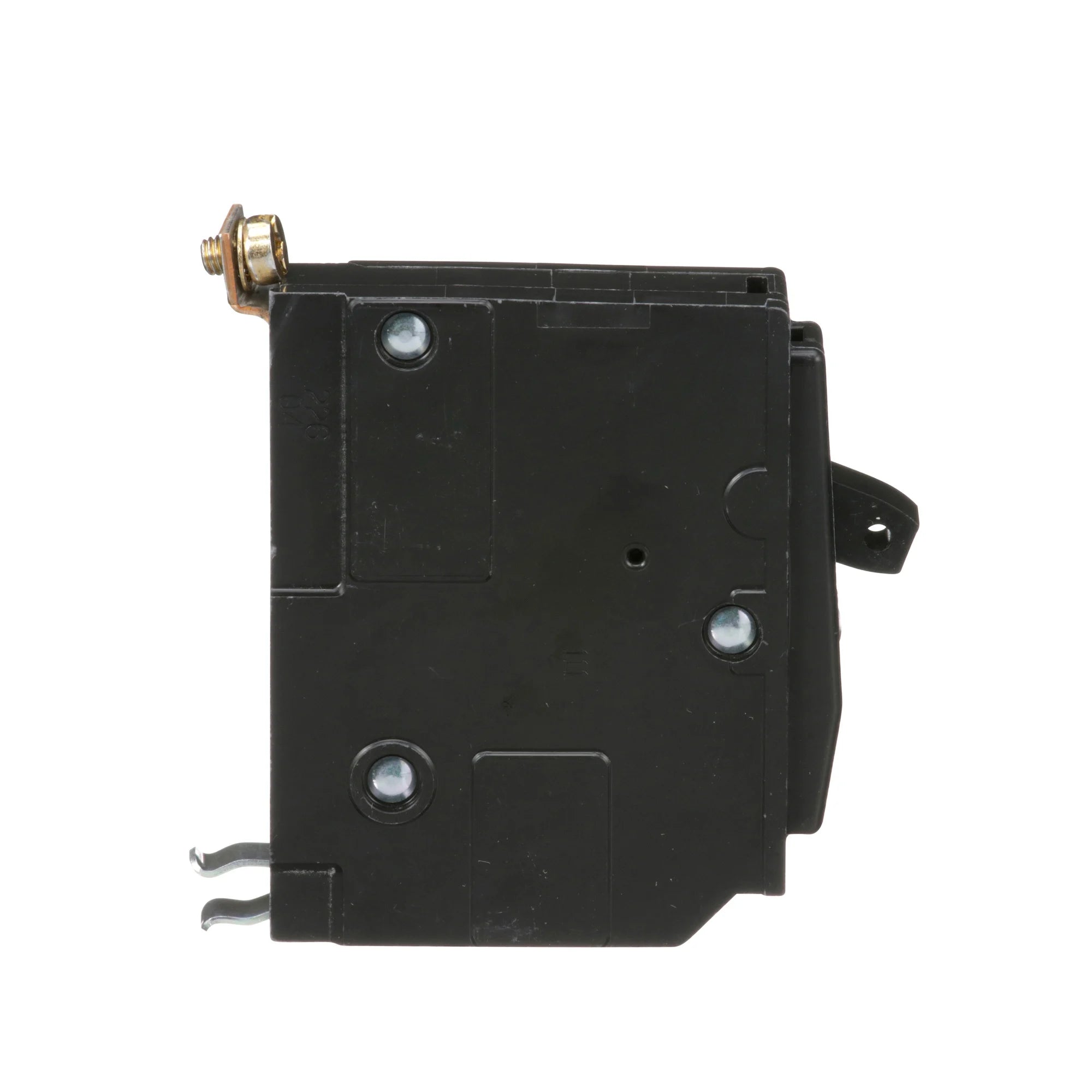

Square D QOB130 Miniature Circuit Breaker 30A 120/240V 1Ph Bolt-On

Product Description

The Square D QOB130 is a miniature circuit breaker with a rating of 30A at 120/240VAC. It is designed for bolt-on installation and offers reliable overcurrent protection in both AC and DC systems. This circuit breaker features a trip-free toggle mechanism that ensures quick make and break action.

• Voltage rating: 120/240V
• UL Listed and CSA Certified
• 10 kA interrupting capacity

Product Highlights

This breaker provides a visual trip indication via the VisiTrip feature. It is compatible with a full line of QO accessories, such as shunt trips and alarm switches, making it versatile for various applications.

Product Information

Standard Information

• Catalog Number: QOB130
• Manufacturer: Schneider Electric

Technical Specifications

• Current Rating: 30 Amp
• Number of Poles: 1
• Voltage: 120/240 VAC
• Mounting Type: Bolt-on
• Interrupt Rating: 10 kA
• Wire Size Compatibility: AWG 14 to AWG 8 for copper or aluminum
• Certifications: UL Listed, CSA Certified
• Country of Origin: Mexico
