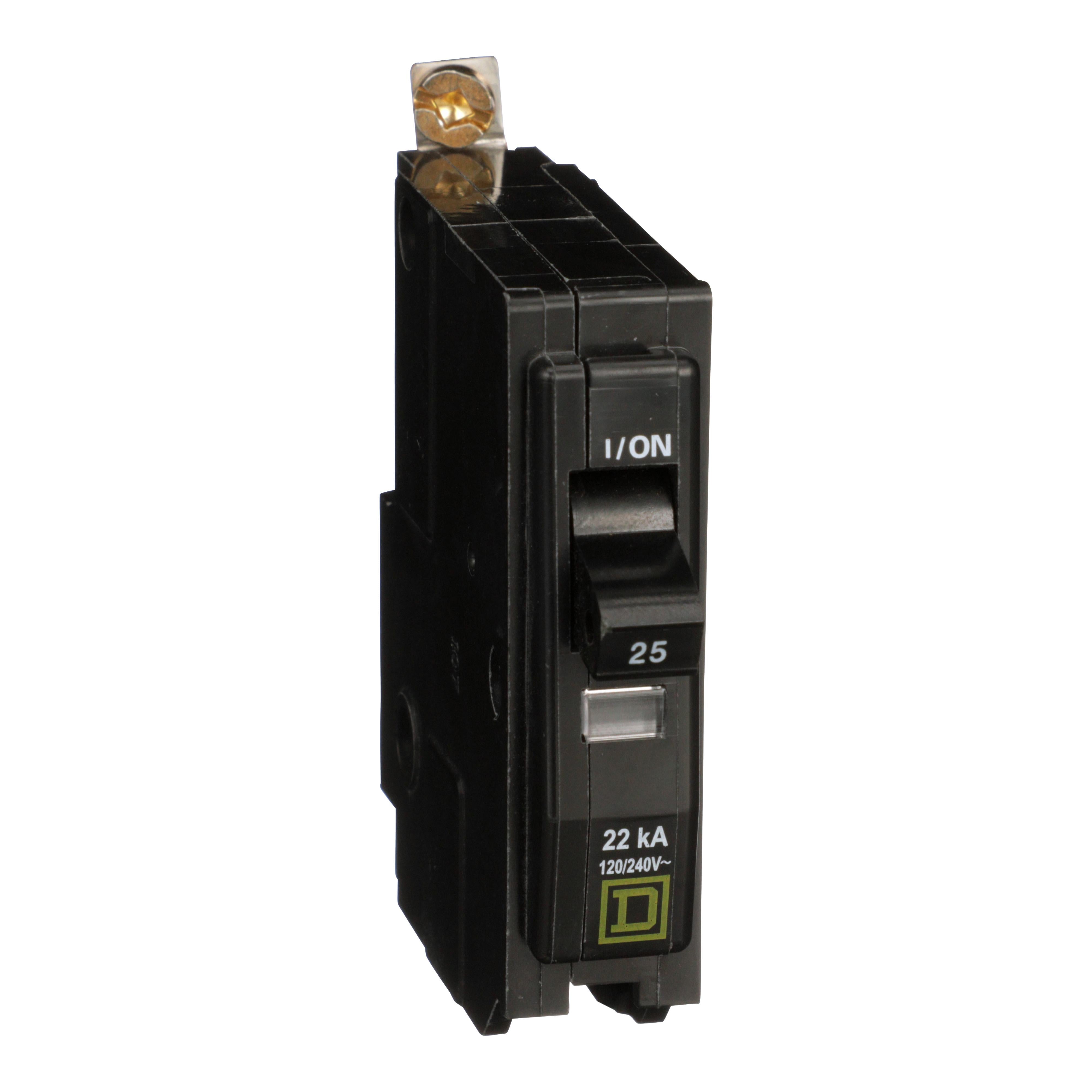

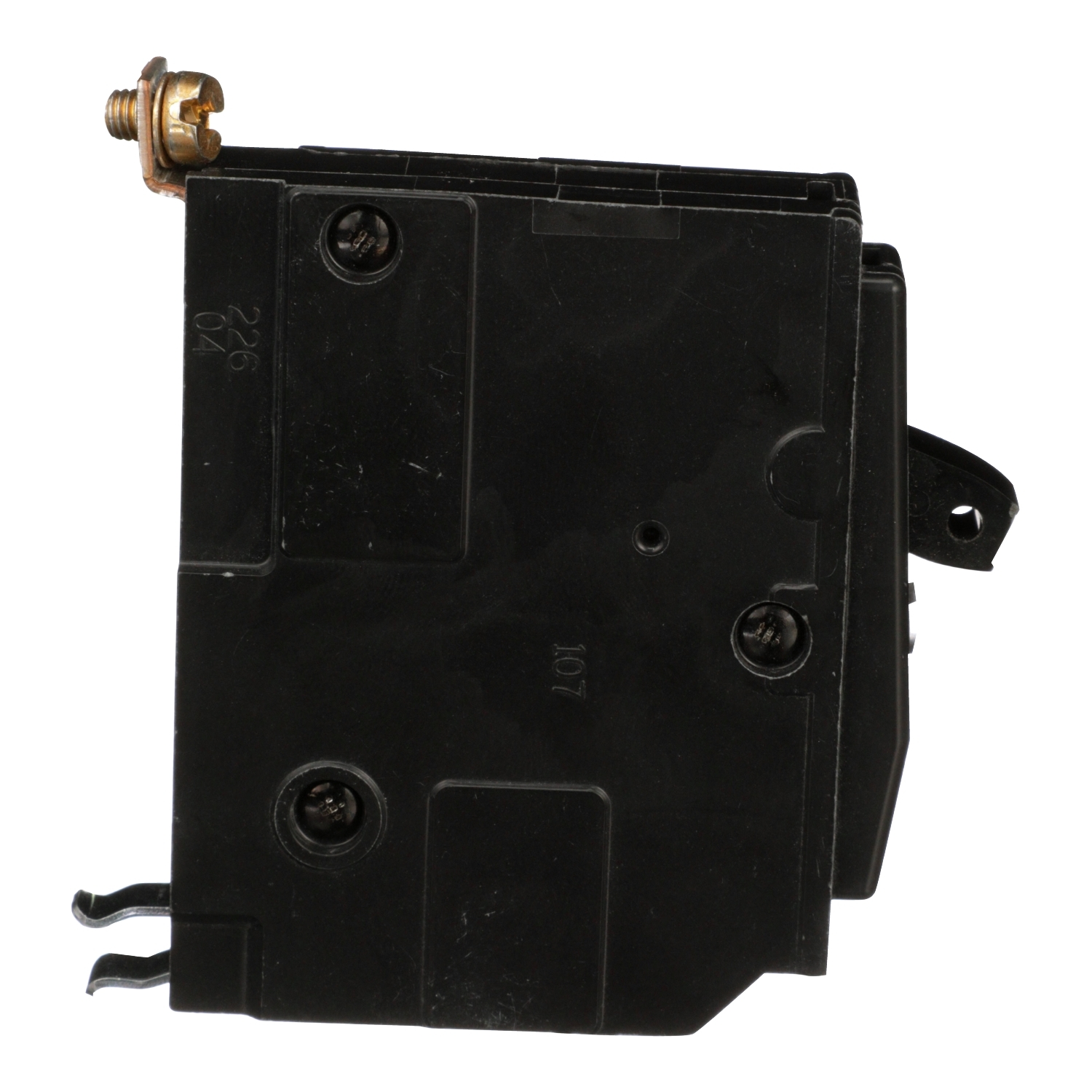

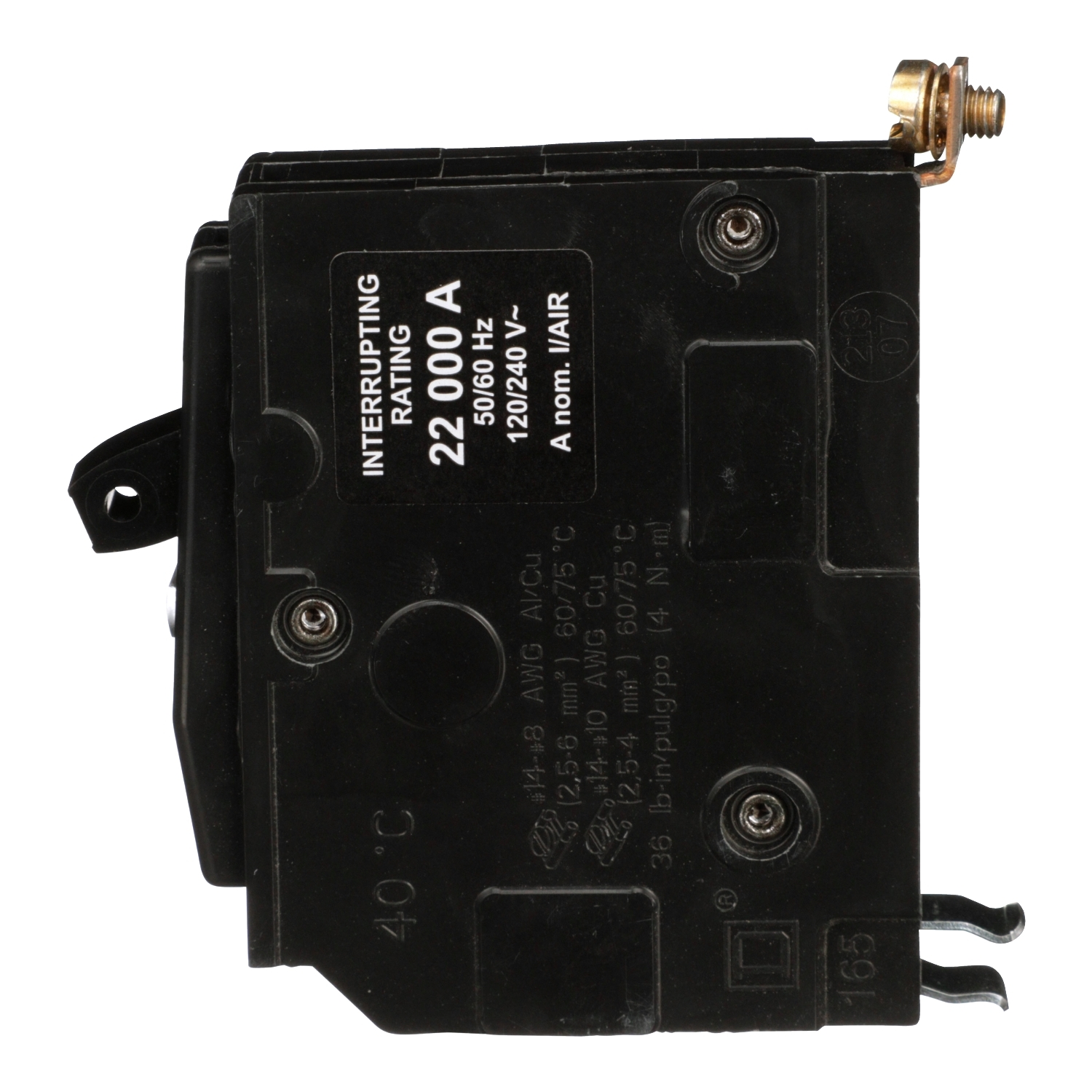

Square D QOB125VH 1-Pole 25 Amp Miniature Circuit Breaker

Product Description

The Square D QOB125VH is a 1-pole thermal magnetic circuit breaker designed for overcurrent protection and switching in AC and DC systems. This 25 Amp, 120/240VAC circuit breaker features a trip-free toggle mechanism for quick make and break action, along with VisiTrip indication for visual trip alerts. It has a 22kA breaking capacity and bolt-on mounting.

• Provides overcurrent protection and switching on AC and DC systems
• Features a trip-free toggle mechanism with quick make and break action
• Offers VisiTrip trip indication for visual alerts

Product Highlights

The QOB125VH is UL Listed and CSA Certified, suitable for use in NQ Series Panelboards and various applications including appliance and lighting circuits.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QOB125VH
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Current: 25 Amp
• Voltage: 120 Volt
• Amperage: 25 Amp
• Sub Brand: QO
• Wire Size: AWG 14...AWG 8 copper or aluminium
• Applications: HACR rated
• Mounting Type: Bolt-on
• TC Connection: Pressure plate
• Certifications: CSA,UL Listed
• Conductor Size: 14-8 AWG
• Number of Poles: 1 Pole
• Interrupt Rating: 22 kAIC
• Line Rated Current: 25 A
• Circuit Breaker Type: Standard
• Short Circuit Current: 22 kA
• Voltage Rating: 120/240 VAC at 50/60 Hz (UL/CSA)
• Current Rating: 25 Ampere
• Installation: Bolt-On
• Application: Appliance, Lighting
• Used On: NQ Series Panelboard
• Approval: UL, CSA
• Frame Type: Q
• Tripping Method: Thermal Magnetic
• Includes: Visi-Trip Indicator
• Range Of Product: QO
• Product Or Component Type: miniature circuit-breaker
• Circuit Breaker Application: HACR rated
• Mounting Mode: bolt-on
• Poles Description: 1P
• Electrical Connection: pressure plate
• [Ue] Rated Operational Voltage: 120/240 V AC || 120 V AC
• Tightening Torque: 4.6-4.6 N.m
• Number Of Spaces Required: 1
• Breaking Capacity: 22 kA 120/240 V AC || 22 kA 120 V AC
• Awg Gauge: AWG 14...AWG 8 copper or aluminium
• Product Certifications: UL Listed || CSA
• Ambient Air Temperature For Operation: 40 °C
• Halogen Content Performance: Halogen free product
• Packaging Without Single Use Plastic: Yes
• Scip Number: af42fb01-813d-40c0-ae28-b8b3299dbc99
• China Rohs Regulation: X
• Circularity Profile: N/A
• Take-Back: No
• Voltage Type: AC
• Poles: 1
• Material: Fiberglass Filled Thermoset
• Frequency: 50/60 Hz
• Phase: 1 ph
• Mounting: Bolt-On Mounting
• Temperature: 40 deg C
