Product Description

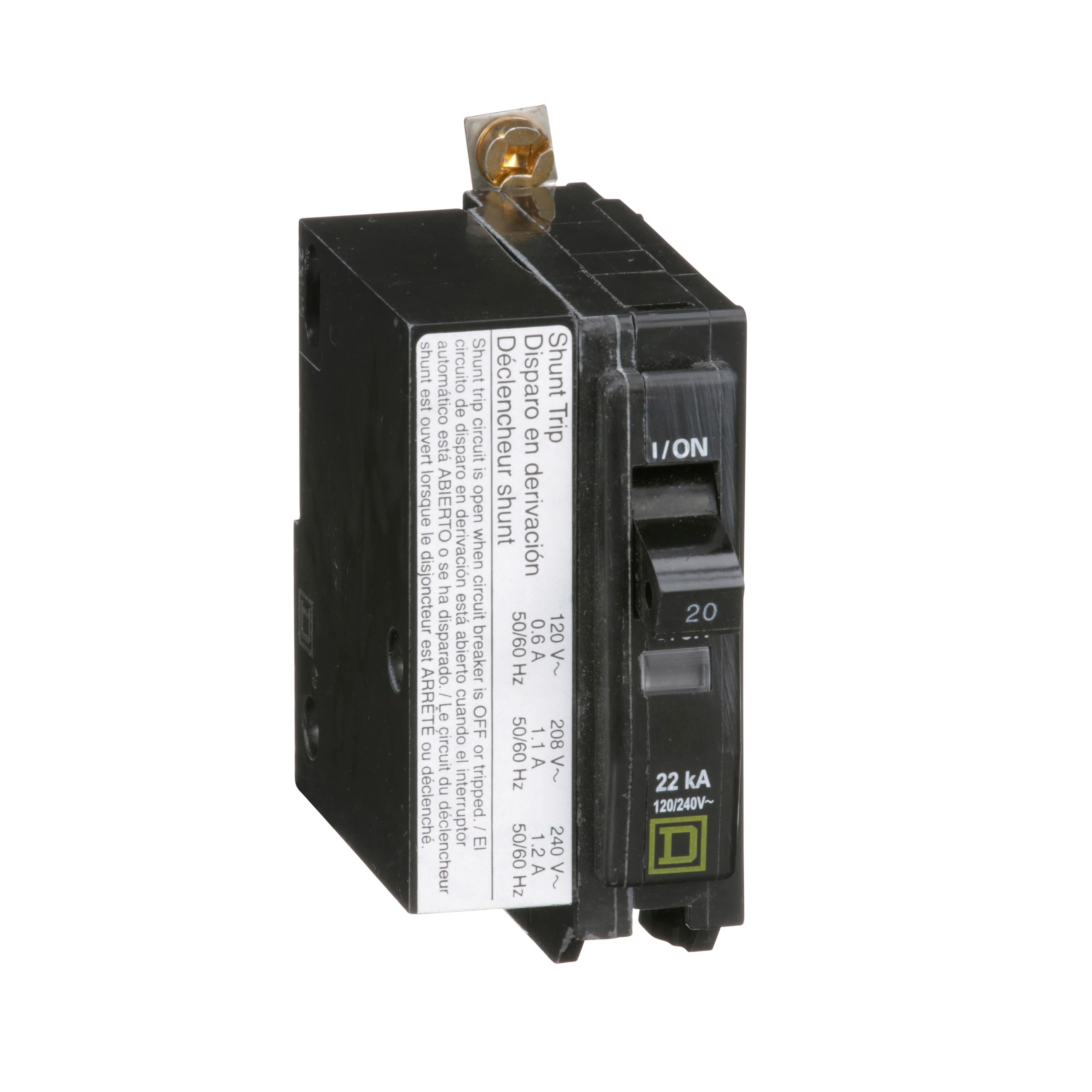

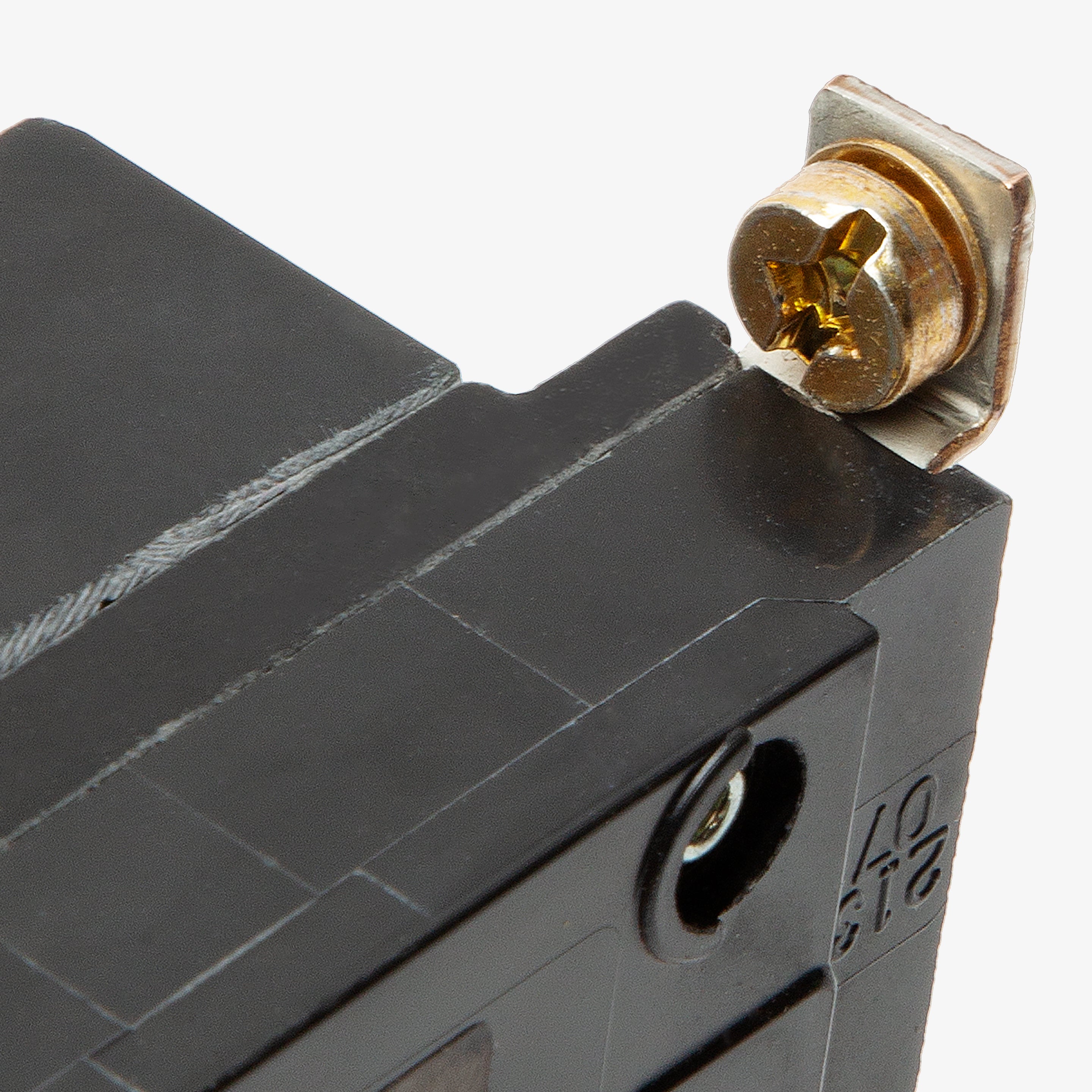

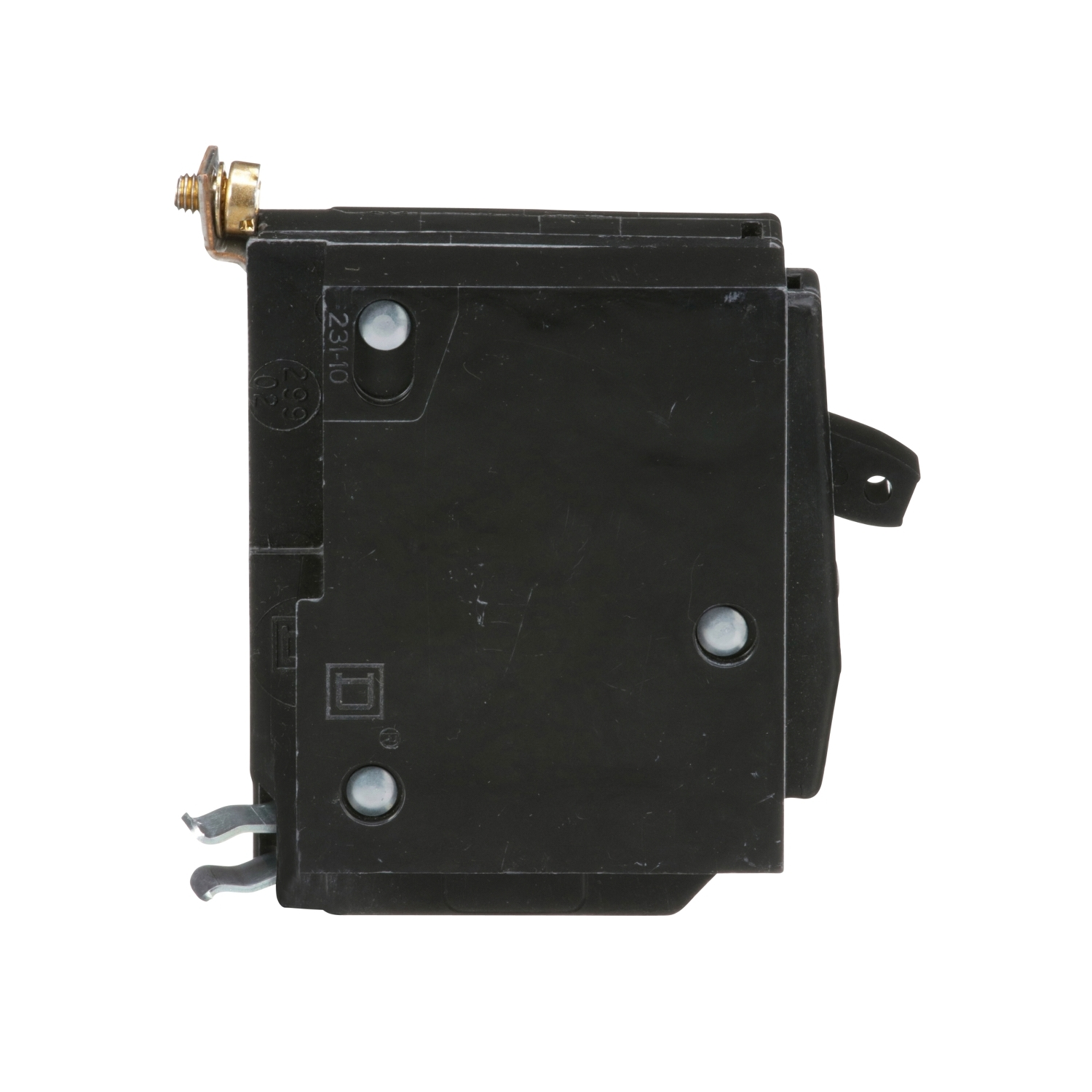

The Square D QOB120VH1021 is a 1-pole thermal magnetic circuit breaker that provides overcurrent protection and switching on AC and DC systems. This 20A circuit breaker features a trip-free toggle mechanism, quick make/break action, and VisiTrip indication. It has a 22kA breaking capacity and bolt-on mounting and includes an AC shunt trip.
- Provides overcurrent protection and switching on AC and DC systems
- Features a trip-free toggle mechanism with quick make/break action

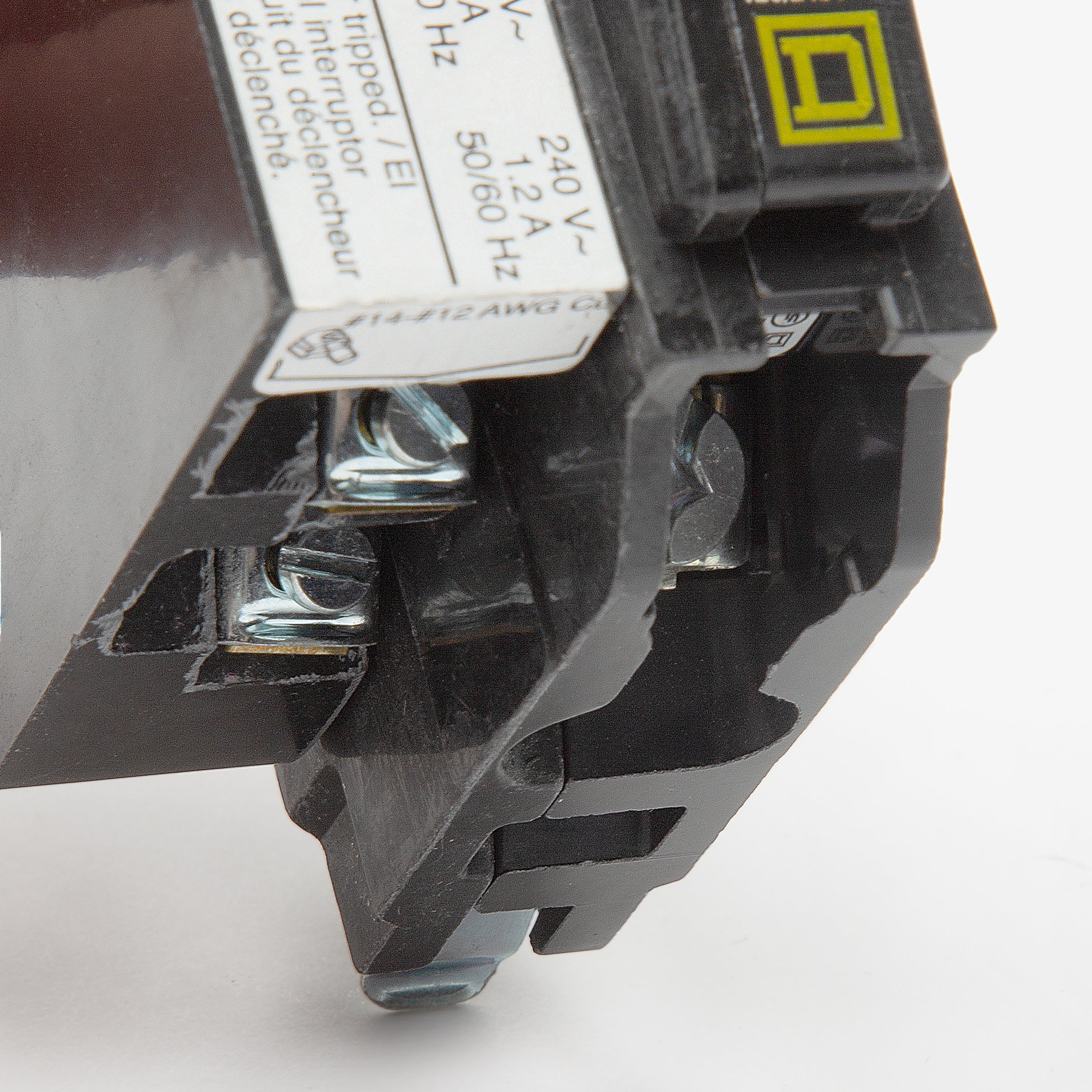

- Includes VisiTrip trip indication and an AC shunt trip
Product Highlights
The Square D QOB120VH1021 is UL Listed and CSA Certified, suitable for HACR rated applications.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QOB120VH1021
-
Country of Origin: Mexico
Technical Specifications
-
Type: Miniature circuit-breaker
-
Brand: Square D
-
Current: 20 Amp
-
Voltage: 120/240 VAC
-
Amperage: 20 A
-
Sub Brand: QO
-
Wire Size: AWG 14...AWG 8 copper or aluminium
-
Product UPC: 78590108854
-
12-Digit UPC: 785901088547
-
Applications: HACR rated
-
Mounting Type: Bolt-on
-
TC Connection: Pressure plate
-
Certifications: CSA,UL Listed
-
Conductor Size: 14-8 AWG
-
Number of Poles: 1 Pole
-

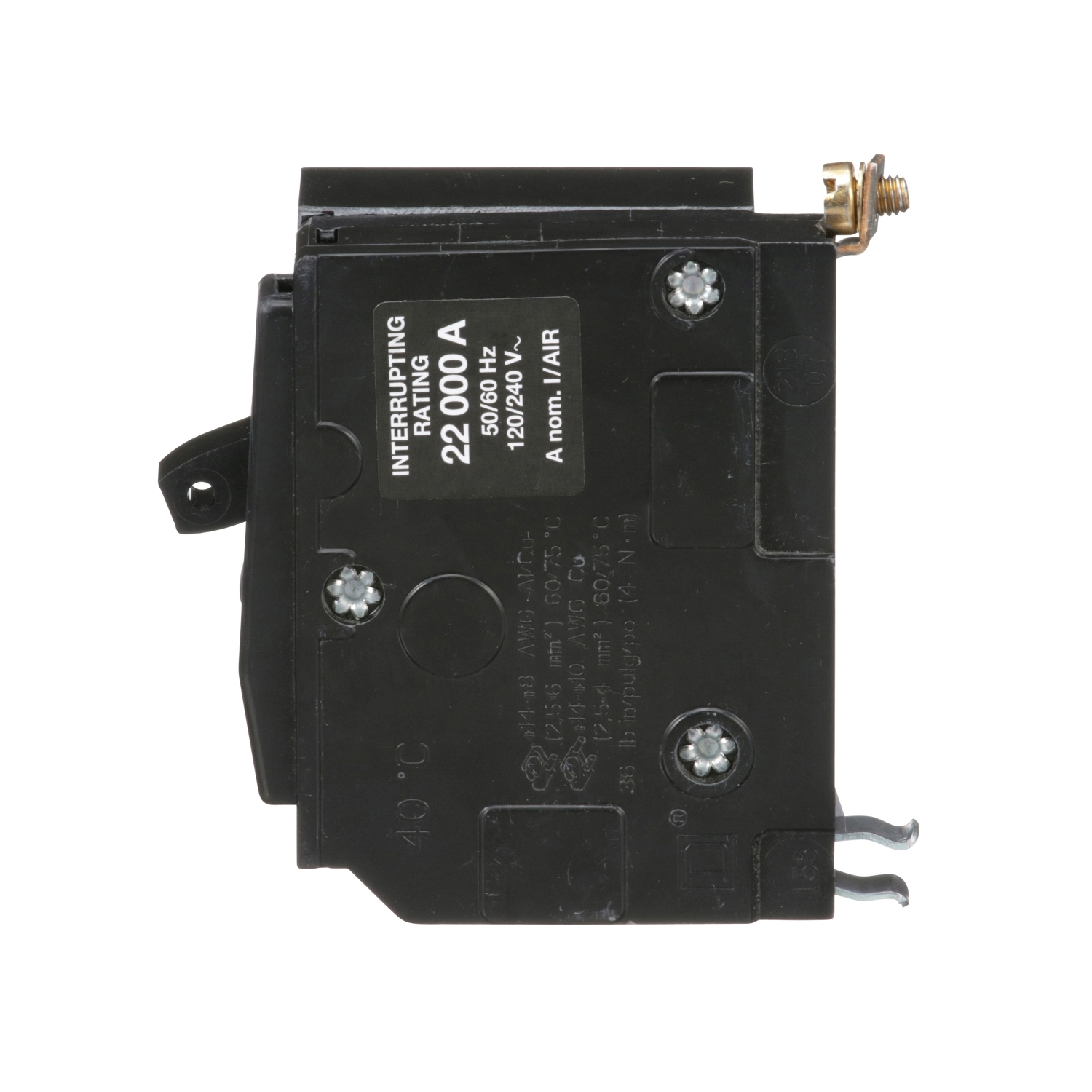

Interrupt Rating: 22 kAIC
-
Country of Origin: Mexico
-
Line Rated Current: 20 A
-
Circuit Breaker Type: Standard
-
Operating Temperature: 40 degrees C
-
Short Circuit Current: 22 kA
-
Installation: Bolt-On
-
Application: Appliance, Lighting
-
Used On: NQ Series Panelboard
-
Approval: UL, CSA
-
Frame Type: Q
-
Tripping Method: Thermal Magnetic
-
Poles Description: 1P
-
Electrical Connection: pressure plate
-
[Ue] Rated Operational Voltage: 120/240 V AC
-
Tightening Torque: 4.6-4.6 N.m
-
Number Of Spaces Required: 2
-
Breaking Capacity: 22 kA
-
Awg Gauge: AWG 14...AWG 8 copper or aluminium
-
Ambient Air Temperature For Operation: 40 °C
-
Phase: 1 ph
-
Terminal Connection: Pressure Plate
-
Temp Rating: 40C
