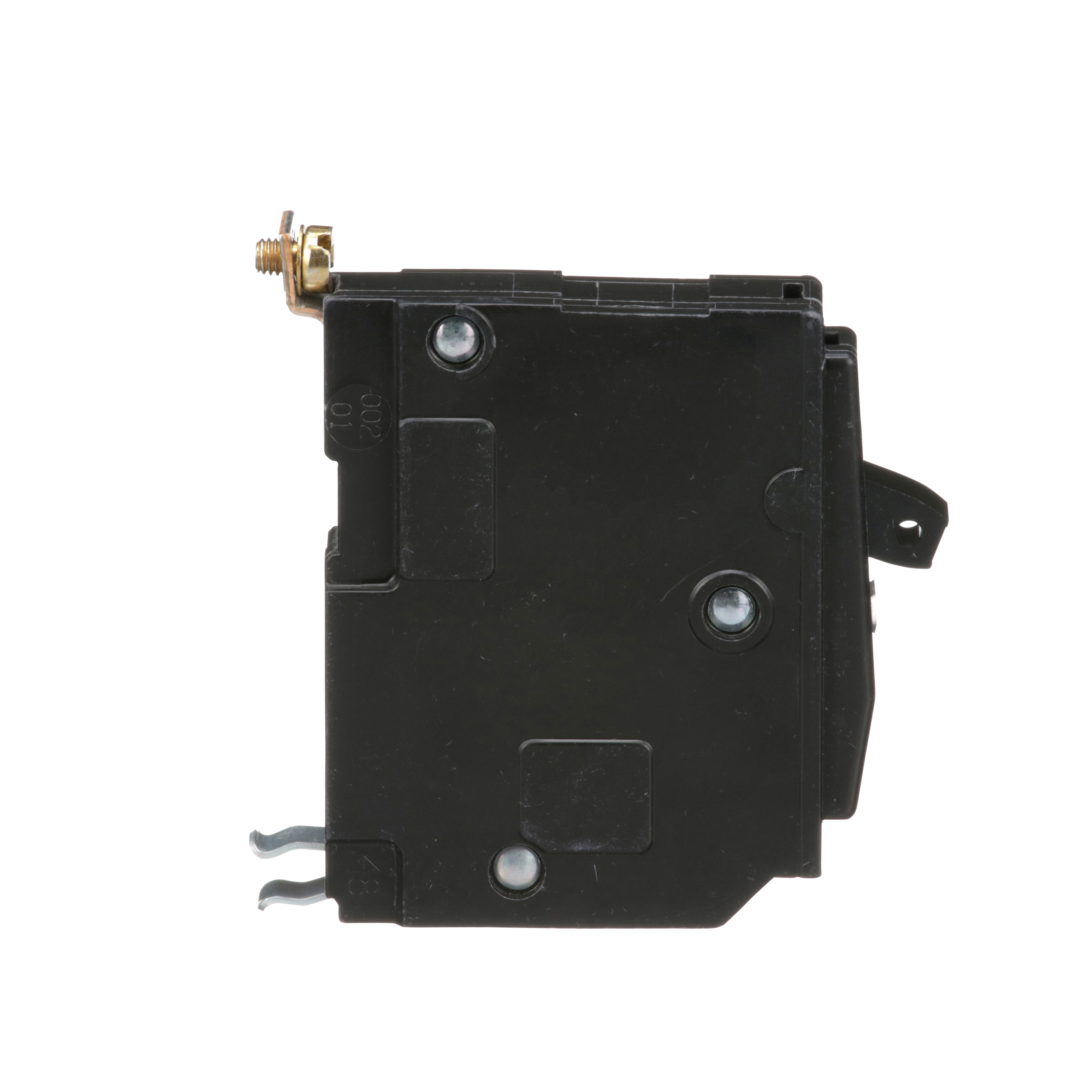

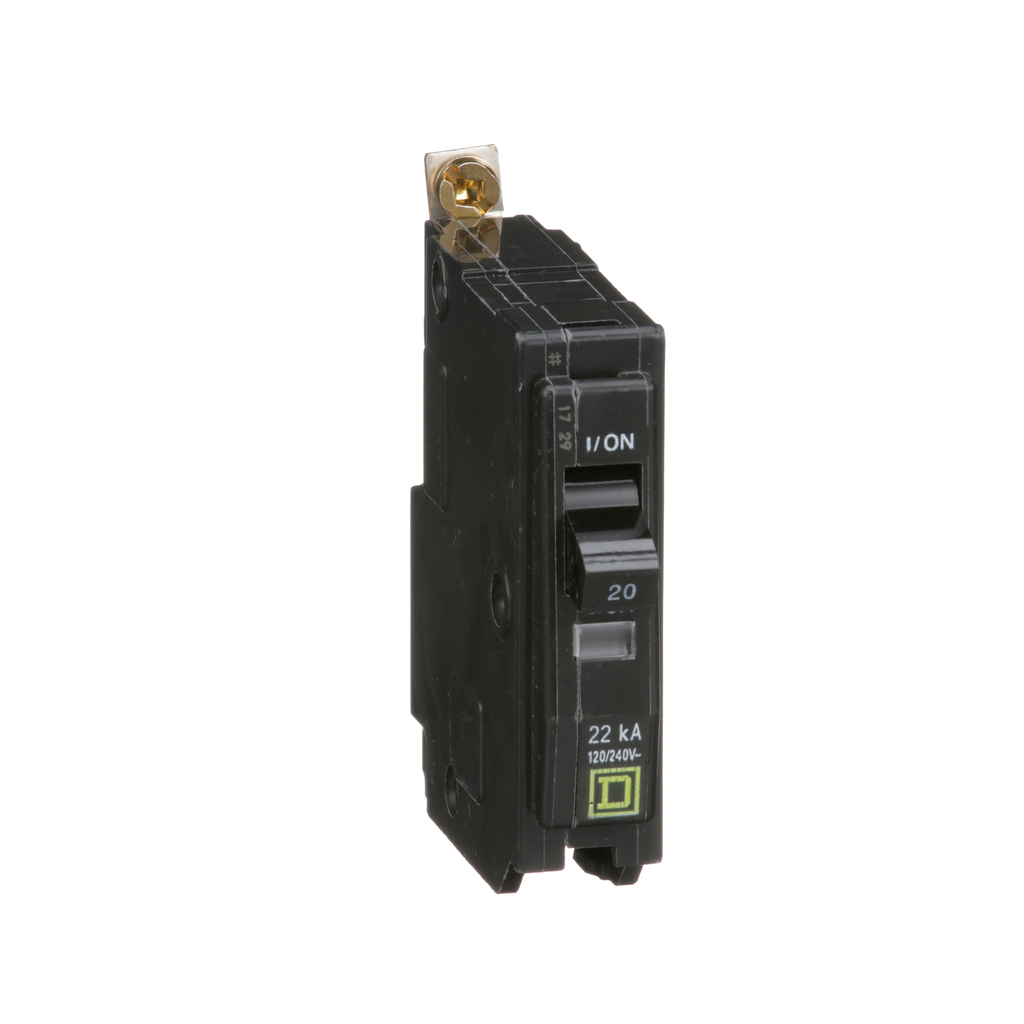

Square D QOB120VH Miniature Circuit Breaker 20A 120/240V 1Ph Bolt-On

Product Description

The Square D QOB120VH is a miniature circuit breaker with a rating of twenty amps and designed for voltage systems of one hundred twenty to two hundred forty volts. This circuit breaker is bolted on and provides essential overcurrent protection for AC and DC systems.

• Rated at 20 amps and operates at 120/240 VAC.
• Features VisiTrip trip indication for easy operation status checks.
• 22 kA breaking capacity for robust protection.

Product Highlights

The QOB120VH is designed for reliable performance in various electrical systems, offering quick-make, quick-break action and a compact design for space-saving installation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: QOB120VH
• Type: Miniature circuit breaker
• Current: 20 Amp
• Voltage: 120 Volt
• Number of Poles: 1 Pole
• Interrupt Rating: 22 kAIC
• Dimensions: Length - 2.91 inches, Width - 19 mm, Height - 76 mm
• Weight: 0.136 kg
