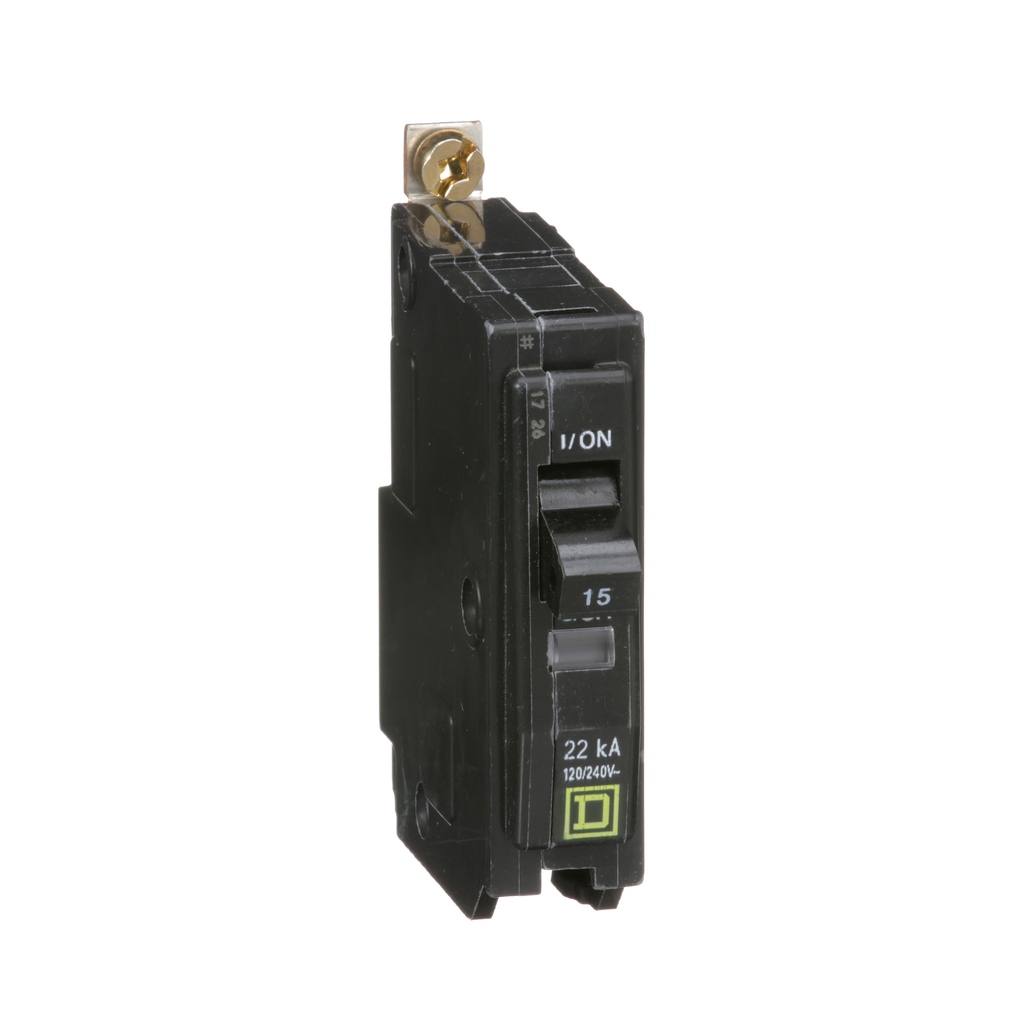

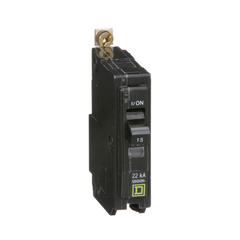

Square D QOB115VH Miniature Circuit Breaker 15 Amp 120/240 Volt

Product Description

Square D QOB115VH is a miniature circuit breaker designed to protect against overcurrents in both AC and DC systems. This 15 Amp single pole breaker operates at 120/240 Volts and features a trip-free toggle mechanism. The device also includes VisiTrip indication, which provides a visual signal when the circuit has been interrupted. The QOB115VH is capable of breaking up to 22kA and is suitable for bolt-on mounting.

• Meets UL and CSA standards
• Offers high breaking capacity
• Compatible with accessories like shunt trips and auxiliary switches

Product Highlights

This circuit breaker is ideal for use in residential and commercial applications where reliable overcurrent protection is essential.

Product Information

Standard Information

• Product Name: Miniature Circuit Breaker
• Brand: Square D

Technical Specifications

• MPN: QOB115VH
• Catalog Number: QOB115VH
• Voltage: 120/240 Volt
• Amperage: 15 Amp
• Number of Poles: 1 Pole
• Depth: 2.91 inches
• Width: 19 mm
• Height: 76 mm
• Breaking Capacity: 22 kAIC
• Mounting Type: Bolt-on
• Country of Origin: Mexico
• Warranty: 18 months
