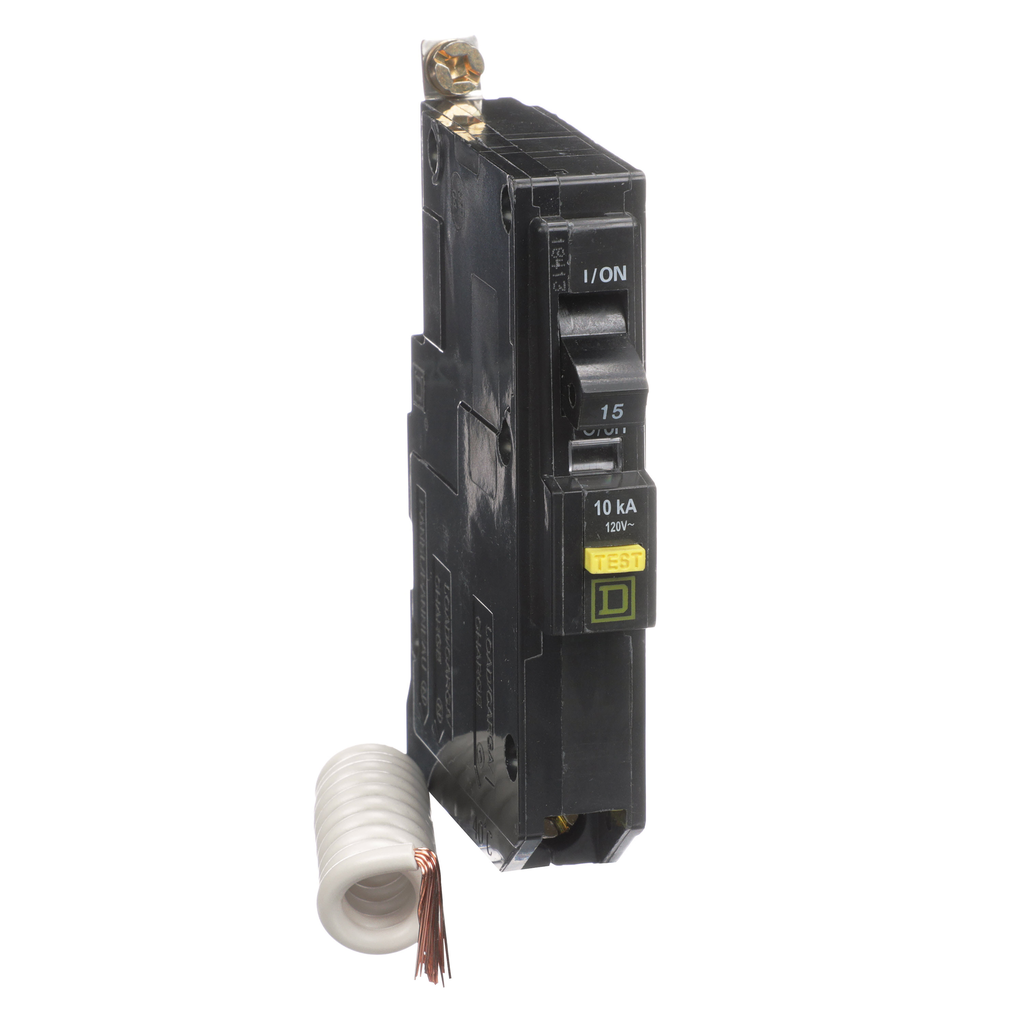

Square D QOB115GFI Miniature Circuit Breaker w/GFI 15A 120V 1Ph , Bolt-On

Product Description

The Square D QOB115GFI is a miniature circuit breaker with a 15-amp rating at 120 volts. It is designed for both AC and DC systems. This model is equipped with a ground fault interrupter (GFI), providing enhanced safety. The breaker has a trip-free toggle mechanism with quick make and quick break action, ensuring reliable operation. The VisiTrip feature provides a visual alert when a tripping event occurs, indicating that the circuit breaker has interrupted the circuit.

• Rated at 15A and 120VAC.
• 10kA breaking capacity.
• Features bolt-on mounting and includes a 6mA ground fault.

Product Highlights

This product is UL Listed and CSA Certified, making it suitable for various applications where overcurrent protection and safety are required.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: QOB115GFI
• Type: Miniature circuit-breaker
• Current Rating: 15 Amp
• Voltage Rating: 120 Volt
• Number of Poles: 1 Pole
• Dimensions: 2.91 inches (length), 74 mm (depth), 19 mm (width), 105 mm (height)
• Mounting Type: Bolt-on
• Interrupt Rating: 10 kAIC
