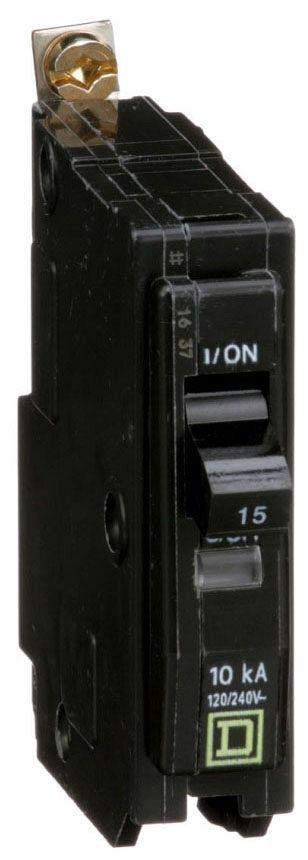

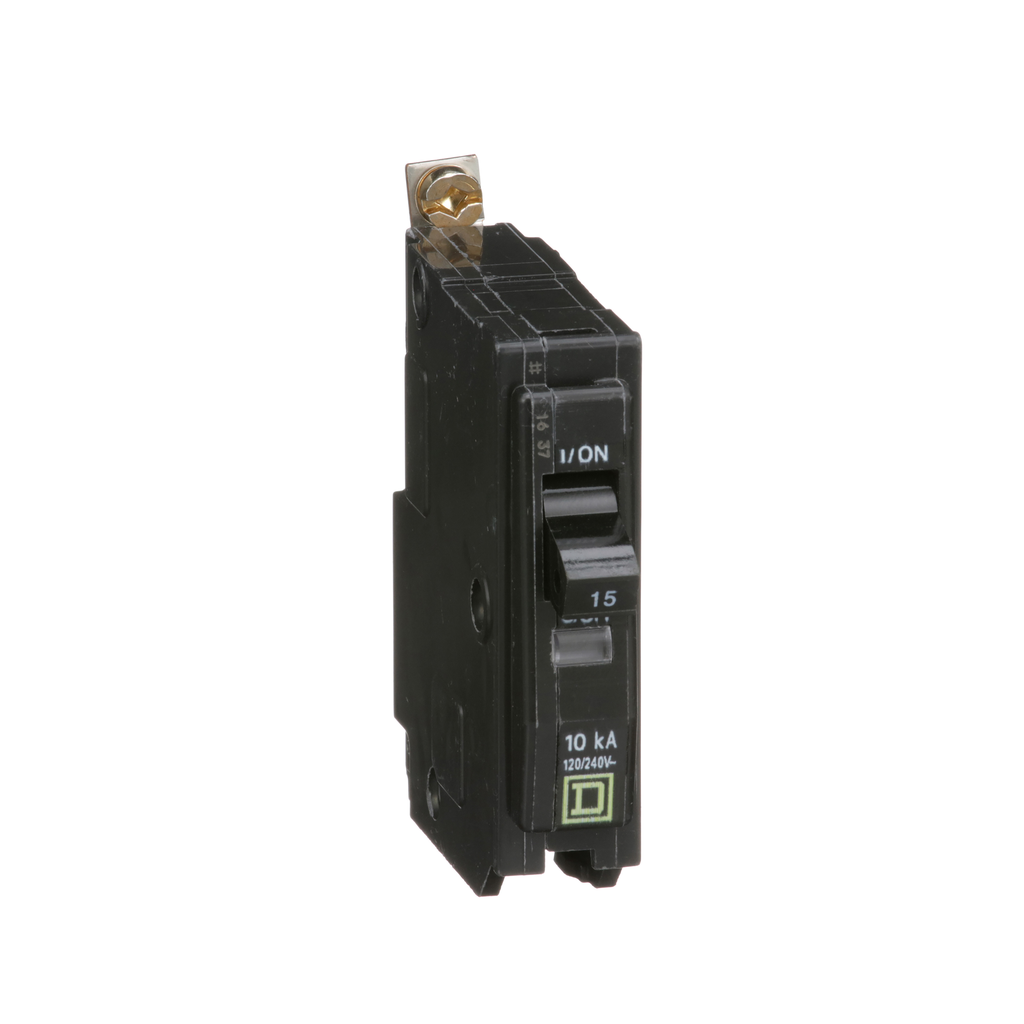

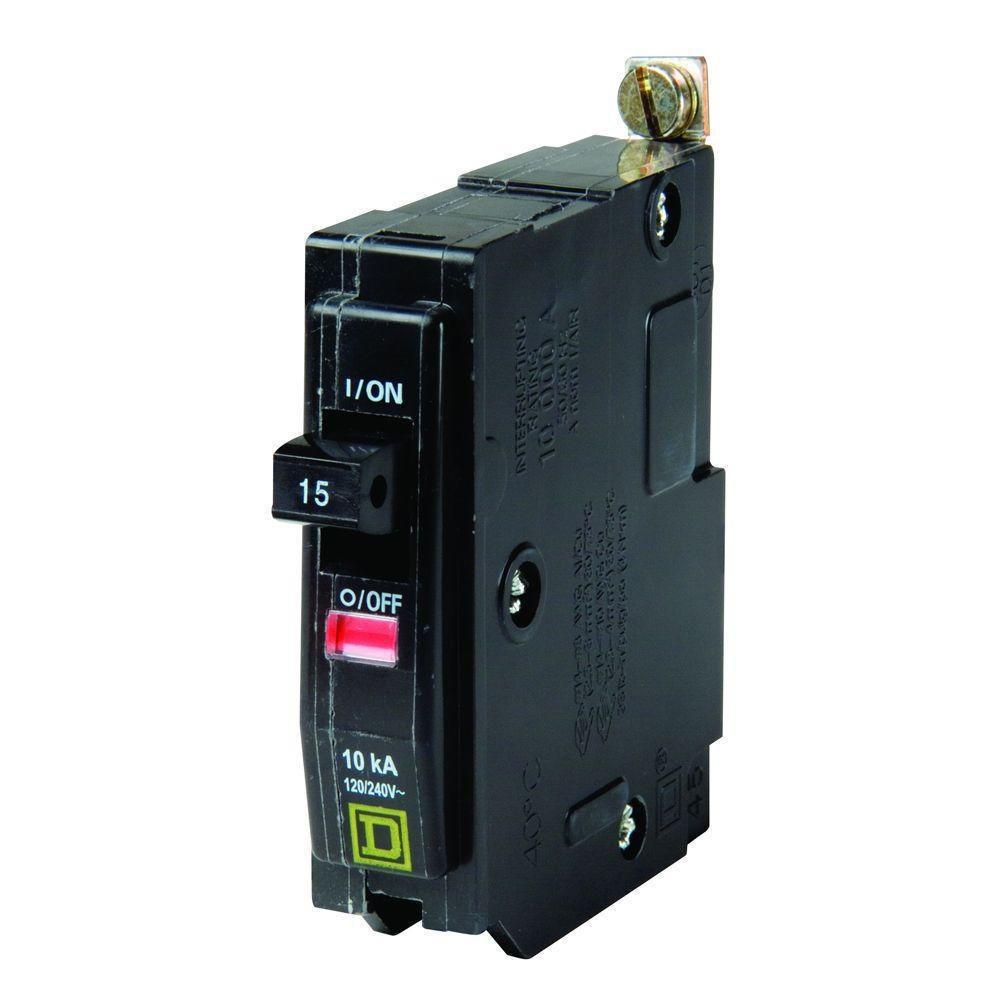

Square D QOB115 Miniature Circuit Breaker 15A 120/240V 1Ph Bolt-On

Product Description

The Square D QOB115 Miniature Circuit Breaker is designed for overcurrent protection and switching on AC and DC systems. This one-pole circuit breaker is rated at 15 amps and operates at 120/240 VAC. It features a bolt-on installation for secure mounting. The breaker includes a trip indicator to visually indicate any interruption in power. This unit has a breaking capacity of 10 kA, making it suitable for a variety of applications.

• Overcurrent protection for AC and DC systems
• 15 amp rating with 120/240 VAC operation
• Visual trip indication for easy troubleshooting

Product Highlights

Reliable performance in compact design with easy installation options.

Product Information

Standard Information

• Brand: Square D
• MPN: QOB115

Technical Specifications

• Type: Miniature Circuit Breaker
• Number of Poles: 1
• Current Rating: 15 Amp
• Voltage Rating: 120/240 Volt AC
• Interrupt Rating: 10 kA
• Wire Size: AWG 14 to 8 copper or aluminum
• Mounting Type: Bolt-On
• Dimensions: Length 2.91 inches, Height 3.0 inches, Width 0.75 inches
• Weight: 0.127 kg
• Certifications: UL Listed, CSA Certified
