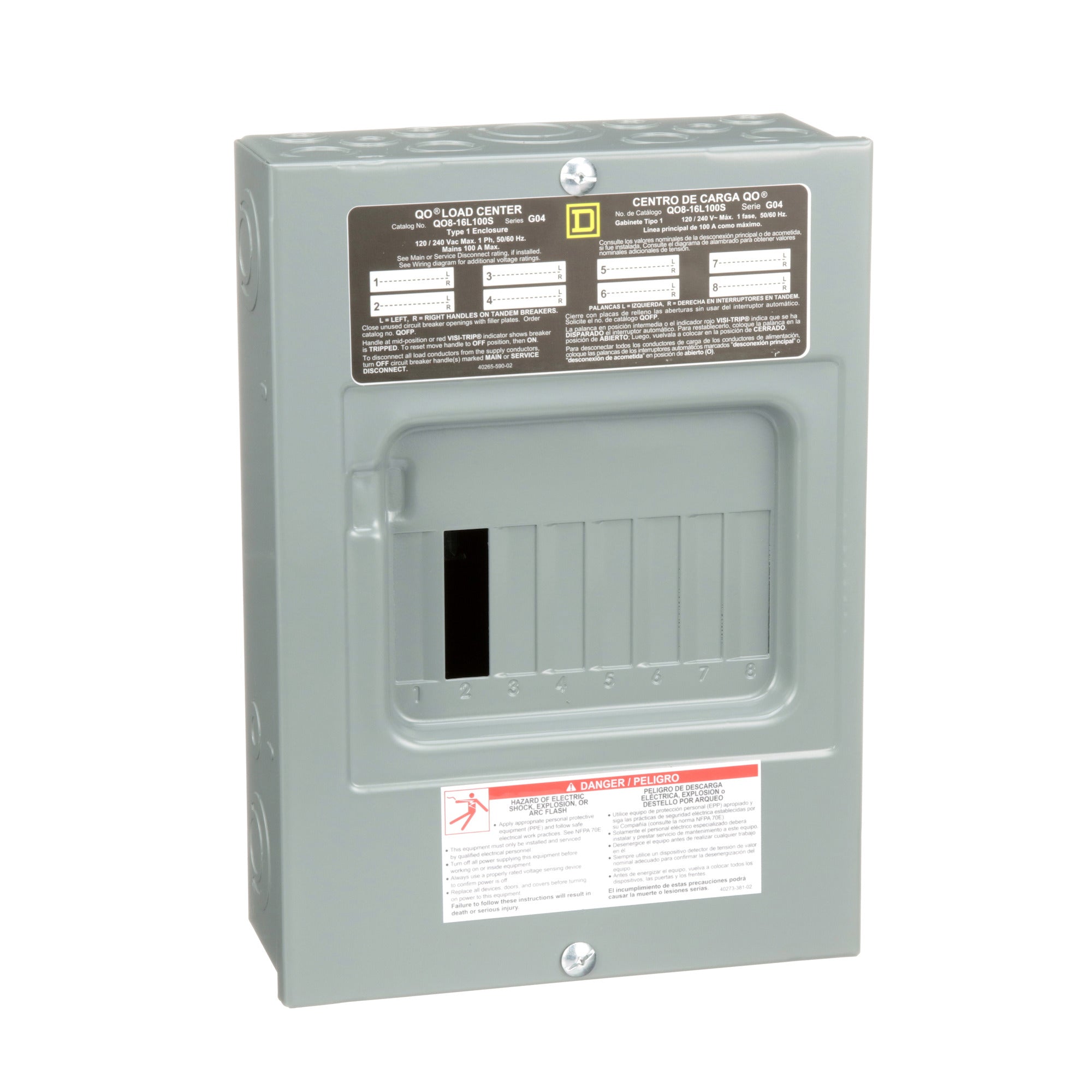

Square D QO816L100S Load Center MLO 100A 120/240V 1Ph 8SP NEMA-1

Product Description

The Square D QO816L100S Load Center is designed for residential and industrial applications. The MPN for this product is QO816L100S. It serves as a main lug load center with a rating of 100 Amps and operates at 120/240V single phase. This load center features a NEMA 1 enclosure, providing adequate protection in indoor settings.

• 8 spaces and 16 circuits for versatile connections
• UL listed for safety and performance
• Wire range accommodates 8 AWG to 1 AWG copper or aluminum

Product Highlights

This load center incorporates advanced safety features including ground fault interrupters and surge arresters. It supports both indoor and outdoor use, making it a suitable choice for various installations. The design allows for easy top or bottom service entrance feed, enhancing installation flexibility.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO816L100S
• Current Rating: 100 Amp
• Voltage Rating: 120/240 Volt
• Number of Spaces: 8
• Number of Circuits: 16
• Enclosure Type: NEMA 1
• Material: Baked enamel Gray, welded sheet steel
• Height: 12.57 inches
• Width: 8.88 inches
• Depth: 3.80 inches
• Interrupt Rating: 10 kA
• Warranty: 18 months
• Country of Origin: Mexico
