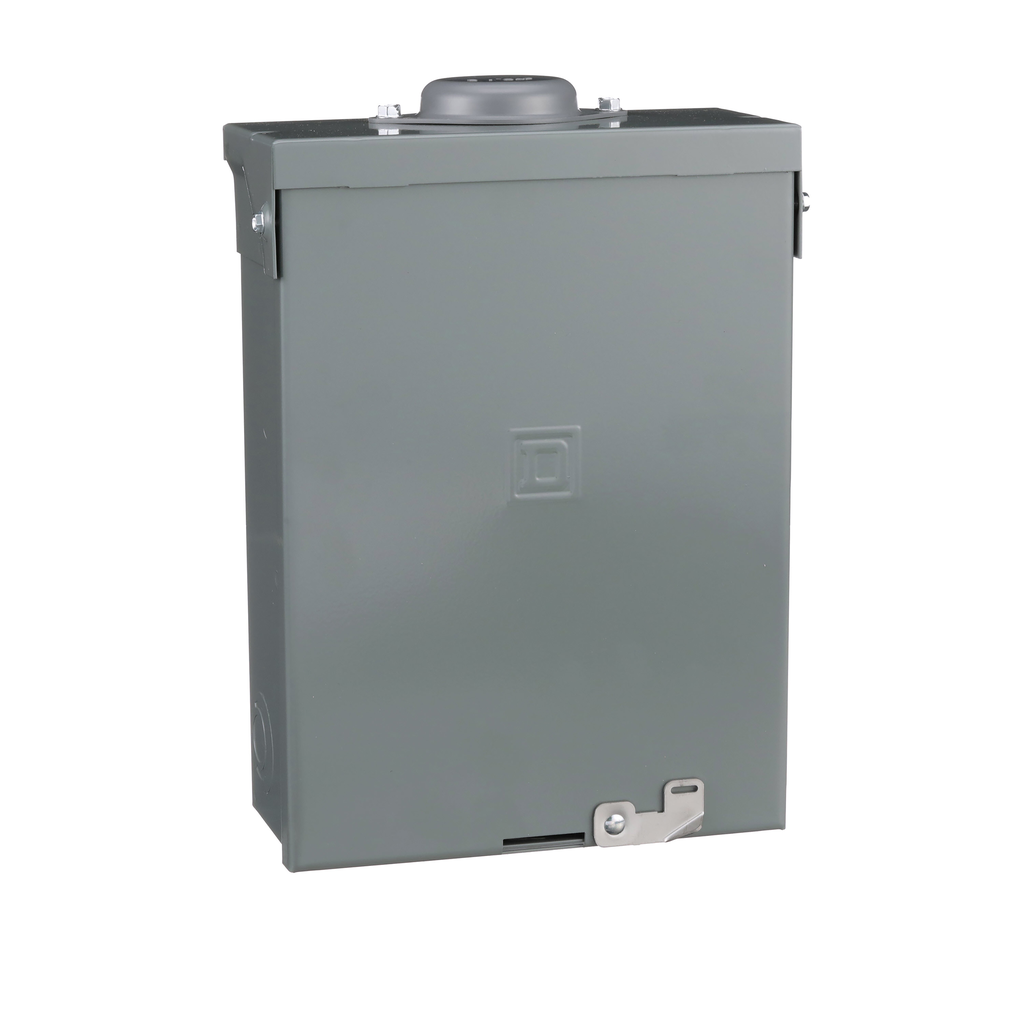

Square D QO816L100RB Load Center 100A 120/240V 1Ph 8SP NEMA-3R

Product Description

The Square D QO816L100RB Load Center is a reliable solution for managing electrical distribution. This product features a rated current of one hundred amps and operates at one hundred twenty to two hundred forty volts. The load center contains eight spaces and offers sixteen circuits. Designed to meet both residential and commercial requirements, this load center is UL listed and CSA rated.

• 100 Amp fixed main lugs
• NEMA 3R rated enclosure for outdoor use
• Compatible with AWG 8 to AWG 1 aluminum or copper wire

Product Highlights

This load center supports multiple configurations and is ideal for a range of applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO816L100RB
• Width: 8.9 inches
• Height: 12.6 inches
• Current Rating: 100 Amps
• Voltage Rating: 120/240 Volts
• Number of Phases: 1
• Number of Spaces: 8
• Number of Circuits: 16
• Enclosure Type: NEMA 3R
• Enclosure Material: Welded galvannealed steel
• Special Features: Tin plated aluminium busbar
• Warranty: 18 months
• Country of Origin: Mexico
• Short Circuit Rating: 10 kA
