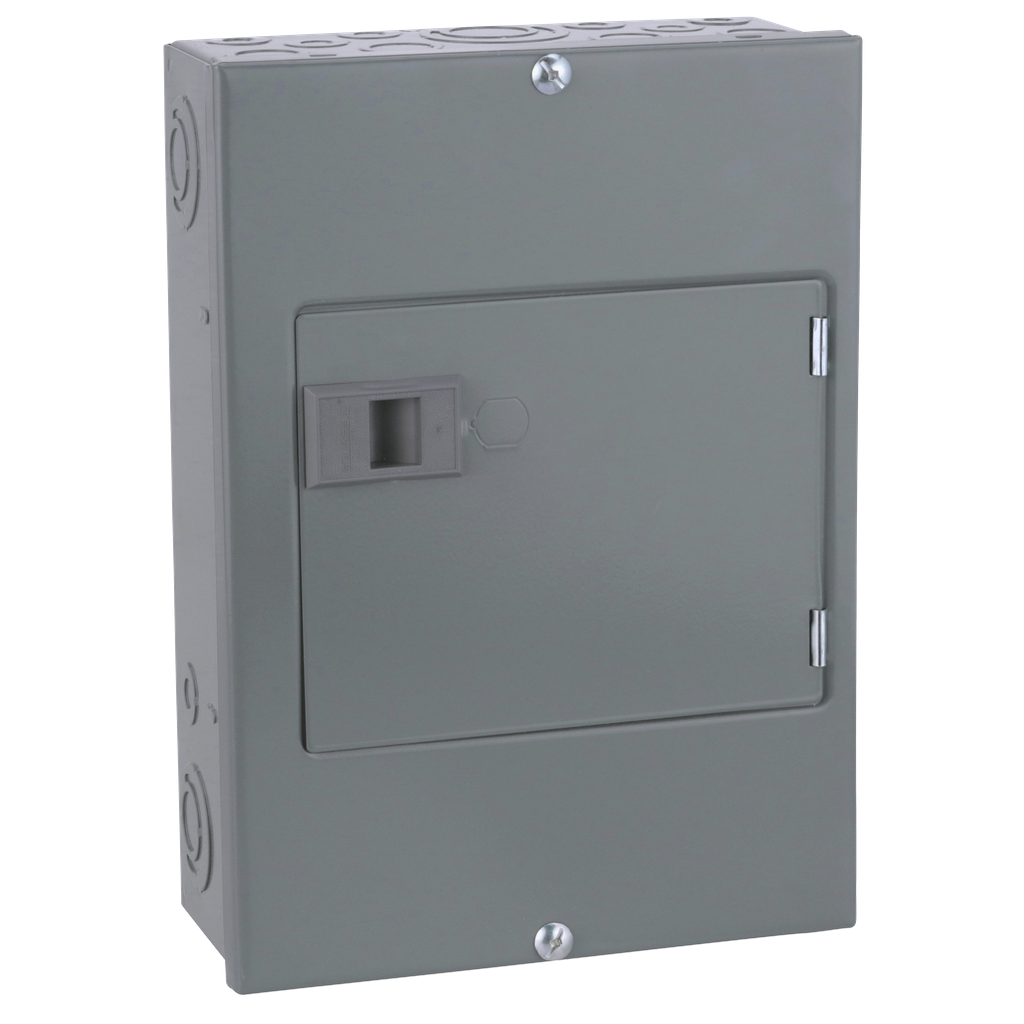

Square D QO816L100DS Load Center MLO 100A 120/240V 1Ph 8SP NEMA-1

Product Description

The Square D QO816L100DS Load Center is a reliable solution for electrical distribution. This load center is rated at one hundred amperes and operates at one hundred twenty to two hundred forty volts. It features eight spaces and supports up to sixteen circuits.

• UL Listed and CSA rated for safety
• Designed for residential, commercial, and industrial applications
• NEMA Type 1 enclosure suitable for indoor use

Product Highlights

This load center provides a durable construction to manage electrical distribution effectively. It is compatible with various circuit breaker types and offers flexible wiring options.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QO816L100DS
• Current: 100 Amp
• Voltage: 120/240 Volt
• Number of Circuits: 16
• Number of Spaces: 8
• Enclosure Type: NEMA 1
• Material: Tin Plated Aluminium Busbar
• Warranty Length: 18 months
