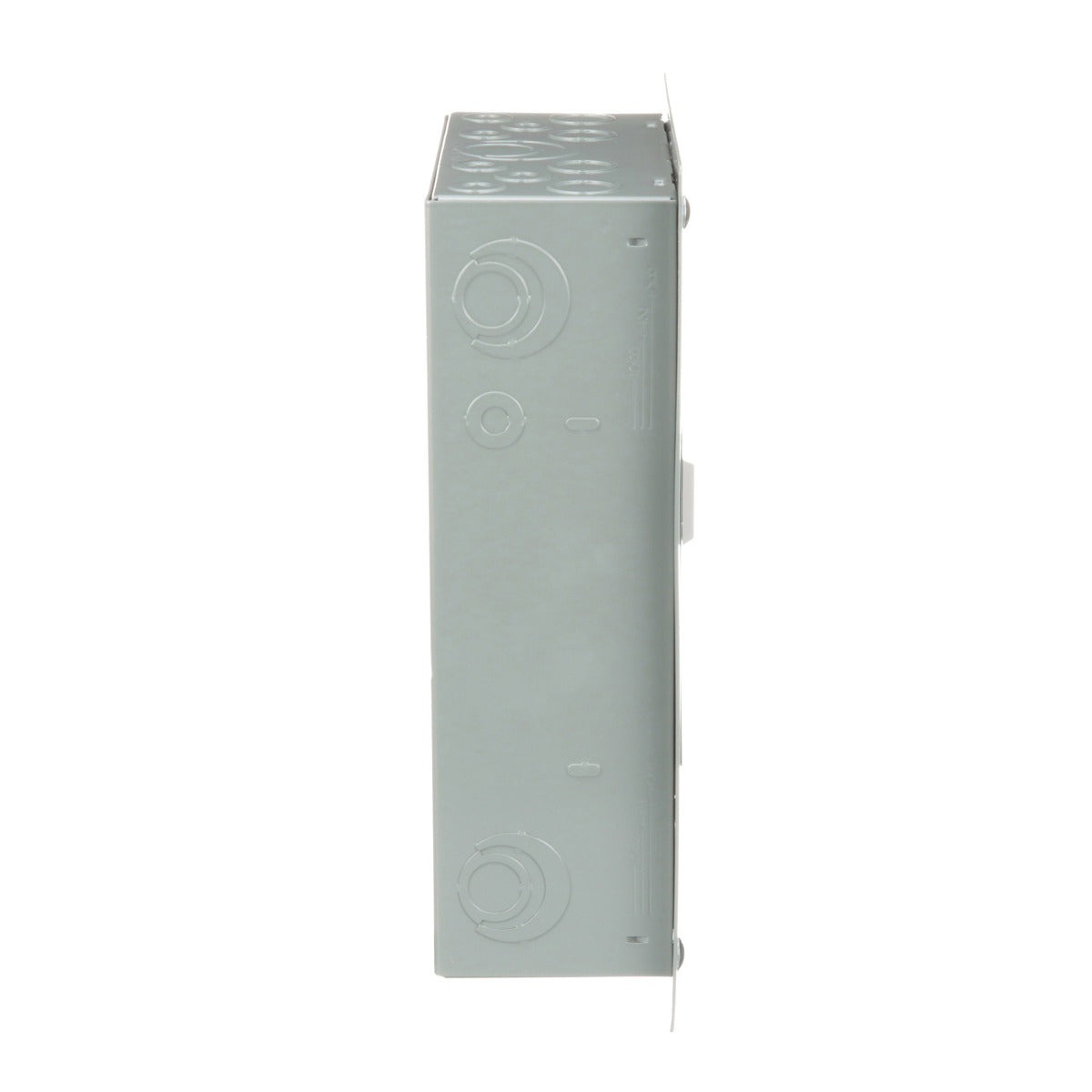

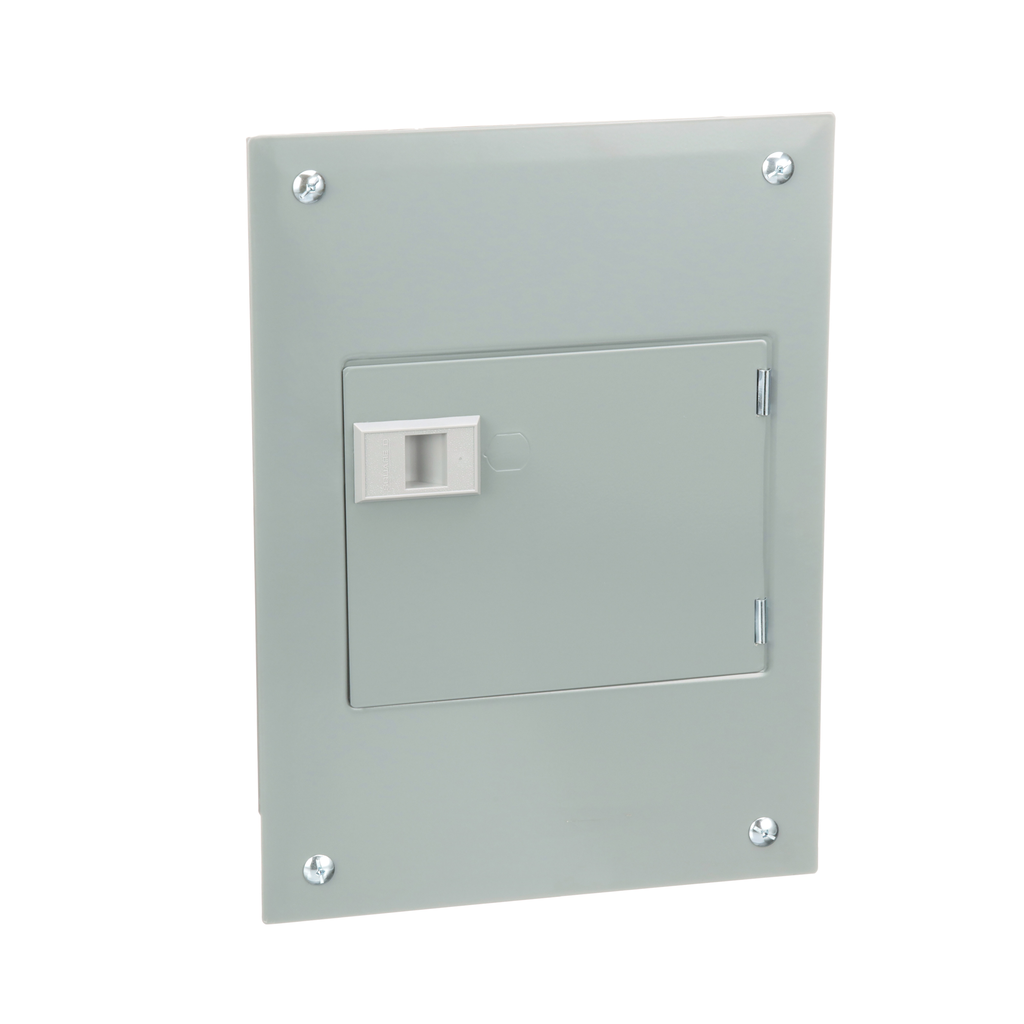

Square D QO816L100DF Load Center MLO 100A 120/240V 1Ph 8SP NEMA-1

Product Description

The Square D QO816L100DF Load Center is a critical component for electrical systems. This load center is rated at one hundred amps and is designed for single phase use at one hundred twenty to two hundred forty volts. The unit has eight spaces and can handle up to sixteen circuits.

• UL Listed and CSA rated for safety
• Suitable for residential, commercial, and industrial applications
• Fixed main lugs configuration

Product Highlights

This load center provides reliable protection for electrical systems. The robust construction features a baked enamel finish and a NEMA 1 enclosure. It is suitable for indoor environments and allows for easy access for circuit management.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QO816L100DF
• Type: Load Center
• Depth: 3.74 inches
• Width: 8.90 inches
• Height: 12.56 inches
• Current: 100 Amp
• Voltage: 120/240 Volt
• Material: Tin Plated Aluminium Busbar
• Enclosure: NEMA 1
• Wire Size: AWG 8...AWG 1 aluminium/copper
• Cover Type: Flush cover with door
• Warranty Length: 18 months
