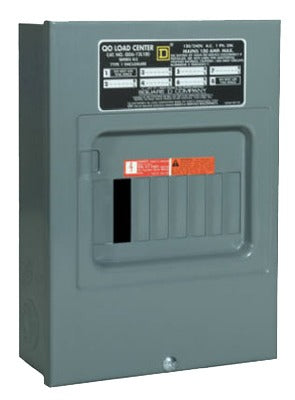

Square D QO612L100SCP 100A 6 Space 12 Circuit Load Center

Product Description

The Square D QO612L100SCP is a main lugs load center rated at 100 amps, designed for surface mount installation in residential and light commercial electrical distribution applications. It provides 6 spaces accommodating up to 12 single-pole circuits, making it a compact and practical panel for branch circuit distribution. The main lugs configuration means no main breaker is included, allowing it to function as a sub-panel fed from an upstream disconnect or service entrance equipment. Licensed electricians install this unit as part of a complete electrical distribution system.

This load center is suited for surface mount applications where flush or recessed installation is not practical, such as garages, workshops, outbuildings, or utility spaces. The 6-space, 12-circuit capacity supports a range of branch circuits for lighting, outlets, and small appliances. When used as a service entrance application, the manufacturer specifies that ground bar PK7GTA is required and must be installed accordingly.

Key Features

• 100 amp main lugs rating for sub-panel or service entrance use
• 6 spaces supporting up to 12 single-pole circuit breakers
• Surface mount enclosure for exposed installation applications
• Main lugs only design allows flexible upstream disconnect options
• Compatible with QO series circuit breakers for standardized branch protection
• Ground bar PK7GTA required for service entrance configuration

Compatibility

Designed for use with Square D QO series circuit breakers. When configured for service entrance use, ground bar PK7GTA must be installed as specified by the manufacturer.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the upstream feed and verify absence of voltage before making any connections at the load center lugs or branch circuit terminals. Surface mount the enclosure to a secure, non-combustible backing rated for the panel weight and load. Confirm ground bar PK7GTA is installed if this unit is being used in a service entrance application, as specified by the manufacturer.
