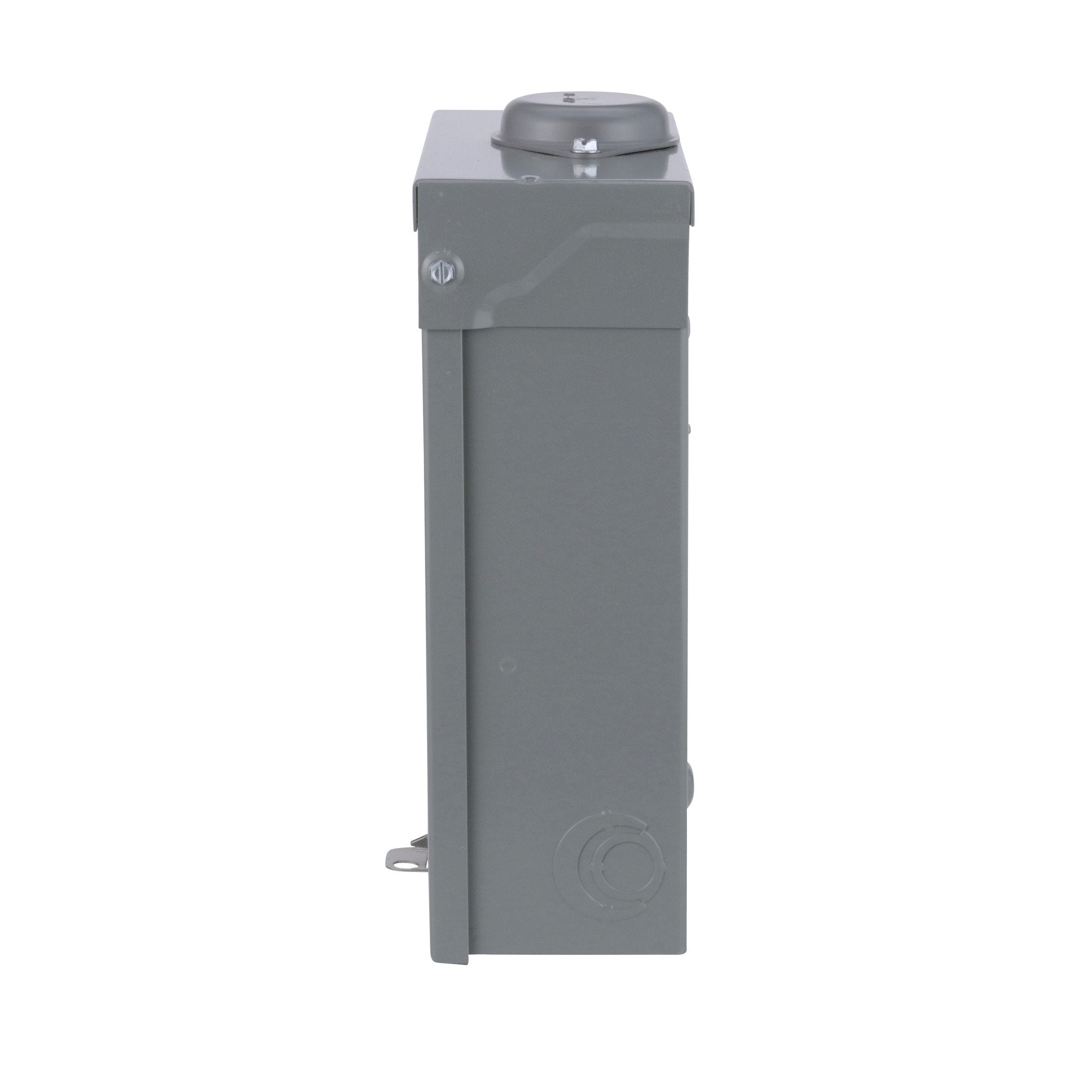

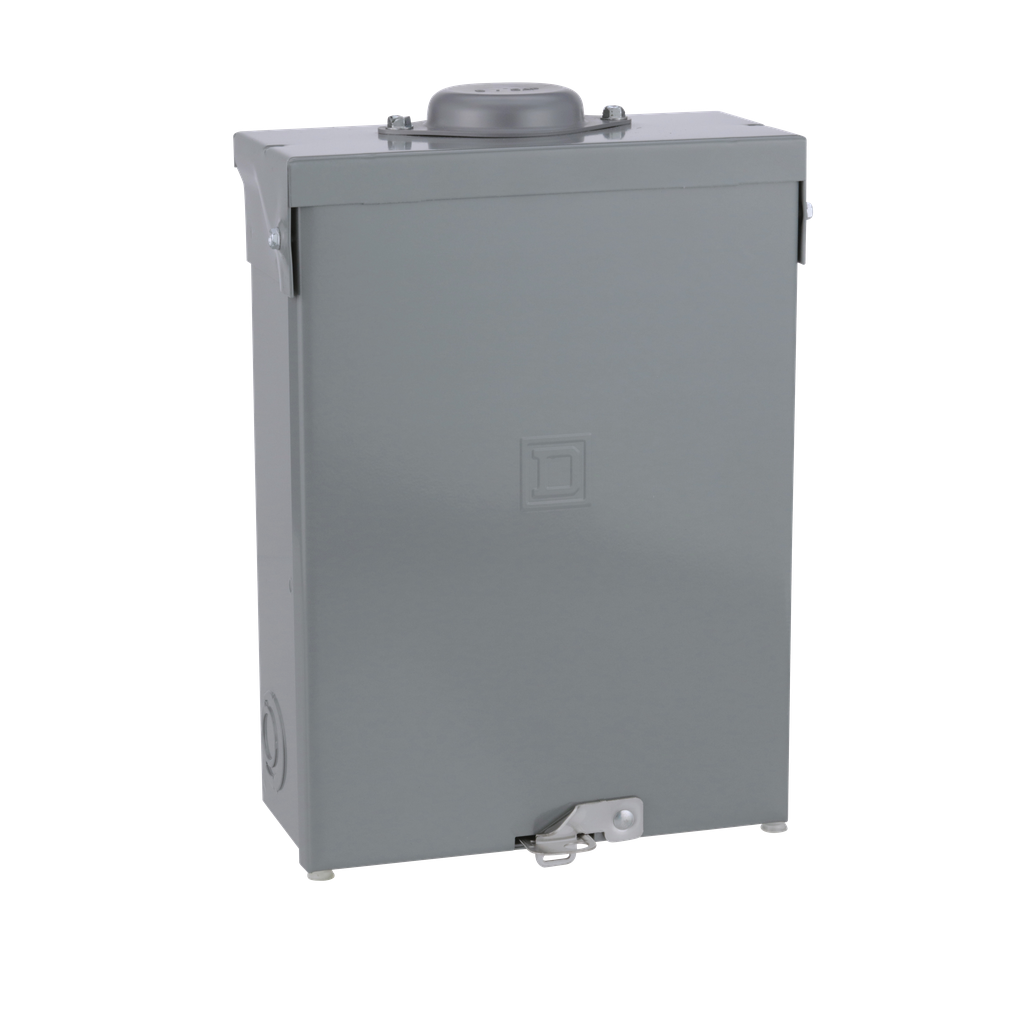

Square D QO612L100RB Load Center MLO 120/240V 1Ph 6SP NEMA-3R

Product Description

The Square D QO612L100RB Load Center is a reliable solution for electrical distribution. This load center is designed for residential, commercial, and industrial use. The MPN for this product is QO612L100RB.

• Listed by Underwriters Laboratories (UL).
• Rated for 100 Amp, 120/240 Volt, and is suitable for one-phase operations.
• Enclosure rated NEMA 3R for outdoor applications.

Product Highlights

This 6-space load center offers twelve circuits, making it ideal for various electrical needs. It safeguards electrical systems and complies with industry safety standards.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO612L100RB
• Current Rating: 100 Amp
• Voltage Rating: 120/240 Volt
• Number of Spaces: 6
• Number of Circuits: 12
• Enclosure Type: Weatherproof, NEMA 3R
• Material: Steel with baked enamel finish
• Dimensions: Width 226 mm, Height 321 mm
