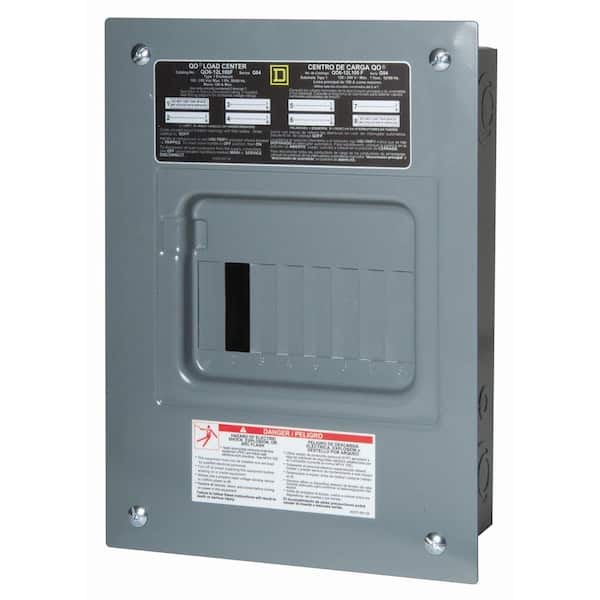

Square D QO612L100FCP Load Center 100 A 120/240 V AC

Product Description

The Square D QO612L100FCP is a main lug indoor load center with a 100 A rating and is intended for fixed applications. It features a NEMA type 1 enclosure and a copper bus bar for conductivity. This single-phase load center is rated for up to 240 V and has a 10,000 maximum SCCR. It is UL listed and compatible with Square D QO standard circuit breakers.

• QO Interiors and components provide time-tested reliability
• Compatible with Square D QO standard circuit breakers
• Includes indoor flush mount cover and aluminum bus bar

Product Highlights

This load center offers time-tested reliability and is suitable for indoor use. It is designed for easy installation and provides a safe and secure electrical distribution solution.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: QO612L100FCP
• Country of Origin: United States

Technical Specifications

• Amps: 100 A
• Voltage: 120/240 V AC
• Standards: UL Listed
• Wire Size: AWG 8...AWG 1 aluminium/copper
• Cover Type: flush cover
• Bus Material: tin plated aluminium busbar
• Ground Bar Kit: grounding bar (ordered separately)
• Surface Finish: baked enamel Gray
• Number Of Spaces: 6
• Tightening Torque: main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
• Enclosure Material: welded sheet steel
• Number Of Circuits: 12
• Circuit Breaker Type: QO
• Wiring Configuration: 3-wire
• Electrical Connection: lugs
• Enclosure NEMA Rating: NEMA 1 indoor
• Primary/Ambient Air Temp.: -5°C || 40°C
• Max. No. of Tandem Breakers: 6
• Short Circuit Current Rating: 10 kA
• Main Circuit Breaker or Main Lug: Fixed Mains (lugs)
• Compatible with: Square D QO standard circuit breakers
• Breaker/Load Center Type: Main Lug
• Bus Bar Material: Aluminum
• Cable Size: #8 to 1 AWG
• Current Rating: 100 A
• Interrupt Rating: 10 kA
• Number of Phases: 1
• Voltage Rating: 120/240 V
• Phase Type: Single Phase
• Manufacturer: Square D by Schneider Electric
• Part Number: QO612L100FCP
• Item model number: QO612L100FCP
• Model: QO612L100FCP
• Item Package Quantity: 1
