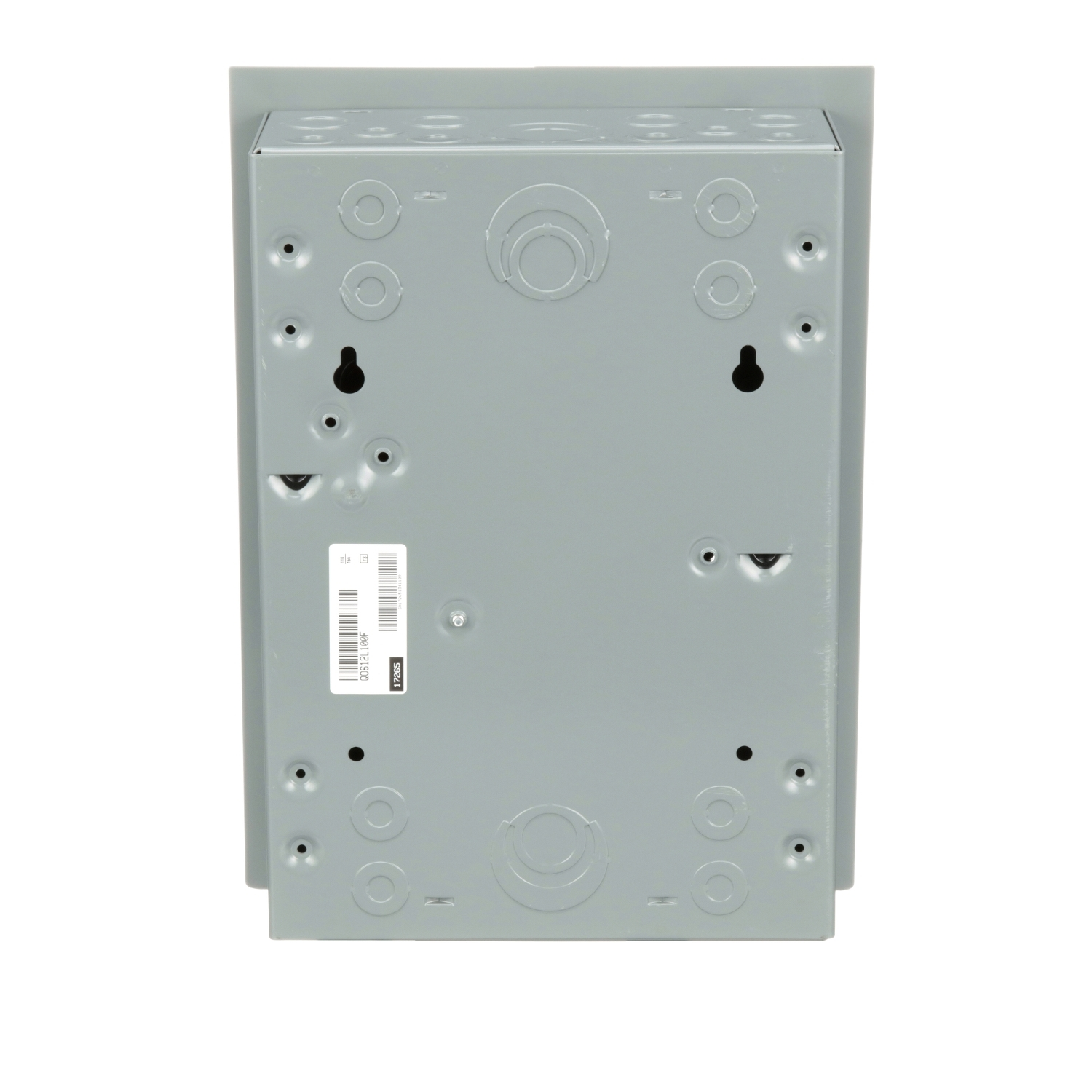

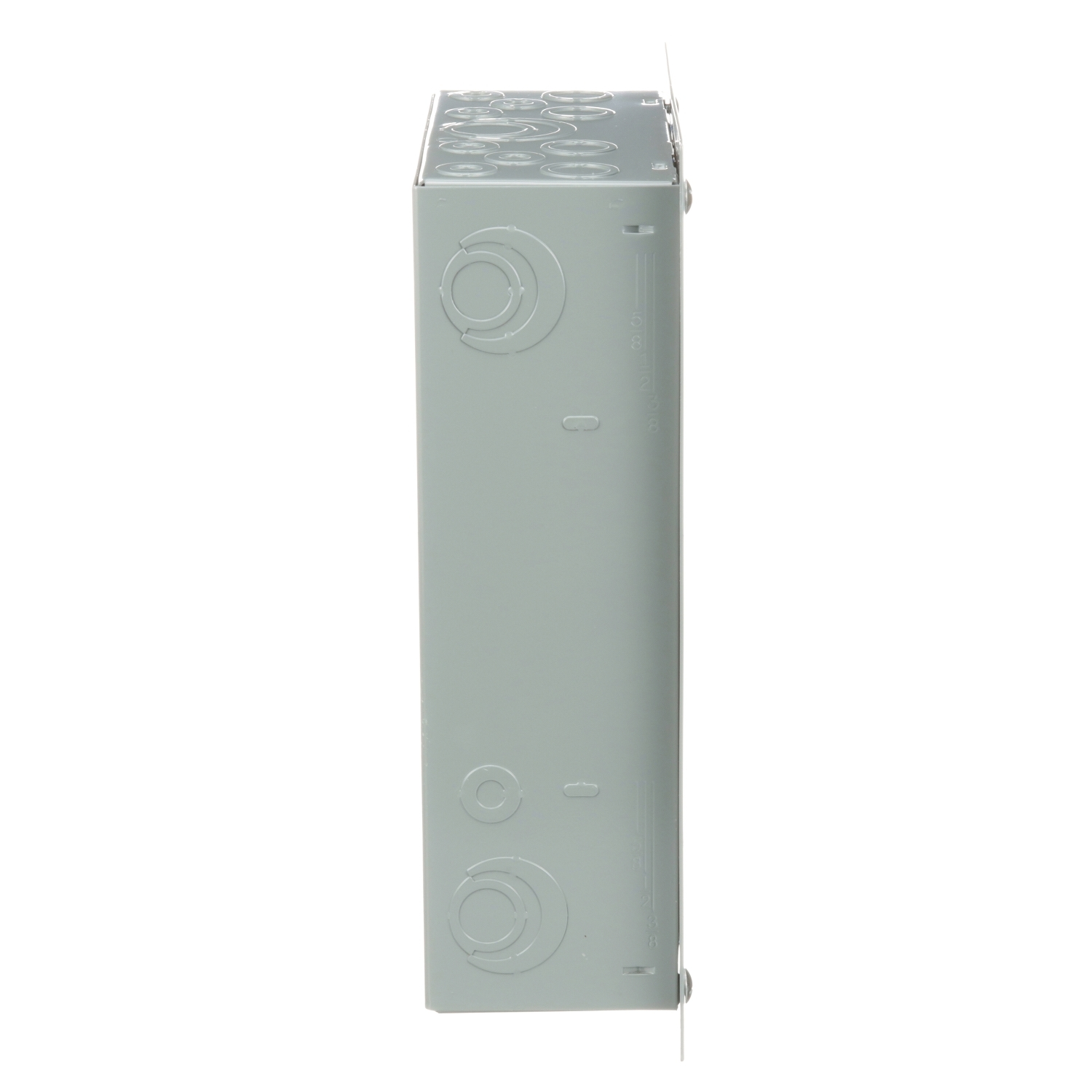

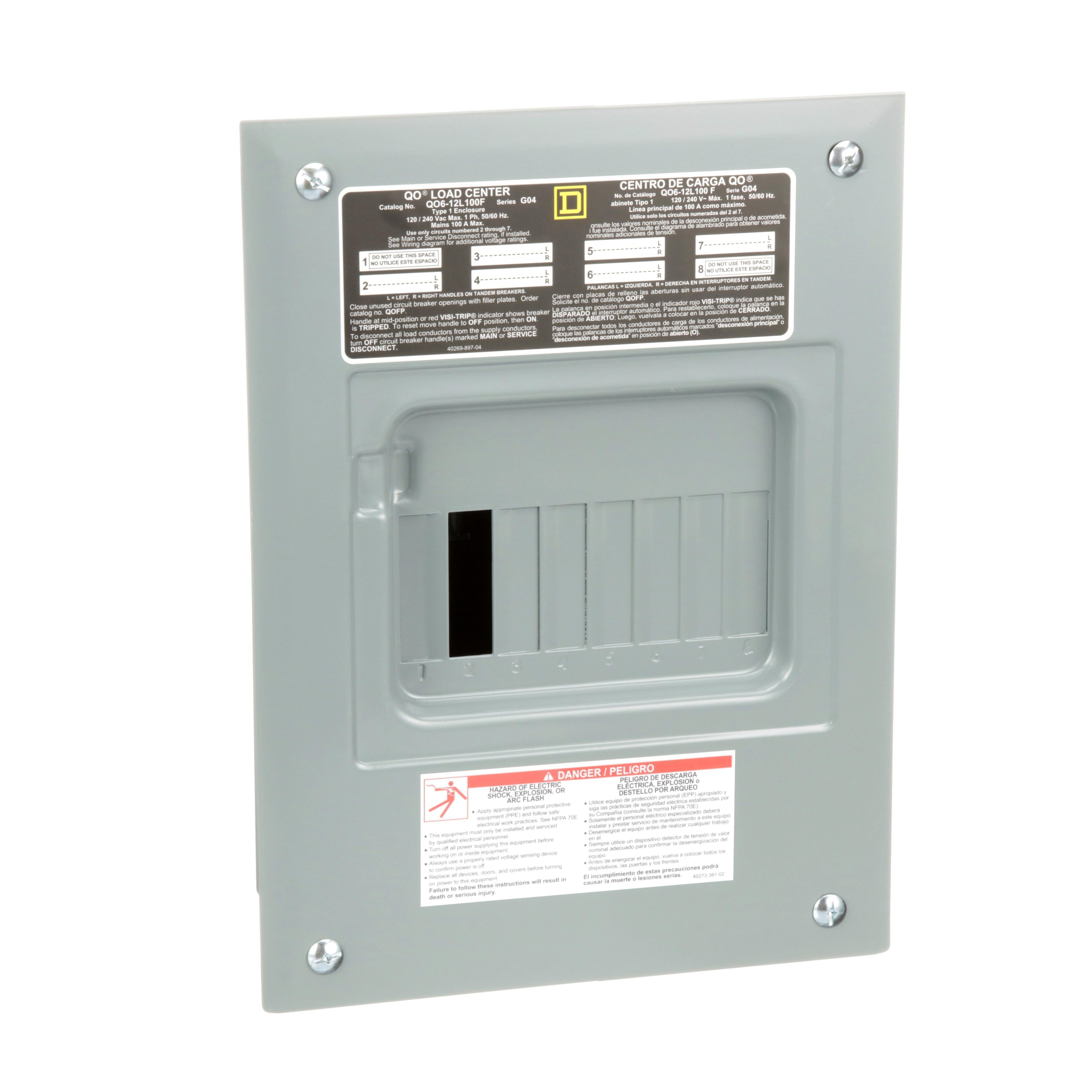

Square D QO612L100F Single-Phase QO Load Center with Flush Cover, Main Lug, 100A, 6 Spaces, 12 Circuits, Aluminum Bus, NEMA 1

Product Description

The Square D QO612L100F is a QO Circuit Breaker Load Center that is Underwriters Laboratories (UL) Listed and CSA rated. Designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. This single-phase load center has 6 spaces and 12 circuits with a 100A fixed main lug in a NEMA 1 enclosure and a flush cover.

• UL Listed and CSA rated panelboards
• Designed for residential, commercial, and industrial applications
• Protects electrical systems, equipment, and people

Product Highlights

The Square D QO612L100F load center offers a reliable solution for protecting electrical systems in various settings.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO612L100F
• Country of Origin: Mexico

Technical Specifications

• Type: Load Center
• Phase: Single-Phase
• Width: 8.9 Inches
• Height: 12.56 Inches
• Mounting: Surface
• NEMA Rating: NEMA 1
• Voltage Rating: 120/240
• Amperage Rating: 100 Amperes
• Interrupt Rating: 10 kAIC
• Number Of Spaces: 6
• Wiring Configuration: 3-Wire
• Current: 100 Amp
• Material: Tin Plated Aluminium: Busbar
• Enclosure: 1
• NEMA Size: 1
• Wire Size: AWG 8...AWG 1 aluminium/copper
• Cable Size: AWG 8...AWG 1 ALUMINIUM/COPPER
• Cover Type: Flush cover
• Applications: DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
• Certifications: UL
• Conductor Size: 8-1 AWG
• Surface Finish: Baked enamel Gray
• Number of Phases: 1,3 Phase
• Number of Circuits: 12
• Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
• Short Circuit Current: 10 kA
• Enclosure Material: Steel
• Line Rated Current: 100 A
• Circuit Configuration: 1 Phase 3 Wire
• Maximum Number of Circuits: 12
• Maximum Number of Spaces: 6
• Neutral Type: Split Branch
• Bus Material: tin plated aluminium busbar
• Feed Location: Top
• Enclosure Type: NEMA 1
• Enclosure Size Designation: 4
• Approval: UL, NOM
• Rated Operational Voltage: 120/240 V AC
• Electrical Connection: lugs
• Short-Circuit Current: 10 kA
• Number Of Tandem Circuit Breakers: 6
• Awg Gauge: AWG 8...AWG 1 aluminium/copper
• Load Center Type: Fixed Mains (lugs)
• Device Composition: grounding bar (ordered separately)
• Ambient Air Temperature For Operation: -5 °C || 40 °C
• Nema Degree Of Protection: NEMA 1 indoor enclosure
• Breaker Mounting: Panel
• Breaker Type: QO
• Frequency Rating: 50/60
• Housing Material: Steel
• Mounting Type: Flush
• Number Of Poles: 1
• Item: Load Center
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedNOM CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov
• Ground Bar Kit: grounding bar (ordered separately)
• Tightening Torque: main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
• Main Circuit Breaker or Main Lug: Main Lug
• Primary/Ambient Air Temp.: -5°C || 40°C
• Max. No. of Tandem Breakers: 6
• Short Circuit Current Rating: 10 kA
• Alternate Catalog Number: QO612L100F
• Application: DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: QO612L100F
• Dimensions: 12.57 in H x 8.88 in W x 3.8 in D
• Enclosure Box Size: 4
• Amps: 100
• Voltage: 240V
• Range Of Product: QO
• Product Or Component Type: Load Center
• Line Rated Current - Metric: 100 A
• Short-circuit Current - Metric: 10 kA
