Product Description
The Square D QO612L100DS load center is a UL Listed and CSA rated panelboard designed to meet residential, commercial, and industrial requirements. This single-phase load center has 6 spaces and 12 circuits, with a NEMA 1 enclosure. It protects electrical systems, equipment, and people.
- Single-phase, 120/240 VAC voltage rating
- NEMA 1 enclosure for indoor use
- 100A amperage rating with 10 kAIC interrupt rating
Product Highlights

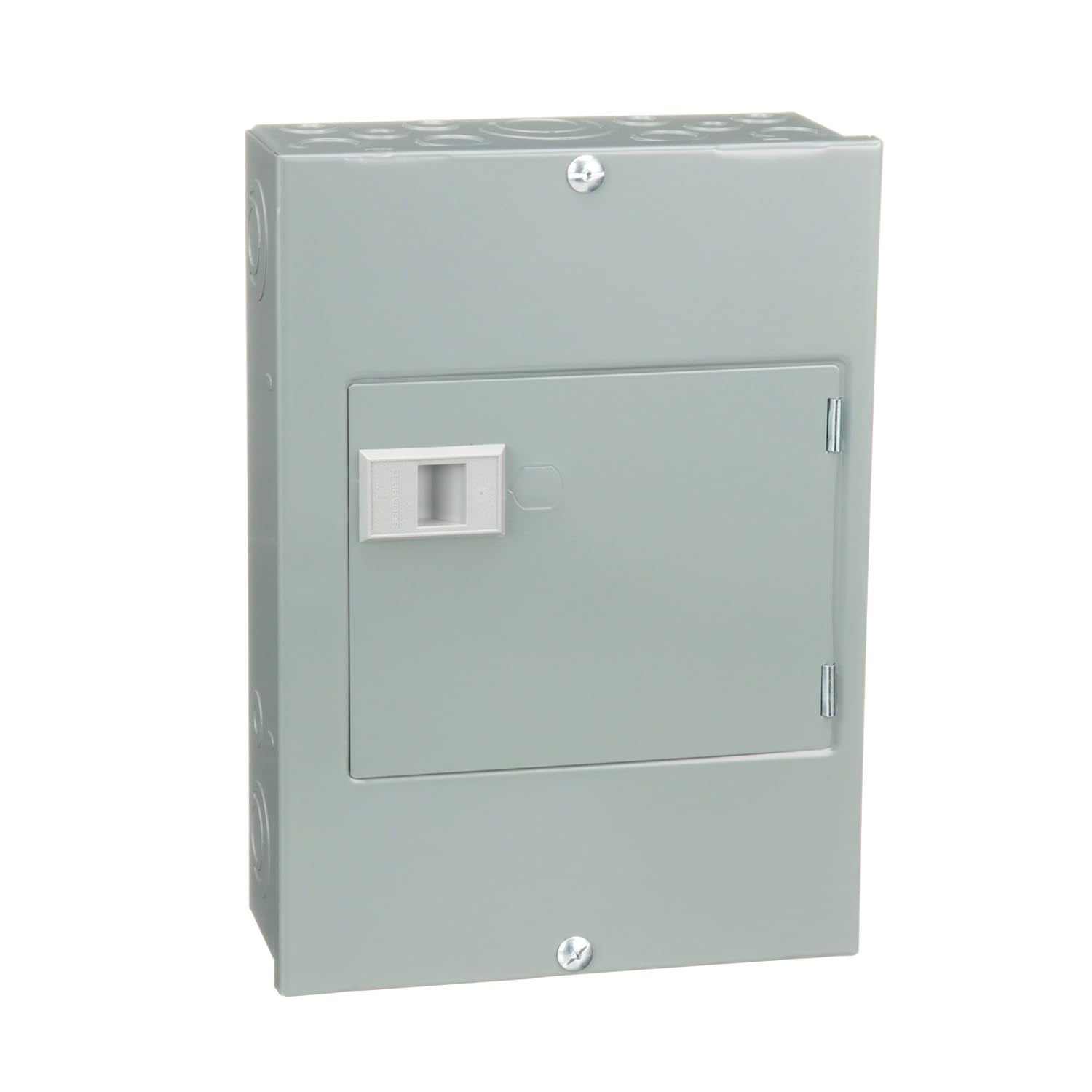

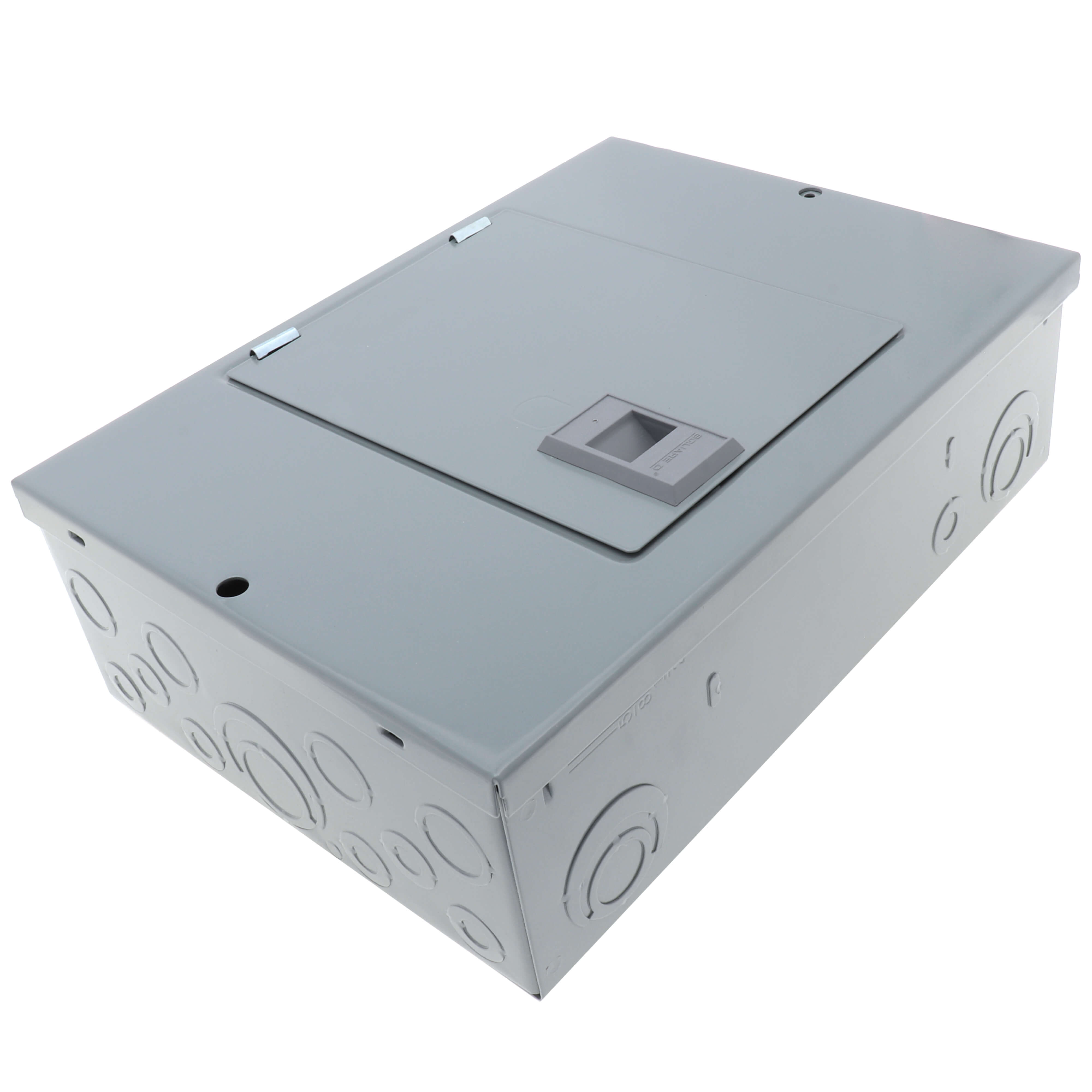

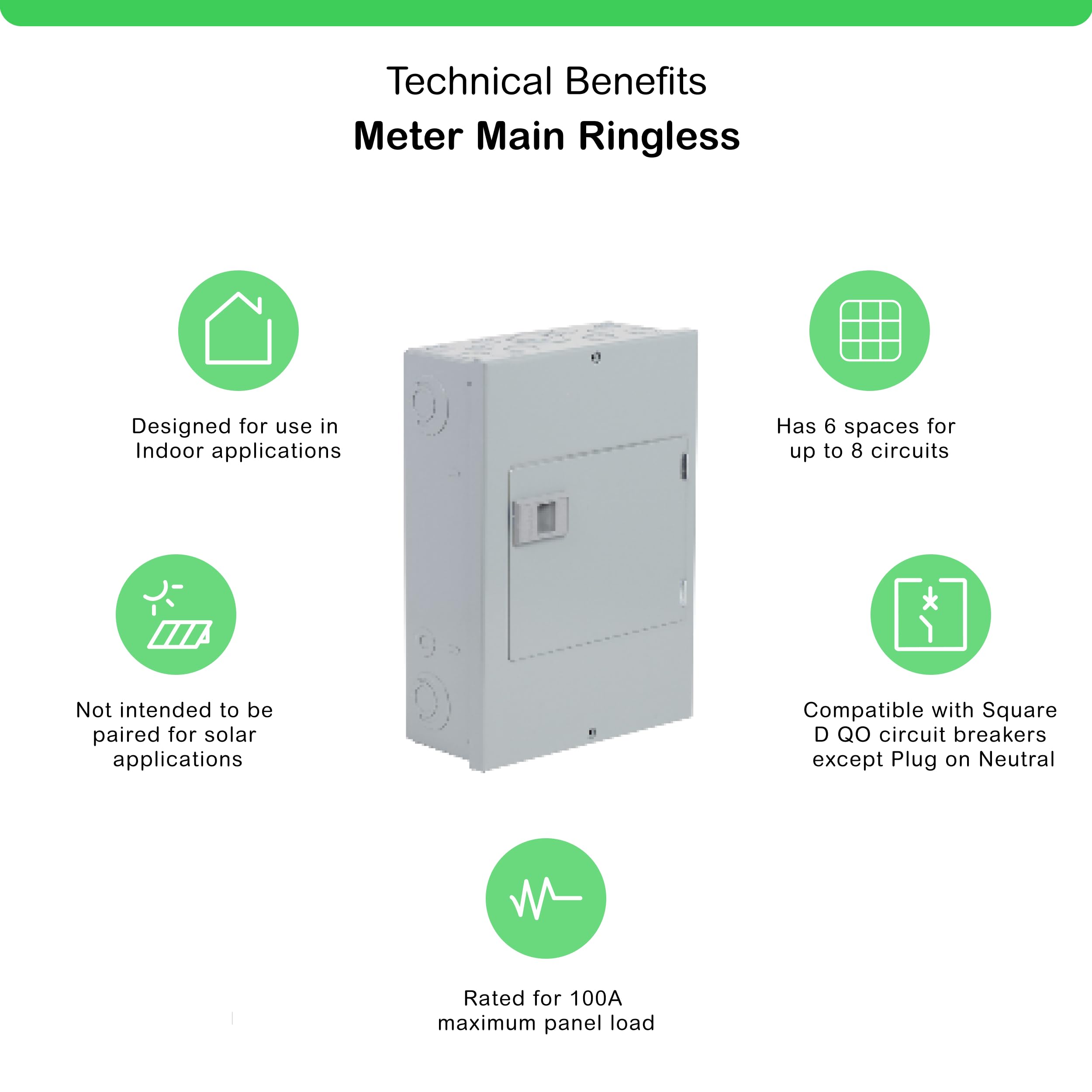

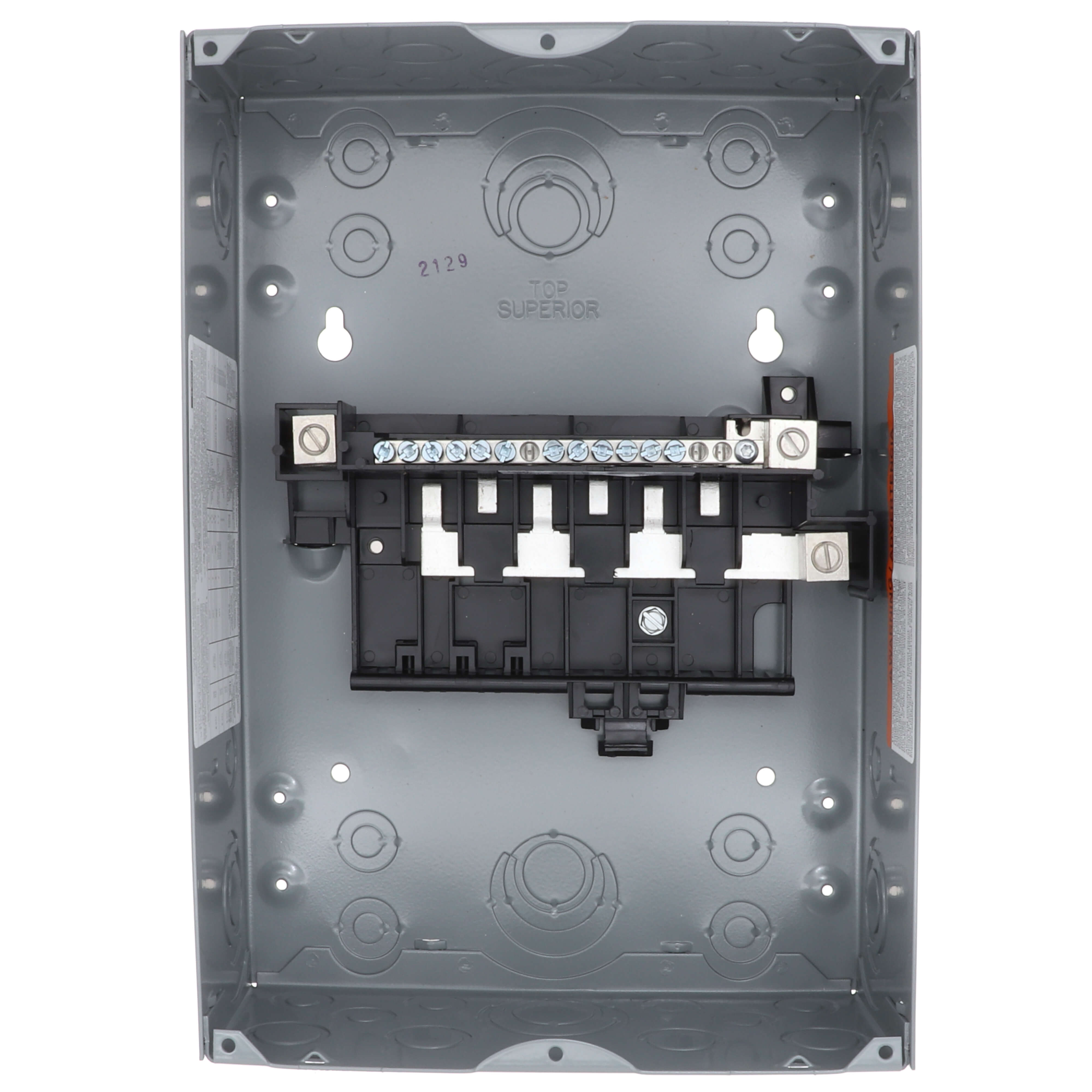

This Square D load center features a surface cover, aluminum bus, and is suitable for QO circuit breakers.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QO612L100DS
-
Country of Origin: Mexico
Technical Specifications
-
Type: Load Centers
-
Phase: Single-Phase
-
Width: 8.9 Inches
-
Height: 12.56 Inches
-
Mounting: Surface
-
NEMA Rating: NEMA 1
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 100 Amperes
-
Interrupt Rating: 10 kAIC
-
Number Of Spaces: 6
-
Wiring Configuration: 3-Wire
-
Product Type: Load Center
-
Mains Rating: 100 A
-
Max. Single Pole Circuits: 12
-
Max. Tandem Circuit Breakers: 6
-
Enclosure Rating: NEMA 1 Indoor
-
Short Circuit Current: 10 kA
-
Catalog Number: QO612L100DS
-
Brand: Square D
-
Finish: Baked Enamel
-
Current: 100 Amp
-
Material: Tin Plated Aluminium: Busbar
-
Enclosure: 1
-
Sub Brand: QO
-
Wire Size: AWG 8...AWG 1 aluminium/copper
-
Cable Size: AWG 8...AWG 1 ALUMINIUM/COPPER
-

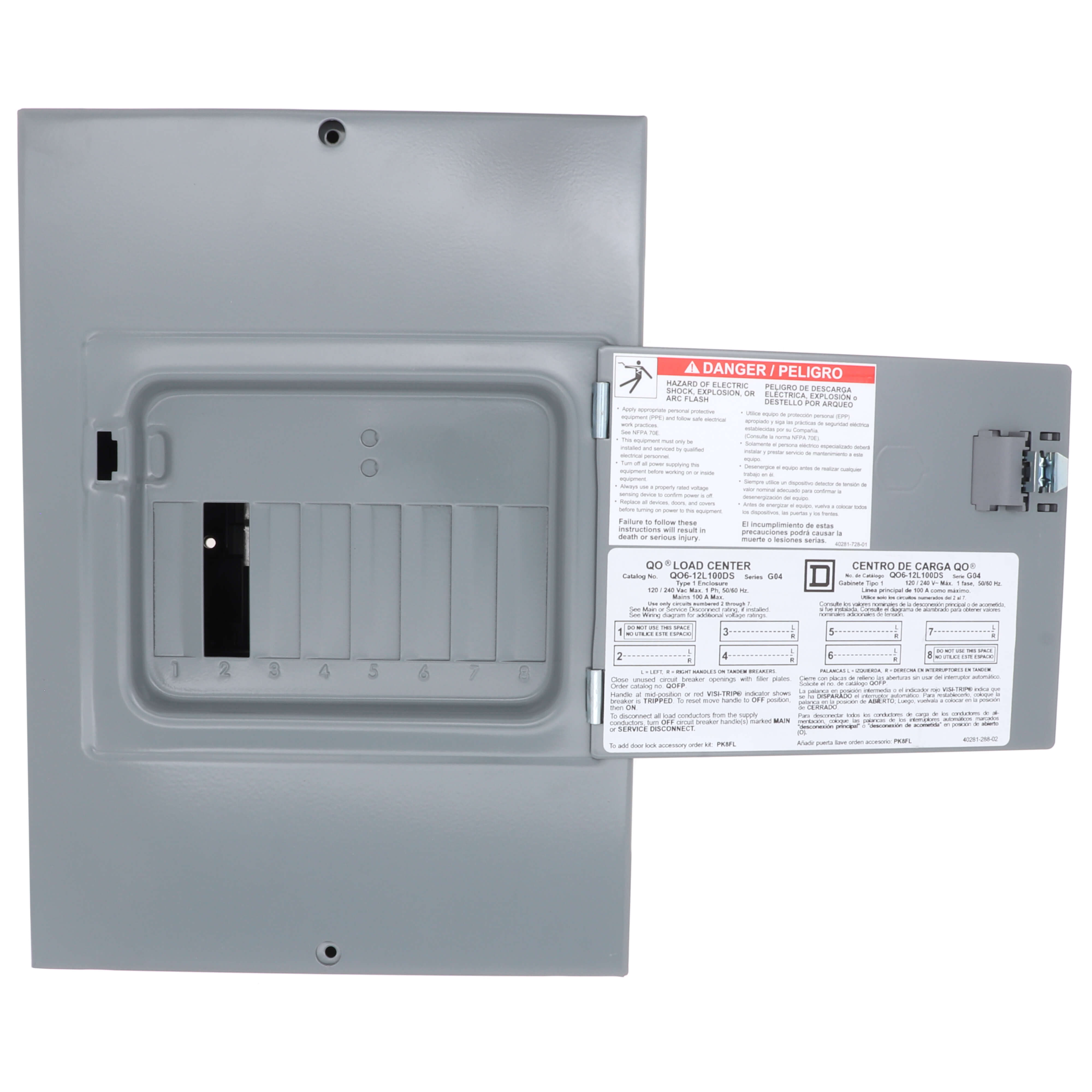

Cover Type: Surface cover with door
-
Applications: DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
-
Certifications: UL
-
Conductor Size: 8-1 AWG
-
Surface Finish: Baked enamel Gray
-
Number of Phases: 1,3 Phase
-
Number of Circuits: 12
-
Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
-
Enclosure Material: Steel
-
Line Rated Current: 100 A
-
Feed Location: Top/Bottom
-
Bus Material: Tin Plated Aluminum
-
Circuit Breaker Type: QO
-
Included Enclosure Cover: Surface Cover
-
Voltage: 120/240V AC
-
Amps: 100 A
-
Enclosure Type: NEMA 1, Indoor
-
Current Rating: 100 Ampere
-
Maximum Number of Circuits: 12
-
Maximum Number of Spaces: 6
-
Neutral Type: Split Branch
-
Main Wire Size: 8 to 1 AWG (Aluminum/Copper)
-
Approval: UL, NOM
-
Product Depth (in.): 3.8
-
Product Height (in.): 12.57
-
Product Width (in.): 8.88
-
Voltage (v): 120/240
-
Mounting Type: Surface
-
Maximum Amperage: 100 A
