Square D QO612L100DF 120/240 VAC 100 Amp 1-Phase 3-Wire 12-Circuit NEMA 1 Fixed Main Lug Load Center

Product Description

The Square D QO612L100DF is a load center designed for residential, commercial, and industrial settings. This product is UL listed and CSA rated, ensuring reliable performance in protecting electrical systems. It operates at 120/240 volts with a current rating of 100 amps.

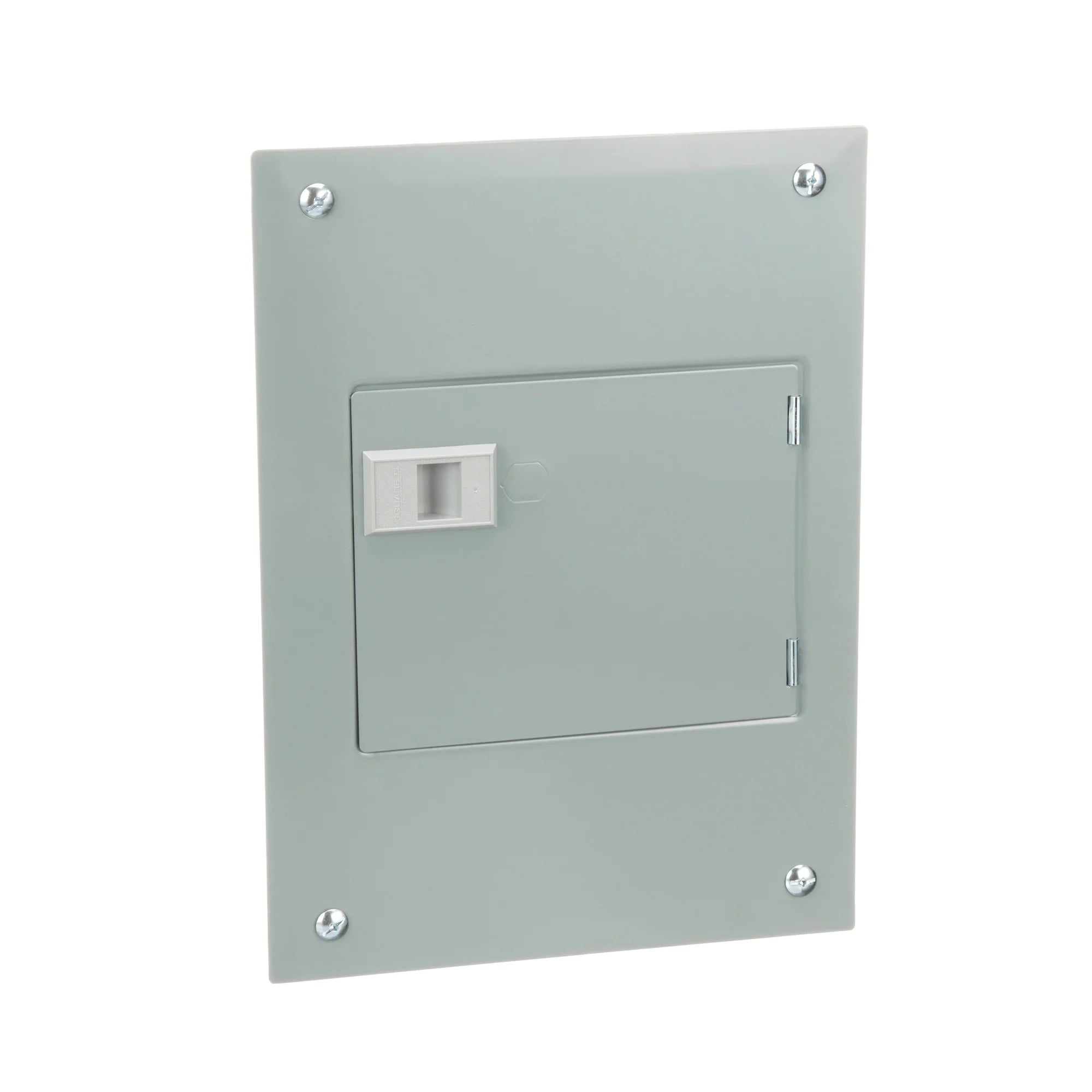

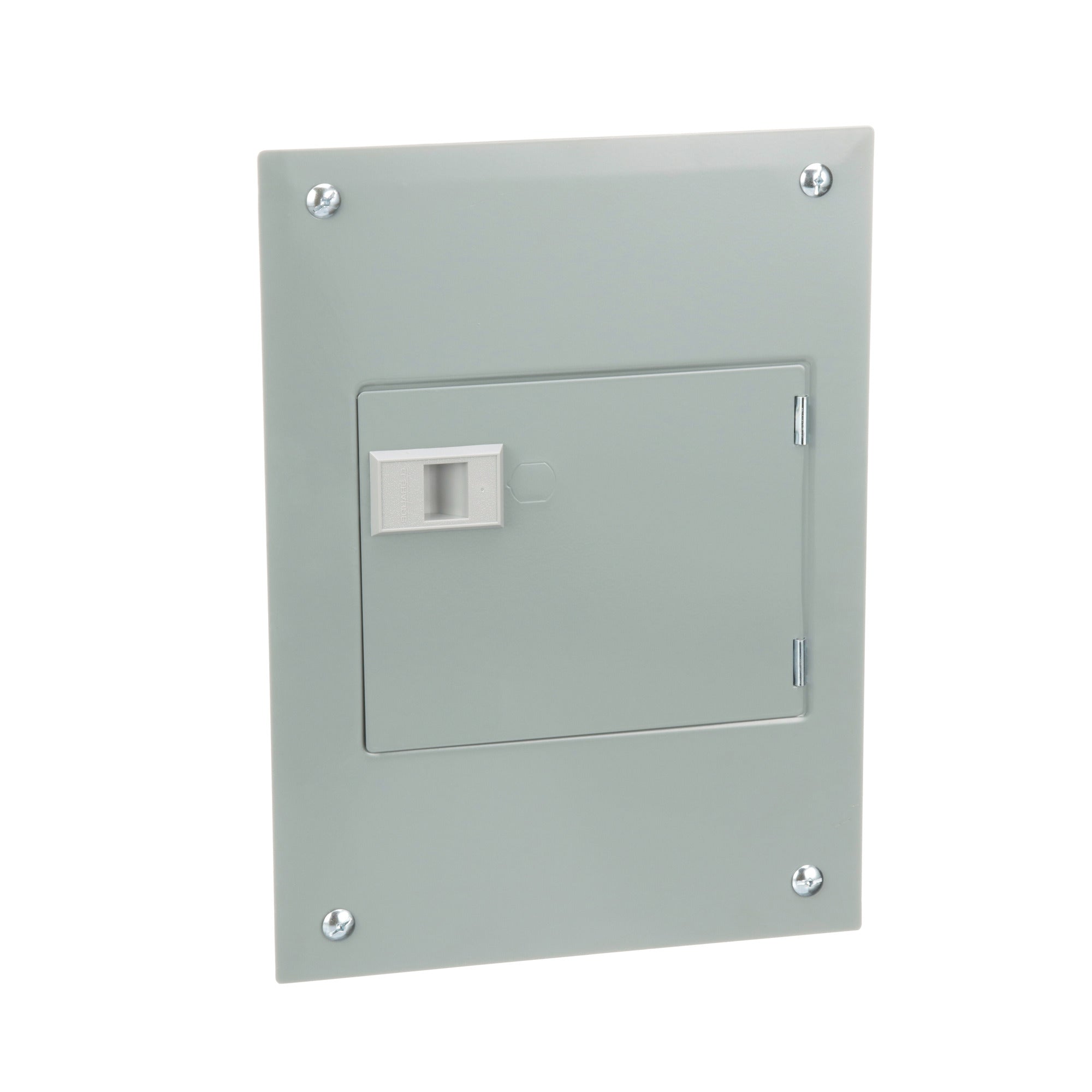

• Features a flush cover with door for easy access.

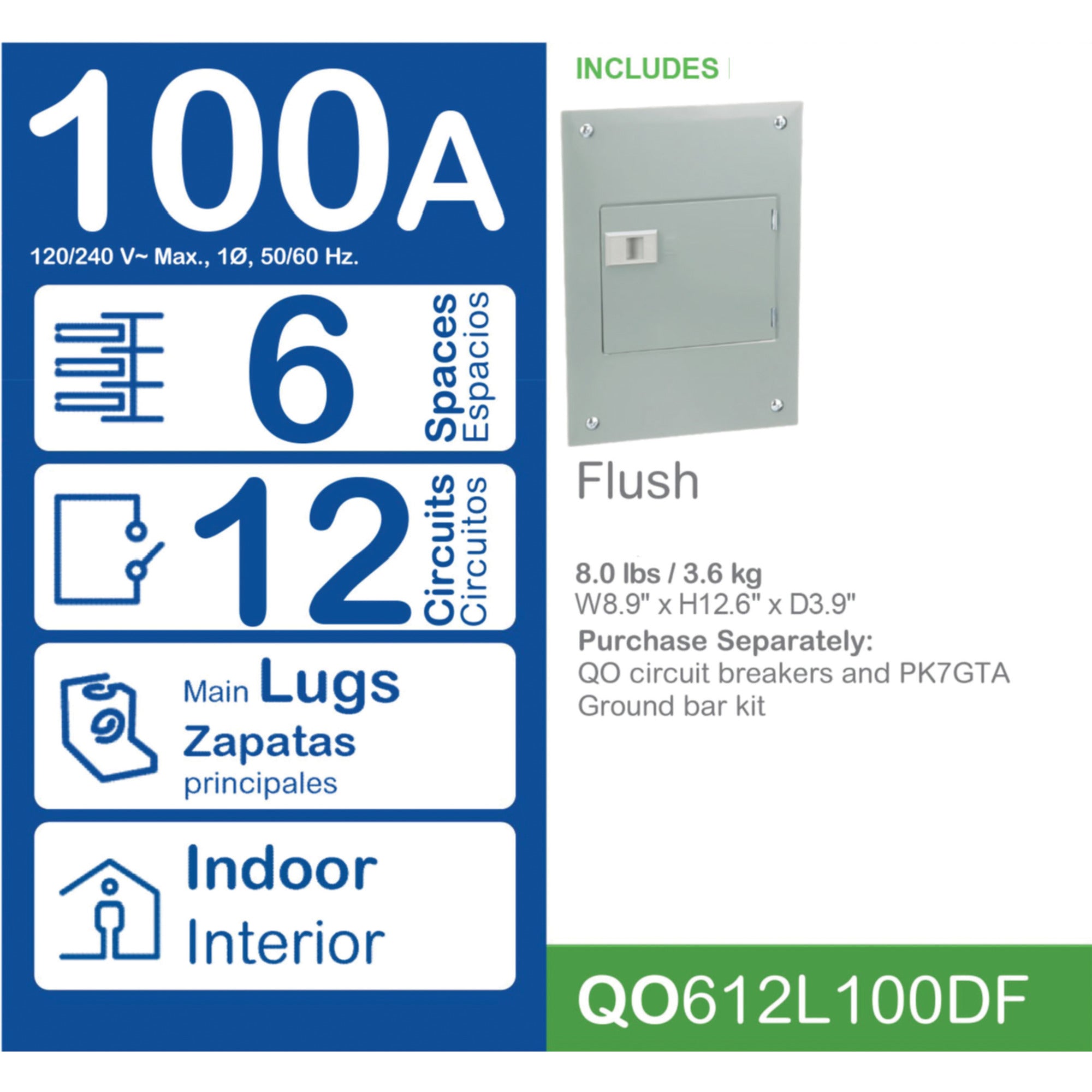

• Includes 12 circuits and a total of six spaces.
• Constructed with a NEMA 1 enclosure suitable for indoor use.

Product Highlights

This load center is versatile for various applications and enables the use of a full range of accessories. The product provides necessary protection for electrical systems and equipment.

Product Information

Standard Information

• Catalog Number: QO612L100DF
• Manufacturer: Schneider Electric

Technical Specifications

• Phase: 1
• Depth: 3.75 inches
• Width: 8.9 inches
• Height: 12.55 inches
• Current: 100 Amp
• Voltage: 120/240 Volt
• Material: Tin Plated Aluminum Busbar

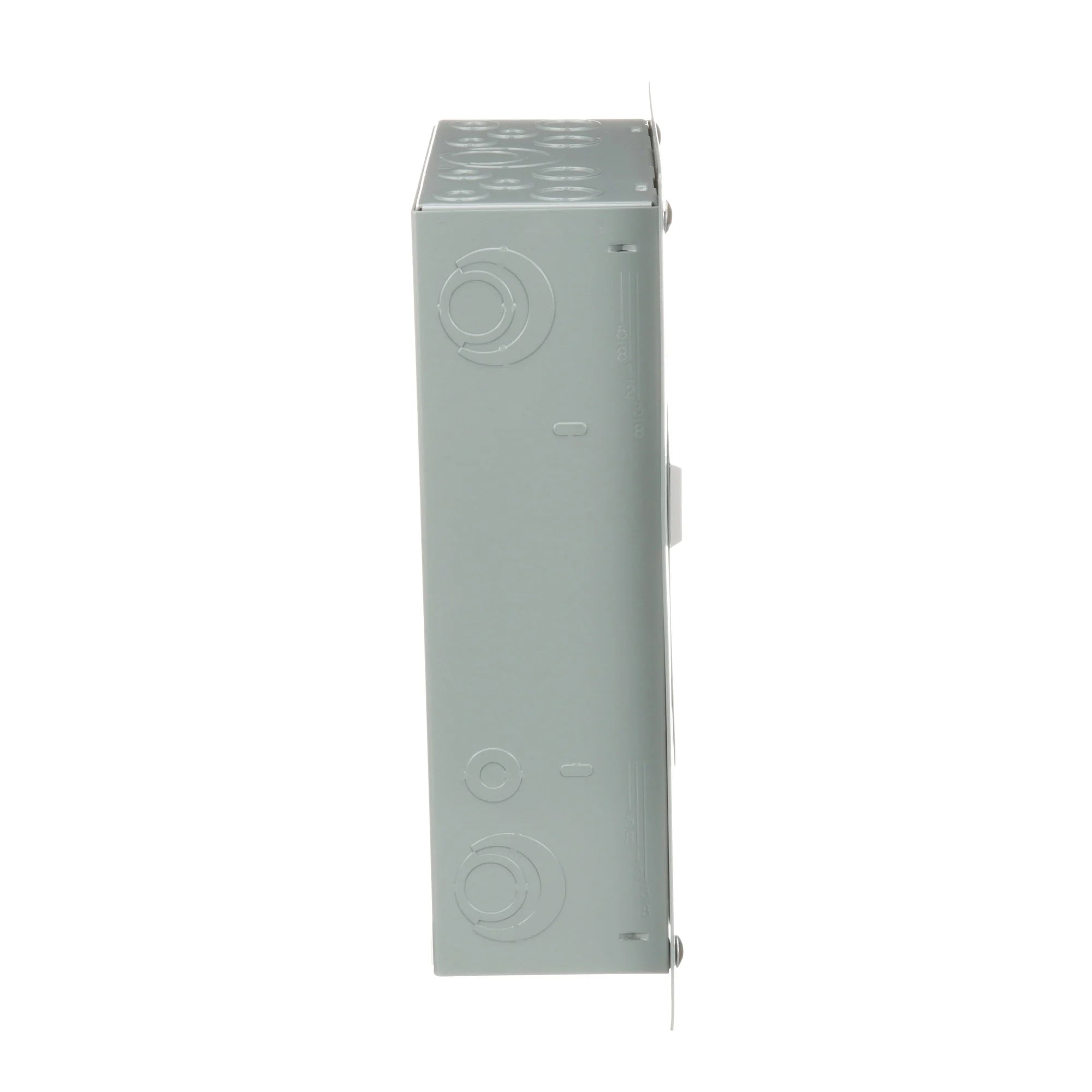

• Enclosure Material: Welded Sheet Steel
