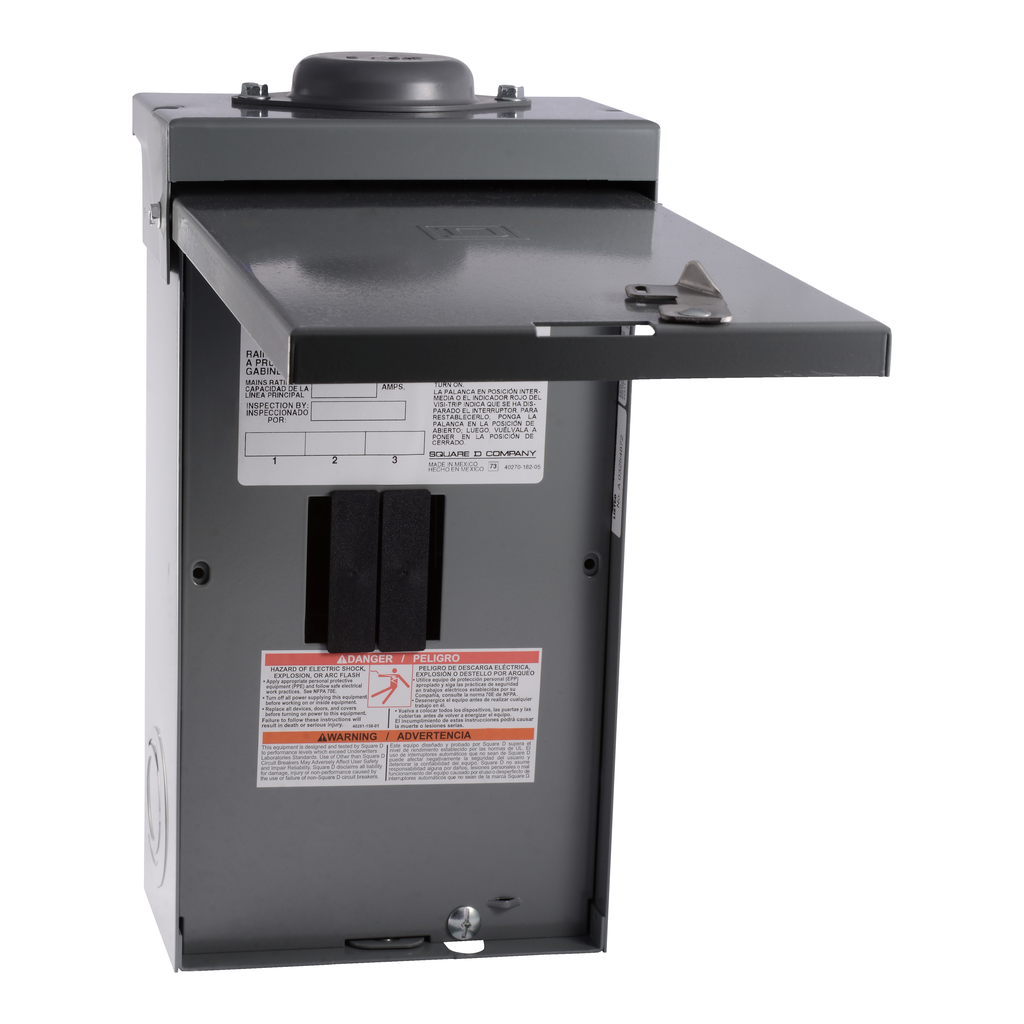

Square D QO403L60NRB Load Center MLO 60A 120/240V 3Ph 3SP NEMA-3R

Product Description

The Square D QO403L60NRB is a load center that supports a main lug connection rated at sixty amperes. This model operates at 120/240 volts and is suitable for three-phase systems. It features a NEMA three R outdoor enclosure that provides protection against the elements.

• Designed for residential and industrial applications
• UL listed for safety and reliability
• Supports wire sizes from AWG ten to AWG six copper

Product Highlights

With three spaces and three circuits, this load center efficiently manages electrical distribution and integration with various accessories available in the QO series.

Product Information

Standard Information

• Catalog Number: QO403L60NRB
• Brand: Square D

Technical Specifications

• Enclosure Rating: NEMA 3R
• Amperage: 60 Amp
• Voltage: 120/240 Volt
• Number of Phases: 3
• Breaking Capacity: 65 kAIC
• Dimensions: Height 13.18 inches, Width 6.92 inches, Depth 4.12 inches
• Wire Size Compatibility: AWG 10 to AWG 6 copper
• Country of Origin: Mexico
