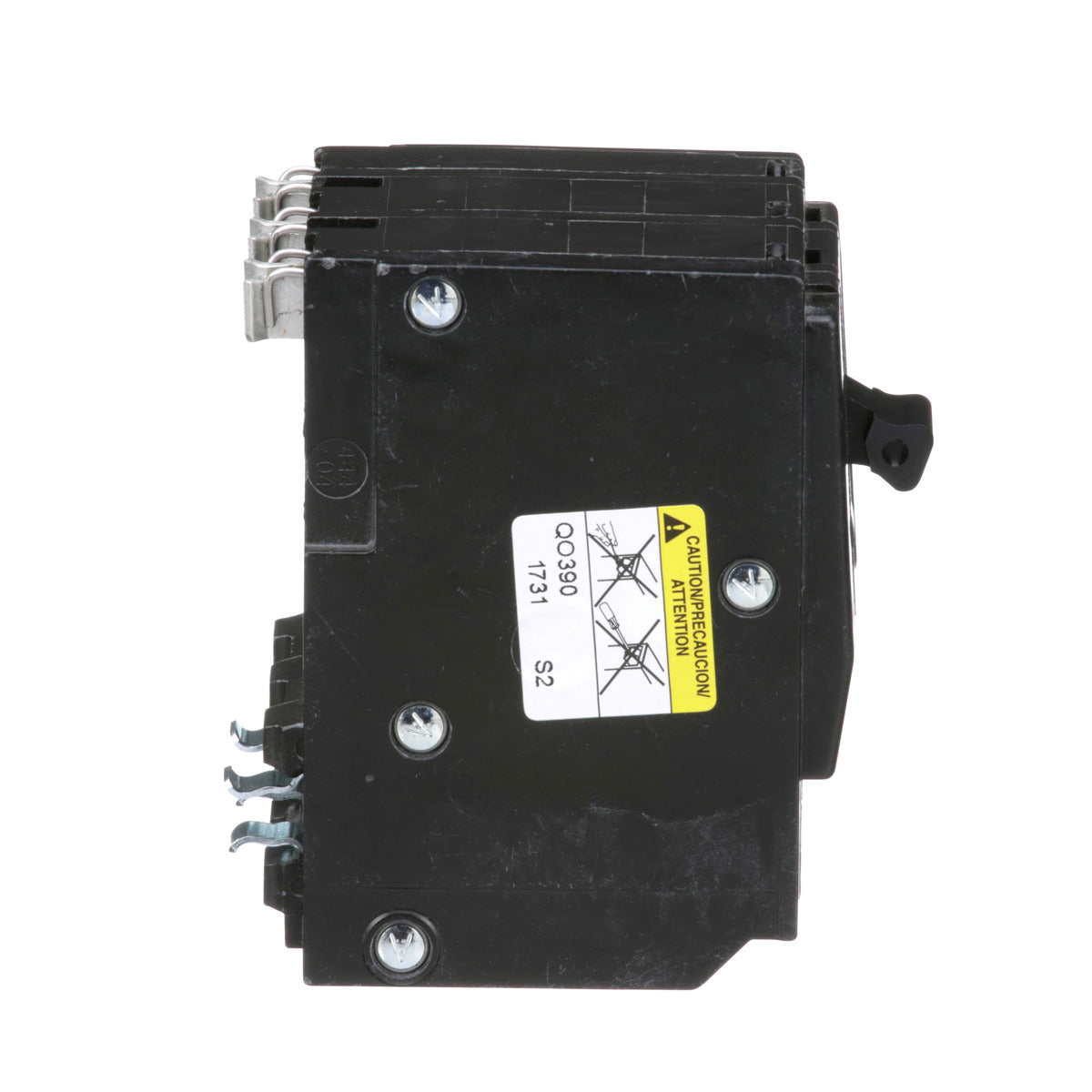

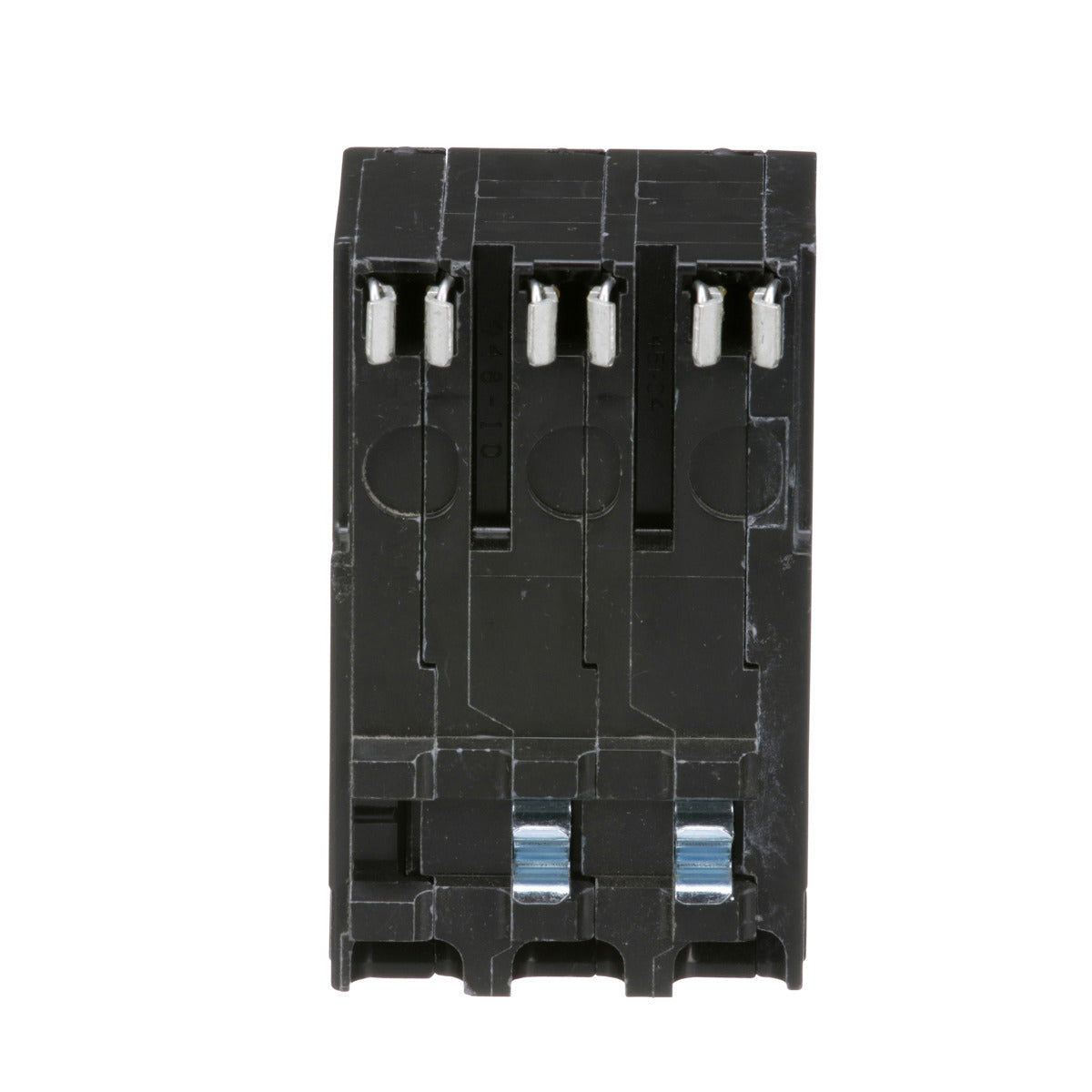

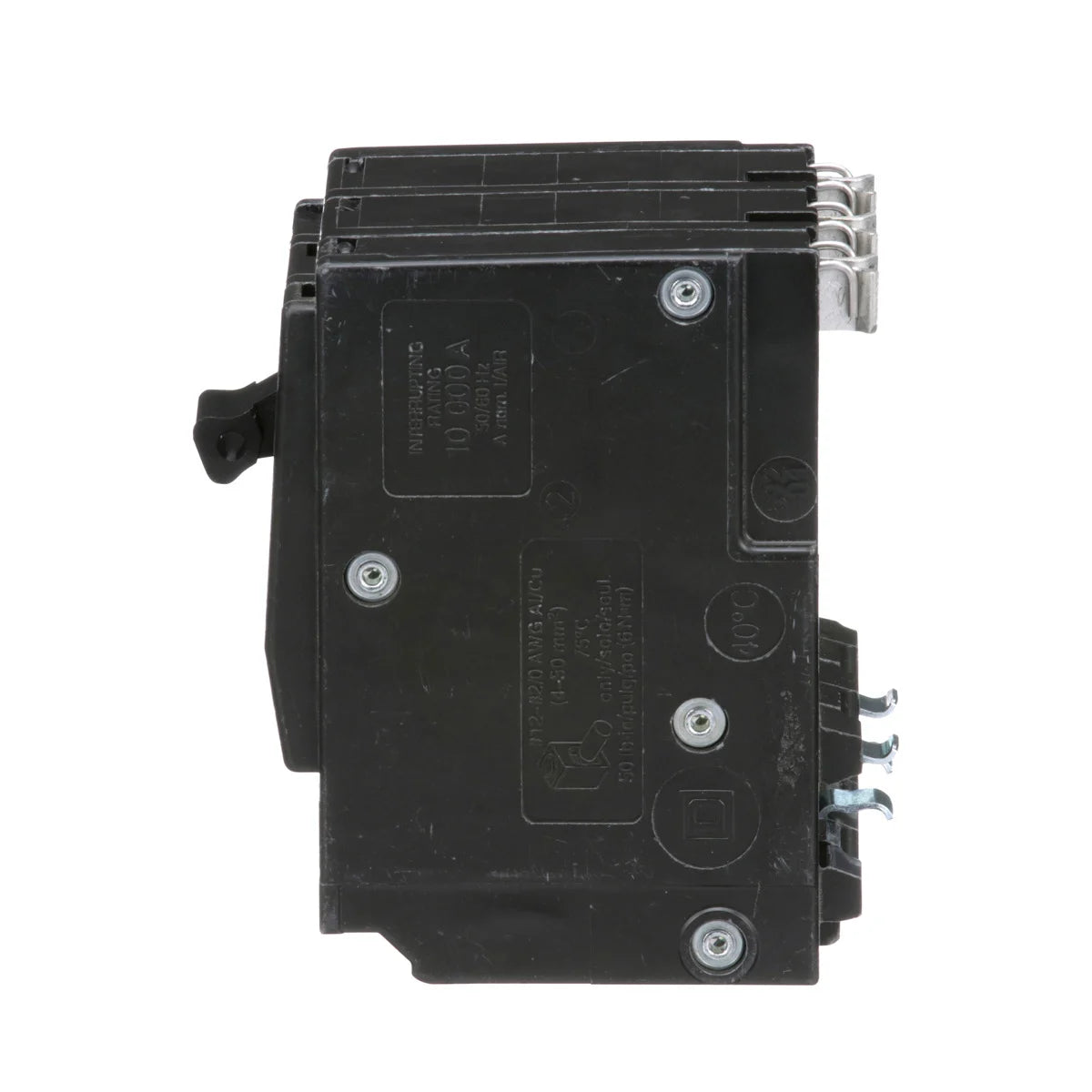

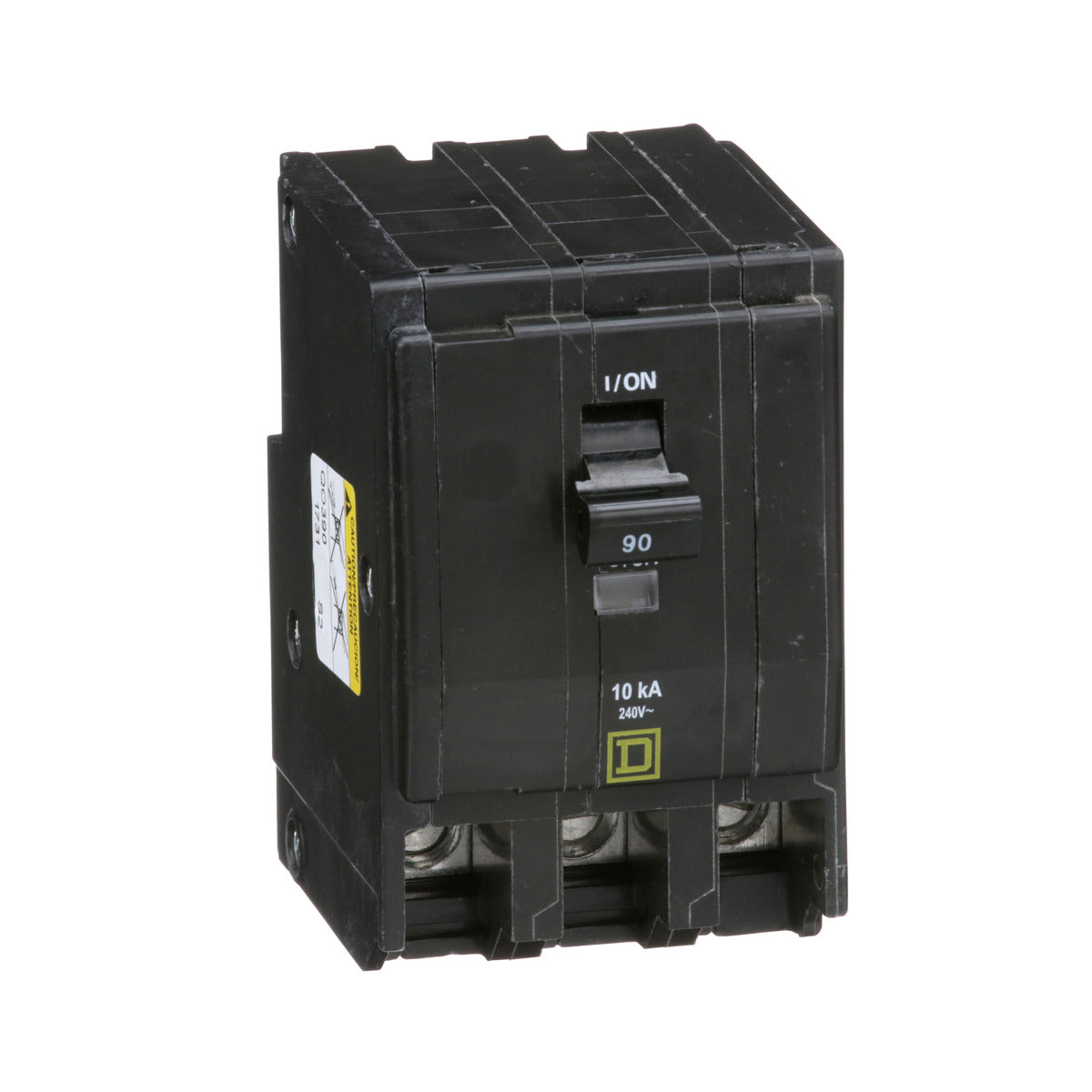

Square D QO390 Miniature Circuit Breaker 90A 240V 3Ph Plug-On

Product Description

The Square D QO390 Miniature Circuit Breaker has an MPN of QO390. This unit offers reliable overcurrent protection for both AC and DC systems. It features a trip free toggle mechanism and a quick break action to handle circuit interruptions. This breaker includes a VisiTrip indication for easy visibility when the circuit has tripped, ensuring safety and convenience.

• 90 Amp rating for 240 Volt systems
• Three-pole configuration for versatile applications
• Plug-in installation for straightforward setup

Product Highlights

This circuit breaker is suitable for residential and commercial electrical systems. It provides a breaking capacity of 10 kilovolt amps, ensuring it meets various operational demands.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO390
• Current Rating: 90 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 3 Pole
• Breaking Capacity: 10 kA
• Length: 2.91 inches
• Width: 57 mm
• Height: 89 mm
• Weight: 0.476 kg
• Wire Size: AWG 4 to 2/0 copper or aluminum
• Warranty: 18 months
• Country of Origin: Mexico
