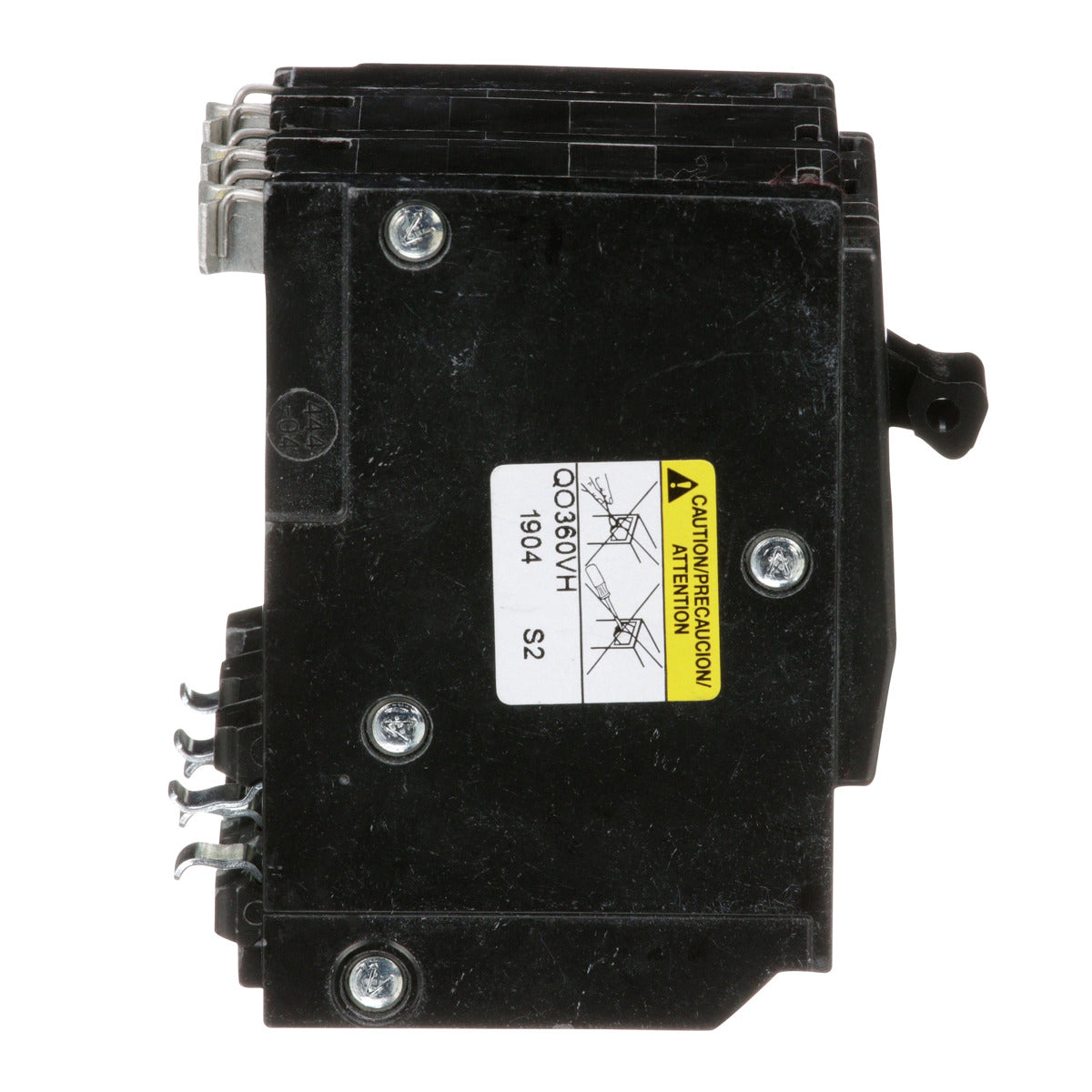

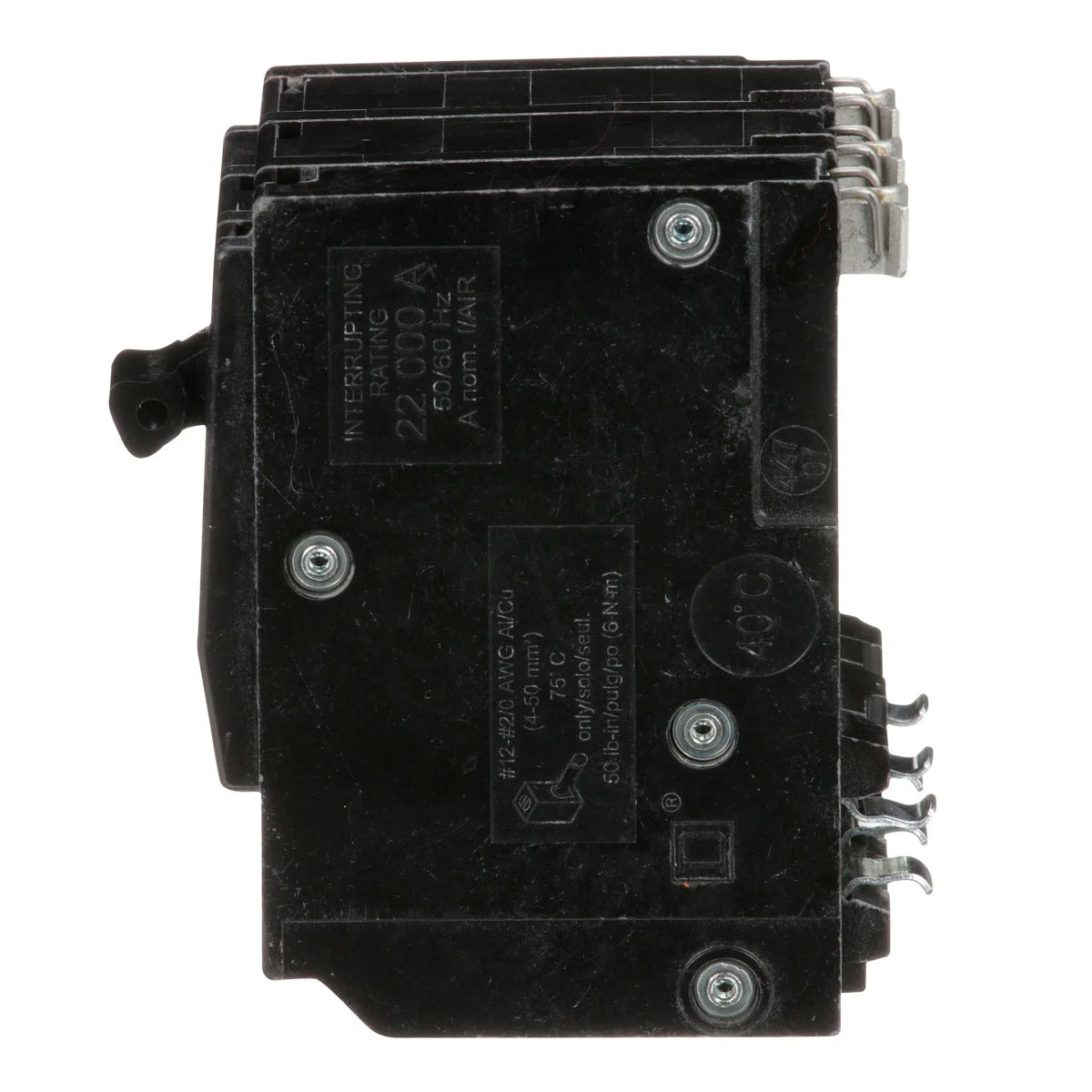

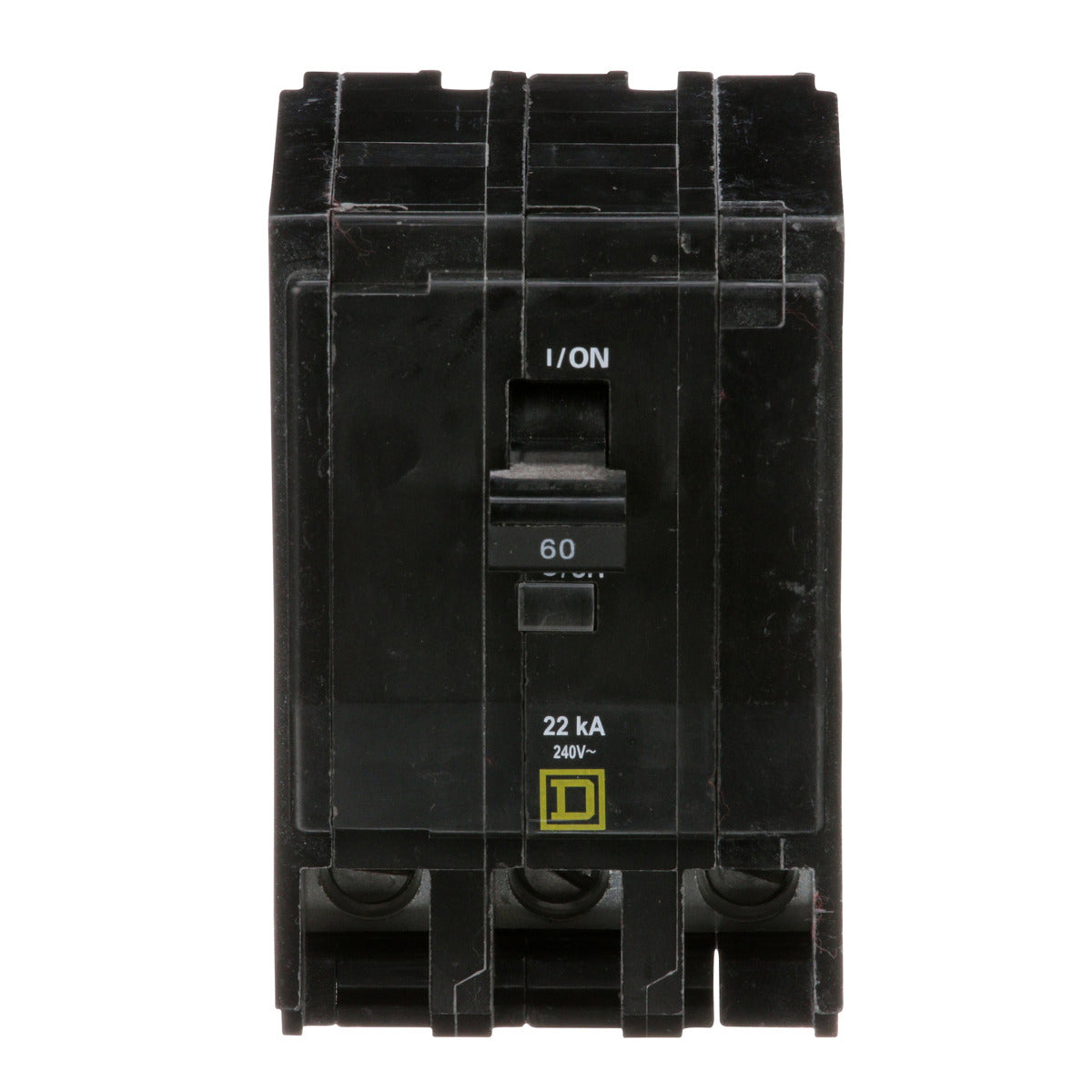

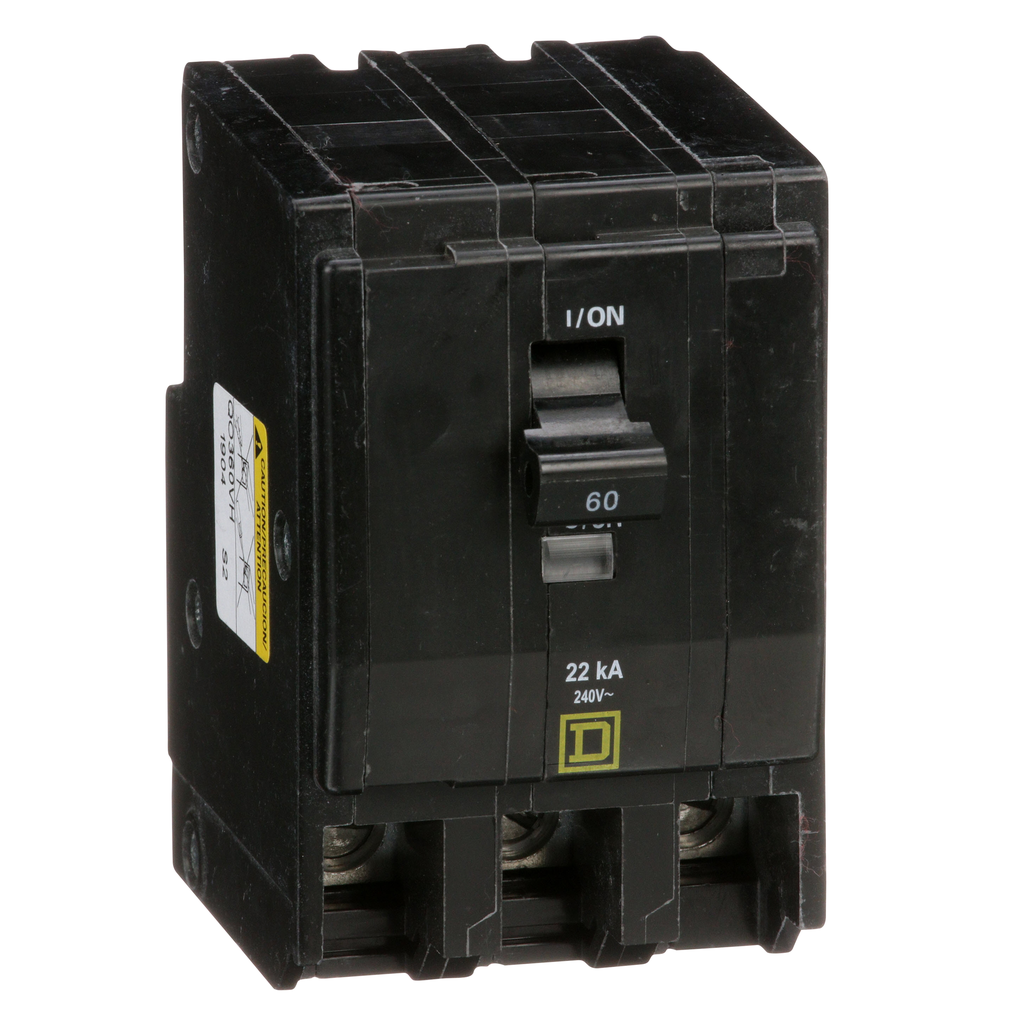

Square D QO360VH 3-Pole 60 Amp 240 Volt Plug-On Miniature Circuit Breaker

Product Description

The Square D QO360VH is a 3-pole, 60 Amp, 240 Volt plug-on miniature circuit breaker designed to provide overcurrent protection for both alternating current (AC) and direct current (DC) systems. Its robust construction includes an over-center, trip-free toggle mechanism that allows for quick make and break actions, ensuring reliability in operation. This unit features VisiTrip trip indication, providing a clear visual alert when the circuit breaker has tripped, thus enhancing safety during maintenance or troubleshooting tasks.

• 3-pole design rated at 60 Amp for 120/240 Volt systems.
• 22 kA breaking capacity with plug-in mounting for easy installation.
• UL Listed and CSA Certified for quality assurance.

Product Highlights

This miniature circuit breaker is HACR rated, making it suitable for air conditioning and heating applications. It is compatible with various accessories, including shunt trips and auxiliary switches, allowing for customization based on user needs.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: QO360VH

Technical Specifications

• Type: Miniature circuit-breaker
• Depth: 74 mm
• Width: 57 mm
• Height: 79 mm
• Length: 2.91 inches
• Current: 60 Amp
• Voltage: 120/240 Volt
• Number of Poles: 3
• Interrupt Rating: 22 kAIC
• Country of Origin: Mexico
