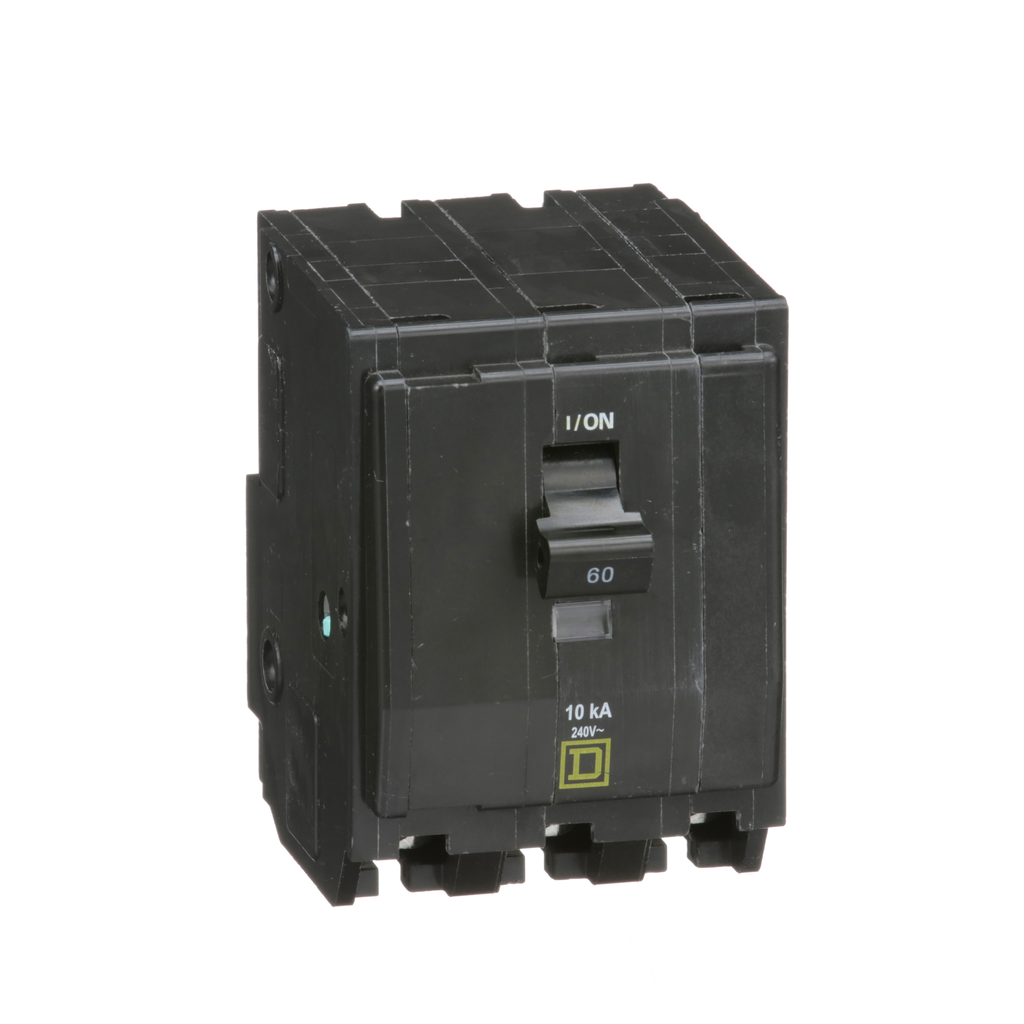

Square D QO360 Miniature Circuit Breaker 60A 240V Plug-On

Product Description

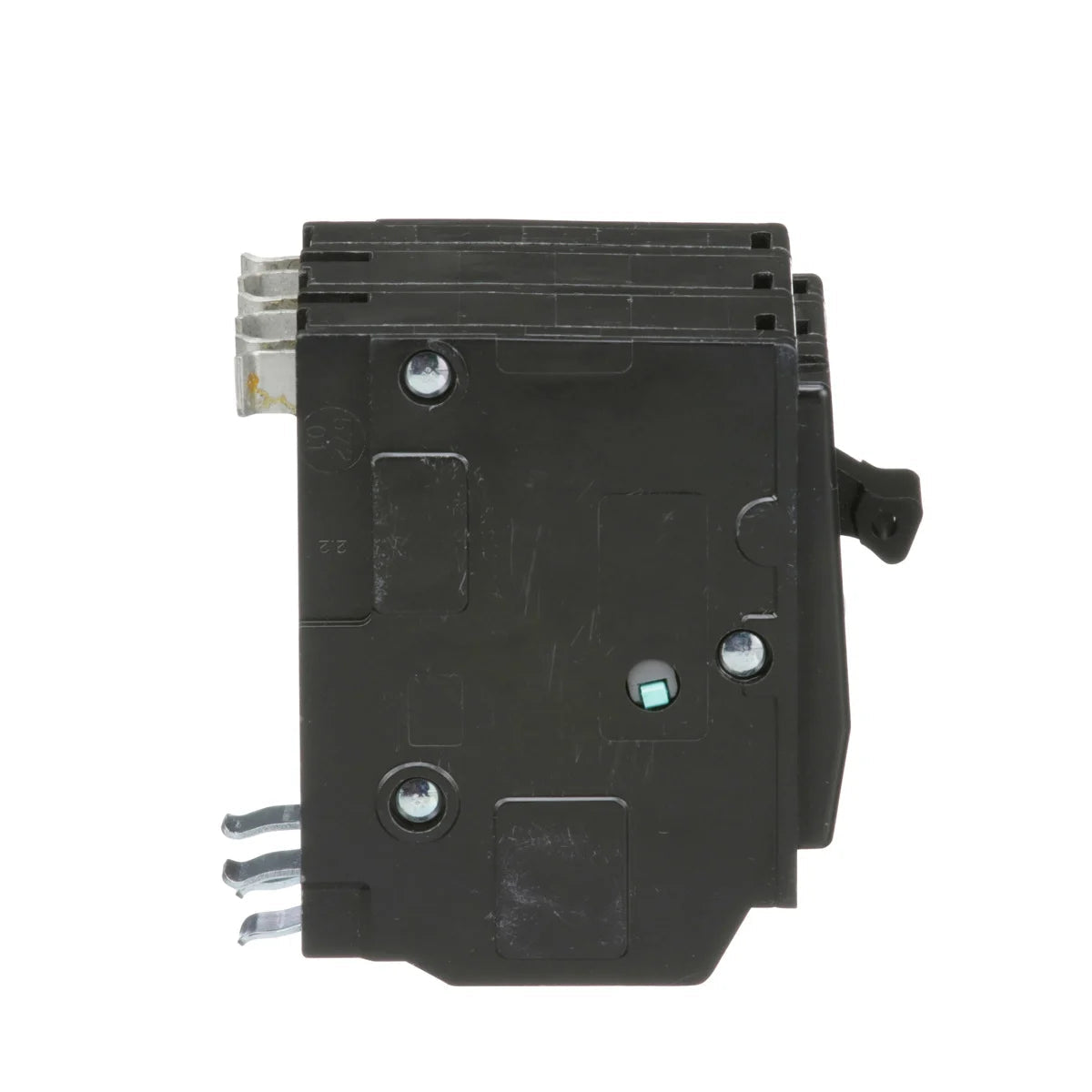

The Square D QO360 miniature circuit breaker is designed for overcurrent protection in AC and DC systems. The MPN is QO360. This circuit breaker features a trip-free toggle mechanism with quick make and break action. VisiTrip technology provides visual feedback when tripped. Rated for sixty amps at two hundred forty volts with a three-pole configuration, it has a ten-kiloampere breaking capacity and supports plug-in mounting.

• Rating: 60A at 120/240V
• Type: Miniature Circuit Breaker
• Three-pole design

Product Highlights

This breaker is UL Listed and CSA Certified, ensuring compliance with safety standards. A variety of factory-installed accessories are available, including shunt trips and auxiliary switches, offering versatility in applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QO360
• Voltage: 120/240V
• Current: 60A
• Breaking Capacity: 10 kA
• Number of Poles: 3
• Wire Size: AWG 8 to AWG 2
• Depth: 2.91 inches
• Width: 2.25 inches
• Height: 3 inches
