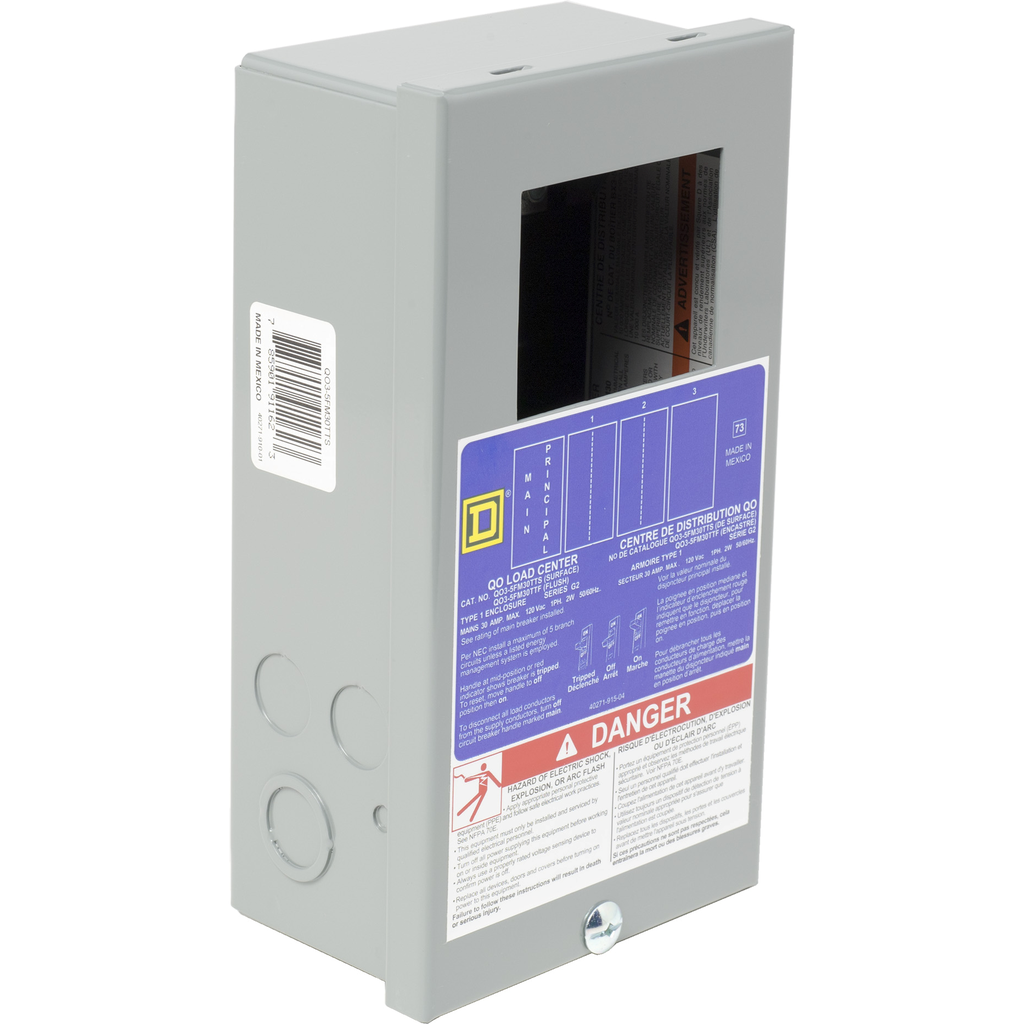

Square D QO35FM30TTS 120 VAC 30 Amp 1-Phase 2-Wire 5-Circuit NEMA 1 Main Breaker Load Center

Product Description

Square D QO35FM30TTS is a main breaker load center that operates at 120 VAC with a 30 Amp capacity. This load center supports one phase and provides five circuits within a NEMA 1 enclosure. It is built to accommodate QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters. This unit is suitable for both residential and industrial applications, ensuring protection for electrical systems and equipment.

• One phase with 30 Amp main breaker
• NEMA 1 enclosure with five circuits
• Compatible with QO breakers and accessories

Product Highlights

This load center is ideal for trailer setups. It features 3 spaces for circuits and is UL rated for safety.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO35FM30TTS
• Voltage: 120 VAC
• Current: 30 Amp
• Number of Phases: 1
• Number of Circuits: 5
• Enclosure Type: NEMA 1
• Depth: 80 mm
• Width: 122 mm
• Height: 236 mm
• Weight: 9.000 kg
• Country of Origin: Mexico
• Certifications: UL
