Product Description

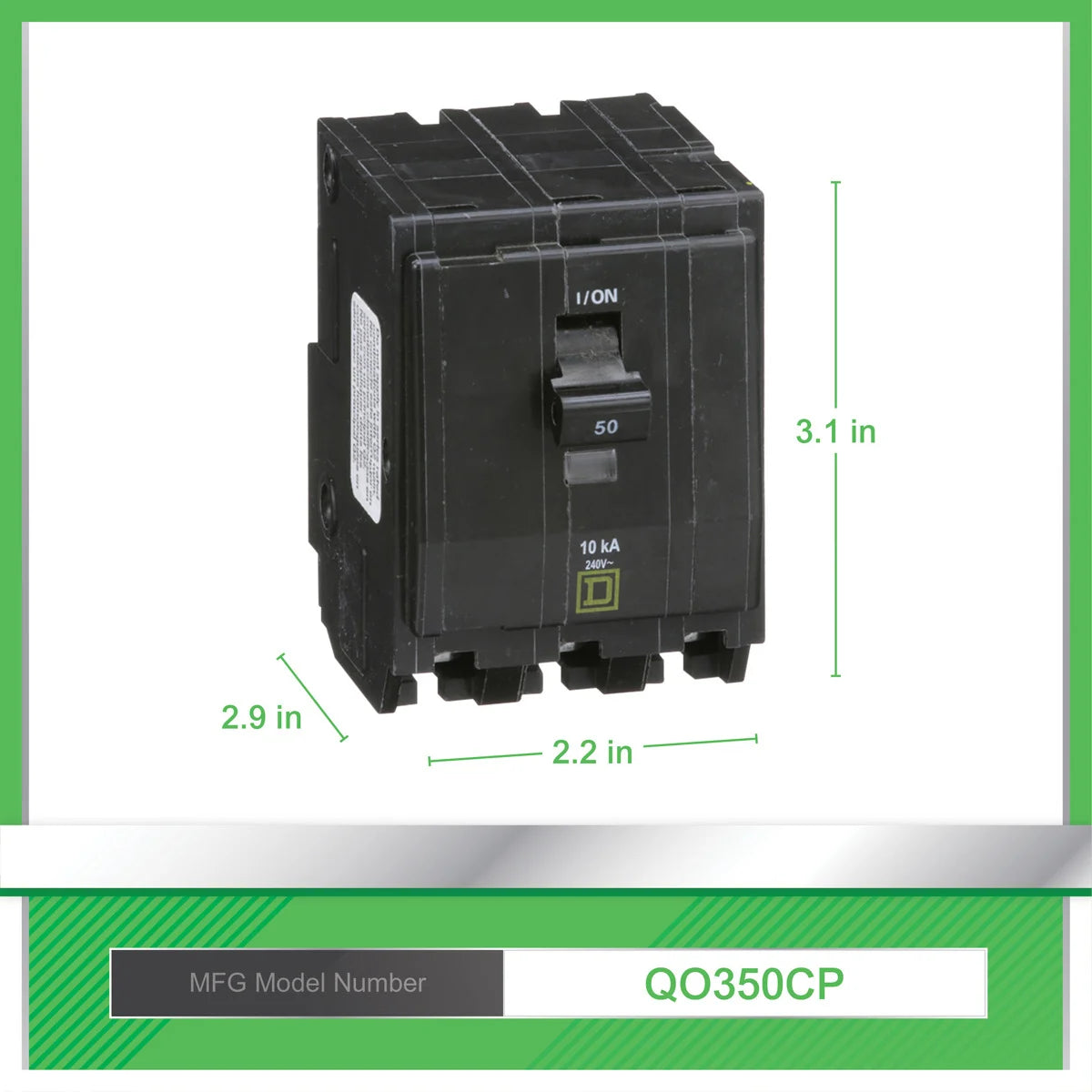

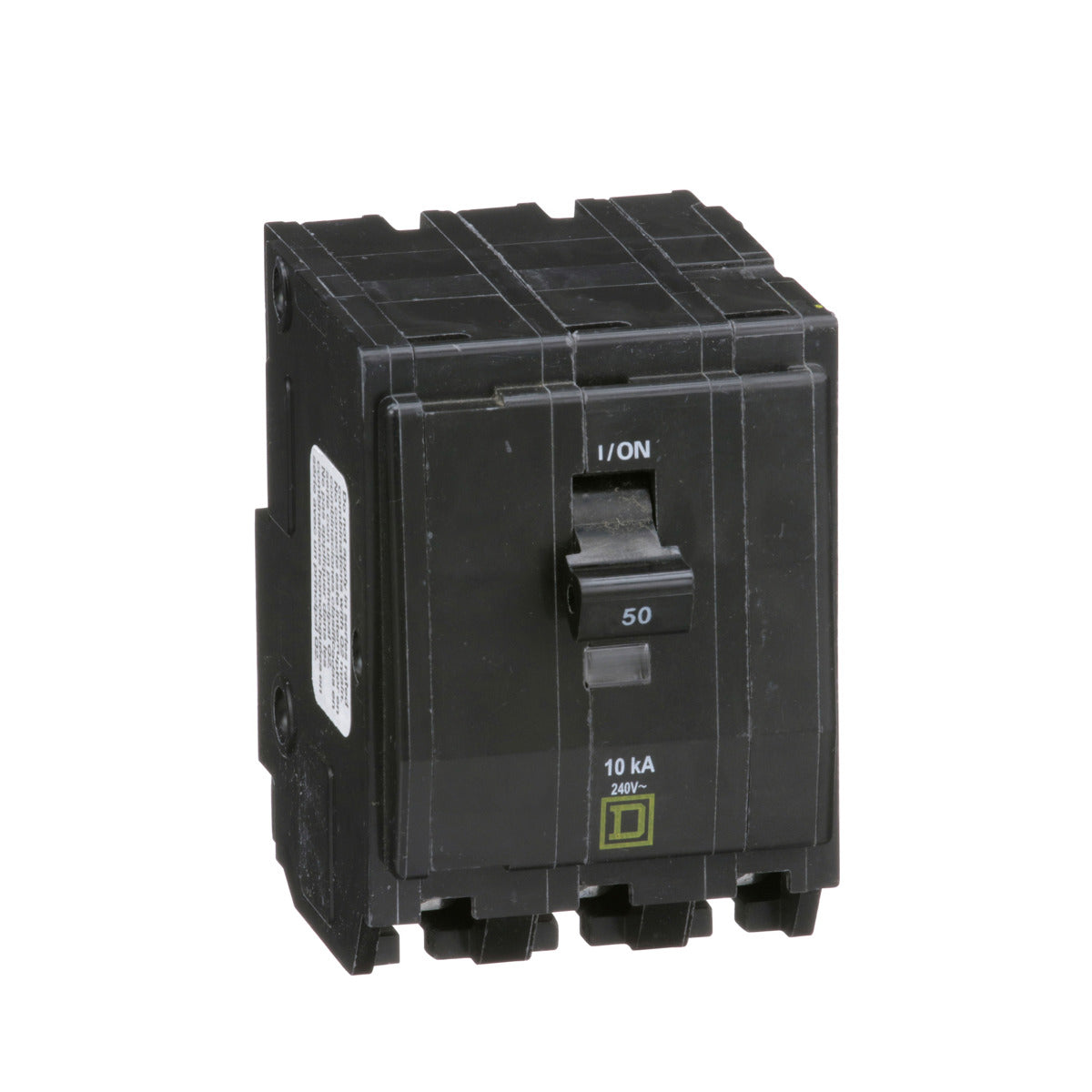

The Square D QO350 is a miniature circuit breaker with a rating of fifty amps and operates at a voltage of 120/240 volts. This three-pole circuit breaker is designed for plug-on mounting. It provides essential overcurrent protection for electrical systems. The circuit breaker features VisiTrip trip indication, offering a clear visual cue when tripped. This model has a breaking capacity of ten kiloamperes and is suitable for various applications.
- Rated current of fifty amps with three poles.
- Compatible with QO load centers.
- Visual trip indicator for immediate recognition of a tripped circuit.
Product Highlights
The QO series is known for its compact design, enhancing space efficiency in panels while providing safety and reliability.
Product Information
Standard Information
-
Manufacturer: Schneider Electric
-
Brand: Square D
Technical Specifications
-
Catalog Number: QO350
-
Current: 50 Amps
-
Voltage: 120/240 Volts
-
Poles: 3
-
Mounting Type: Plug-in
-
Breaking Capacity: 10 kA
-
Wire Size: AWG 8 to 2 copper or aluminum
-
Certifications: UL Listed, CSA Certified
-
Country of Origin: Mexico
