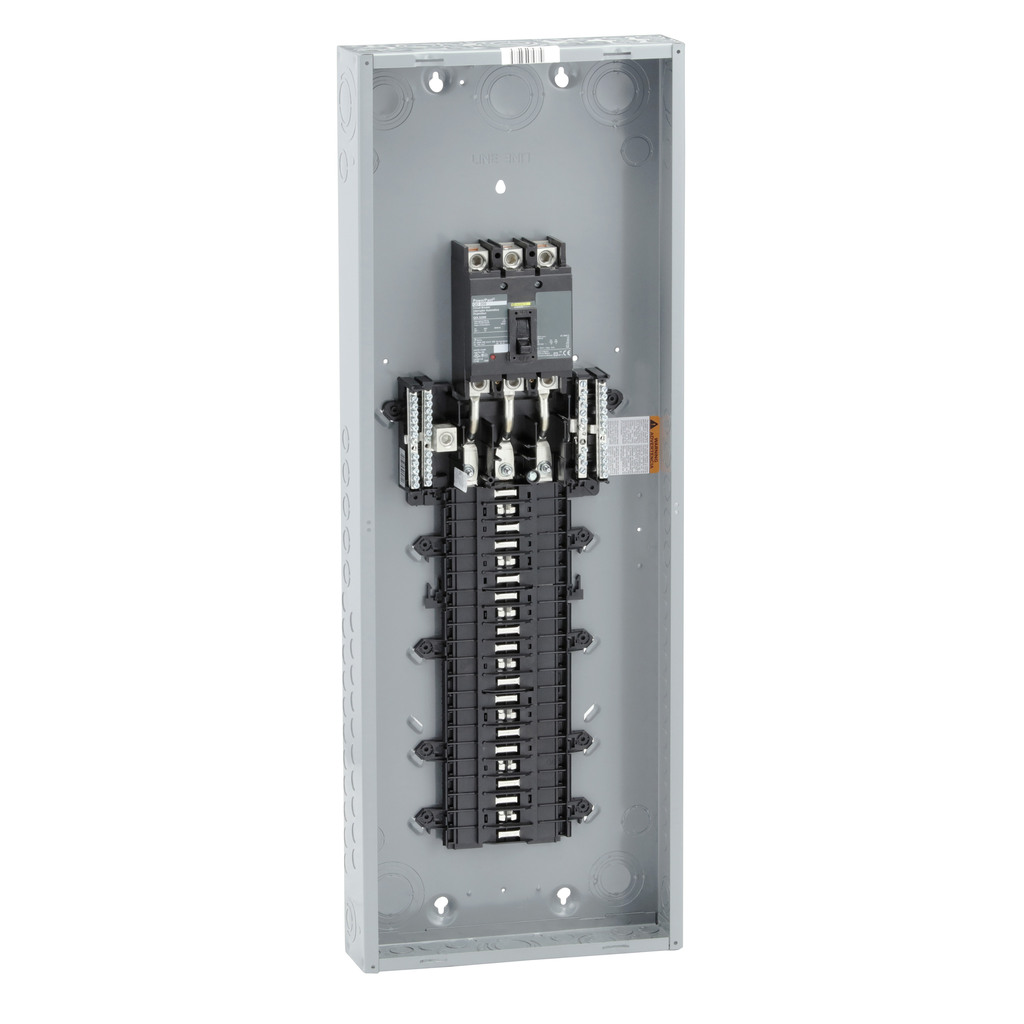

Square D QO342MQ200 Load Center MB 200A 120/240V 3Ph 42SP NEMA-1

Product Description

The Square D QO342MQ200 Load Center is rated at 200 Amperes and is designed for use in both residential and commercial installations. It operates on a 120/240 Volt, three-phase electrical system, providing a reliable solution for distributing electrical power. This load center features a NEMA 1 enclosure and includes 42 circuits, making it suitable for various applications. The design allows for the installation of QO breakers and additional accessories.

• Rated for 200 Amperes and 120/240 Volts
• Enclosure complies with NEMA 1 classification
• Accommodates up to 42 circuits

Product Highlights

This load center is ideal for protecting electrical systems. It features a convertible main that allows for flexible installation configurations. It comes with a tin-plated copper bus for durability and enhanced performance.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QO342MQ200
• Rated Current: 200 Amps
• Number of Spaces: 42
• Number of Phases: 3
• Enclosure Material: Steel
• Surface Finish: Baked enamel Gray
• Operating Temperature: 23 degrees F to 104 degrees F
• Warranty: 18 months
