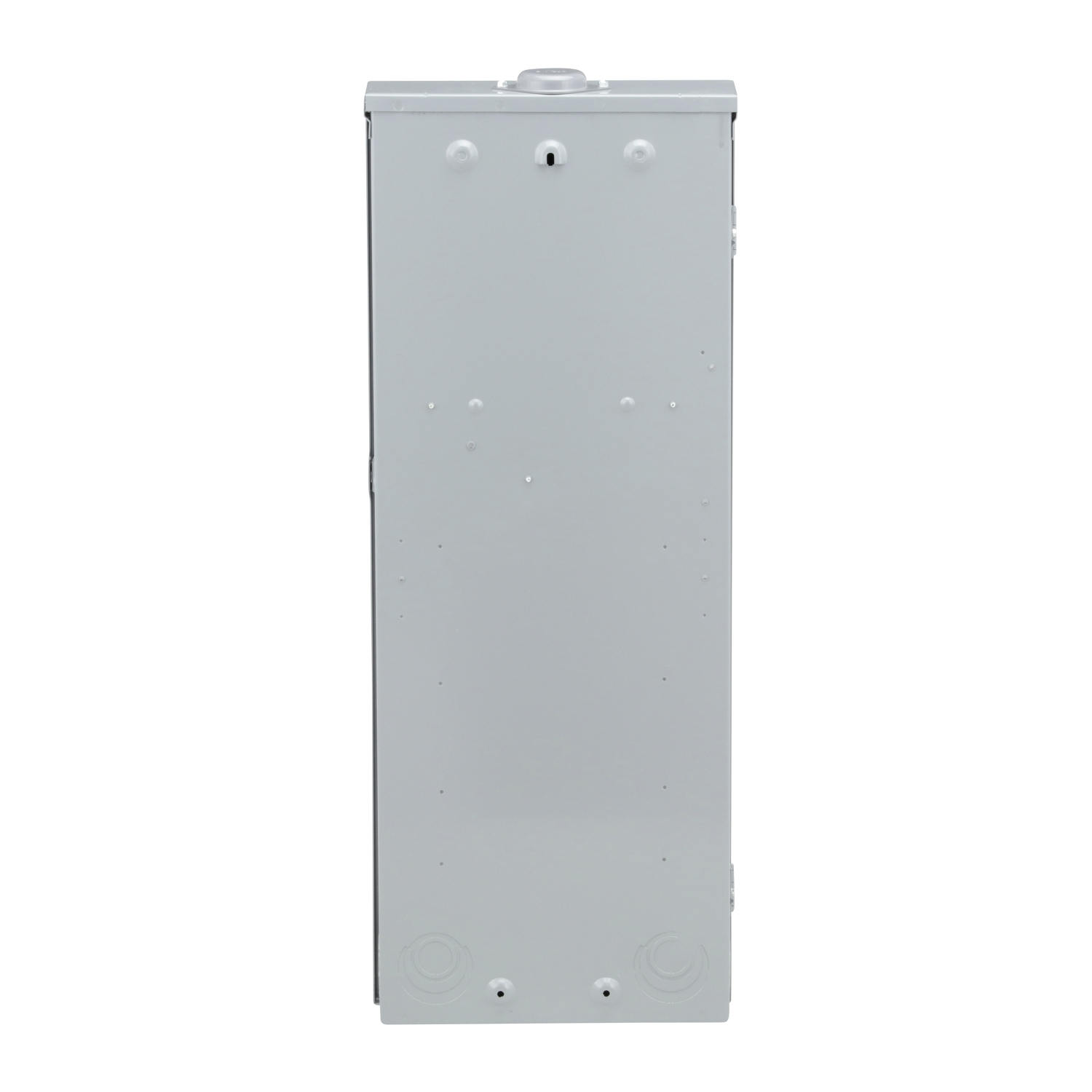

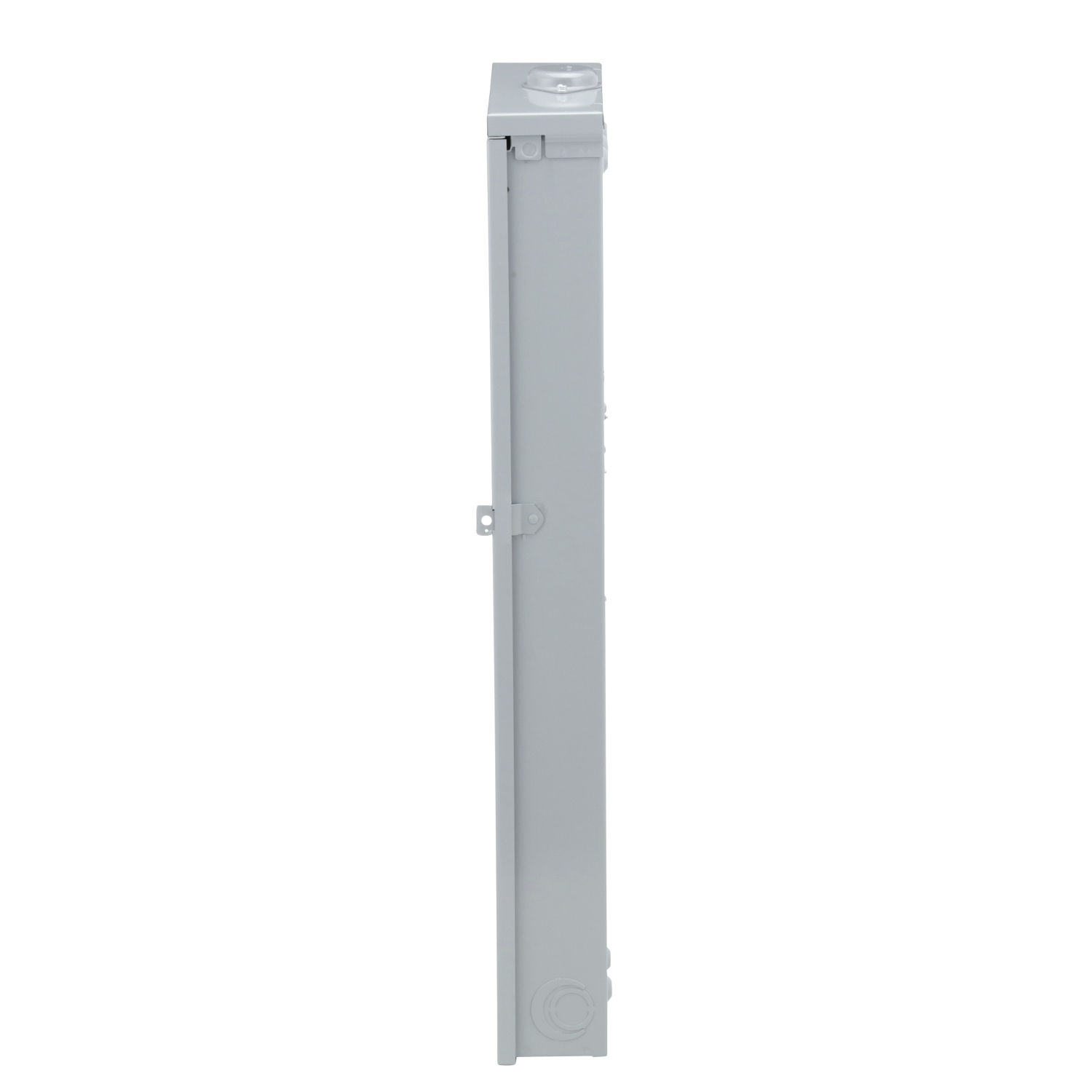

Square D QO342L225GRB Load Center MLO 225A 120/240V 3Ph 42SP NEMA-3R

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: QO342L225GRB
Availability: Out Of Stock
$1,007.02
$1,007.02
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Square D QO342L225GRB load center offers premium features, accommodating QO breakers, ground arc fault interrupters and surge arresters. Accessories like ground bars are included. Suitable for single or three-phase systems, the load center features a plated copper bus for enhanced performance and durability. Rated at 225 A and 3 phase, this system provides 42 spaces in a NEMA 3R enclosure.

  • Allows QO breakers, ground arc fault interrupters, and surge arresters to be installed.
  • Includes accessories such as ground bars.
  • Features a plated copper bus for superior performance and durability.

Product Highlights

This Square D load center is ideal for residential, commercial, and industrial electrical system protection.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: QO342L225GRB
  • Country of Origin: United States
Technical Specifications
Type
Load Center
Brand
Square D
Width
375 mm
Finish
Baked Enamel
Height
965 mm
Current
225 Amp
Voltage
120 Volt
Amperage
225 Amp
Material
Tin Plated Copper: Busbar
Enclosure
Baked enamel Gray;Welded galvannealed steel;8R
NEMA Size
3R
Sub Brand
QO
Wire Size
AWG 4...300 kcmil aluminium/copper
Cable Size
AWG 4...300 kcmil aluminium/copper
Cover Type
Surface cover
Product UPC
78590129555
12-Digit UPC
785901295556
Applications
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Certifications
UL
Conductor Size
4 AWG-300 kcmil
Enclosure Type
Weatherproof enclosure
Surface Finish
Baked enamel Gray
Enclosure Rating
3R
Interrupt Rating
65 kAIC
Number of Phases
3
Number of Spaces
42
Country of Origin
USA
Enclosure Material
Welded sheet steel
Line Rated Current
225 A
Number of Circuits
42
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
65 kA
Manufacturer
Schneider Electric
Made in USA
Yes
Phase
3
Special Features
Mercury Free
Item Type
Load Center
Voltage Rating
208 VAC Star/120 VAC, 240/120 VAC Delta (3 Phase 4 Wire), 240 VAC Delta (3 Phase 3 Wire)
Current Rating
225 Ampere
Circuit Configuration
3 Phase 3/4 Wire
Maximum Number of Circuits
42
Maximum Number of Spaces
42
Breaker Mounting
Bolt-On
Interrupting Rating
65 Kiloampere
Neutral Type
Split Branch
Bus Material
Tin Plated Copper
Main Wire Size
6 AWG to 300 KCMIL (Aluminum/Copper)
Enclosure Size Designation
8R
Approval
UL, NOM
Amperage Rating
225 A
Frequency Rating
50/60 Hz
Housing Material
Galvanized Steel
Wiring Configuration
3-Wire
Rated Voltage
208Y/120V ac, 240/120V ac
Rated Current
225 A
Electrical Connection
Lugs
Wire Configuration
3-wire, 4-wire
Busbar Material
Tin plated copper busbar
Ambient Air Temperature for Operation
23 °F (-5 °C) - 104 °F (40 °C)
UL Listed
True
ECCN
EAR99
UNSPSC
39121101
Max. Single Pole Circuits
42
No. of Circuits
42
Box Number
8R
Alternative Part Number
8125571
Short Circuit Current Rating
65kA
Feed Location
Top/Bottom
Ground Bar Kit
grounding bar included (not installed)
Tightening Torque
main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper
Circuit Breaker Type
QO
Cover Closure Method
Latch
Max. Operating Temp.
104 Degrees F
Min. Operating Temp.
23 Degrees F
Enclosure NEMA Rating
3R
Cover Attachment Style
Side Hinge
Enclosure Surface Finish
Enamel
Included Enclosure Cover
Surface Cover
Recommended Surface Cover
Included
Recommended Ground Bar Kit
Included
Max. No. of Tandem Breakers
0
Main Circuit Breaker or Main Lug
Main Lug
Country of Origin (subject to change)
United States
Functions
Load center (LC)
Number of circuits
42 single pole circuits
Type of network
Three-phase (3PH-3W/4W)
Rated voltage (AC)
120Vac/240Vac
Connection type
Lugs
Cross-section
6AWG...300kcmil aluminium lugs 6AWG...300kcmil copper lugs
Short circuit breaking rating
65kA
Mounting mode
Surface mounting
Degree of protection
NEMA 3R
Contents
Grounding / gnd. bar (not installed) Surface cover
Manufacturer product status
Commercialized
Compliant with standard(s)
UL listed
Class
Box number 8R
Enclosure Box Size
8R
Enclosure Rating (Outdoor)
NEMA 3R (Outdoor)
Ground Bar Included
not installed
Color Family
Gray
Short Circuit Current Ratng
65 kA
Location
Outdoor
Standards
RoHS Compliant, UL Listed
Breaker Type
QO/MLO
Primary brand
Square D by Schneider Electric
