Square D QO342L225G Load Center MLO 225A 120/240V 3Ph 42SP NEMA-1

Product Description

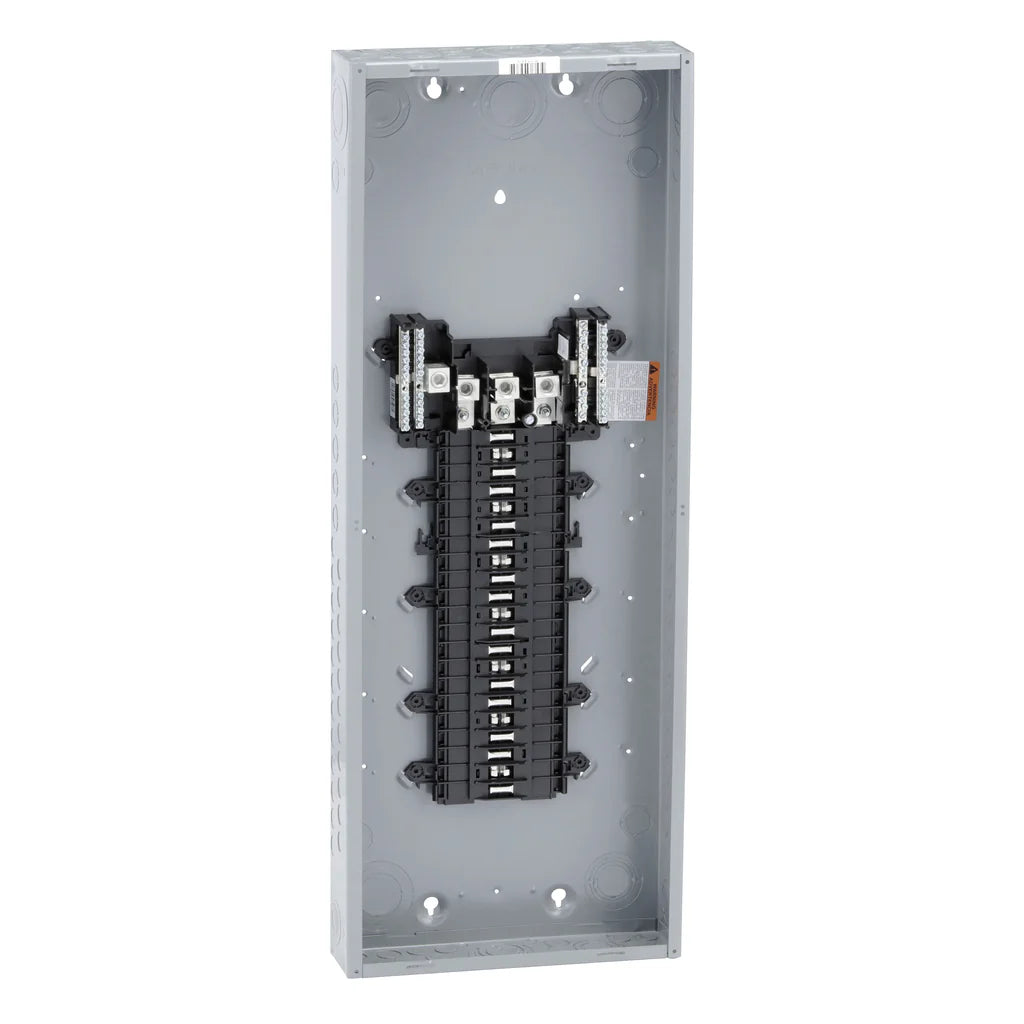

Square D QO342L225G is a load center rated at two hundred twenty-five amps. It operates on three phases at one hundred twenty to two hundred forty volts. This model includes forty-two spaces in a NEMA one enclosure. It supports all QO breakers along with accessories like ground bars. Its design allows for flexibility in service entrance feed by rotating the enclosure. This feature helps minimize service cable length and cost.

• Rated for three phase operation.
• Includes ground bar and accommodates various wire sizes.
• Constructed with tin plated copper busbar.

Product Highlights

Designed for residential and commercial applications, the QO load center protects electrical systems. It meets industry standards for safety and performance.

Product Information

Standard Information

• Catalog Number: QO342L225G
• Brand: Square D

Technical Specifications

• Current: 225 Amp
• Voltage: 120/240 Volt
• Number of Phases: 3
• Number of Spaces: 42
• Enclosure Type: NEMA 1
• Material: Tin Plated Copper
• Depth: 97 mm
• Width: 362 mm
• Height: 965 mm
• Weight: 9.73 kg
• Operating Temperature: -5 °C to 40 °C
• Warranty Length: 18 months
• Country of Origin: USA
