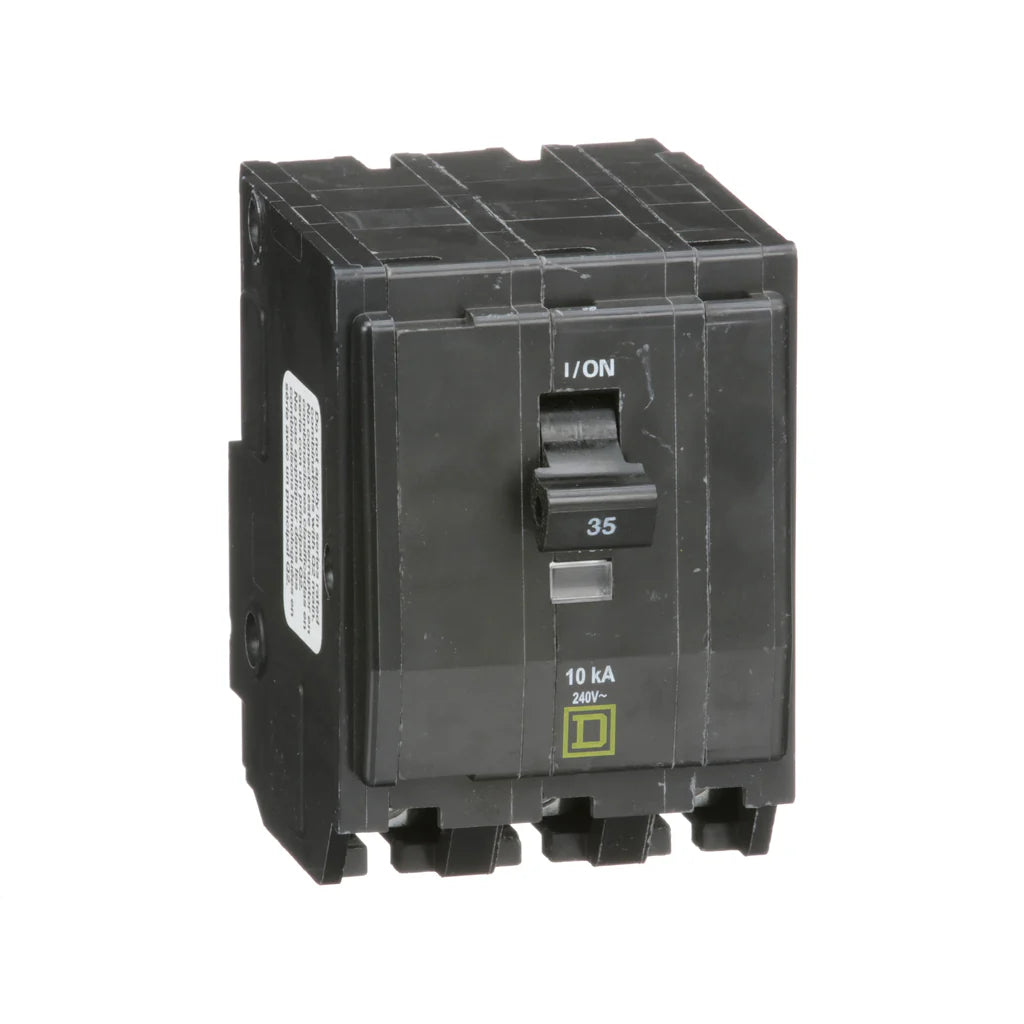

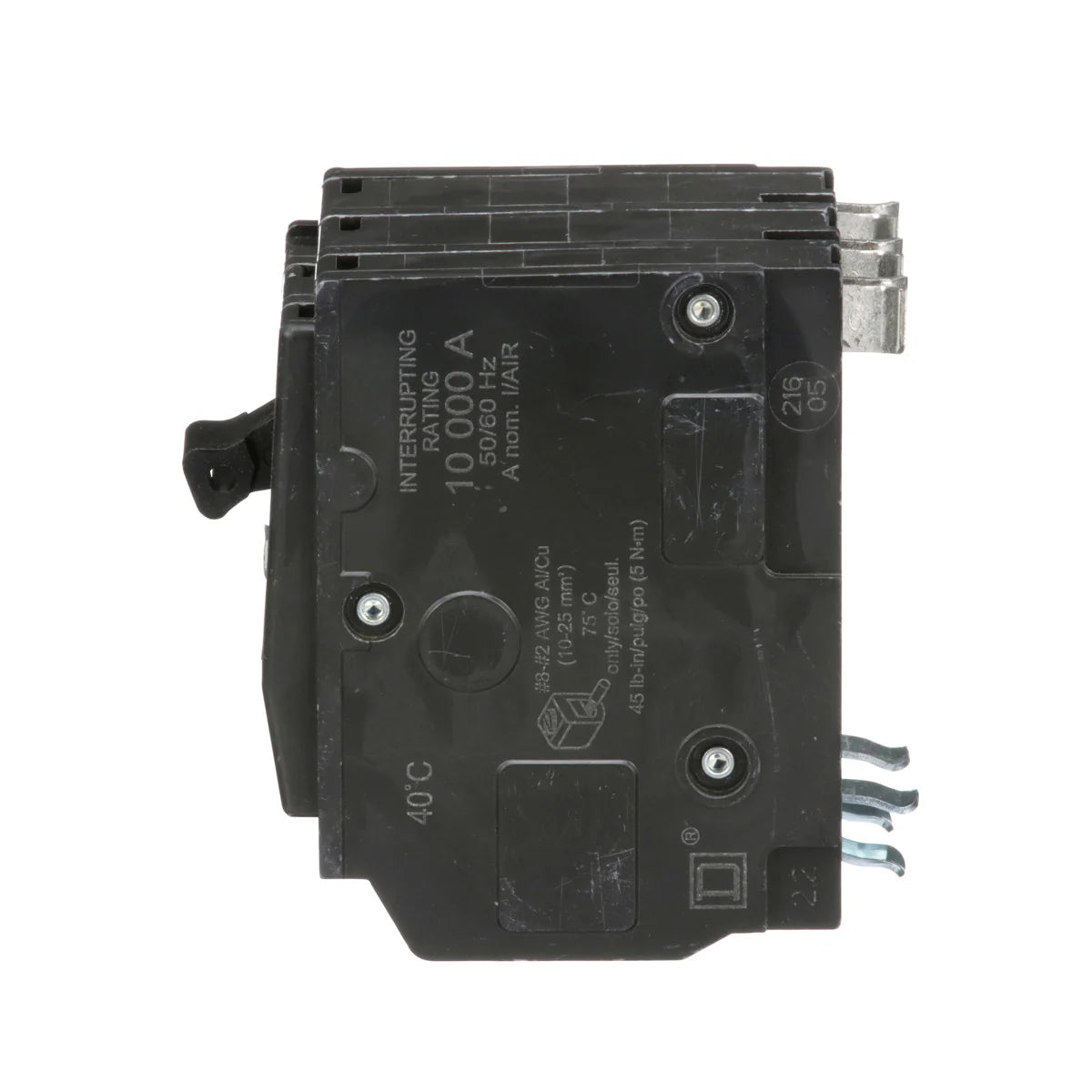

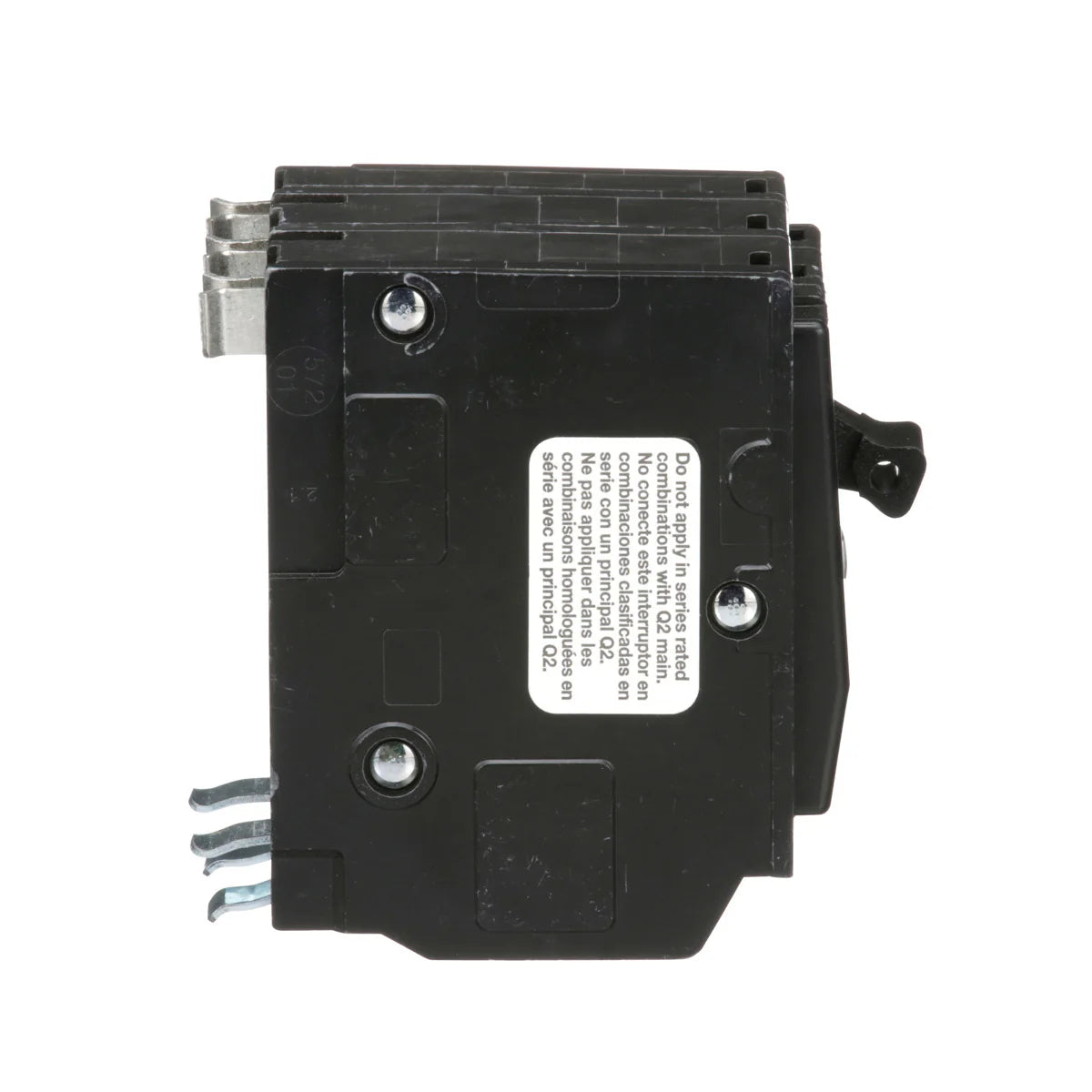

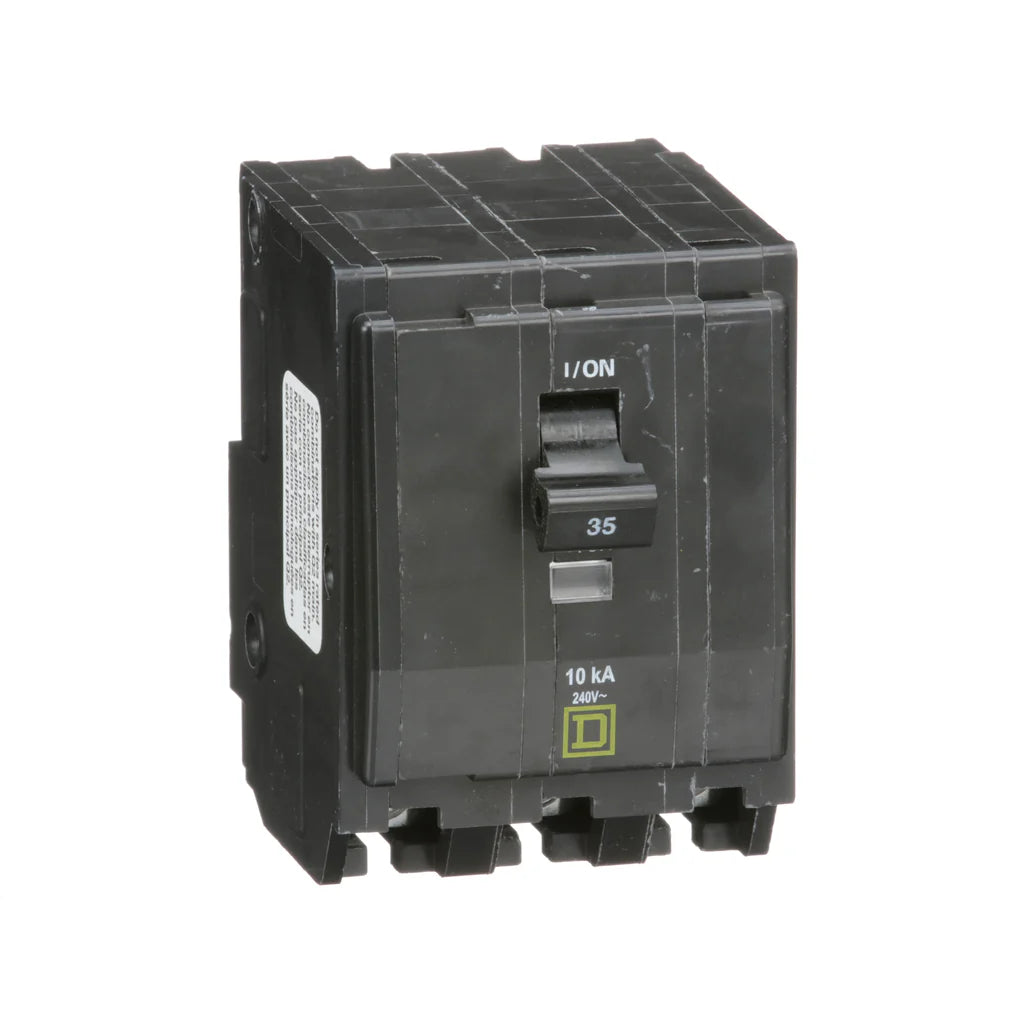

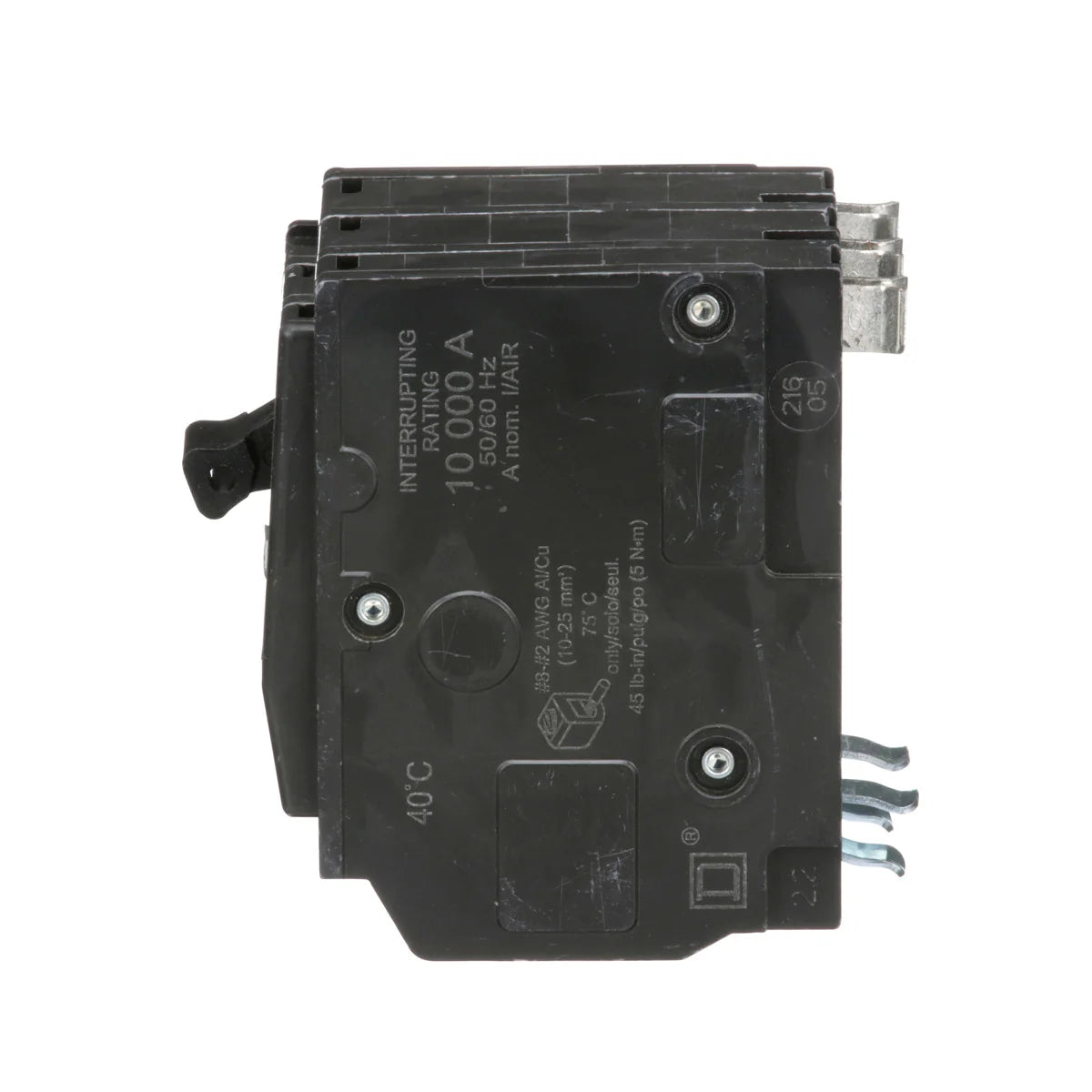

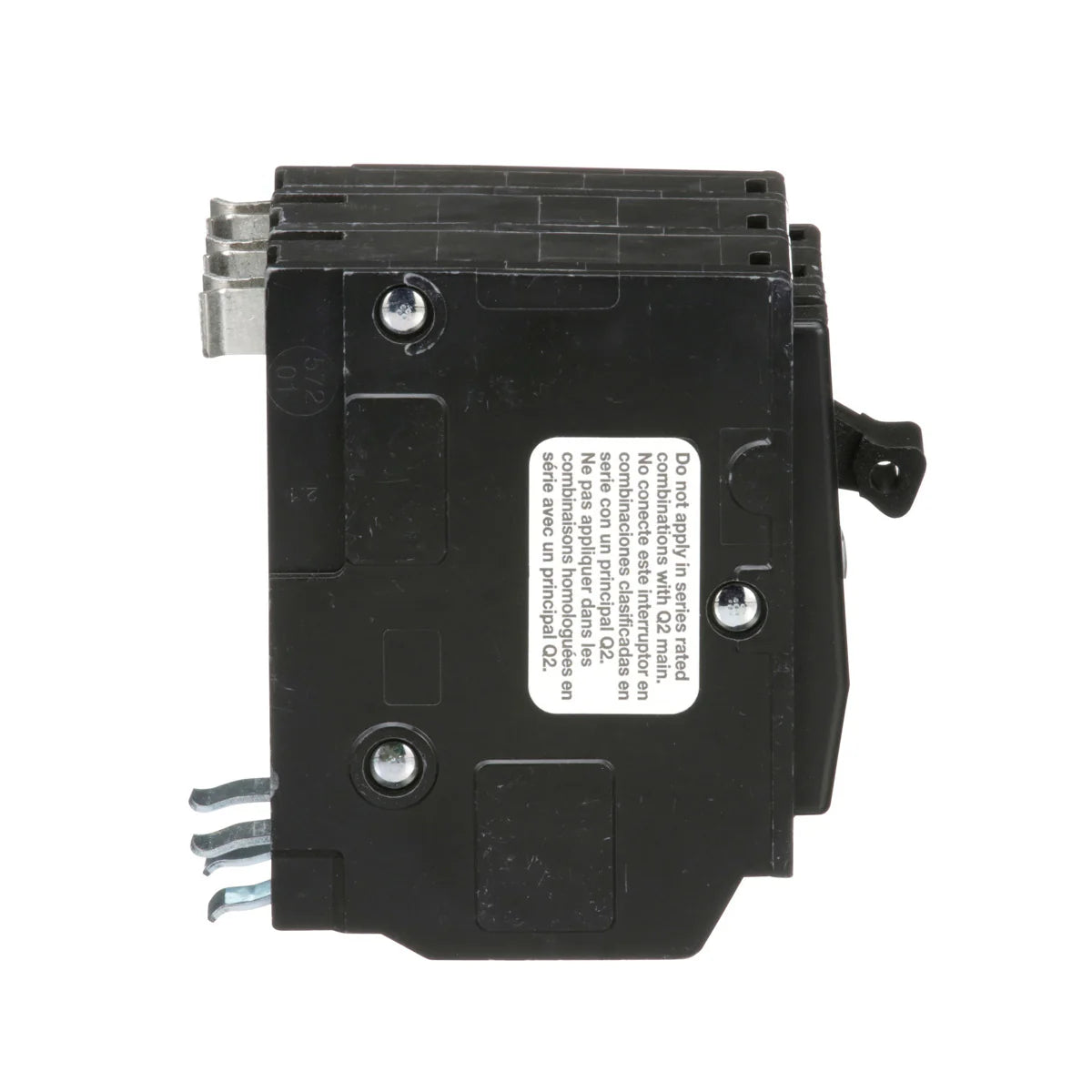

Square D QO335 Miniature Circuit Breaker 35A 240V 3Ph Plug-On

Product Description

Square D QO335 is a miniature circuit breaker with a rating of thirty-five amps at 240 volts. This three-pole breaker is ideal for both AC and DC systems. It features thermal magnetic protection with a quick make and break mechanism for reliable switching. The VisiTrip indicator allows users to see when the breaker has tripped. It has a breaking capacity of ten kiloamperes and plugs into the main panel for easy installation.

• Rated at thirty-five amps at 120/240VAC
• Plug-in mounting type for straightforward installation
• UL Listed and CSA Certified for safety compliance

Product Highlights

This circuit breaker is suitable for various applications, including HACR-rated devices and is compatible with AWG wire sizes ranging from eight to two. Additional features include optional accessories like shunt trips and auxiliary switches.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: QO335
• Current: 35 Amp
• Voltage: 120 Volt
• Number of Poles: 3 Pole
• Length: 2.91 inches
• Width: 57 mm
• Height: 76 mm
• Interrupt Rating: 10 kA
• Country of Origin: Mexico
