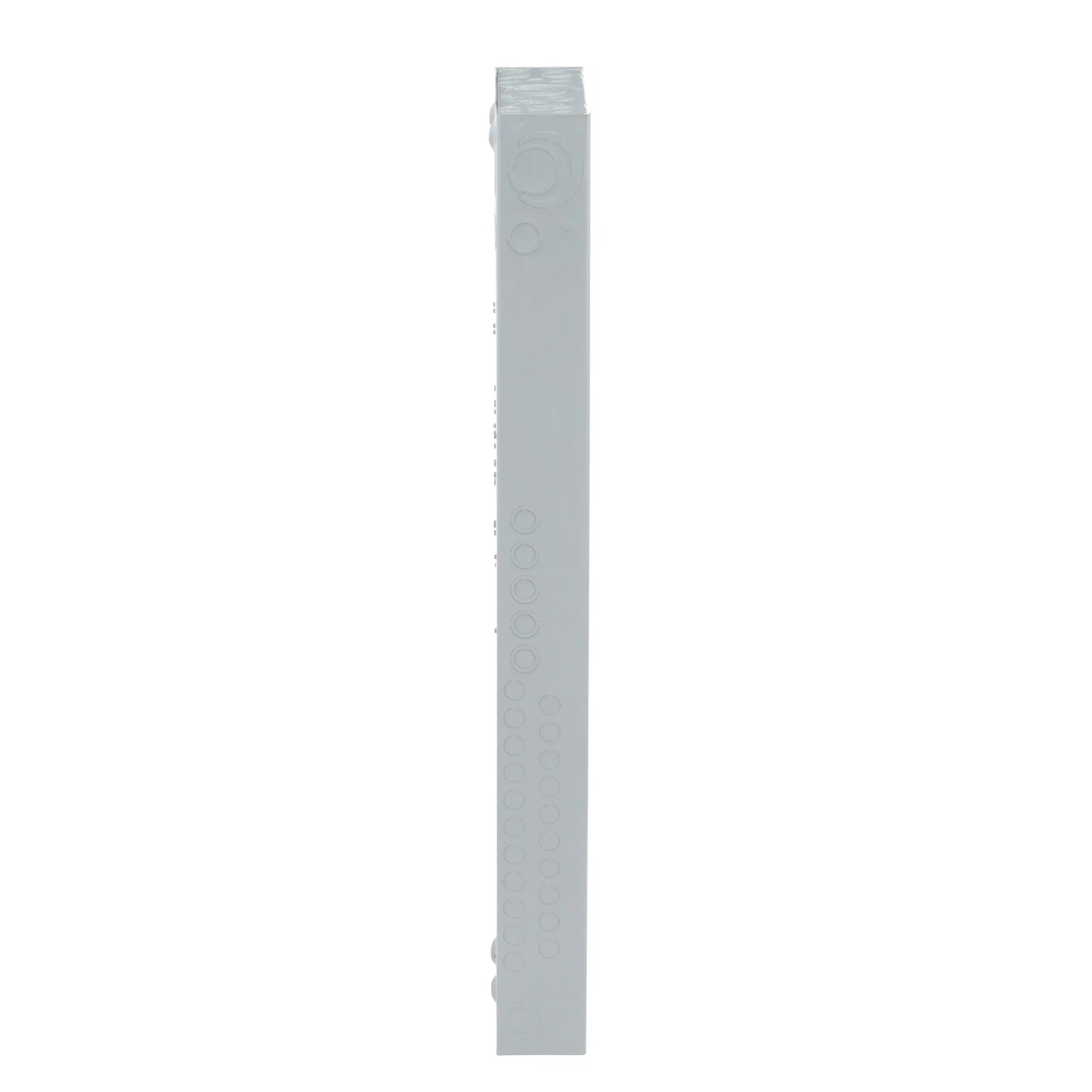

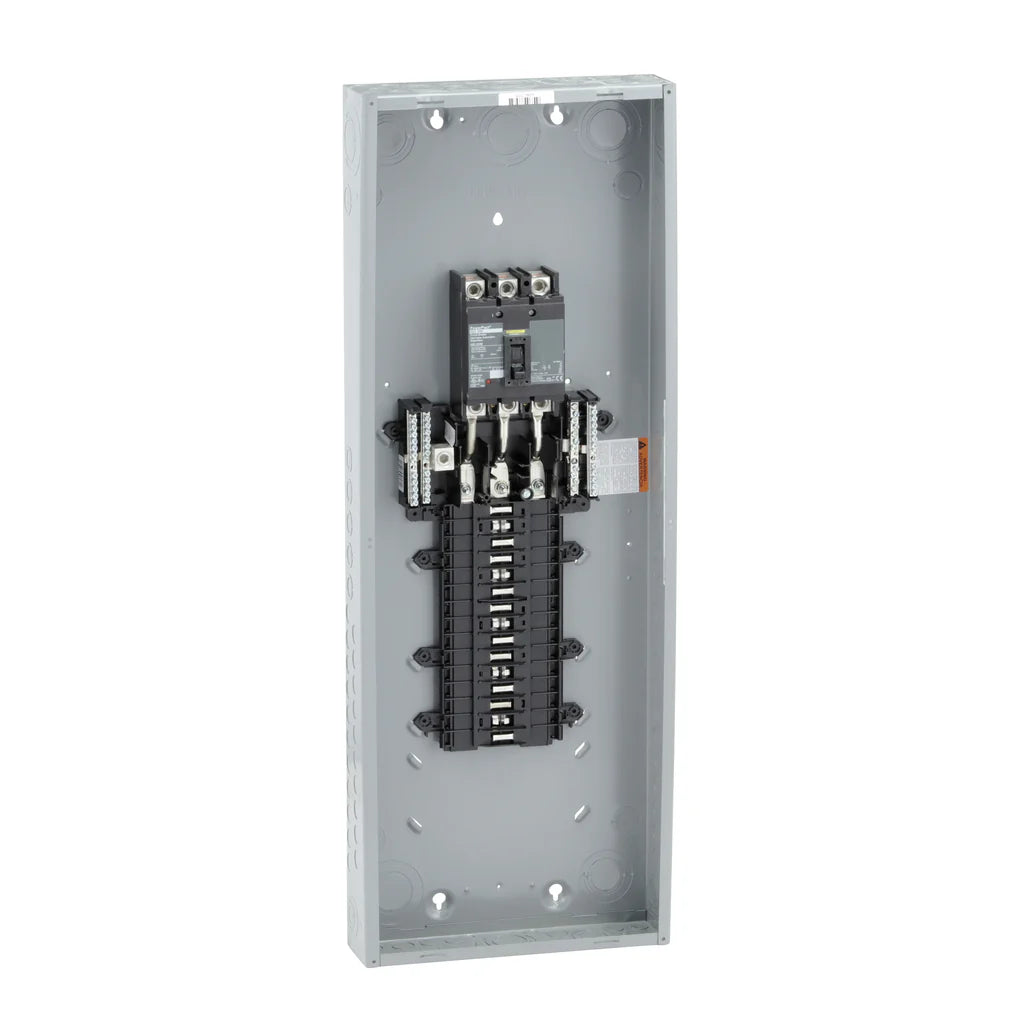

Square D QO330MQ200 Load Center MB 200A 120/240V 3Ph 30SP NEMA-1

Product Description

The Square D QO330MQ200 is a load center designed for a variety of electrical installations. This model operates at 200 amps and supports three-phase systems. It features thirty circuit spaces and a NEMA 1 enclosure suitable for indoor use.

• Compatible with QO breakers and accessories
• Features plated copper bus for enhanced performance
• Indoor and outdoor installation options available

Product Highlights

The load center is made to meet residential, commercial, and industrial safety standards. It protects electrical systems from faults and surges, ensuring safe and efficient operation.

Product Information

Standard Information

• Catalog Number: QO330MQ200
• Manufacturer: Schneider Electric

Technical Specifications

• Rated Current: 200 Amp
• Number of Spaces: 30
• Enclosure Material: Steel
• Voltage: 120 Volt / 240 Volt
• Phase: 3 Phase
• Cable Size: AWG 4...300 kcmil
• Operating Temperature: -5°C to 40°C
• Warranty: 18 Months
