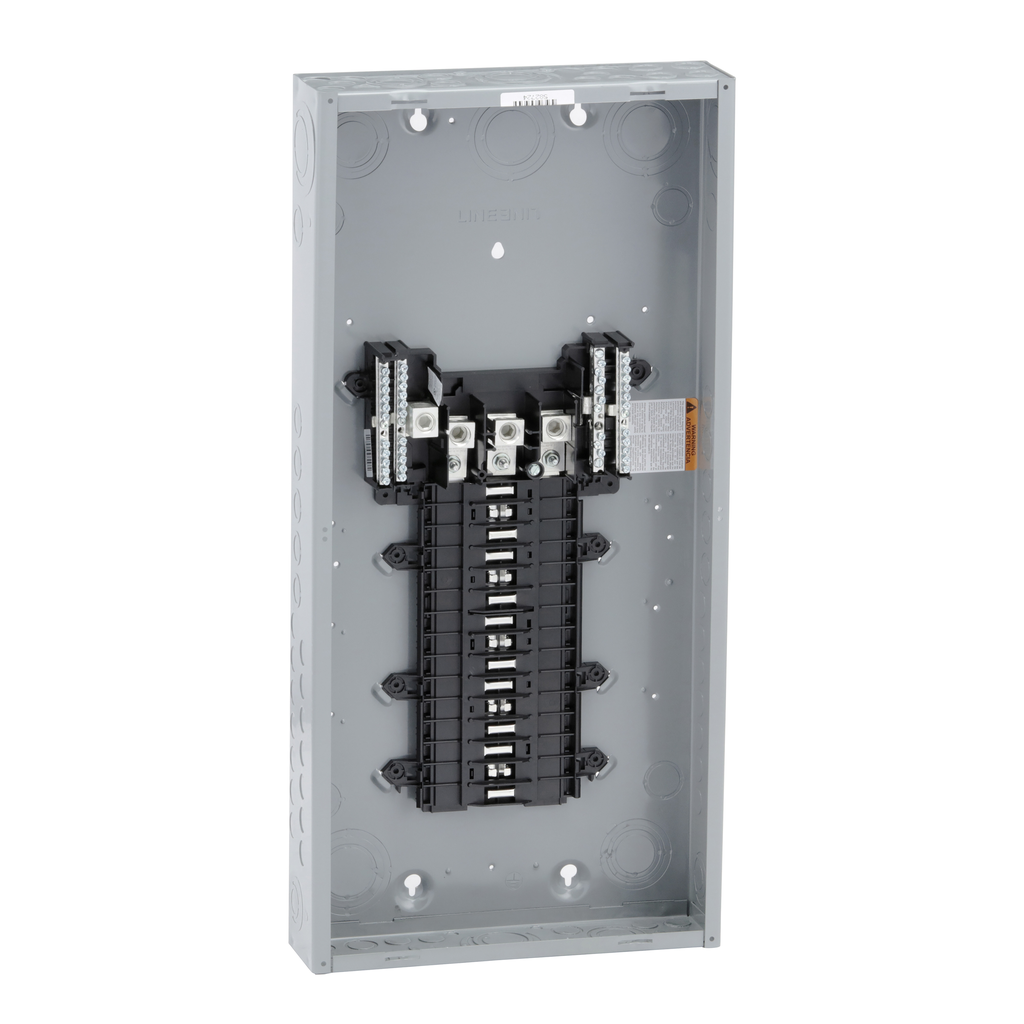

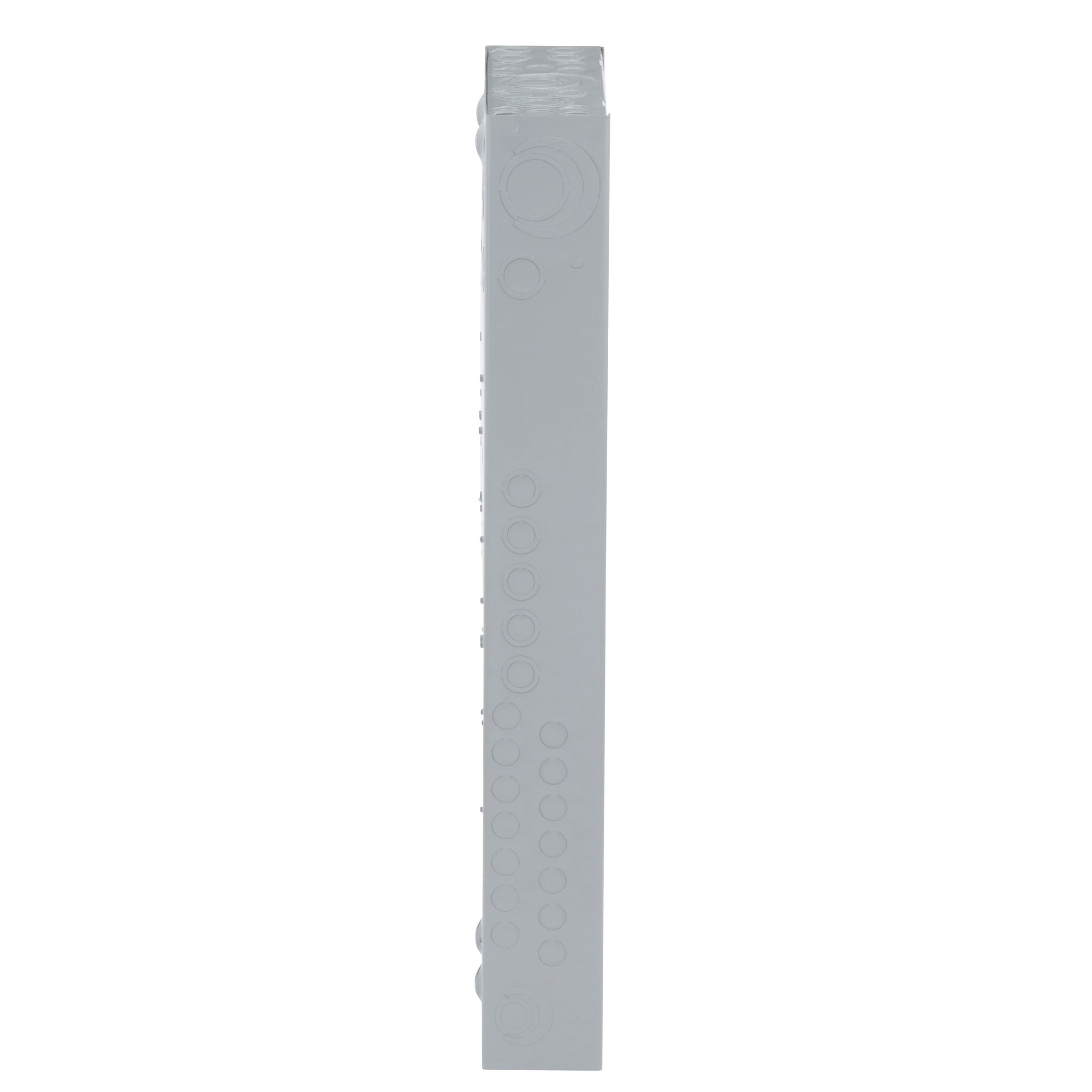

Square D QO330L200G Load Center MLO 200A 120/240V 3Ph 30SP NEMA-1

Product Description

The Square D QO330L200G Load Center features a main lug rated at 200 Amps. This load center is suitable for 120/240 Volt, three-phase applications. It has 30 spaces and allows for up to thirty circuits. The product adheres to NEMA 1 enclosure standards, making it ideal for indoor use.

• Compatible with QO breakers, ground fault interrupters, and surge arresters
• Equipped with a grounding bar
• Constructed with a tin plated copper bus for improved performance

Product Highlights

This load center is designed for both residential and commercial use. It accommodates various setups such as single-phase and three-phase configurations. The indoor enclosure can rotate to allow for top or bottom feed service entrance, thus optimizing cable runs.

Product Information

Standard Information

• Catalog Number: QO330L200G
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Load Center
• Current Rating: 200 A
• Voltage Rating: 120/240 V
• Phase: 3
• Number of Spaces: 30
• Enclosure Material: Baked Enamel Gray, Welded Steel
• UPC: 785901295501
• Operating Temperature: 23 degrees F (-5 degrees C) to 104 degrees F (40 degrees C)
