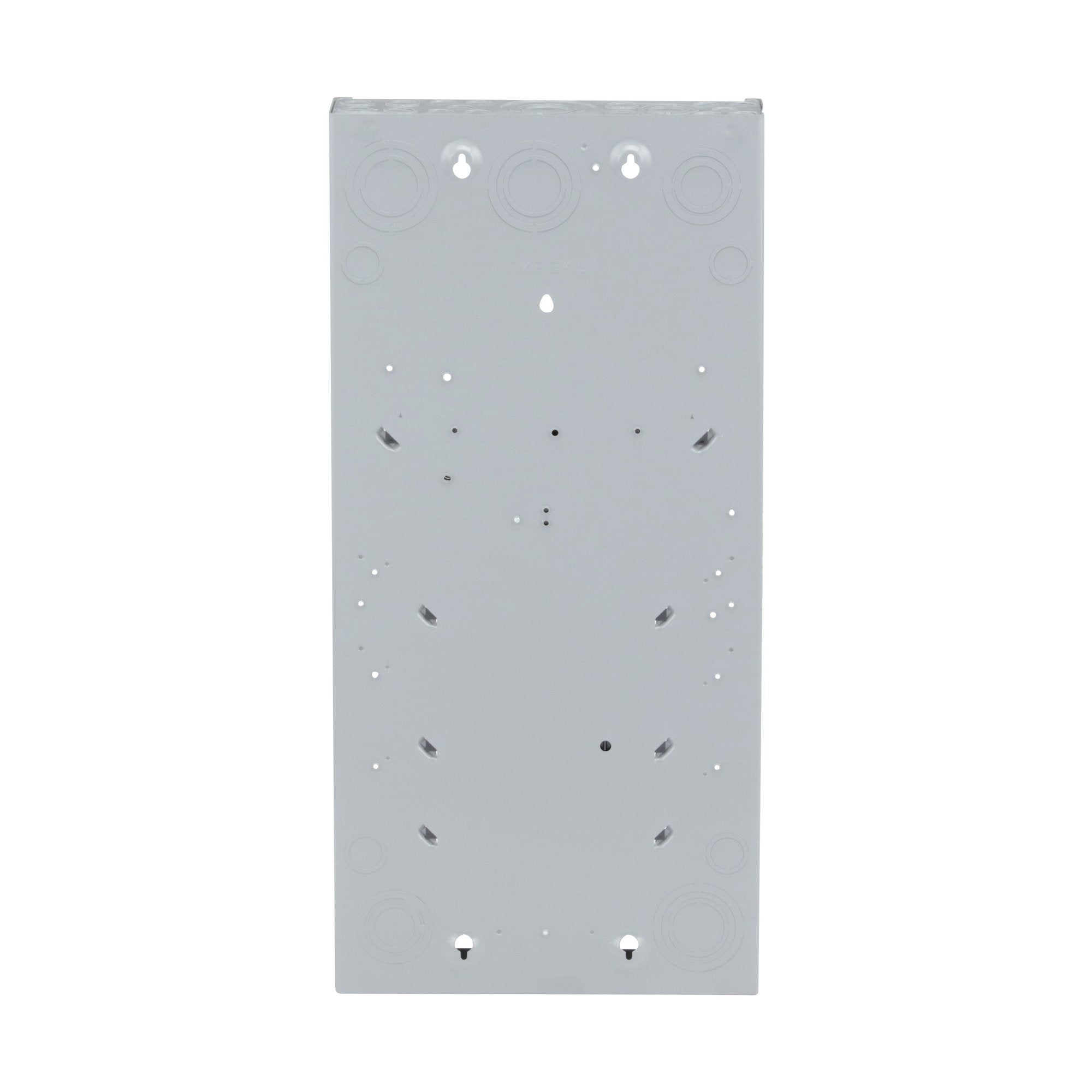

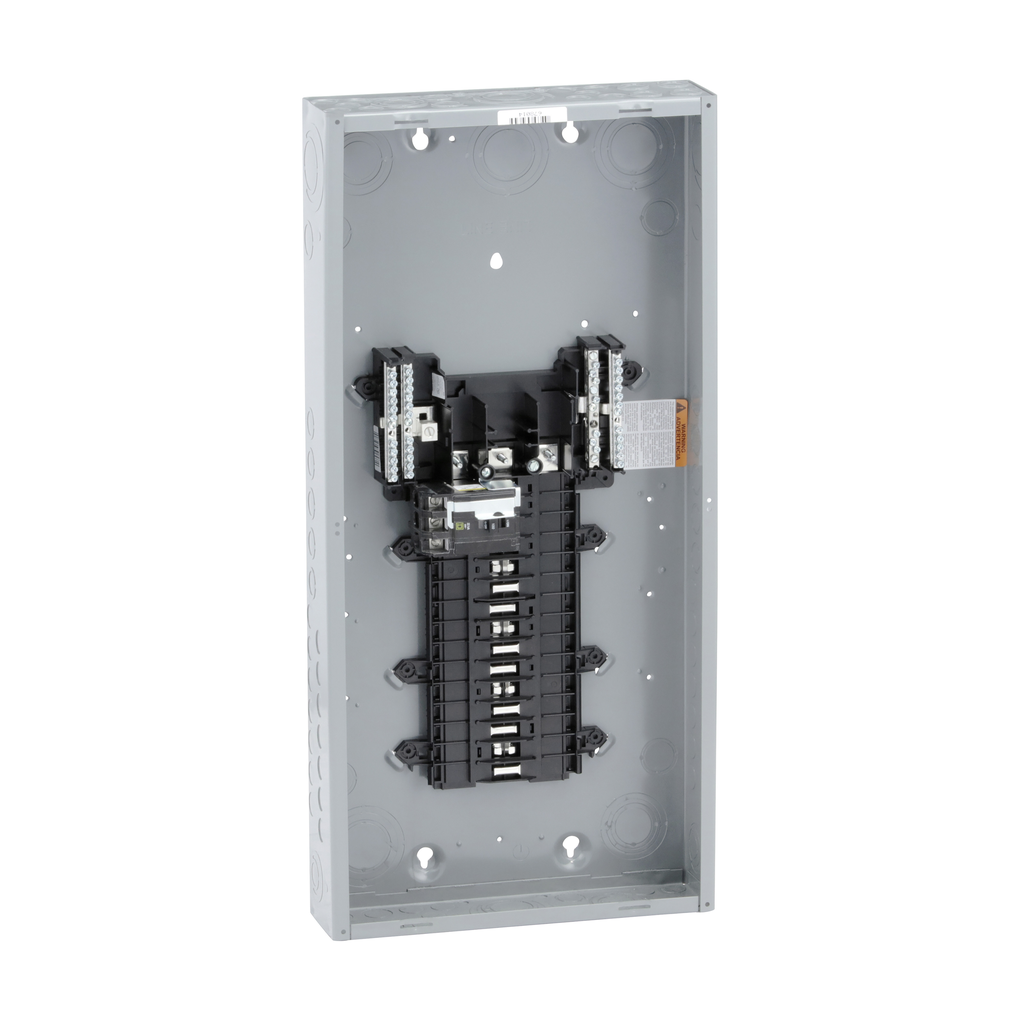

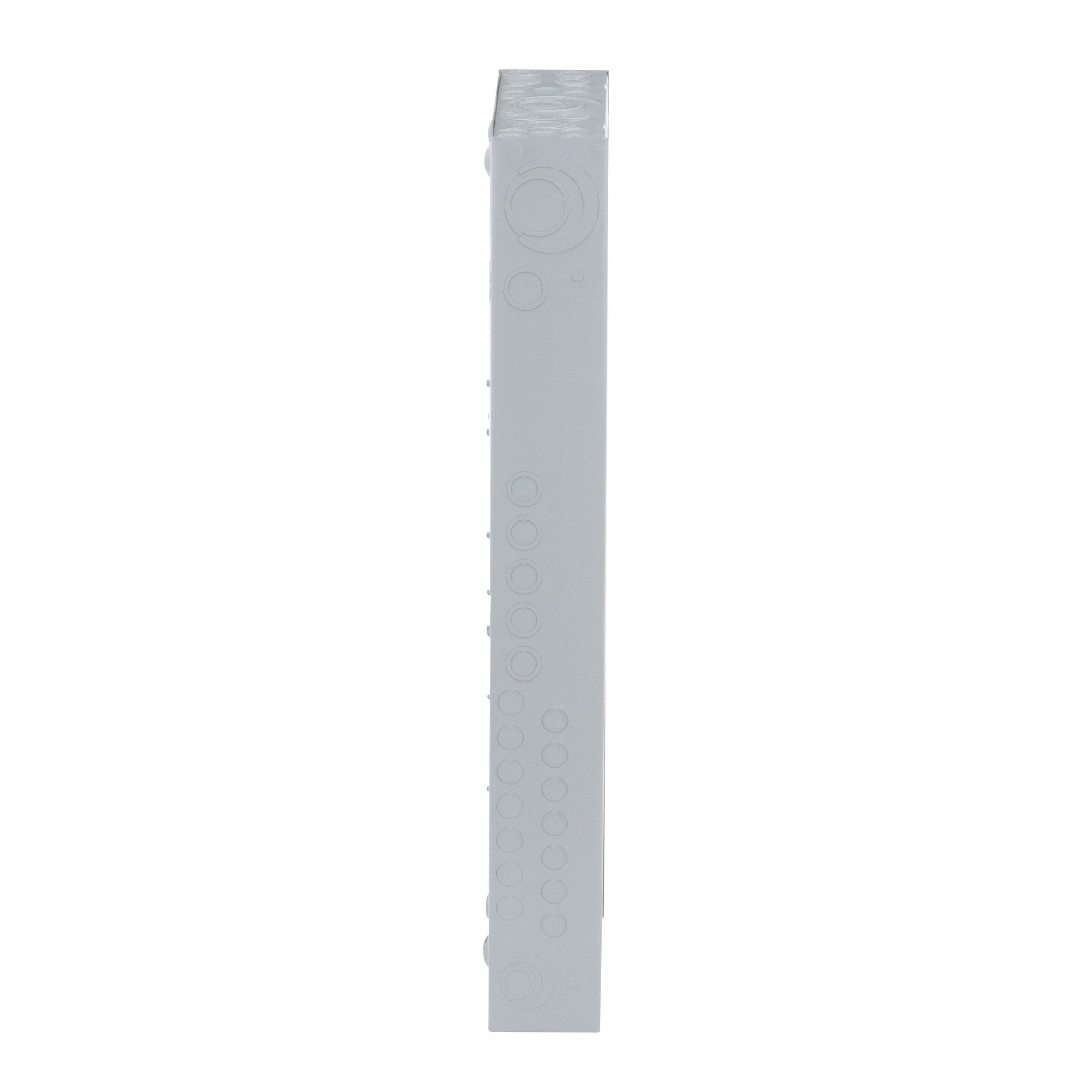

Square D QO327M100 Load Center 100A 240V 3Ph 27SP NEMA-1

Product Description

Square D QO327M100 Load Center is a three-phase system rated for one hundred amps at two hundred forty volts. This load center has twenty-seven spaces and is housed in a NEMA 1 enclosure, suitable for indoor and outdoor use. It allows for the installation of QO breakers and various accessories such as ground arc fault and surge arresters. The load center supports both single-phase and three-phase configurations, providing flexibility for different applications.

• Rated at one hundred amps with twenty-seven spaces.
• Compatible with QO breakers, ground fault, and surge arresters.
• Constructed with a tin-plated copper bus for enhanced durability.

Product Highlights

The Square D QO327M100 is designed to meet residential, commercial, and industrial requirements, ensuring reliable protection for electrical systems and equipment.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: QO327M100

Technical Specifications

• Current Rating: 100 Amp
• Voltage: 120 Volt/240 Volt
• Number of Phases: 3
• Number of Spaces: 27
• Enclosure Type: NEMA 1
• Busbar Material: Tin Plated Copper
• Operating Temperature: 23 degrees F to 104 degrees F
• Interrupt Rating: 25 kAIC
• Cover Type: Order separately
• Certification: UL listed
