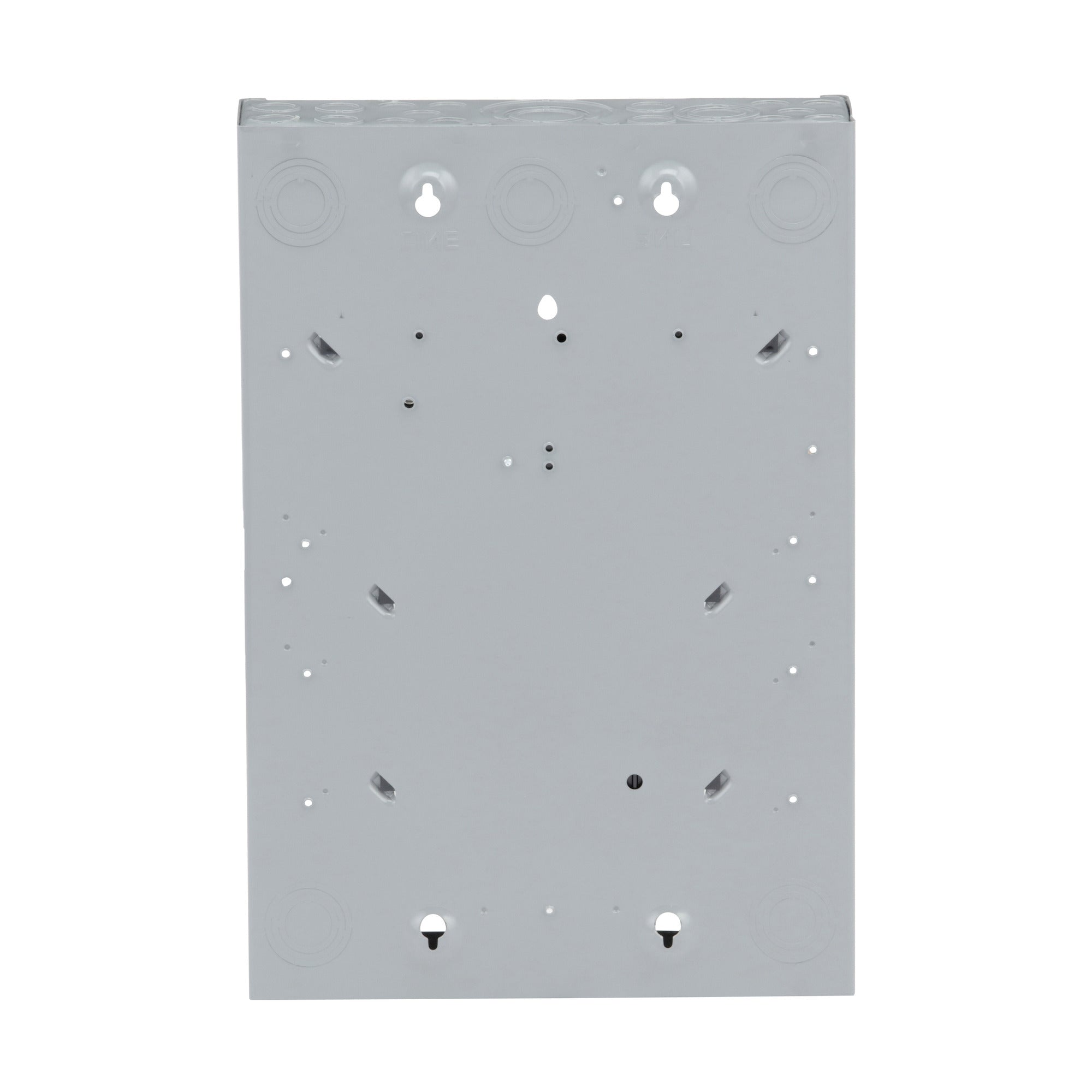

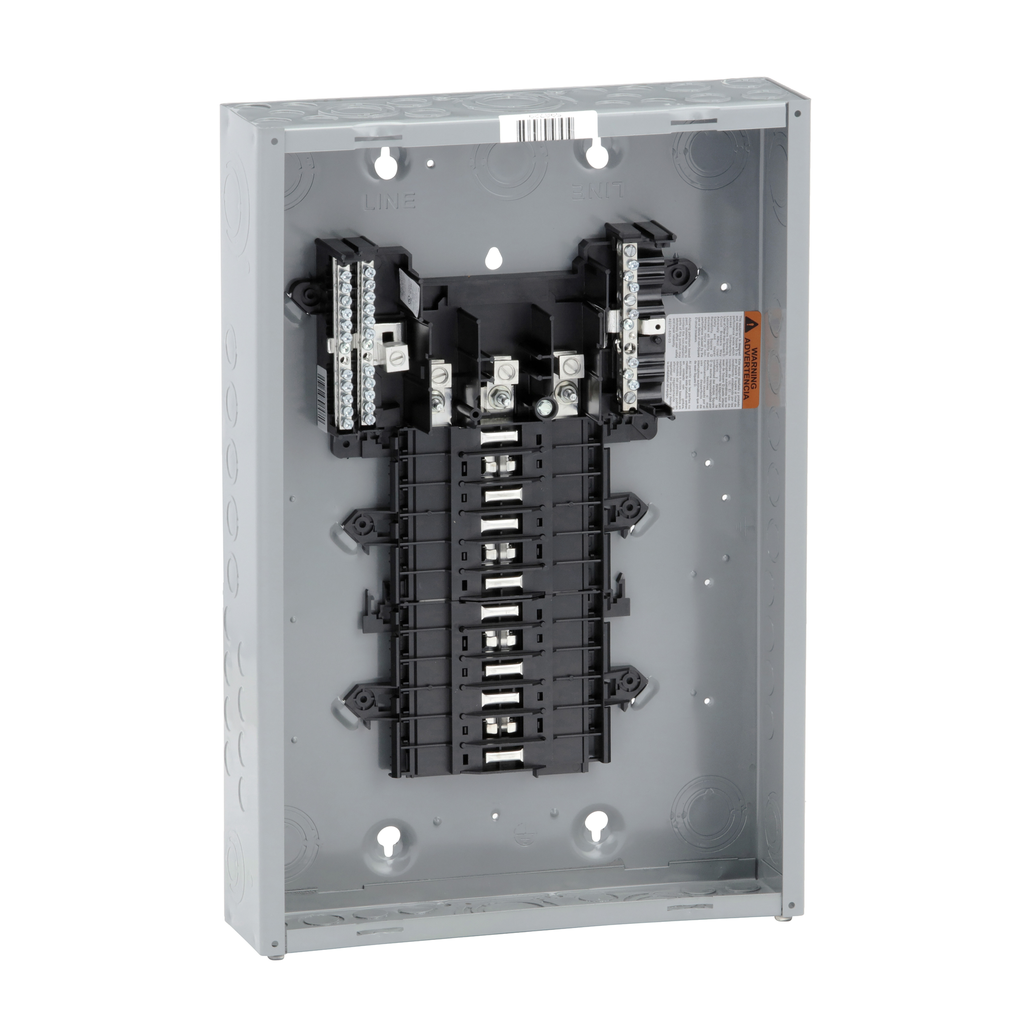

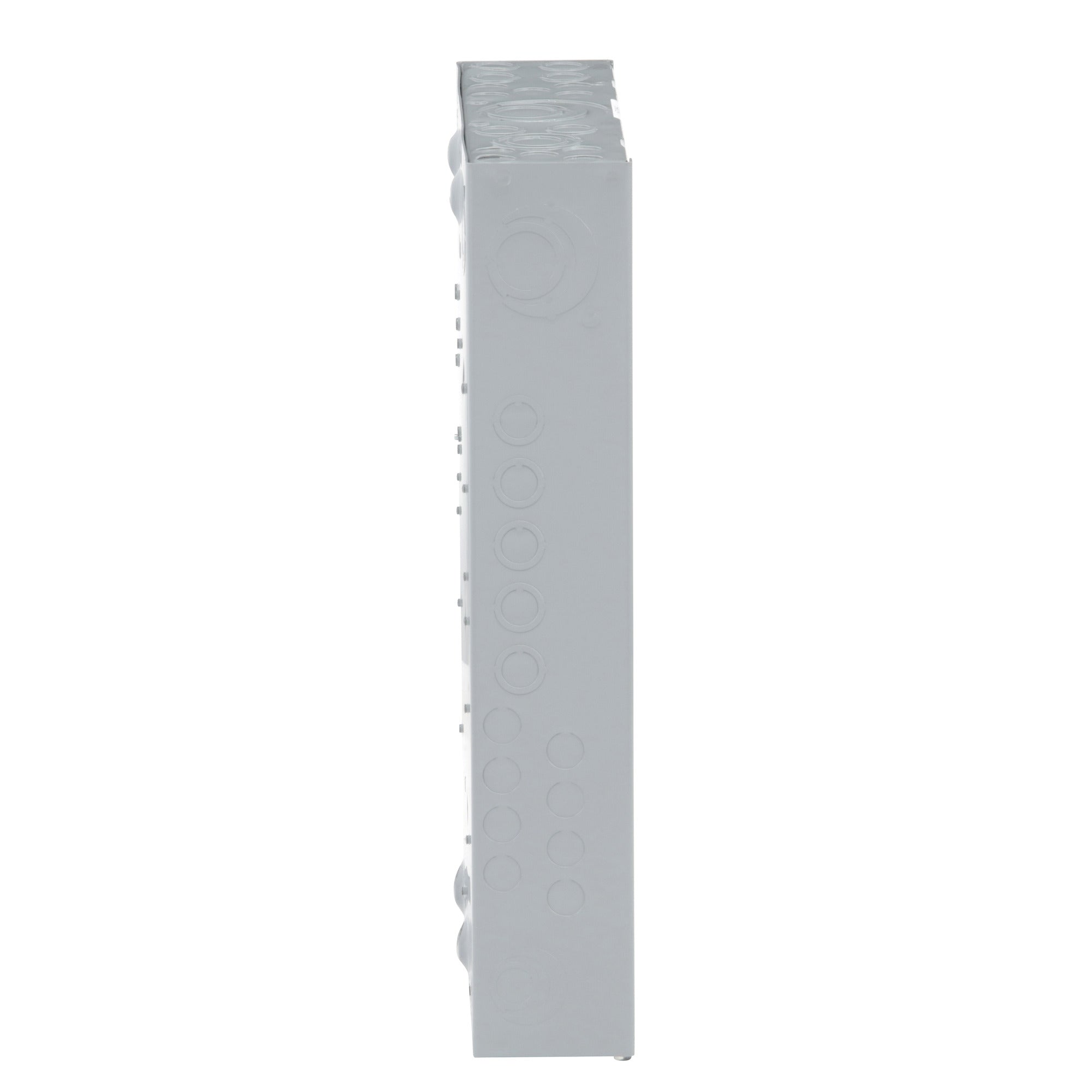

Square D QO324L125G Load Center MLO 125A 120/240V 3Ph 24SP NEMA-1

Product Description

The Square D QO324L125G is a load center designed for 125 amp operation with a three-phase configuration. This load center features 24 spaces and is suitable for both residential and commercial use. Built to accommodate QO breakers and various accessories, it is a reliable choice for protecting electrical systems.

• Main lug rated for 125 A
• NEMA 1 enclosure suitable for indoor use
• UL listed for safety and performance

Product Highlights

This load center is crafted for durability with its tin-plated copper busbar and baked enamel finish, making it ideal for various electrical applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO324L125G
• Voltage: 120/240 Volt
• Current: 125 Amp
• Number of Circuits: 24
• Phase: 3 Phase
• Enclosure Material: Steel
• Width: 362 mm
• Height: 531 mm
• Warranty Length: 18 months
• Certifications: UL
• Operating Temperature: -5 to 40 degrees C
