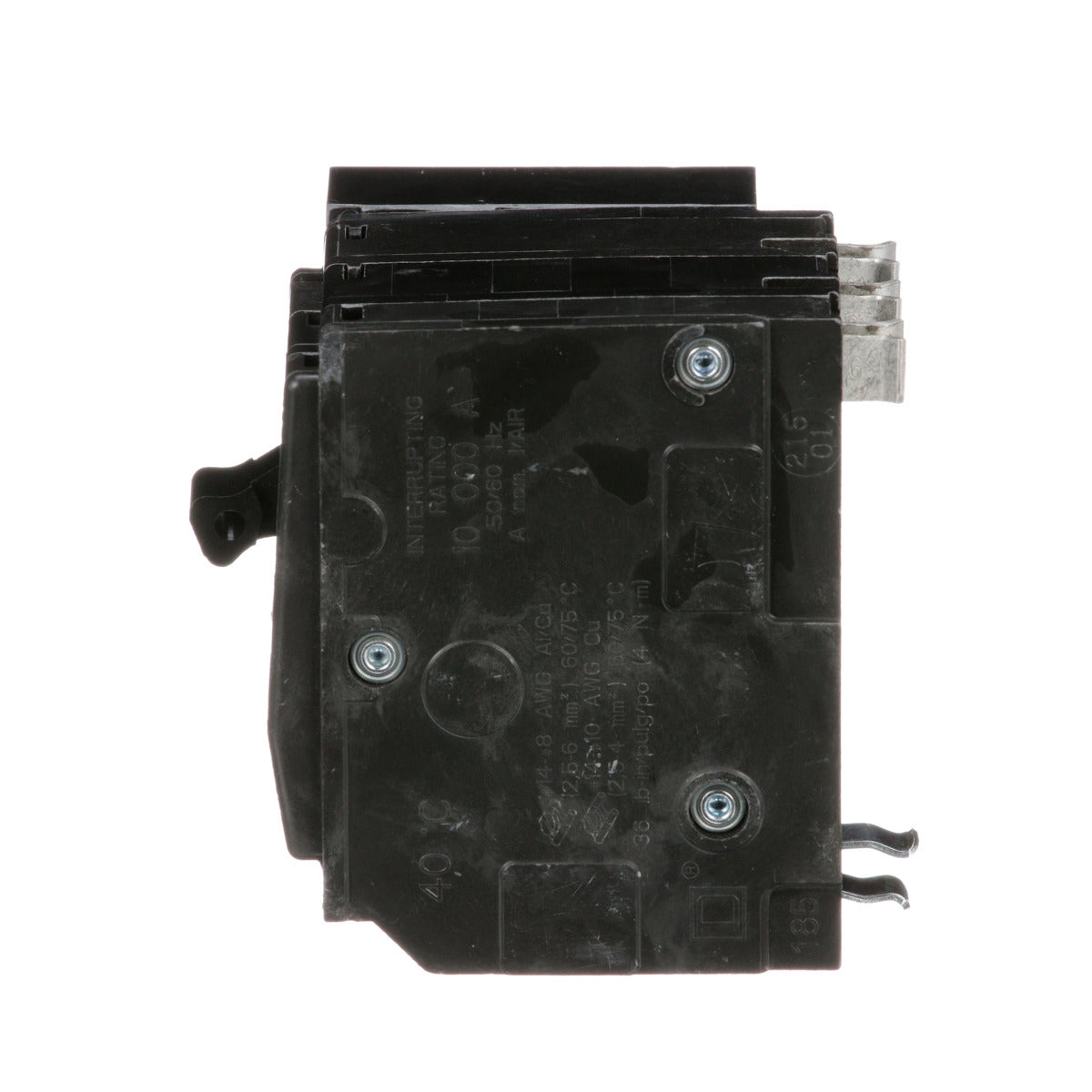

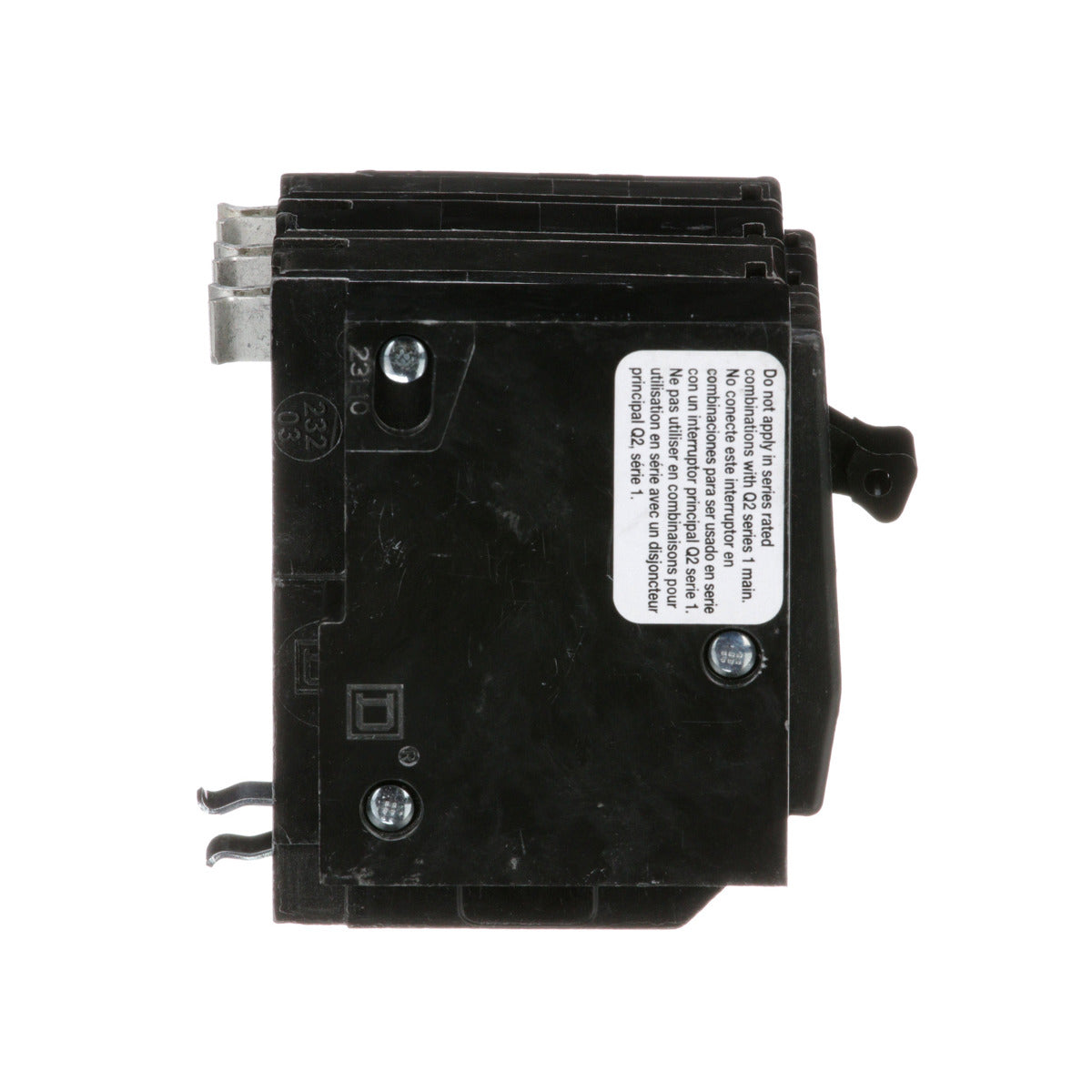

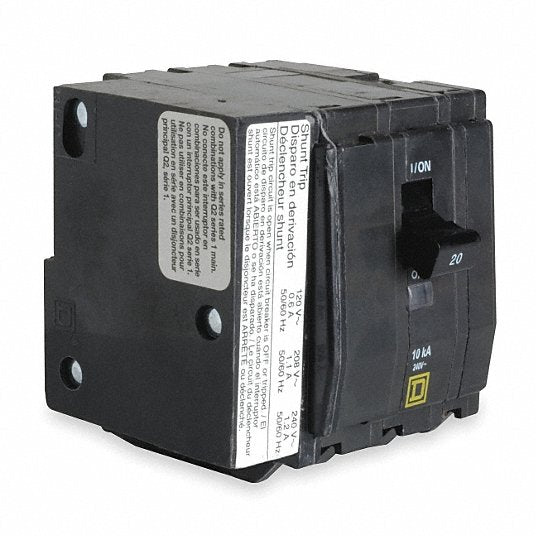

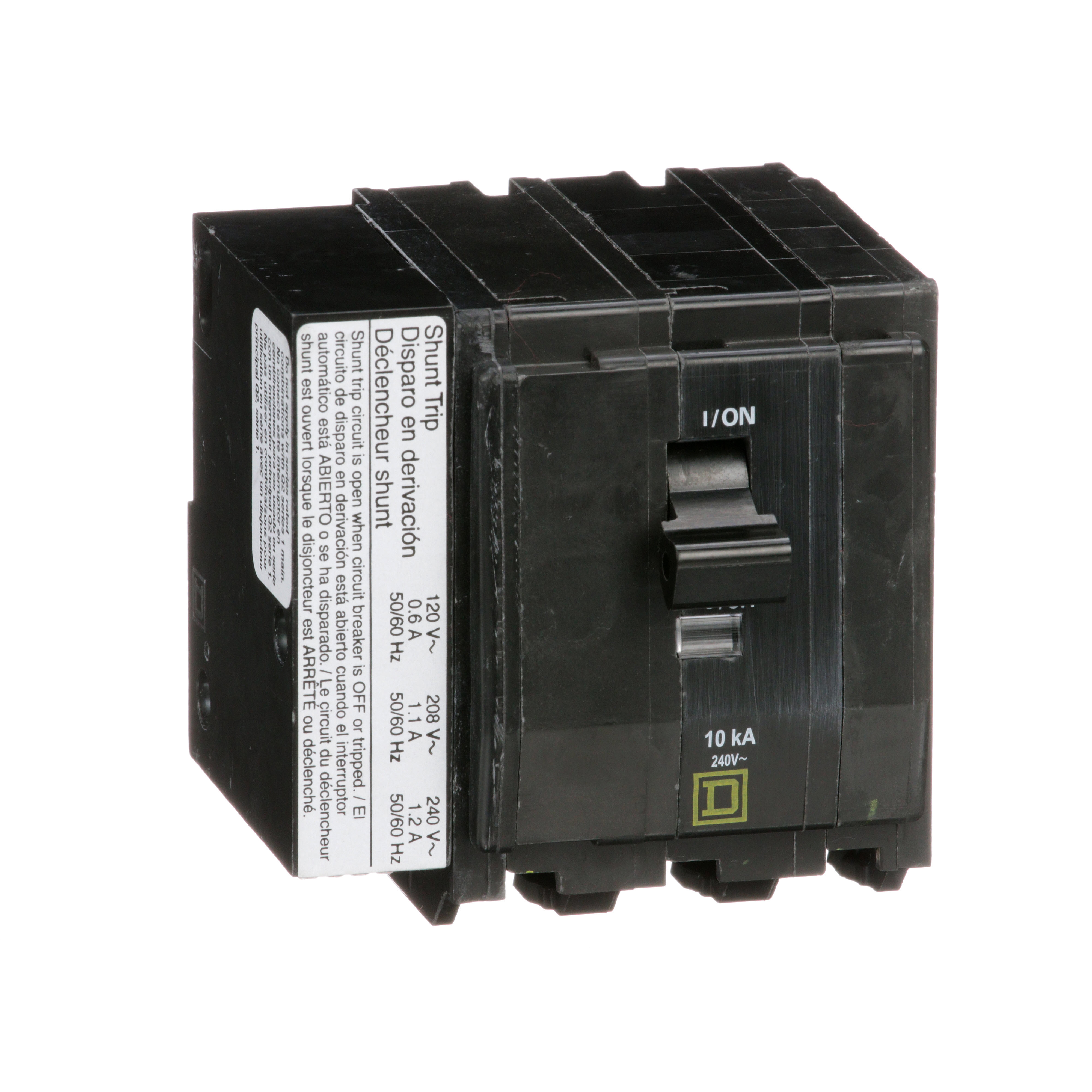

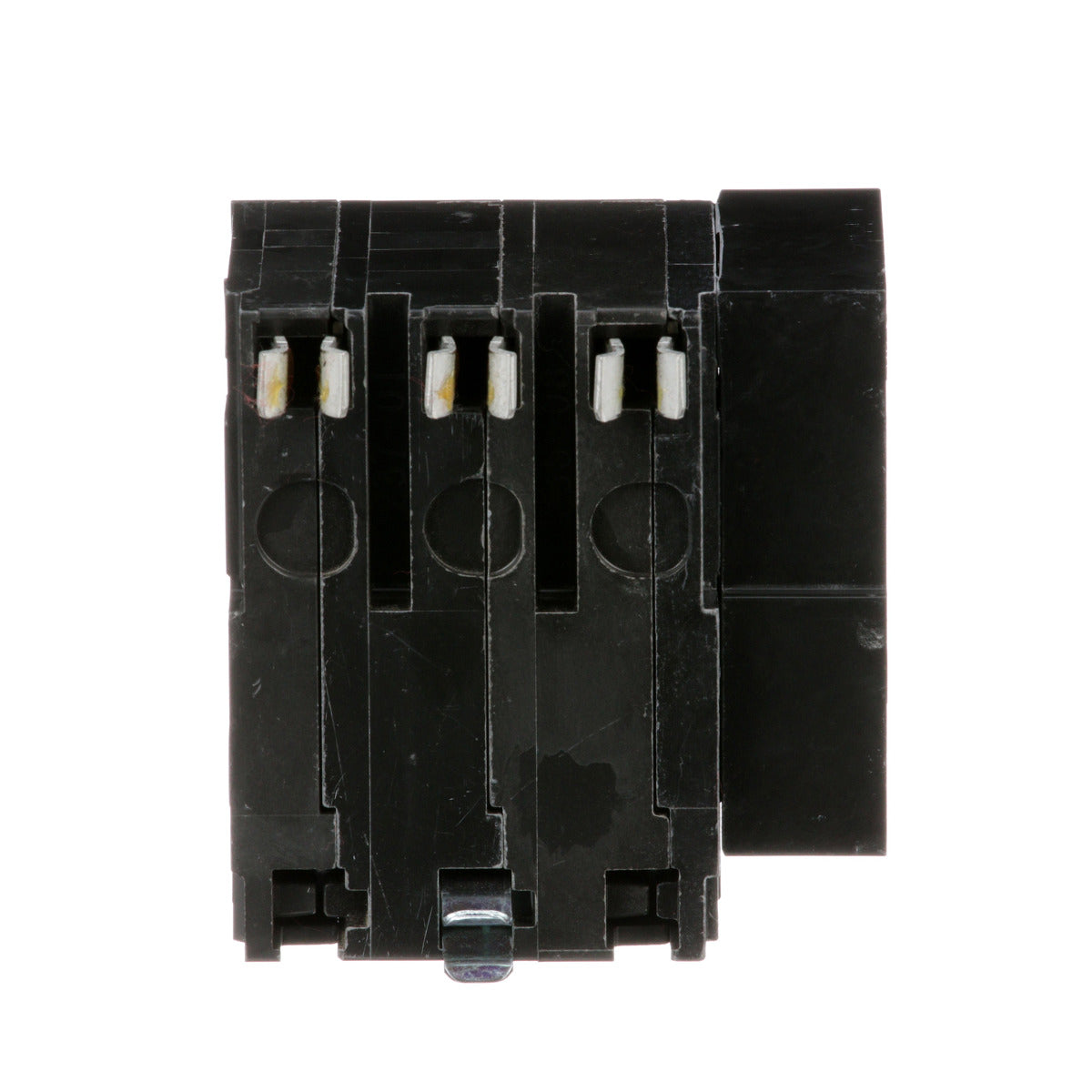

Square D QO3201021 Miniature Circuit Breaker 20 Amp

Product Description

The Square D QO3201021 miniature circuit breaker provides overcurrent protection and switching on AC and DC systems. This 3-pole circuit breaker is rated at 20A at 120/240VAC with a 10kA breaking capacity and plug-in mounting. It features a trip-free toggle mechanism, quick make/break action, and VisiTrip trip indication.

• Provides overcurrent protection and switching on AC and DC systems
• Features a trip-free toggle mechanism with quick make/break action
• Offers VisiTrip trip indication for visual indication of tripped circuit

Product Highlights

This Square D miniature circuit breaker is ideal for QO load centers, NQOD panelboards and OEM interior/Speed-D switchboard distribution panels.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO3201021
• Country of Origin: Mexico

Technical Specifications

• GTiN: 00785901494096
• Type: Miniature circuit-breaker
• Brand: Square D
• Current: 20 Amp
• Voltage: 240 VAC
• Amperage: 20 Amp
• Sub Brand: QO
• Wire Size: AWG 14...AWG 8 copper or aluminium
• Product UPC: 78590149409
• 12-Digit UPC: 785901494096
• Applications: HACR rated
• Mounting Type: Plug-in
• TC Connection: Pressure plate
• Certifications: CSA,UL Listed
• Conductor Size: 14-8 AWG
• Number of Poles: 3
• Interrupt Rating: 10 kA
• Country of Origin: Mexico
• Line Rated Current: 20 A
• Circuit Breaker Type: Standard
• Operating Temperature: 40 degrees C
• Short Circuit Current: 10 kA
• Terminal Type: Pressure Plate
• Mounting: Plug On
• Used On: QO Load Center, NQOD Panelboard, OEM Interior/Speed-D Switchboard Distribution Panel
• Approval: UL, CSA
• Frequency Rating: 50/60 Hz
• Phase: 3
• Trip Type: Thermal Magnetic
• Rated Voltage: 120/240V ac
