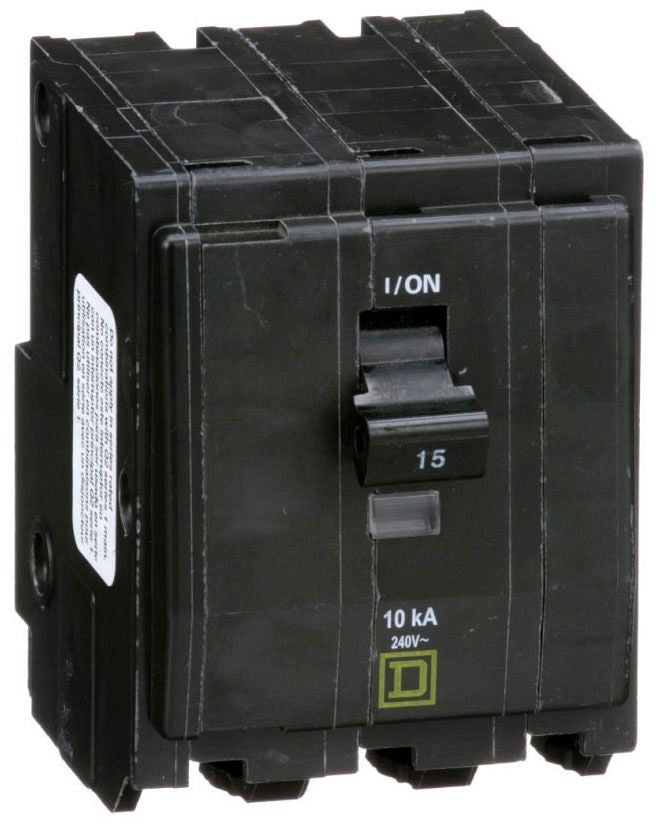

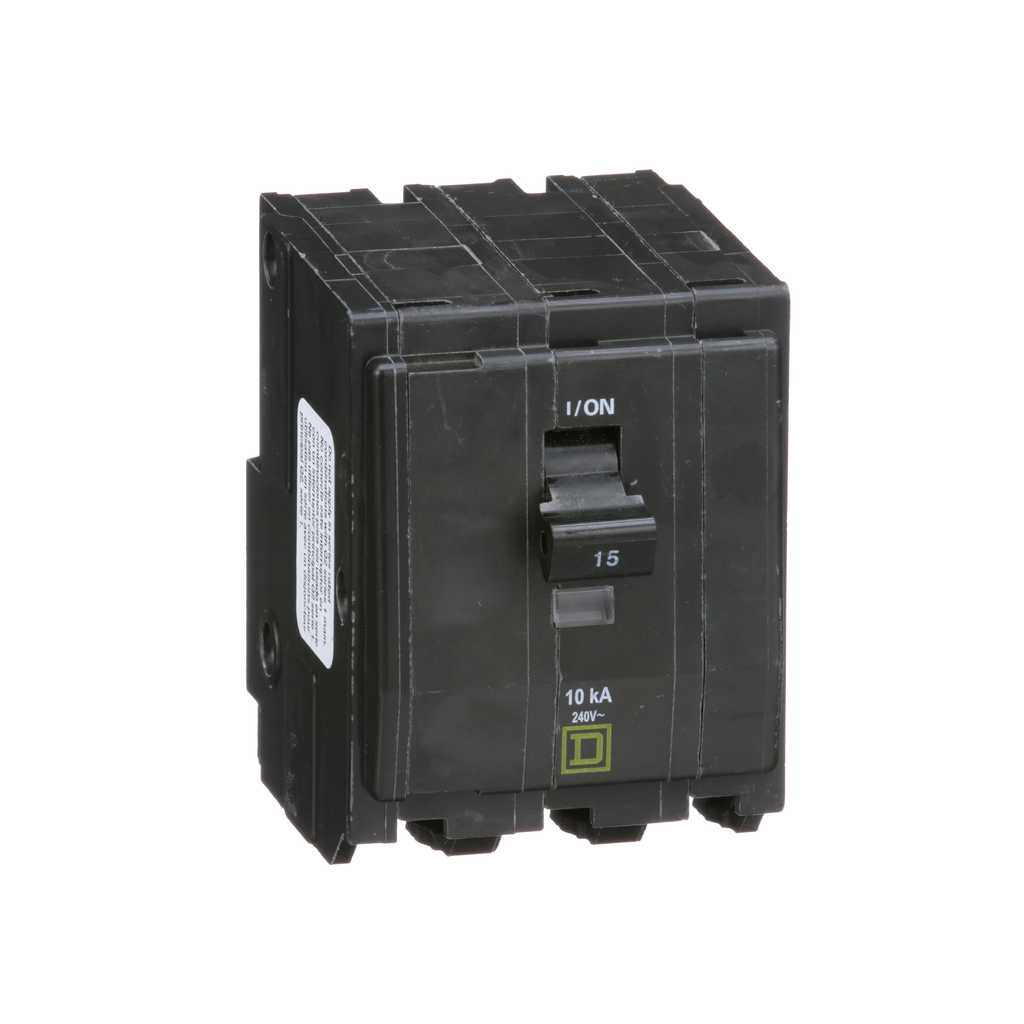

Square D QO315 Miniature Circuit Breaker 15A 240V 3PH Plug-On

Product Description

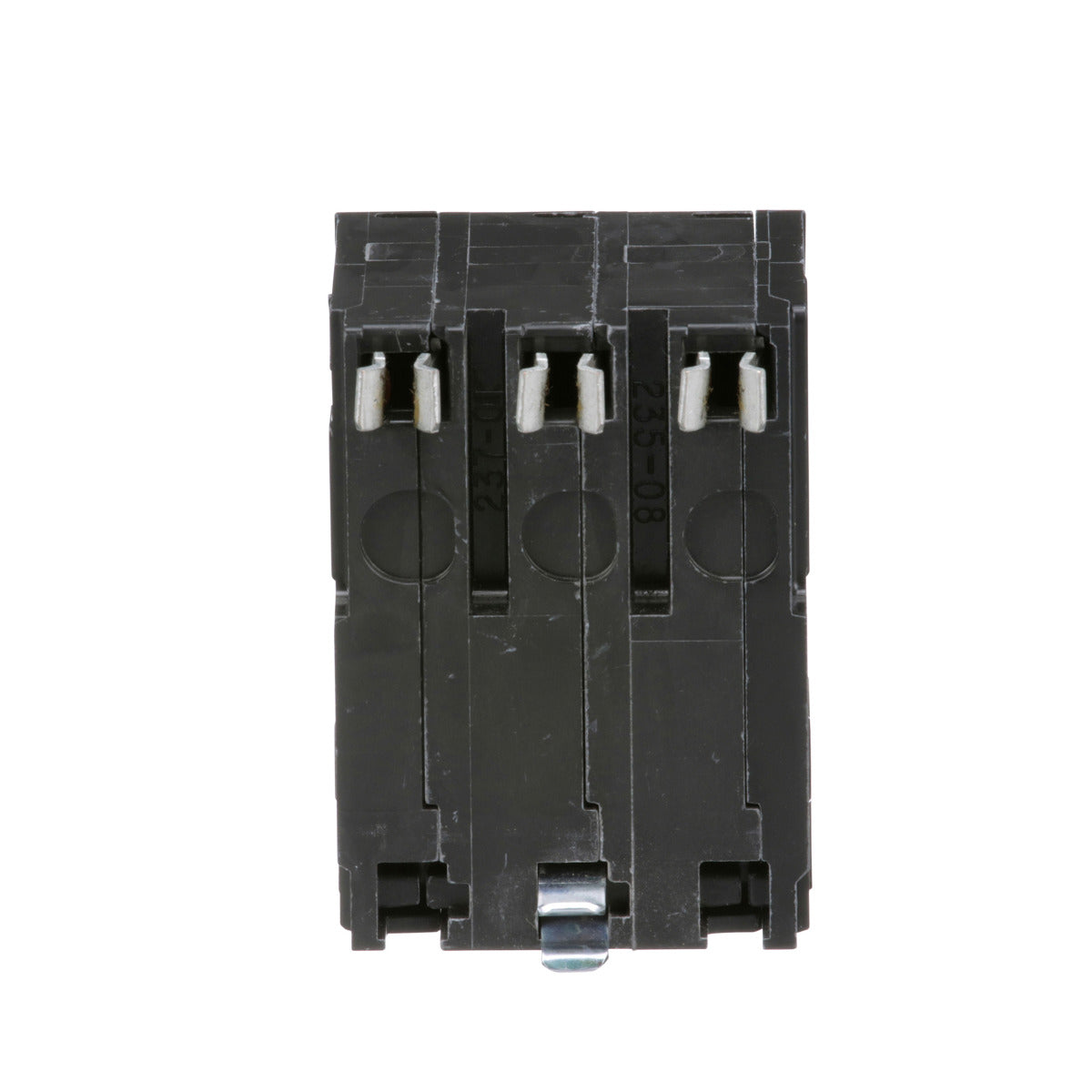

Square D QO315 is a miniature circuit breaker designed for reliable overcurrent protection in AC and DC systems. It features a plug-on installation which simplifies the setup process in QO Load Centers and panelboards. This breaker is rated 15 amps at 240 volts and has a 10 kA breaking capacity.

• Three-pole design for effective circuit management.
• Positive handle indication for quick visual assessment.
• UL and CSA listed for enhanced safety and compliance.

Product Highlights

The QO315 circuit breaker integrates a trip-free toggle mechanism that ensures quick make and break action. Its compact design occupies minimal space, making it suitable for various applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO315
• Type: Miniature circuit-breaker
• Current Rating: 15 Amp
• Voltage Rating: 240 Volt
• Breaker Type: Thermal Magnetic
• Number of Poles: 3
• Width: 2.91 Inch
• Depth: 3.3 Inch
• Height: 3 Inch
• Interrupt Rating: 10 kA
• Country of Origin: Mexico
• Warranty Length: 18 months
